EUROKRAFTpro – Platform truck with electric drive 2 mesh end panels

  • Highly versatile use due to modular design
  • The replaceable, rechargeable battery system allows unlimited operating time
  • Intuitive operation, perfect steering control
  • Drawbar head with precise speed control, creep speed button, belly switch and horn
  • Integrated foot protection on the e-module
EUROKRAFTpro
10 year guarantee
10 year guarantee
New
*Whether azure blue or salmon pink – we will customise the product for you for a surcharge of just 10%. Please note that this voids your right of return, and that the delivery time may be longer. The colours shown on your screen may deviate from the original.
Ref.: 649490 49

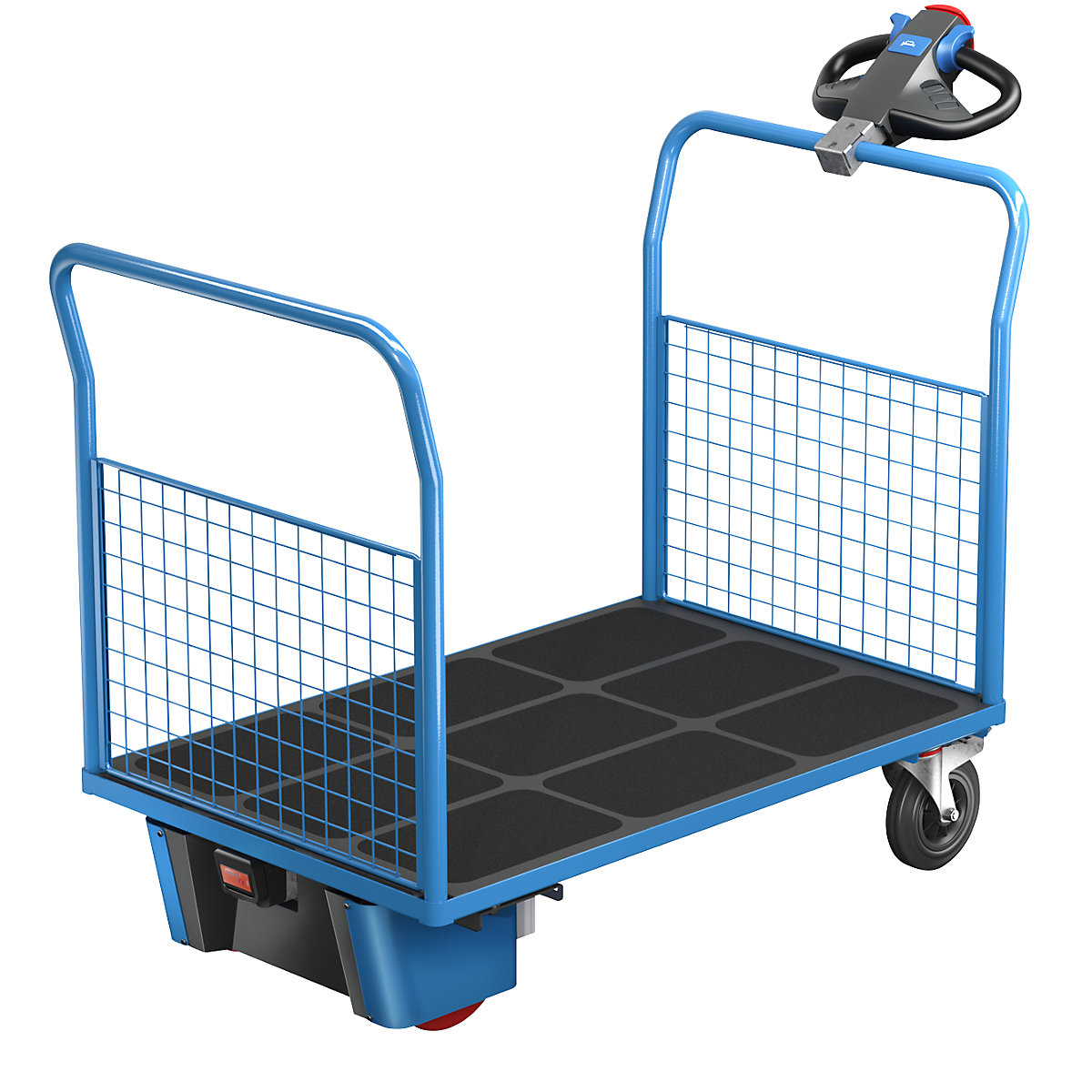

EUROKRAFTpro – Platform truck with electric drive, 2 mesh end panels, LxWxH 1620 x 800 x 1300 mm
Price / items (Plus VAT)
£2,429.00

Product description
The electric module is easy to retrofit to equip platform trolleys with an electric drive. Complete with powerful lithium ion rechargeable battery. Battery charger optionally available. Wireless – the control panel controls the drive via Bluetooth.

Easy assembly: highly versatile modular design
Drive battery: spare lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Spare battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged

Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents anything being caught when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver’s licence) required
Protection against theft: access control by means of lock
All specified max. loads apply with uniform load distribution.
Available in most RAL colours. Only 10 % extra.
  • Highly versatile use due to modular design
  • The replaceable, rechargeable battery system allows unlimited operating time
  • Intuitive operation, perfect steering control
  • Drawbar head with precise speed control, creep speed button, belly switch and horn
  • Integrated foot protection on the e-module
10 year guarantee
10 year guarantee
Technical data
Max. load500 kg
Fittingswith 2 end panels
Platform length1170 mm
Platform width800 mm
Loading height285 mm
Length1620 mm
Width800 mm
Height1300 mm
Push handle height1130 mm
Weight78 kg
Wheel typesolid rubber / polyurethane
Wheel diameter200 / 230 mm
Wheel bearingroller bearing
Wheel fittings2 swivel castors with brakes, 2 drive wheels
Platform colourblack
Frame colourlight blue RAL 5012
Platform materialplastic
Frame materialsteel
Panel height500 mm
Side panel materialsteel mesh
Mesh size50 x 50 mm
Battery capacity13 Ah
Mains voltageAC 100 – 240 V
Charging time6 hrs
Power0,25 kW
Voltage24 V
Suppliedpartially assembled
EUROKRAFTpro
