EUROKRAFTpro – Platform truck with electric drive 3 high MDF panels
- Highly versatile use due to modular design
- The replaceable, rechargeable battery system allows unlimited operating time
- Intuitive operation, perfect steering control
- Drawbar head with precise speed control, creep speed button, belly switch and horn
- Integrated foot protection on the e-module
10 year guarantee
New
*Whether azure blue or salmon pink – we will customise the product for you for a surcharge of just 10%. Please note that this voids your right of return, and that the delivery time may be longer. The colours shown on your screen may deviate from the original.
Ref.: 649462 49

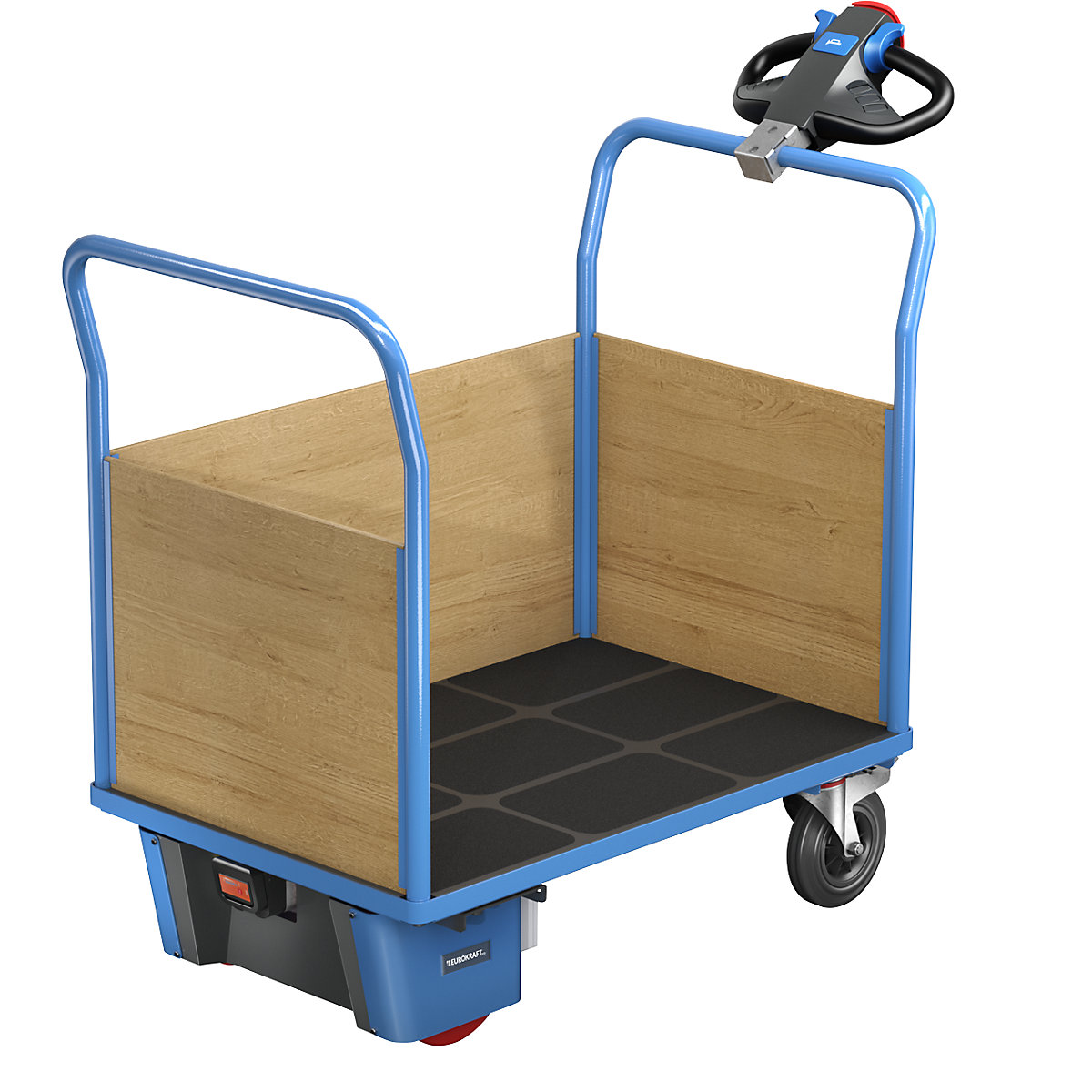

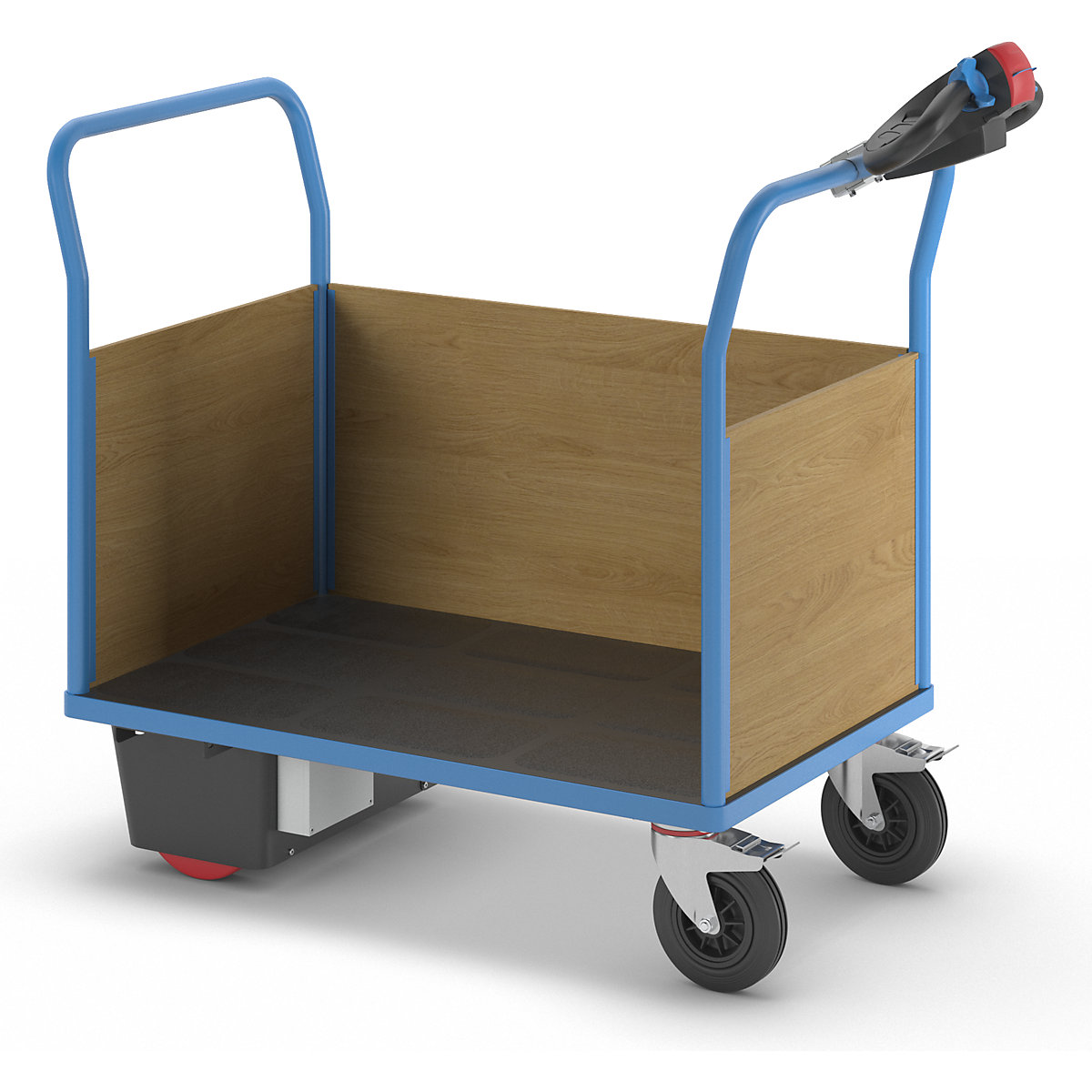

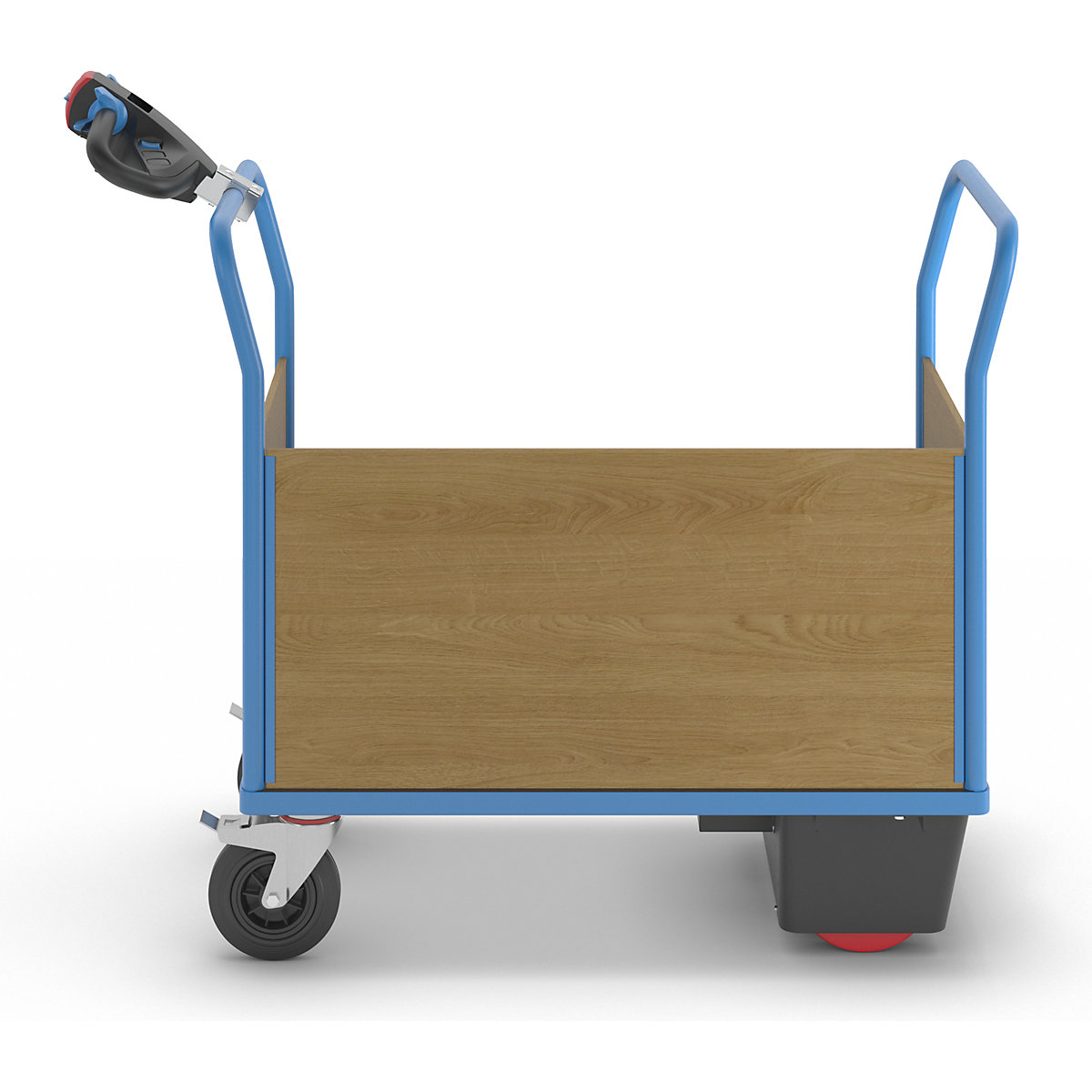

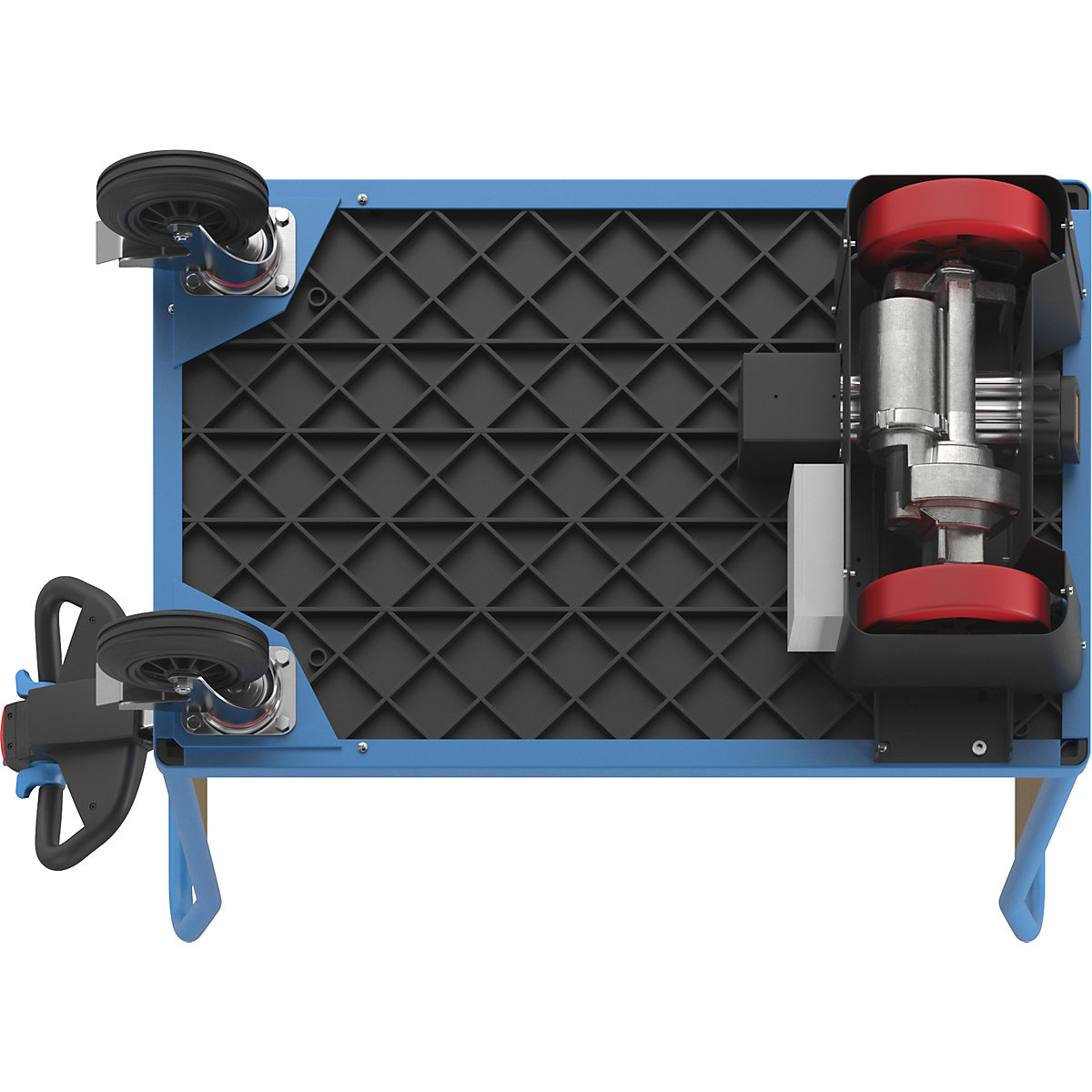

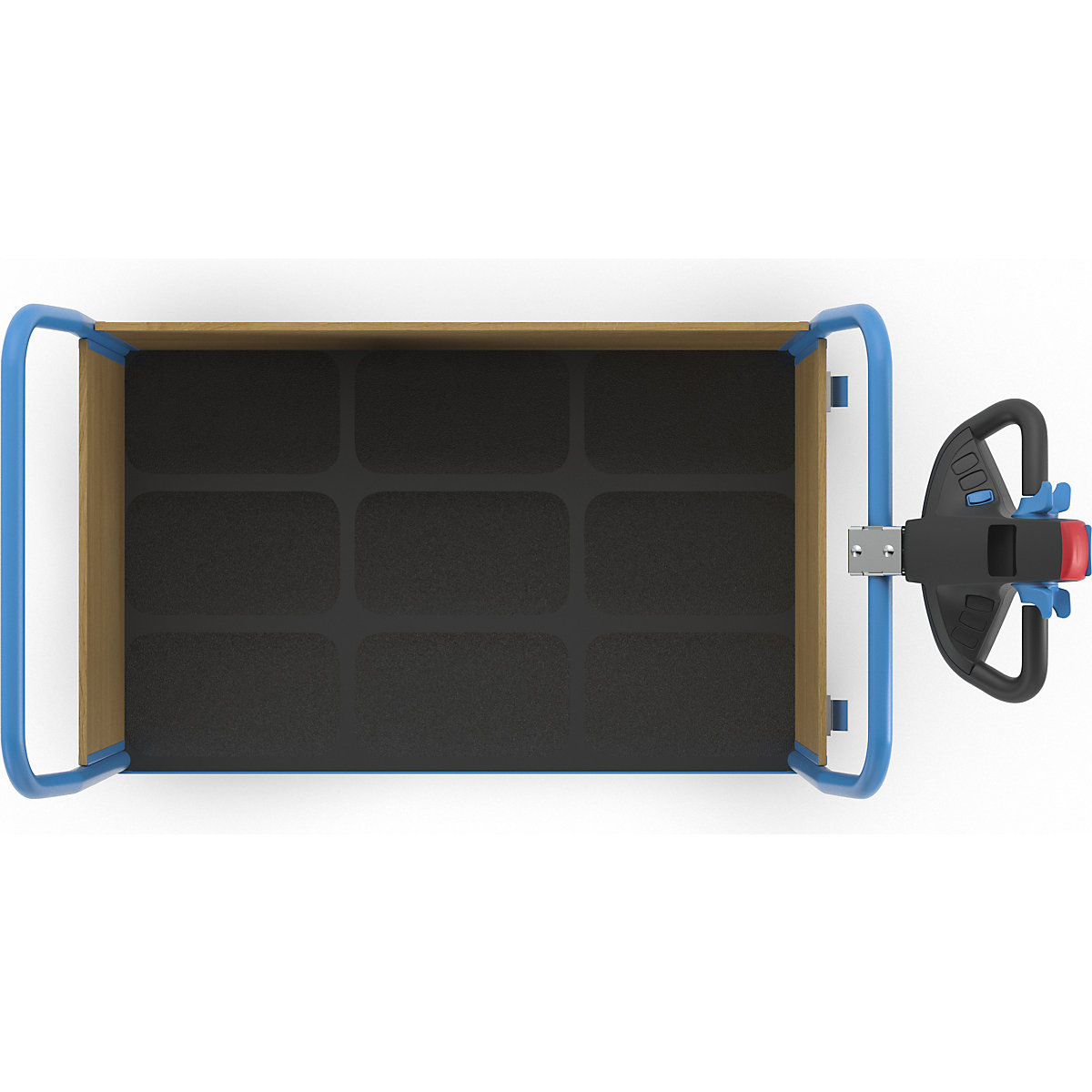

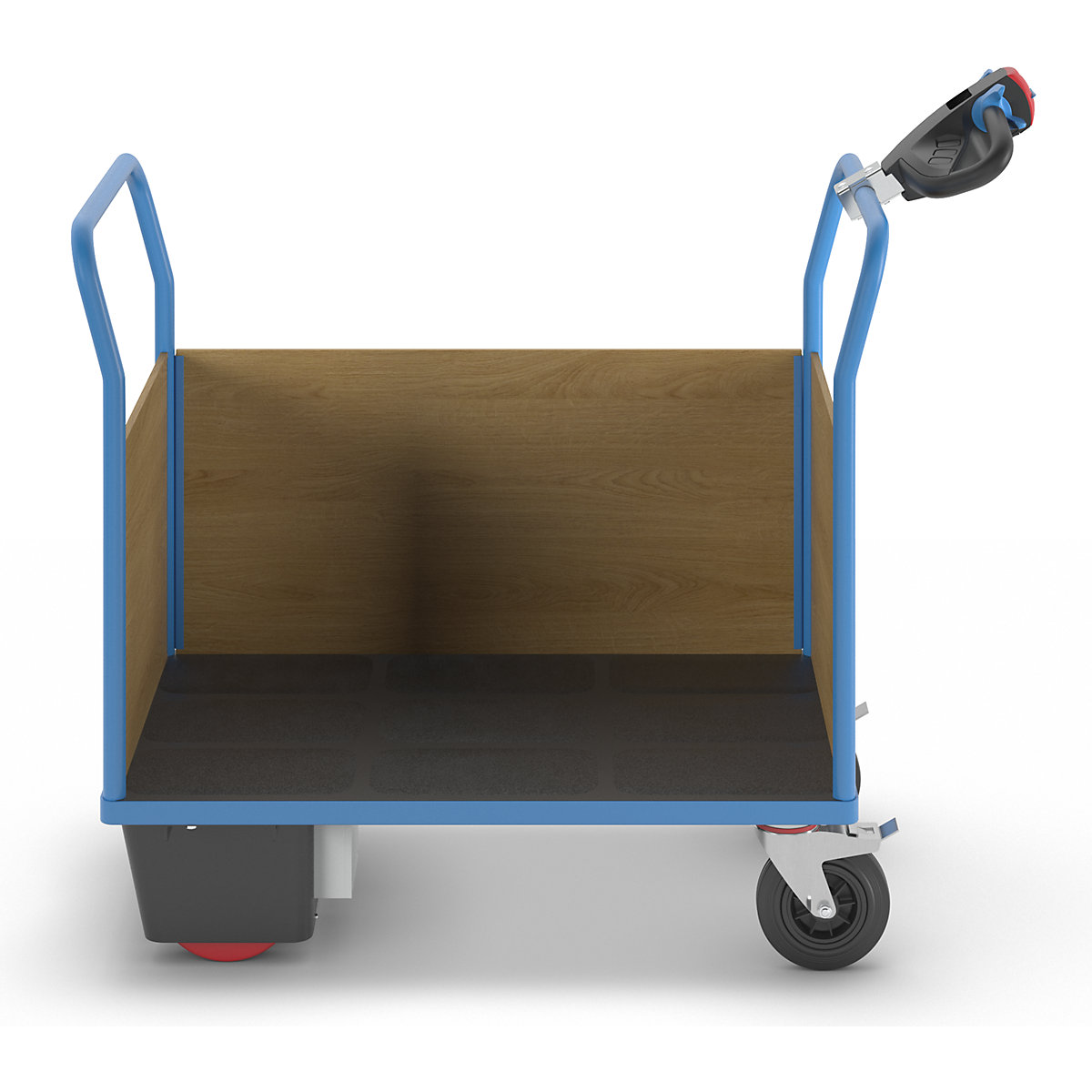

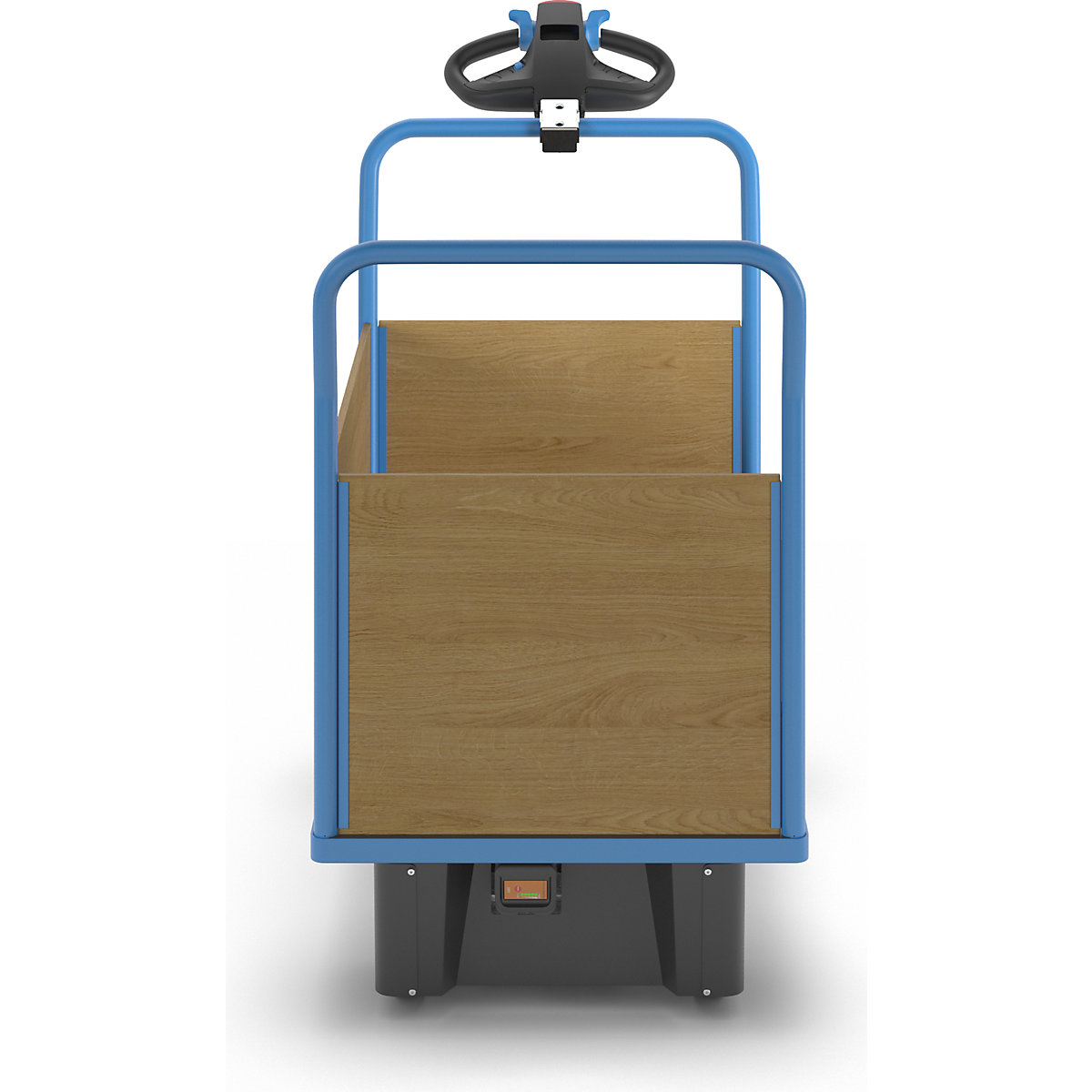

EUROKRAFTpro – Platform truck with electric drive, 3 high MDF panels, LxWxH 1420 x 700 x 1300 mm
Price / items (net)
£2,379.00
Product description
The electric module is easy to retrofit to equip platform trolleys with an electric drive. Complete with powerful lithium ion rechargeable battery. Battery charger optionally available. Wireless – the control panel controls the drive via Bluetooth.
Easy assembly: highly versatile modular design
Drive battery: spare lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Spare battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents anything being caught when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver’s licence) required
Protection against theft: access control by means of lock
Easy assembly: highly versatile modular design
Drive battery: spare lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Spare battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged
Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents anything being caught when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver’s licence) required
Protection against theft: access control by means of lock
All specified max. loads apply with uniform load distribution.
Available in most RAL colours. Only 10 % extra.
- Highly versatile use due to modular design
- The replaceable, rechargeable battery system allows unlimited operating time
- Intuitive operation, perfect steering control
- Drawbar head with precise speed control, creep speed button, belly switch and horn
- Integrated foot protection on the e-module
10 year guarantee
Technical data
| Max. load | 500 kg |
|---|---|
| Fittings | 3 full-height panels |
| Platform length | 995 mm |
| Platform width | 675 mm |
| Loading height | 285 mm |
| Length | 1420 mm |
| Width | 700 mm |
| Height | 1300 mm |
| Push handle height | 1130 mm |
| Weight | 75 kg |
| Wheel type | solid rubber / polyurethane |
| Wheel diameter | 200 / 230 mm |
| Wheel bearing | roller bearing |
| Wheel fittings | 2 swivel castors with brakes, 2 drive wheels |
| Platform colour | black |
| Frame colour | light blue RAL 5012 |
| Platform material | plastic |
| Frame material | steel |
| Panel height | 500 mm |
| Side panel material | MDF panel |
| Battery capacity | 13 Ah |
| Mains voltage | AC 100 – 240 V |
| Charging time | 6 hrs |
| Power | 0,25 kW |
| Voltage | 24 V |
| Supplied | partially assembled |
