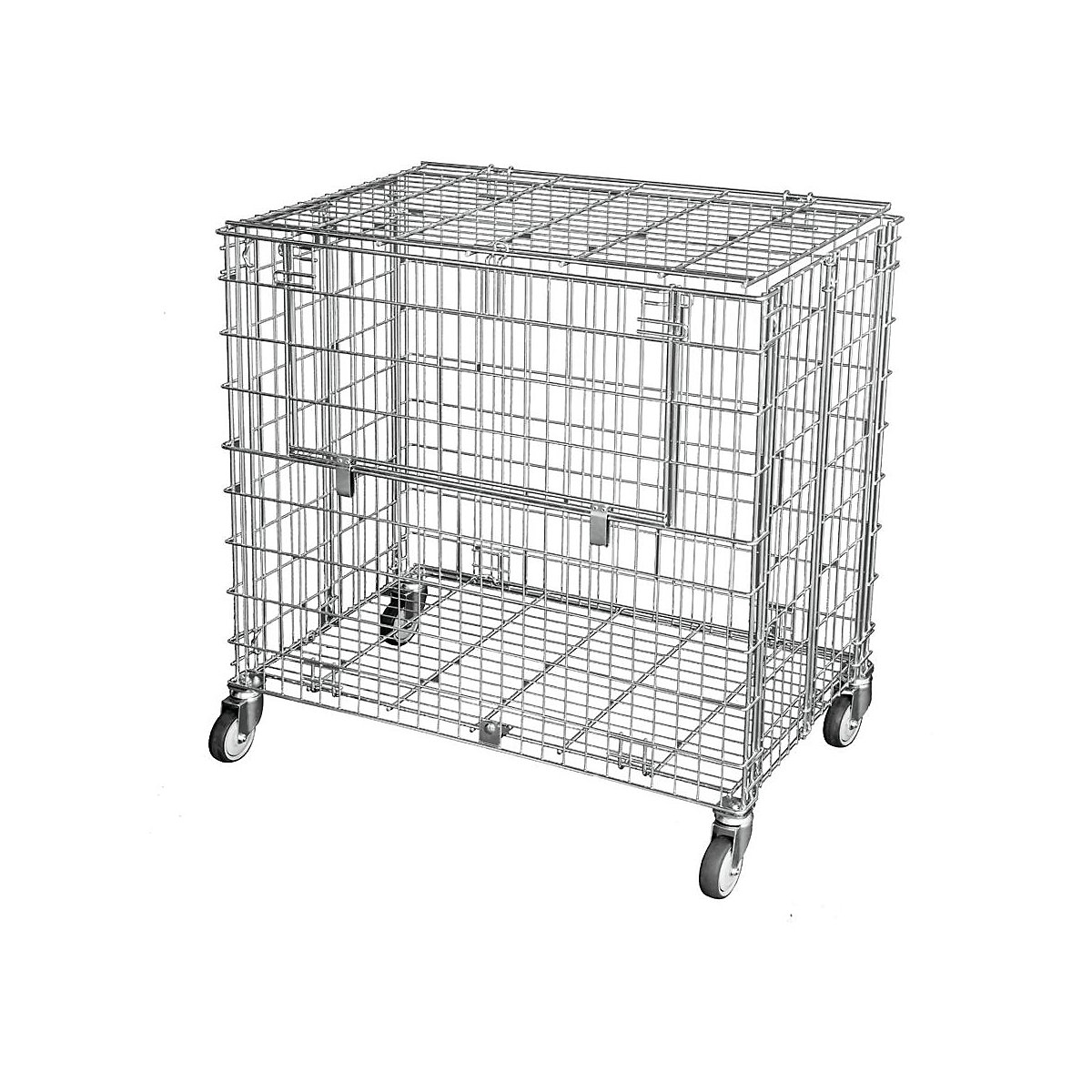

Ball trolley lockable

Ref.: 177752 49
Ball trolley, lockable, filling height 870 mm
Price / items (net)
£259.00

Product description
+
Ball trolley, lockable, folding when empty. With 2 loading flaps, filling height approx. 870 mm. External dimensions approx. 1040 x 1000 x 610 mm. Bracing 40 x 100 mm. With 4 bolt hole swivel castors, thermoplastic rubber as a running surface. Surface electrolytically zinc plated in blue.
Technical data
+
Max. load100 kg
Width1000 mm
Depth610 mm
Height1040 mm
Finishzinc plated by galvanization
Wheel fittings4 swivel castors
Wheel typethermoplastic rubber
Wheel diameter100 mm
Wheel bearingplain bearing
Transport dolly materialsteel
Material of meshsteel
Mesh height855 mm
Internal width950 mm
Internal depth565 mm
Internal height855 mm
Mesh size of side panels40 x 100 mm
Mesh width for rear wall40 x 100 mm
Front panel mesh size40 x 100 mm
Roll container modelfolding
Frame materialsteel
Weight31 kg
Frame colourelectrolytically zinc plated in blue
Platform materialsteel
Suppliedassembled
