Ref.: 177700 49

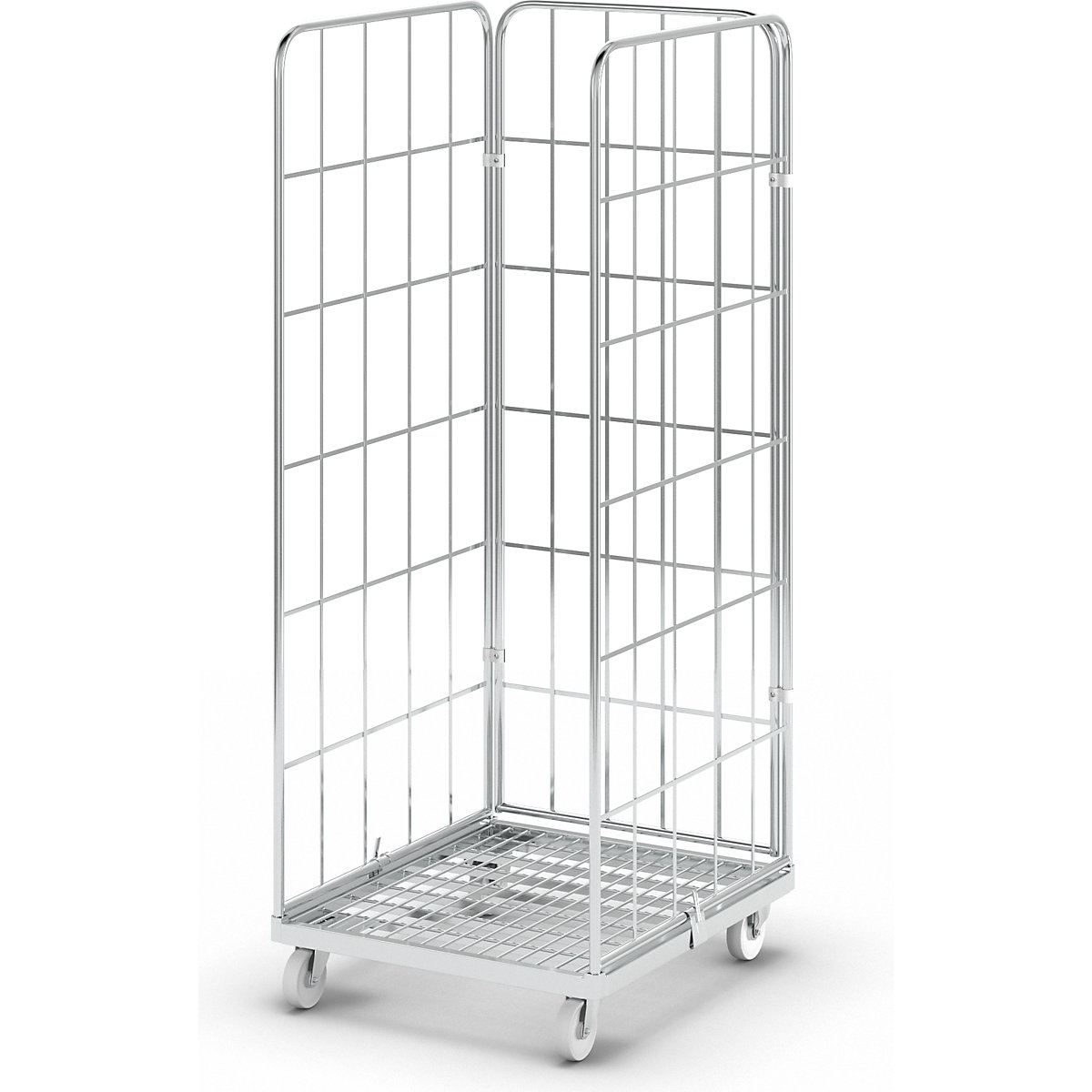

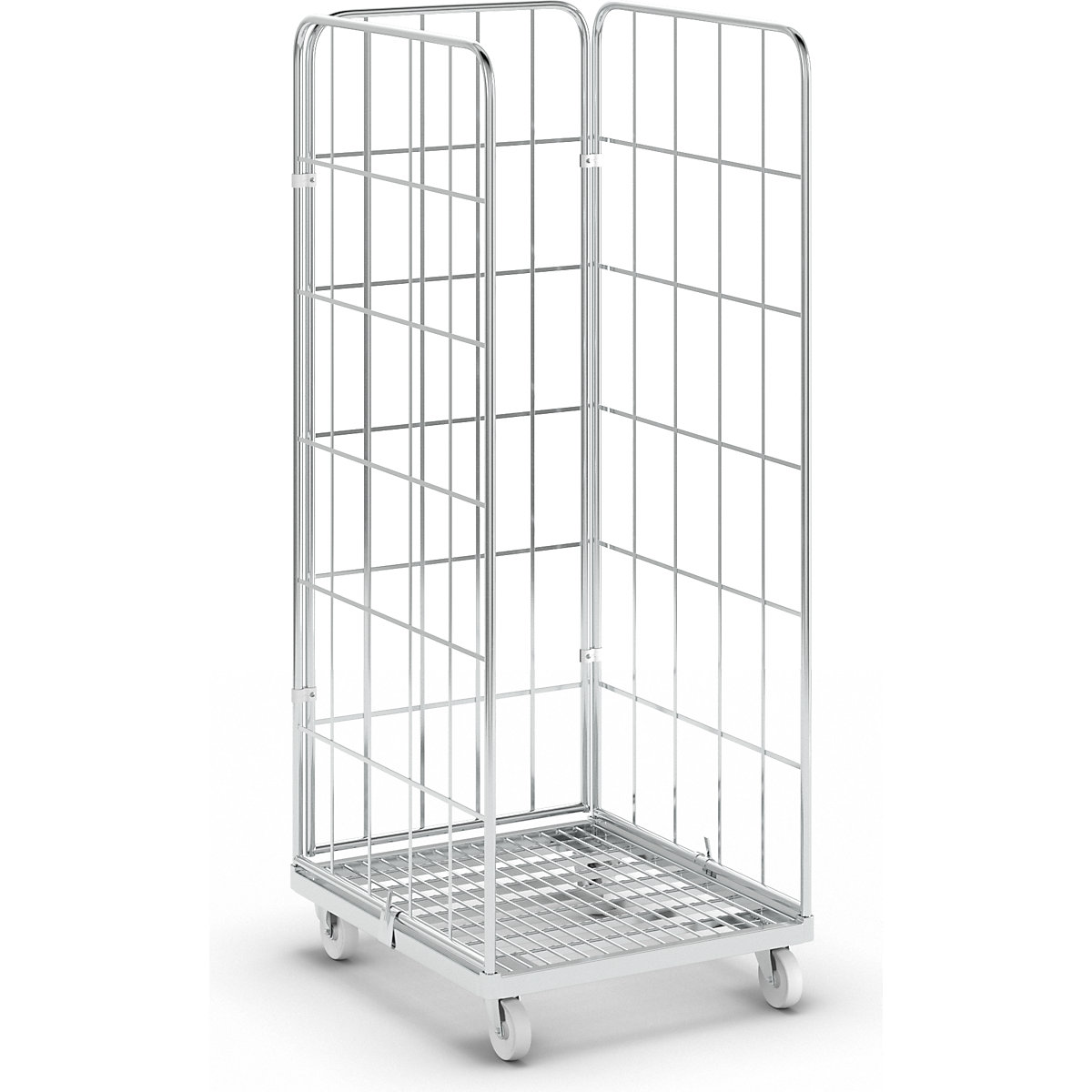

Steel roll container 3-sided, overall height 1830 mm

(2)
Steel roll container

weight 33.3 kg

£365.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Product description
  • Safe transport of goods and form-fit loading due to mesh panels on 3 sides
  • Zinc plating increases the level of corrosion protection
  • Swivel castors and fixed castors make it flexible to move to the place of use
  • Ready for immediate use as it is delivered fully assembled
Surface: electrolytically zinc plated in blue
Consists of:
One steel dolly made of a tubular steel frame of 40 x 20 mm, 6 flat iron supports 40 x 4 mm and 16 wire rods with a diameter of 5 mm.
This construction guarantees a max. load of up to 500 kg with evenly distributed loads.
The 4-sided tubular base frame is rounded at the bumpers, suitable for mounting standard side mesh panels with tubular steel frame of 22 mm diameter.
The castors are bolted at 4 points.

2 side mesh panels (up to 5 shelves possible)
1 rear panel incl. 4 plastic clamps with screws and nuts for connection to the side mesh panels
Bracing for the side mesh panel and rear panel:
4 x vertical flat irons 12 x 3 mm
5 x horizontal flat irons 12 x 3 mm
Technical data
Roll container model3-sided
Max. load500 kg
Max. load per level150 kg
Width710 mm
Depth800 mm
Height1830 mm
Finishzinc plated by galvanization
Wheel fittings2 swivel castors, 2 fixed castors
Wheel typepolypropylene
Wheel diameter108 mm
Platform materialsteel
Mesh height1650 mm
Internal width660 mm
Internal depth760 mm
Internal height1650 mm
Frame materialsteel
Weight33.3 kg
Frame colourelectrolytically zinc plated in blue
Product typeroll containers
Suppliedassembled
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

LCA functional unit
1
Recycled content in %?
0
CO2 footprint year of calculation
2026
LCA validity (in years)
1
CO2 footprint calculation method product
Calculated by our partner GlobalChanger (GreenZero) in accordance with ISO 14044 (LCA) / 14067 (PCF) (GWP100 [IPCC version]) principles.<br/>PCF values are product specific averages that have not been verified by third parties and may evolve as the data basis improves.
CO2 footprint system boundaries
Cradle-to-gate

PCF Lifecycle Breakdown

188.58kg CO₂e
LCA Raw Material Extraction & Processing
38.4%
LCA packaging production
1.3%
LCA Product Manufacturing
47.9%
LCA Inbound and Outbound Transportation
12.3%
‌
‌
‌
‌
‌
