Turntable truck – eurokraft pro max. load 500 kg, with 4 side panels
(1)
platform 1010 x 660 mm, pneumatic tyres
Platform length [mm]
Preferred RAL colour*
*Available in almost all RAL colours – we will produce the product to suit your requirements for an extra charge of only 10%. Please note that the right of return does not apply. Colour representations on the monitor can deviate from the original. Products with a custom colour are not CO2 compensated.
Ref.: 985905 49
Turntable truck – eurokraft pro max. load 500 kg, with 4 side panels
(1)
platform 1010 x 660 mm, pneumatic tyres
platform 1010 x 660 mm, pneumatic tyres
£1,279.00
£1,150.00
Price / item (Excl. VAT)
Only 1 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- With four side panels

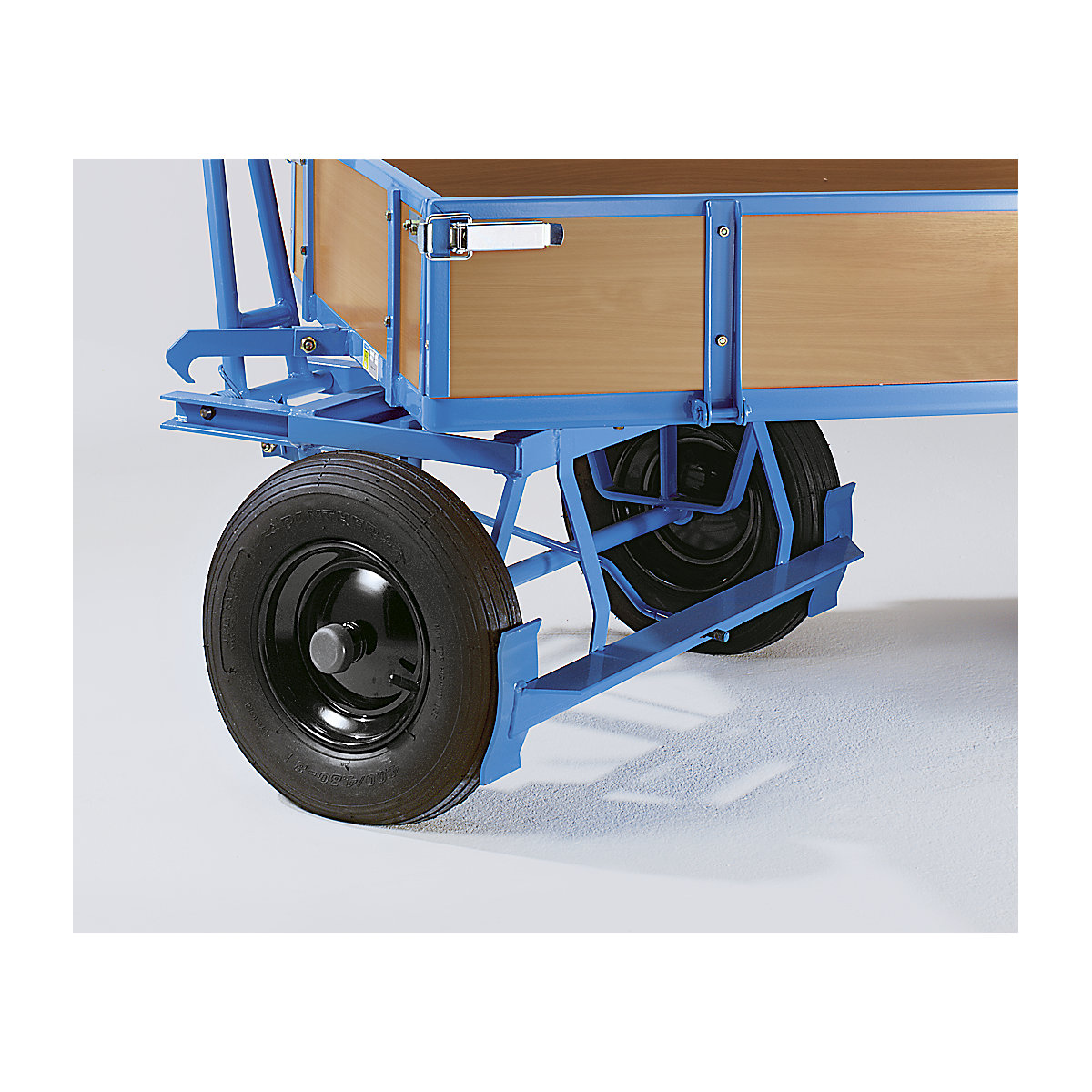

- Turntable steering with ball bearing race
- Scratch and impact resistant surface
- Wheels with roller bearings
- Large wheels for low rolling resistance
Sturdy welded steel construction. Powder coated as standard in light blue RAL 5012.
Platform made of MDF with coated surface.
Important:
The parking brake must be applied when not in use. It is activated by pushing the drawbar upwards.
Side panels made of MDF with coated finish, 200 mm high, channel steel frame.
Rear and side panels are hinged and can be folded down. Fixed front panel.
Platform made of MDF with coated surface.
Important:
The parking brake must be applied when not in use. It is activated by pushing the drawbar upwards.
Side panels made of MDF with coated finish, 200 mm high, channel steel frame.
Rear and side panels are hinged and can be folded down. Fixed front panel.

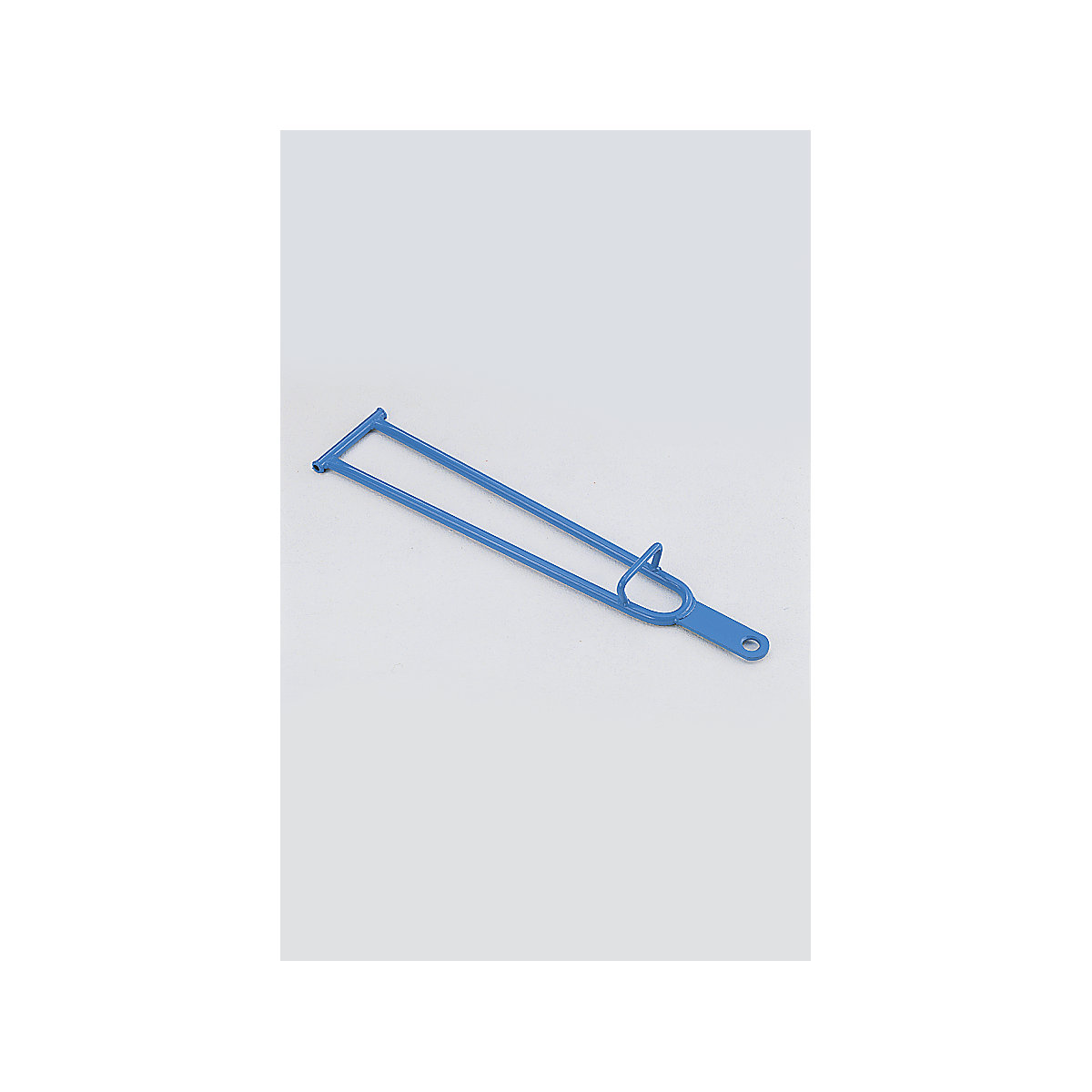

Tubular drawbar with towing eyelet to attach to towing vehicles with speeds up to 4 km/h available upon request.
The standard hand drawbar is omitted.
The standard hand drawbar is omitted.
Available in most RAL colours. Only 10 % extra.
10 year guarantee
Technical data
Frame material | steel, powder coated |
---|---|
Colour | light blue RAL 5012 |
Design of hand trolley | with 4 walls |
Loading height | 350 mm |
Platform material | MDF with coated surface |
Max. load | 500 kg |
Railing height | 200 mm |
Wheel type | pneumatic tyres |
Wheel diameter | 260 mm |
Wheel bearing | roller bearing |
Wheel width | 85 mm |
Steering | turntable steering with ball bearing race |
Product type | turntable trucks |
Supplied | assembled |
Platform length | 1010 mm |
Platform width | 660 mm |
Weight | 80 kg |
Instructions |
