Ref.: 851312 49

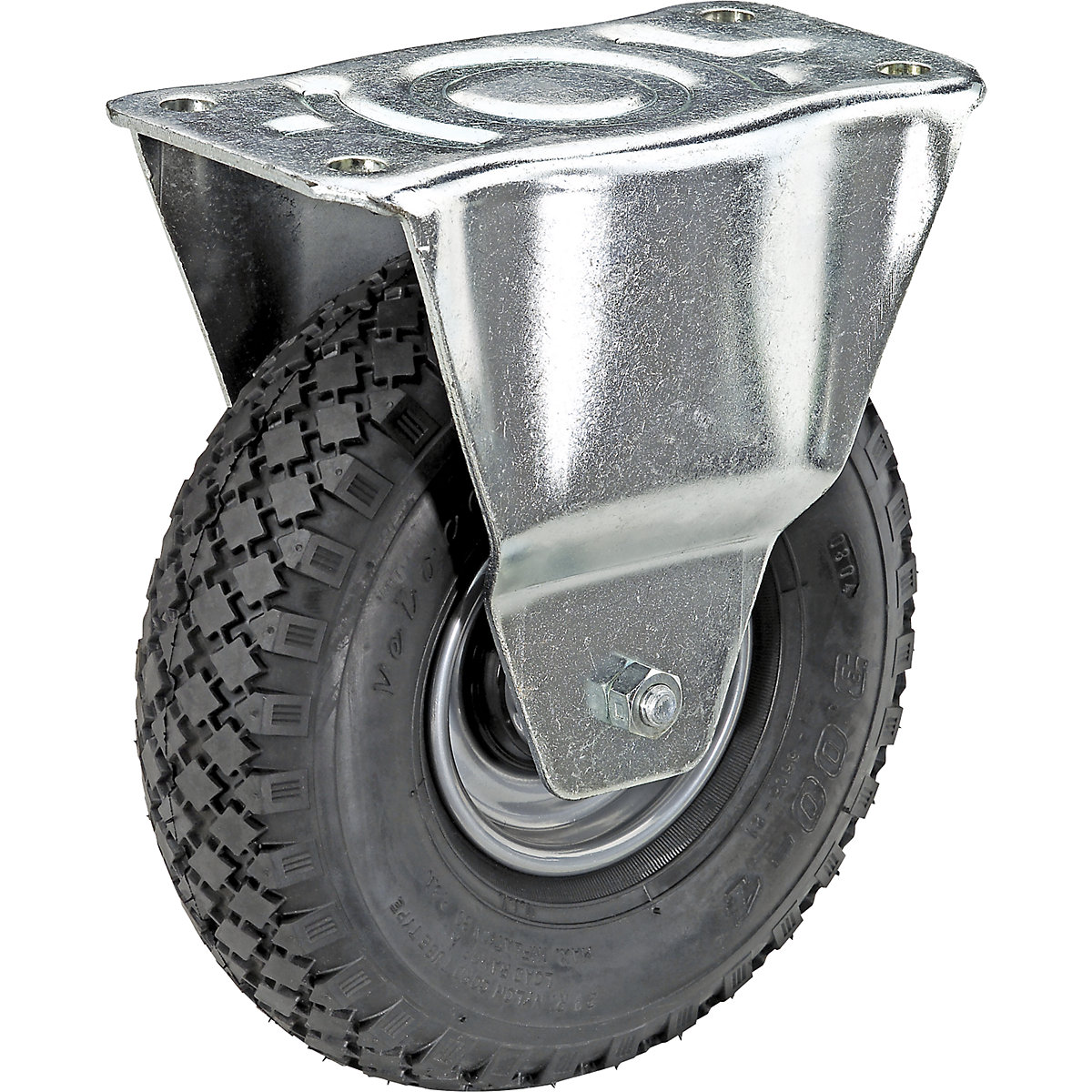

Pneumatic tyre, sheet steel rim block profile
ØxW 260 x 85 mm, roller bearings, fixed castor
Structure
Wheel bearing
Ref.: 851312 49
Pneumatic tyre, sheet steel rim block profile
ØxW 260 x 85 mm, roller bearings, fixed castor

ØxW 260 x 85 mm, roller bearings, fixed castor
Structure
Wheel bearing
£58.00
Price / item (Excl. VAT)
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£58.00
Price / item (Excl. VAT)
£58.00
Price / item (Excl. VAT)
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Very good shock absorption on uneven travel paths
- Low rolling resistance for effort-saving movement
- Non-marking
- One-piece, zinc plated sheet steel rim protects against corrosion
- Block profile for good grip under changing ground conditions
- Ribbed profile for quiet, straight running on level floors
The pneumatic tyre with sheet steel rim combines very good shock absorption with low rolling resistance. As a result, the pneumatic tyre enables smooth, effortless transport and at the same time protects sensitive floors.
The air-filled tyres reliably absorb shocks and unevenness. This protects the transported goods and reduces vibrations on the transport equipment. At the same time, the low rolling resistance makes starting and moving heavy loads easier. Especially on uneven paths, the pneumatic tyre contributes to comfortable and controlled running. The one-piece, zinc plated sheet steel rim is resistant to mechanical loads and corrosion.
The pneumatic tyre with sheet steel rim is available with a block tread or ribbed tread. The block tread offers good grip on uneven or slightly dirty paths and is suitable for changing ground conditions. The ribbed tread supports smooth, straight-tracking running on firm and predominantly even floors. Both tread variants are available for swivel castors and fixed castors.
The tyres are suitable for transport trolleys, equipment trolleys and other mobile equipment in the warehouse, workshop and business. The pneumatic tyre reduces stress caused by shocks, makes moving goods easier and supports non-marking internal transport.
The air-filled tyres reliably absorb shocks and unevenness. This protects the transported goods and reduces vibrations on the transport equipment. At the same time, the low rolling resistance makes starting and moving heavy loads easier. Especially on uneven paths, the pneumatic tyre contributes to comfortable and controlled running. The one-piece, zinc plated sheet steel rim is resistant to mechanical loads and corrosion.
The pneumatic tyre with sheet steel rim is available with a block tread or ribbed tread. The block tread offers good grip on uneven or slightly dirty paths and is suitable for changing ground conditions. The ribbed tread supports smooth, straight-tracking running on firm and predominantly even floors. Both tread variants are available for swivel castors and fixed castors.
The tyres are suitable for transport trolleys, equipment trolleys and other mobile equipment in the warehouse, workshop and business. The pneumatic tyre reduces stress caused by shocks, makes moving goods easier and supports non-marking internal transport.
Technical data
| Wheel material | rubber – pneumatic tyres |
|---|---|
| Material of rim | sheet steel, galvanised |
| Housing material | sheet steel, galvanised |
| Wheel diameter | 260 mm |
| Max. load at 4 km/h | 200 kg |
| Wheel width | 85 mm |
| Overall height | 295 mm |
| Swivel castor offset | 55 mm |
| Swivel castor plate dimensions | 220 x 125 mm |
| Screw hole spacing | 190 x 75 mm |
| Screw hole diameter | 15 mm |
| Hub length | 60 mm |
| Hub bore | 20 mm |
| Tyre profile | block profile |
| Tyre pressure | 2.5 bar |
| Colour | black silver |
| Product type | pneumatic tyres |
| Structure | fixed castor |
| Wheel bearing | roller bearing |
| Weight | 4 kg |
