Ref.: 762718 49

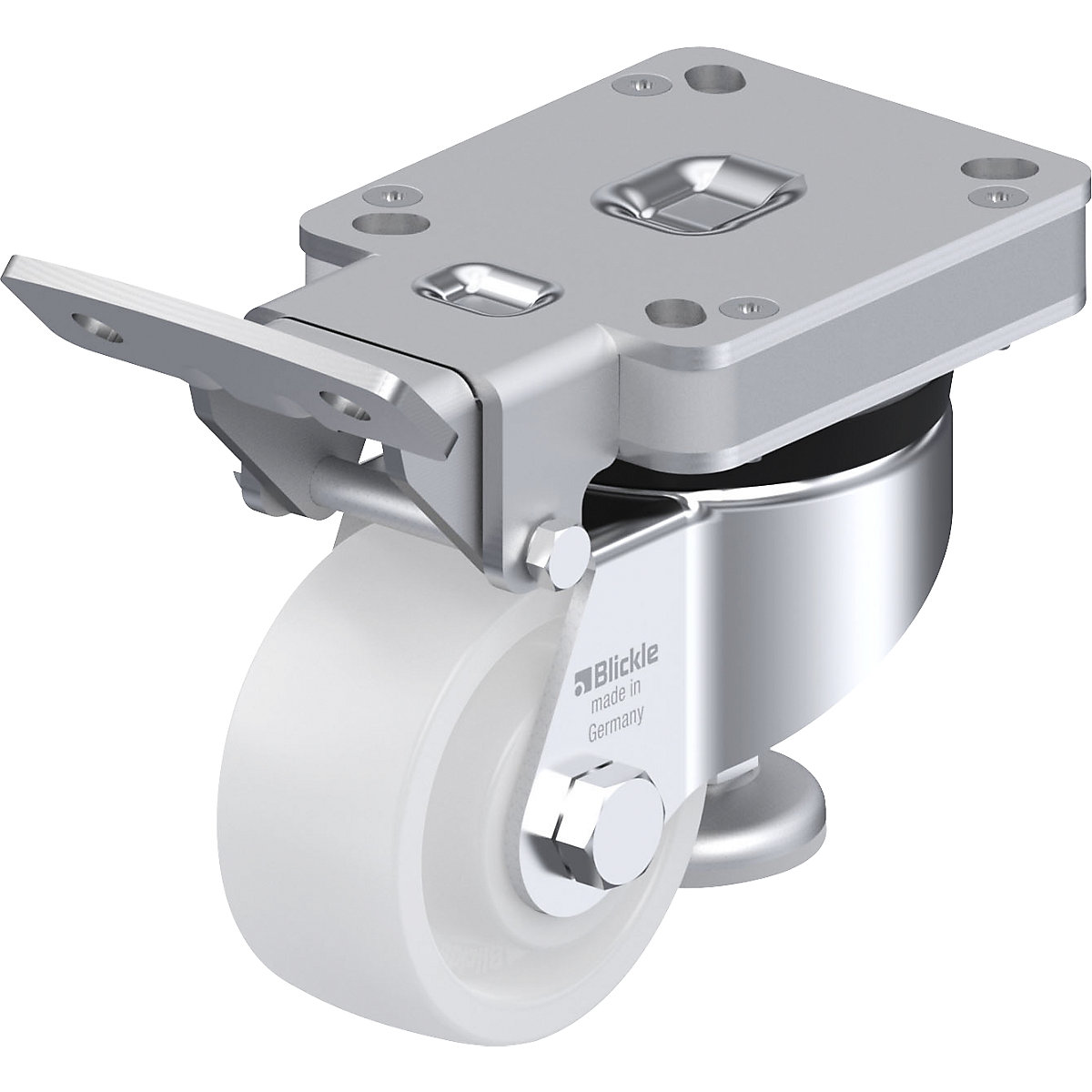

HRLK-SPO levelling castor – Blickle plate dimensions 100 x 85 mm, ball bearing
wheel Ø 80 mm
Wheel diameter [mm]
Ref.: 762718 49
HRLK-SPO levelling castor – Blickle plate dimensions 100 x 85 mm, ball bearing
wheel Ø 80 mm
wheel Ø 80 mm
Sustainability score:Wheel diameter [mm]
£209.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
£209.00
Price / item (Excl. VAT)
£209.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Efficient order processes for business customers
Product description
- Thick sheet steel, electrolytically zinc plated, blue passivated, Cr6 free
- Double ball bearing in the ring bearing
- Ring bearing seal
- Minimum ring bearing play, smooth run, long service life due to dynamic Blickle riveting
- Steel stop foot with rubber lining
- Height adjustment by means of operating lever
- High quality nylon, does not break, very robust, heavy model
- High chemical resistance to many aggressive media
- Temperature resistance: –20 °C to +80 °C, reduced max. load above +35 °C
Levelling rollers with fixed operating lever and integrated stop foot, with mounting plate.
Technical data
| Structure | swivel castor |
|---|---|
| Wheel material | plastic – nylon |
| Material of rim | nylon |
| Type of mounting | with top plate |
| Housing material | steel |
| Max. load at 4 km/h | 300 kg |
| Wheel bearing | ball bearing |
| Model | levelling castors |
| Shore hardness | 70 Shore D |
| Product type | swivel castors |
| Supplied | assembled |
| Wheel diameter | 80 mm |
| Wheel width | 37 mm |
| Overall height | 120 mm |
| Weight | 2.22 kg |
| Manufacturer / EU responsible Person (GPSR) |
