Ref.: 244902 49

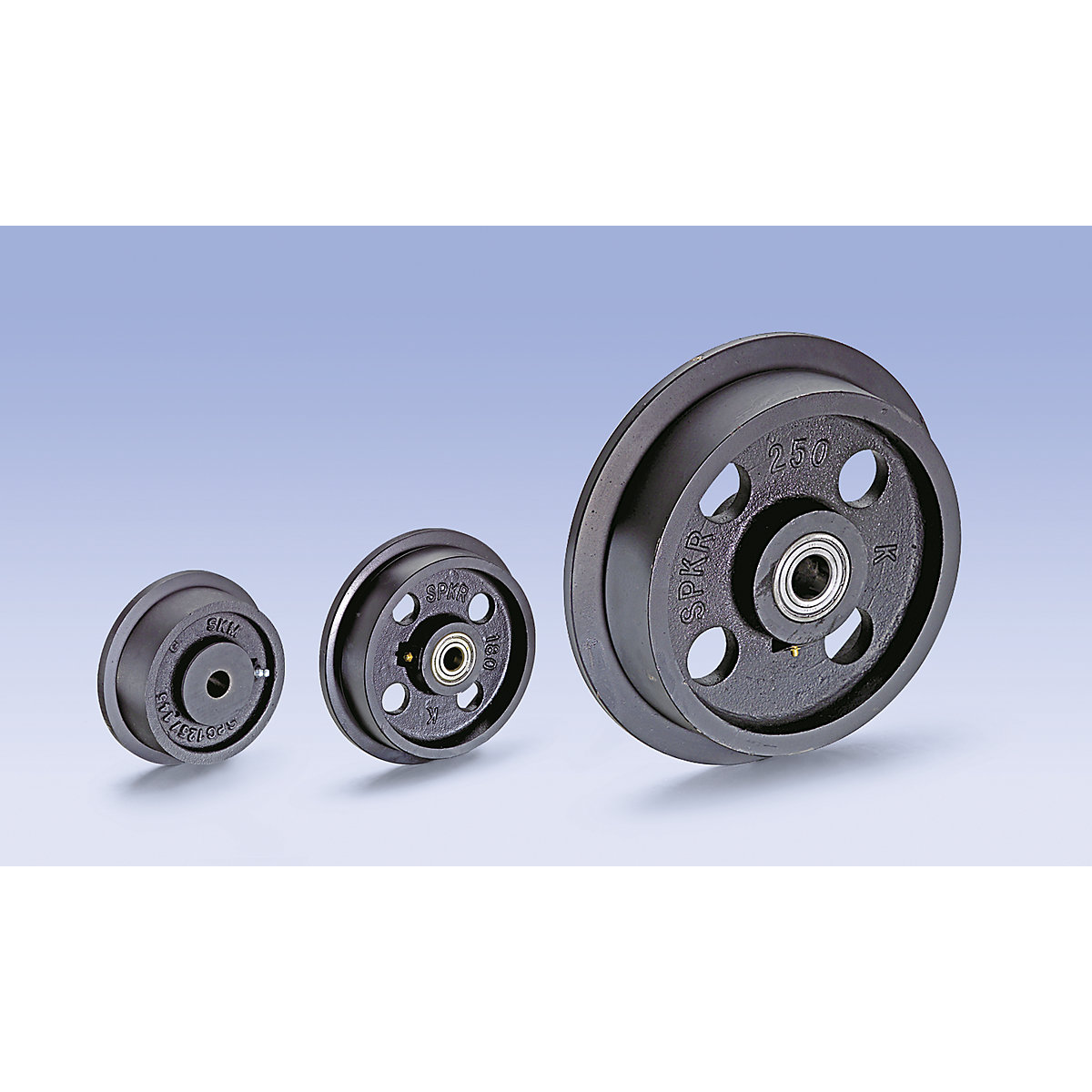

Grey cast iron wheel with flange plain bearings
(1)
wheel Ø with flange 62 mm
Wheel diameter [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 244902 49
Grey cast iron wheel with flange plain bearings
(1)
wheel Ø with flange 62 mm
wheel Ø with flange 62 mm
£32.00
£28.50
Price / item (Excl. VAT)
Only 14 available
Delivery time: 7-10 Working days
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- With flange
- Very high max. load
- Impact resistant
- High temperature resistance
Wheel body made of high quality GG-20/25 grey cast iron, painted black. Precision-turned wheel flange and running surface. Running surface tilted 3° toward outside.
Starting with wheel Ø 150 / 175 mm, wheel bodies are notched out to reduce weight. Starting with wheel Ø 125 / 145 mm, with lubrication nipple.
Temperature resistant to +100 °C.
Up to +300 °C when bearing is lubricated with special grease.
Special oven bearings/ball bearings for resistance up to 350 °C on request.
All specified dimensions are approximate.
Starting with wheel Ø 150 / 175 mm, wheel bodies are notched out to reduce weight. Starting with wheel Ø 125 / 145 mm, with lubrication nipple.
Temperature resistant to +100 °C.
Up to +300 °C when bearing is lubricated with special grease.
Special oven bearings/ball bearings for resistance up to 350 °C on request.
All specified dimensions are approximate.
High maximum load
Technical data
Structure | wheel |
---|---|
Wheel material | grey cast iron, GG 20 to GG 25 |
Material of rim | grey cast iron, GG 20 to GG 25 |
Wheel bearing | plain bearing |
Temperature resistance | up to +100 °C |
Product type | wheels |
Supplied | assembled |
Wheel diameter | 50 mm |
Max. load at 4 km/h | 400 kg |
Wheel width | 26 mm |
Wheel width with wheel flange | 32 mm |
Wheel diameter with wheel flange | 62 mm |
Hub length | 32 mm |
Axle diameter | 15 mm |
Weight | 0.6 kg |
