Ref.: 842292 49

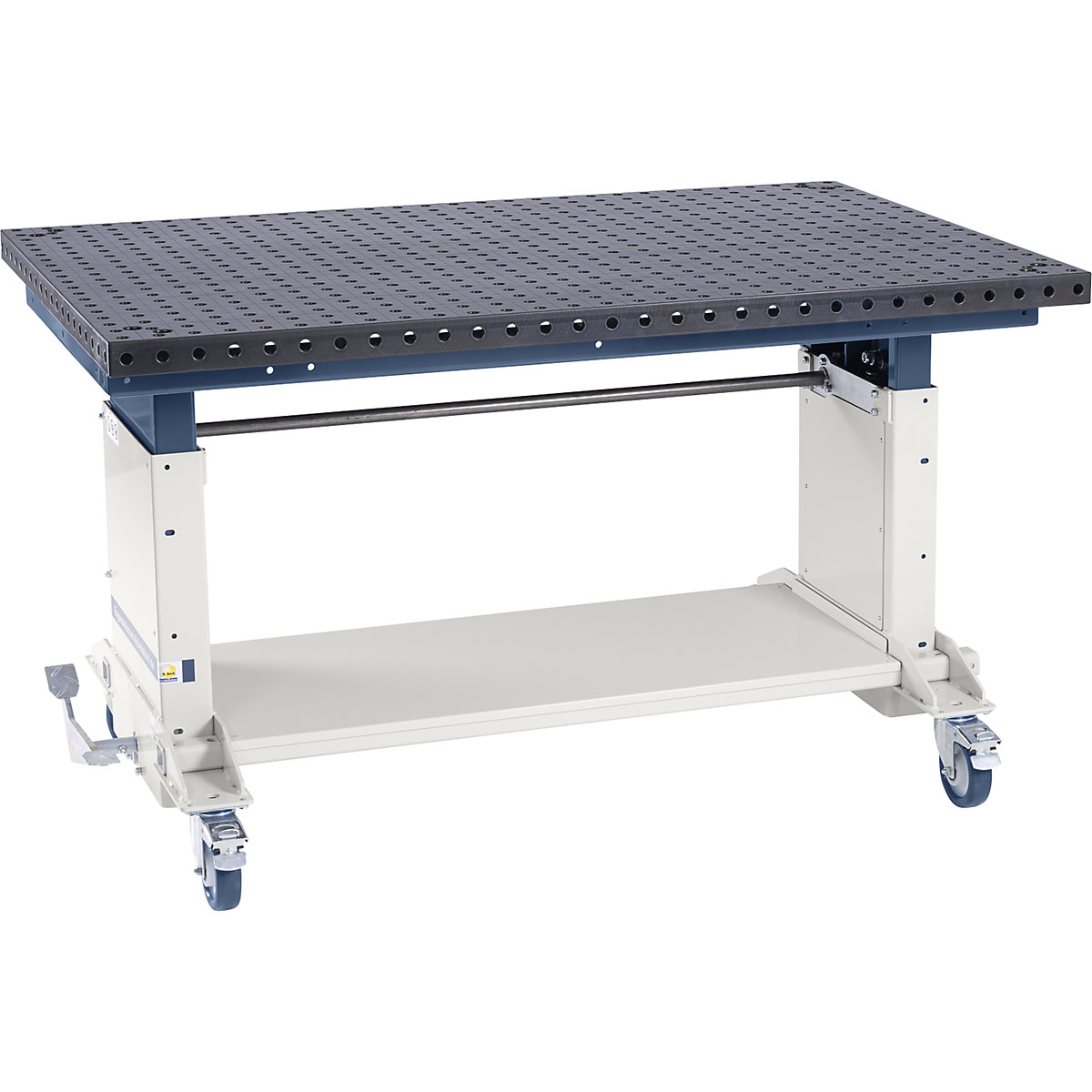

Welding table SUPPORTER, height adjustable max. load 500 kg

Welding table SUPPORTER, height adjustable

with steel pegboard

£7,390.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Product description
  • Height adjustable by foot hydraulics under load – also with eccentric loading
  • Enables ergonomic working and thereby reduces posture-related back pain
  • Higher employee satisfaction through upgrading the industrial workplace
  • Usable independently of electricity and mobile
  • Space for drawer under the welder's tabletop
This mobile work and assembly table with an upper platform frame is ideally suited with its steel perforated tabletop for delicate welding work or other assembly work. The tabletop is made of high-quality steel, corrosion-resistant and particularly durable thanks to its plasma-nitrided surface. The tabletop construction is reinforced by cassette-shaped welded web plates.

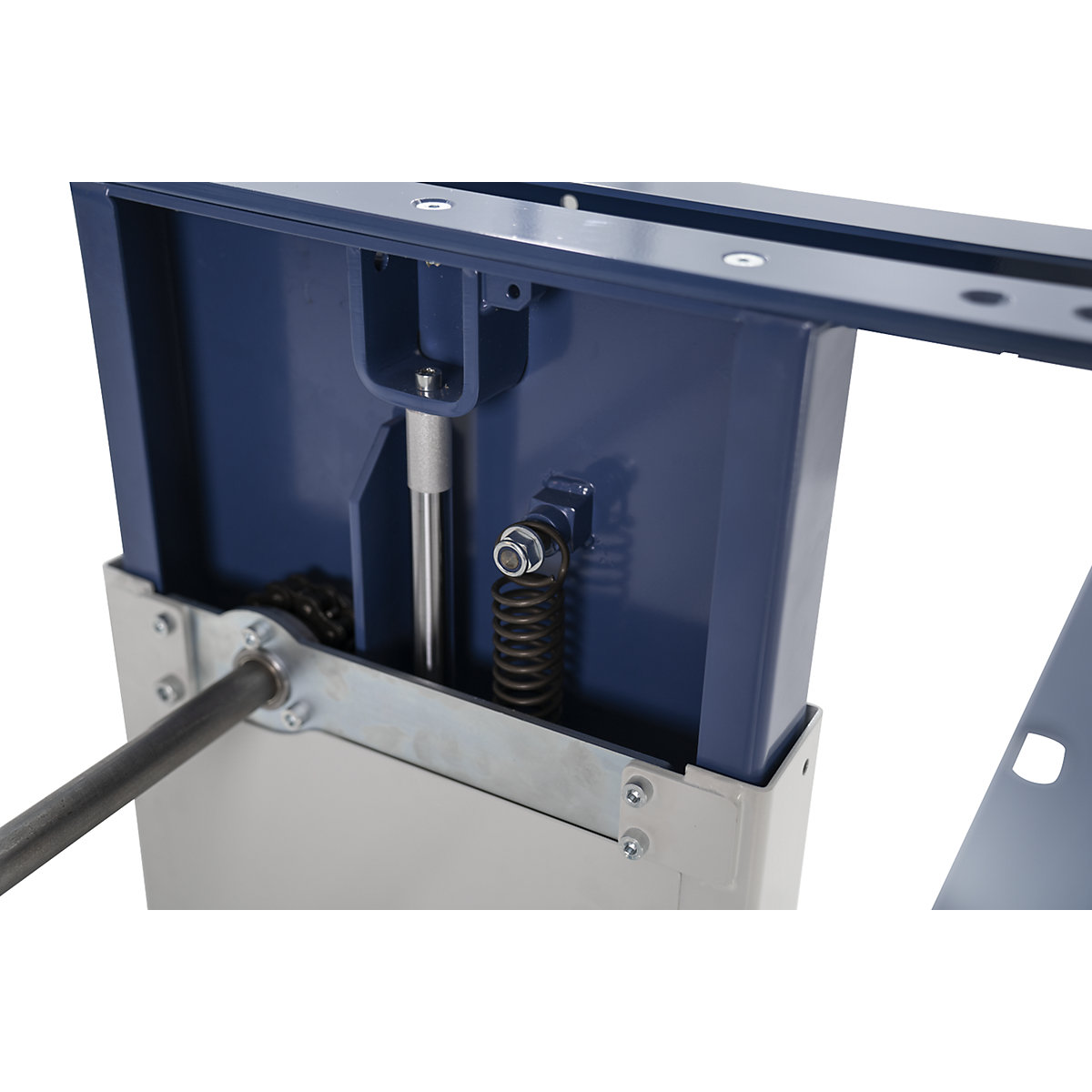

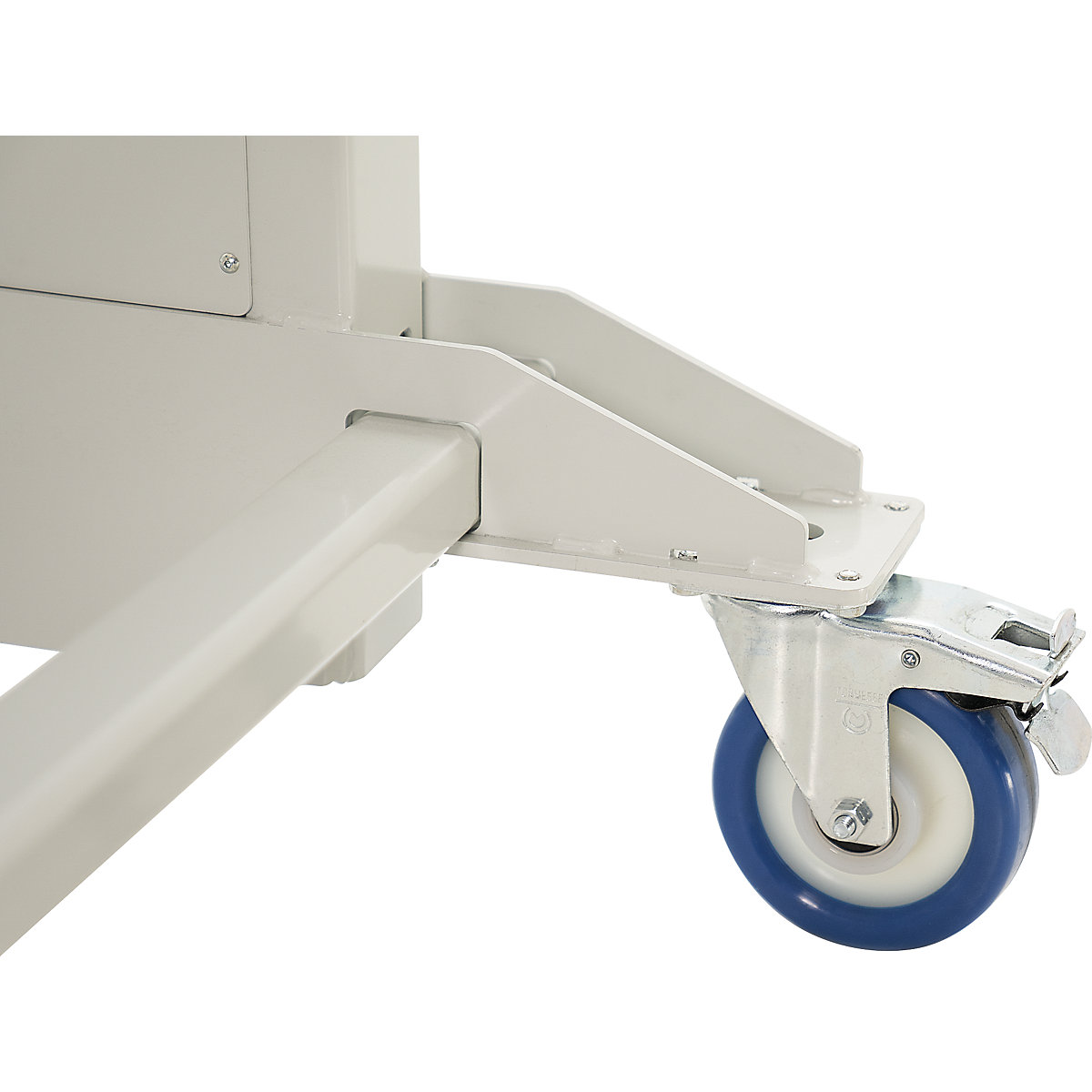

The foot hydraulics enable a fast and easy, infinite height adjustment of the work surface even under load – thus ergonomic work is always guaranteed. Including sheet steel shelf at the bottom. 4 swivel castors, 2 of which with locking brakes. Wheel Ø 125 mm. Operation by 1 lifting unit, lower parts RAL 7035 light grey, upper parts RAL 5000 violet blue. Usable stroke 300 mm. Platform size 1460 x 740 mm. Synchronous shaft below the shelf.

Max. load 500 kg. With steel grid plate, 50 mm thick, width x depth 1500 x 1000 mm.
Grid 50 x 50 mm, side panel 50 mm, high, hole diameter 16 mm, hole spacing side panel: 50mm. overall height 720 mm.
Available in many equipment variants, e.g. with vacuum clamping unit, overhead device, other worktops, etc.
We would be pleased to prepare a quote for your individual requirements.
Delivered assembled – ready for immediate use.
Technical data
Worktop width1500 mm
Worktop depth1000 mm
Height50 mm
Frame colourlight grey RAL 7035 violet blue RAL 5000
Type of worktopsheet steel top, zinc plated
Frame materialsteel
Bore hole diameter16 mm
Static distributed load300 kg
Product typewelders' benches
Suppliedassembled
Weight290 kg
Manufacturer / EU responsible Person (GPSR)
Sustainability
Product with potential for future improvement

This product does not yet meet enough of our sustainability criteria. This does not mean that it has no sustainable properties – however, the total score is lower than 3 points. Therefore, it is not (yet) labelled as particularly sustainable. Our sustainability assessment is based on transparent, clearly defined ecological, social and economic criteria. The aim is to highlight development potential and create greater transparency.

You can find out more about product evaluation and our sustainability initiative on our information page.

Product CO₂ footprint

Recycled content in %?
25
‌
‌
‌
‌
‌
