Heylo DE 10 electric heater 400 V/50 – 60 Hz/3 phases

Heylo DE 10 electric heater

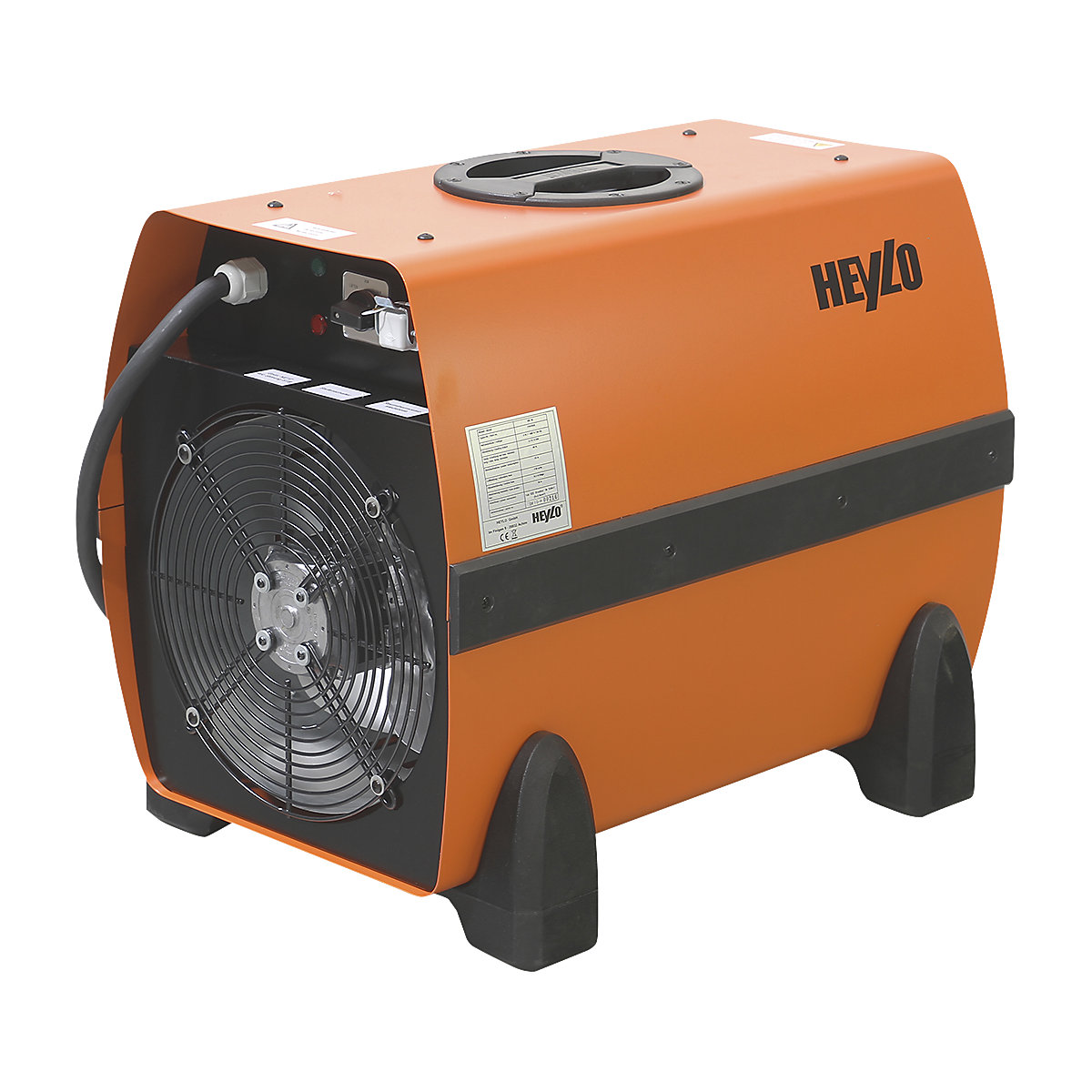

Heylo DE 10 electric heater, 400 V/50 – 60 Hz/3 phases, LxWxH 570 x 414 x 482 mm-0
Heylo DE 10 electric heater (Product illustration 2)-1
Heylo DE 10 electric heater (Product illustration 3)-2
Heylo DE 10 electric heater (Product illustration 4)-3
Heylo DE 10 electric heater (Product illustration 5)-4

LxWxH 570 x 414 x 482 mm

Ref.: 827871 49
Product description
  • Heat output adjustable in 3 levels
  • Spiral heating insert made of high alloy steel
  • With ventilation function
  • Safety thermostat for automatic switch off

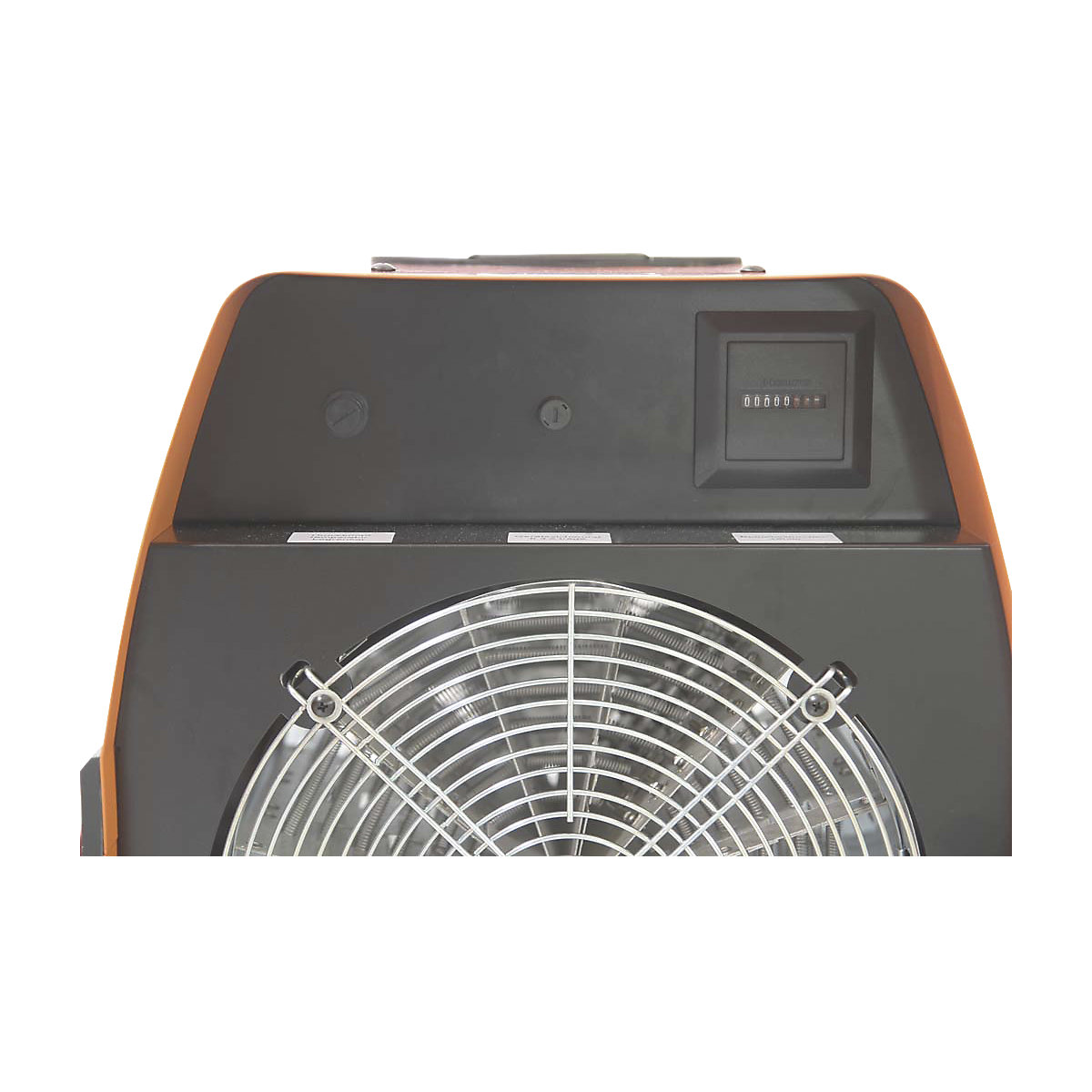

  • Incl. operating hours counter

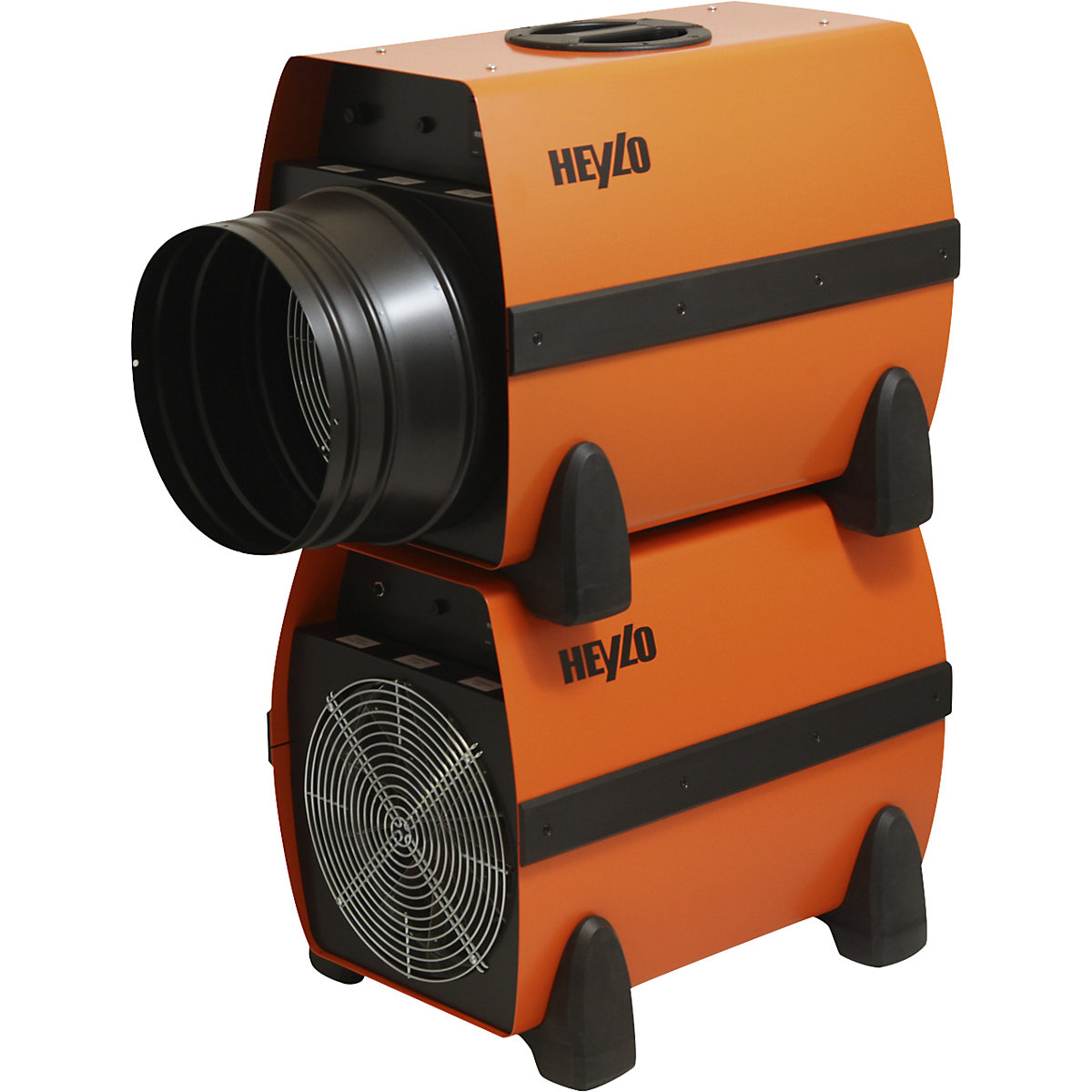

  • Robust and stackable
The Heylo DE 10 electric heater provides fast, clean and uniform heat for professional uses – from construction sites and industrial applications to events. With a maximum heat output of up to 9 kW, which can be regulated in three levels, the DE 10 is versatile to adapt to any requirement. The special spiral heating insert made of high alloy steel ensures efficient and uniform heat that benefits both people and materials.

Because it can be operated at 60 Hz and comes with an integrated ventilation function, the electric heater can be used for a wide range of applications. The integrated safety thermostat switches off the device automatically in the event of overheating, and a fault indicator provides information on the operating status, ensuring safe and uninterrupted use. The operating hours counter also enables precise monitoring of running times – ideal for rentals and regular maintenance.

Its robust and stackable design, ergonomic carrying handle and low weight make the DE 10 particularly mobile and quick to stow away. The device is also available in white and can be optionally controlled with an external thermostat to make it even more convenient and versatile to use.

Technical data at a glance:

Heat output: 3 / 6 / 9 kW, adjustable to 3 levels
Heating element: spiral heating element made of high alloy steel
Electrical connection: 400 V / 50 Hz or 400 V / 60 Hz
Fuse protection: 16 A
Air flow rate: 710 m³/h
Safety functions: automatic switch off by means of safety thermostat, fault indicator (STB)
Additional features: ventilation function, operating hours counter, stackable and easy to transport
Optional: external thermostat can be connected, also available in white

The Heylo DE 10 stands for a professional heating output that makes an impression with its safety, mobility and versatility – the first choice for professional renters and anyone who needs reliable heat.
Technical data
Width414 mm
Length570 mm
Height482 mm
Max. air volume710 m³/h
Nominal thermal capacity3 / 6 / 9 kW kW
Mains voltage400 V/50 – 60 Hz/3 phase
Protection typeIP21
Product typeheaters
Suppliedassembled
Weight18.5 kg
