Ref.: 827862 49

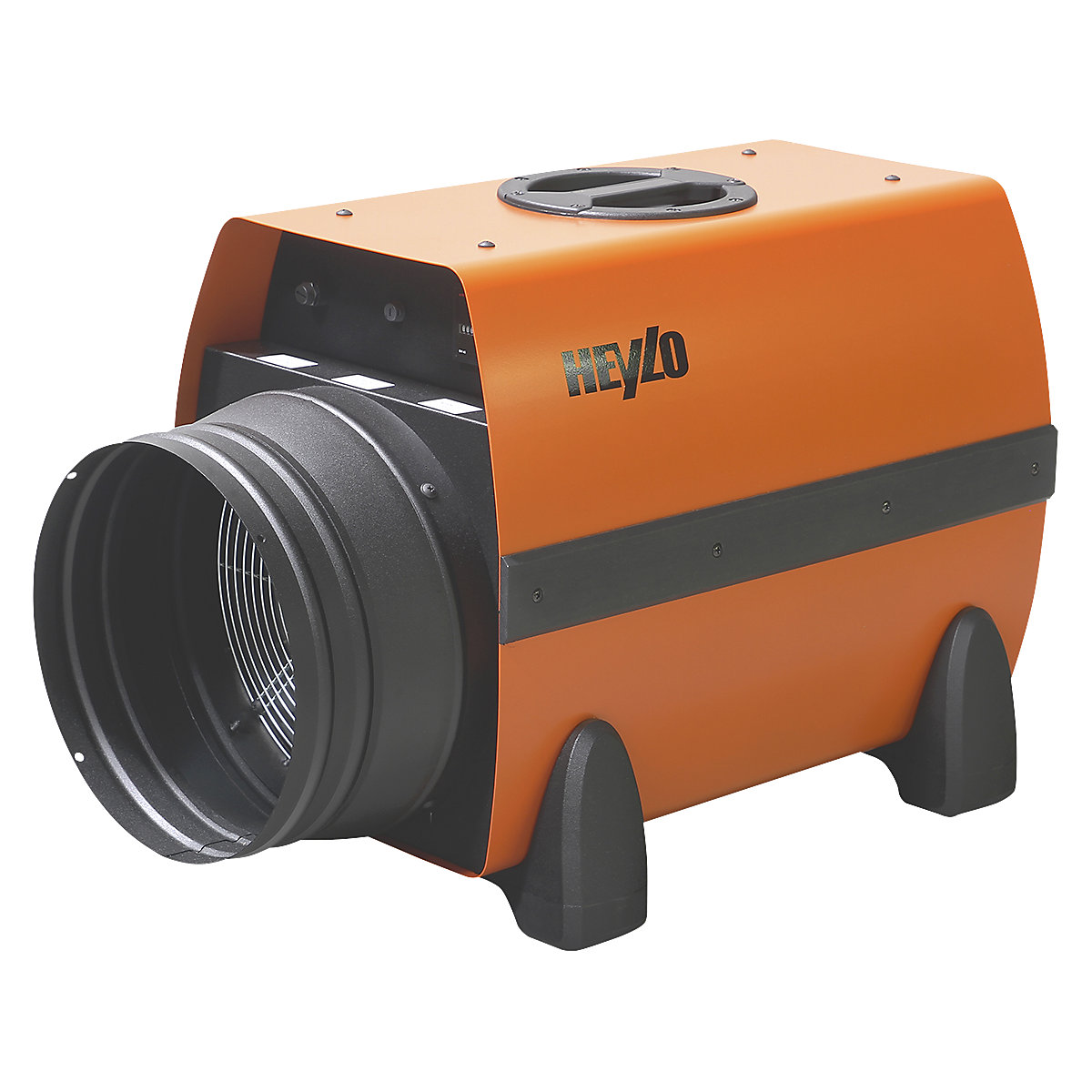

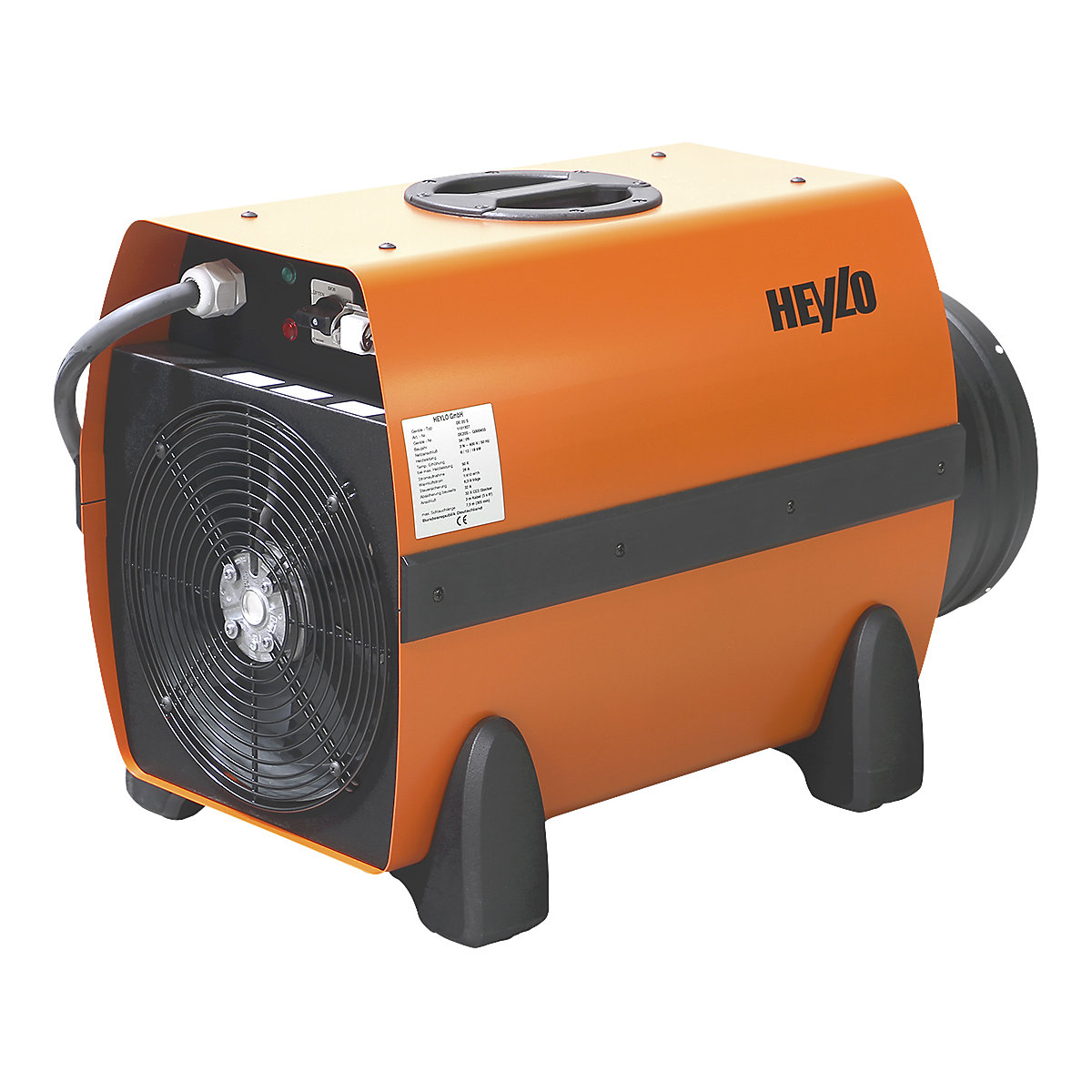

Heylo DE 20 S electric heater 400 V/50 – 60 Hz/3 phases

Heylo DE 20 S electric heater

LxWxH 730 x 414 x 482 mm

Ref.: 827862 49
Product description

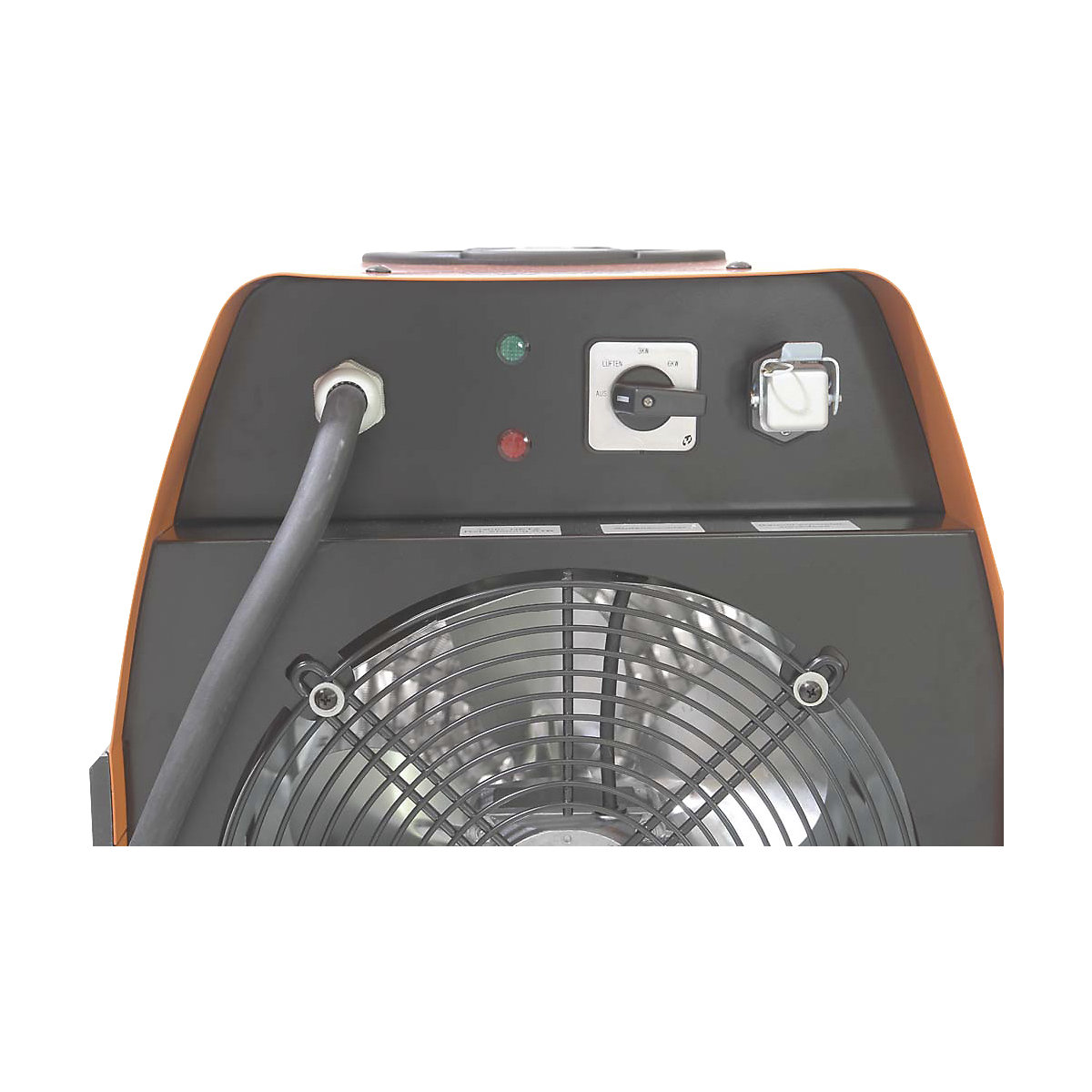

  • 3 level regulation of the heat output
  • Special heating insert made of high alloy steel
  • Separate ventilation function
  • Automatic switch off at temperatures above 100 °C

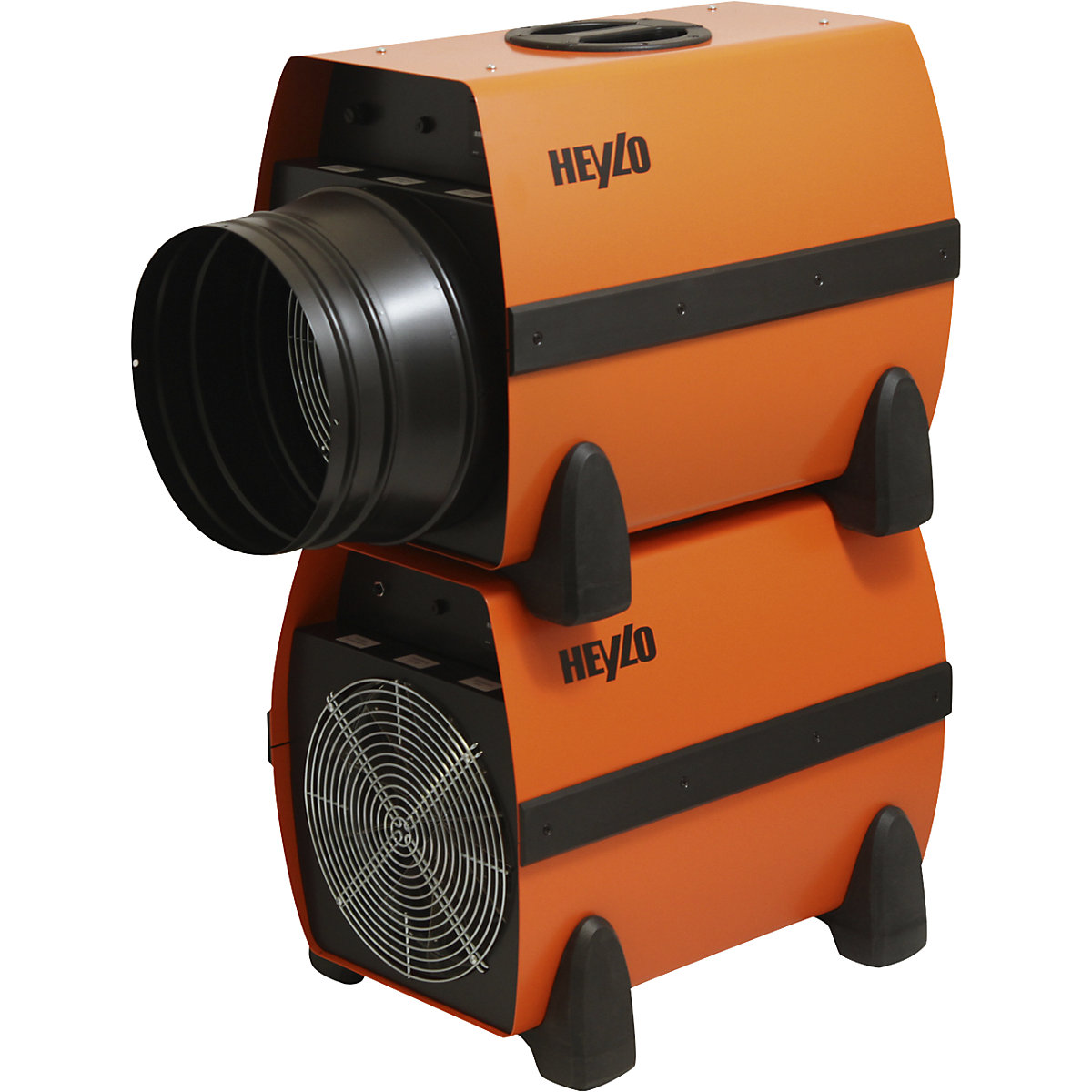

  • Can be stacked for space saving storage

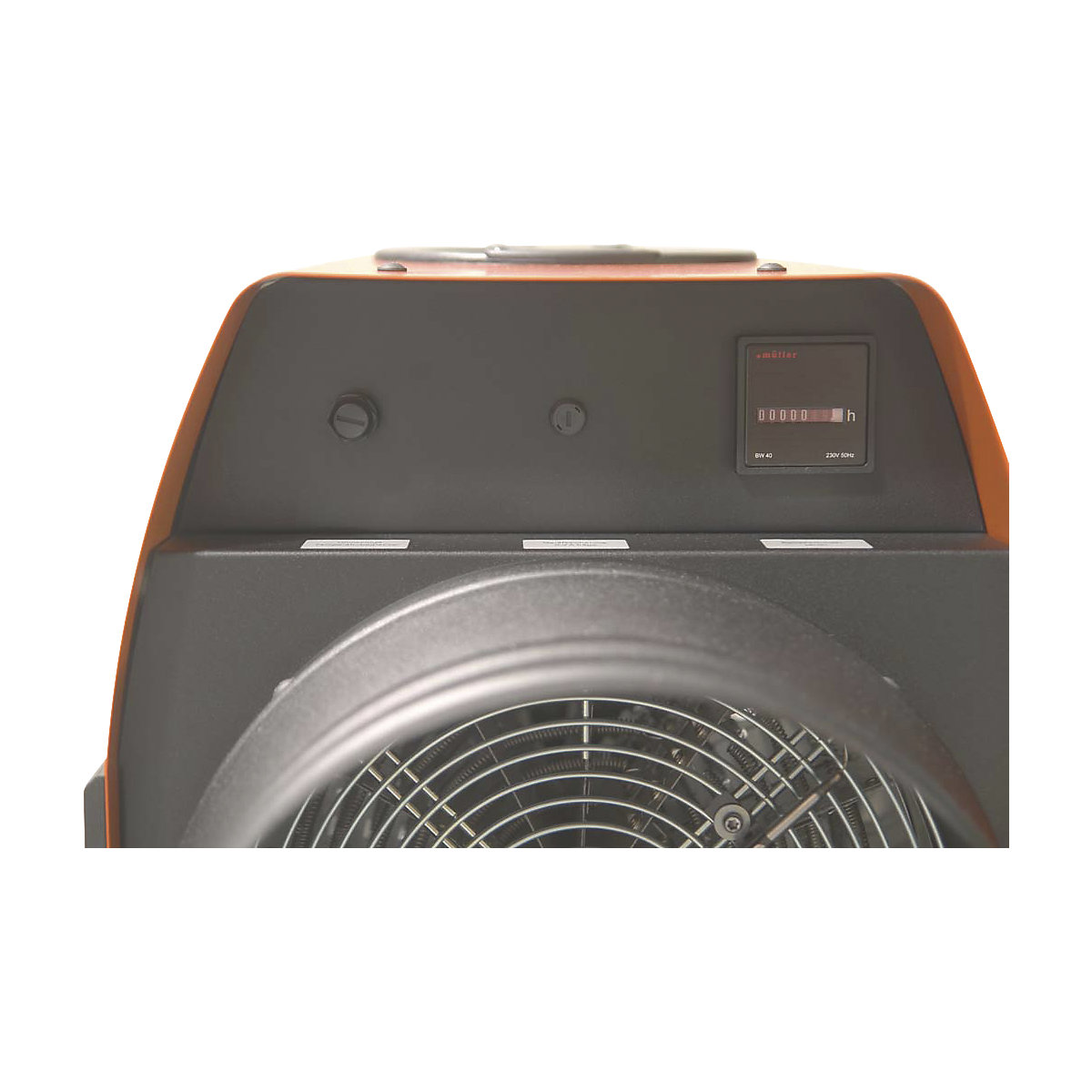

  • Counter for operating hours

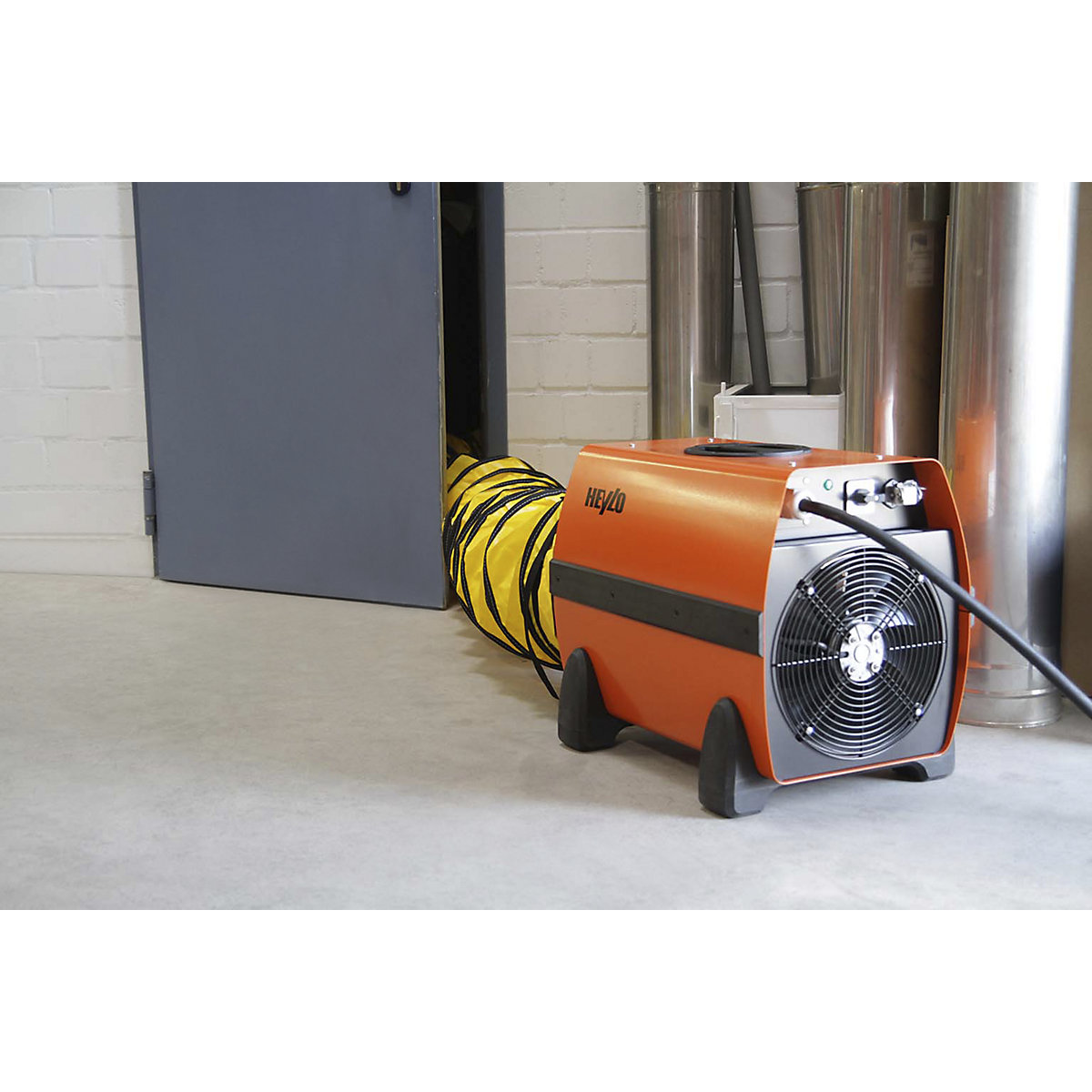

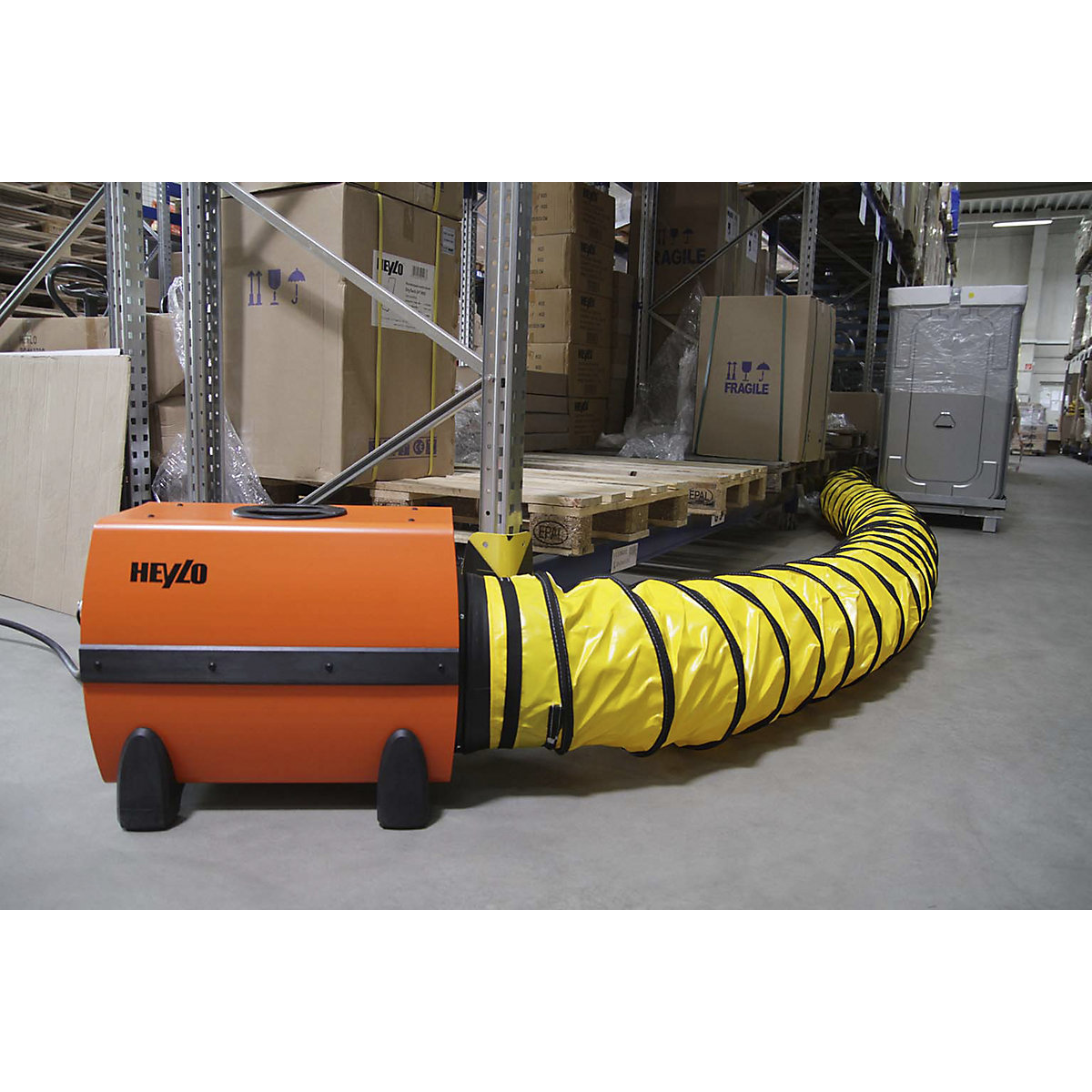

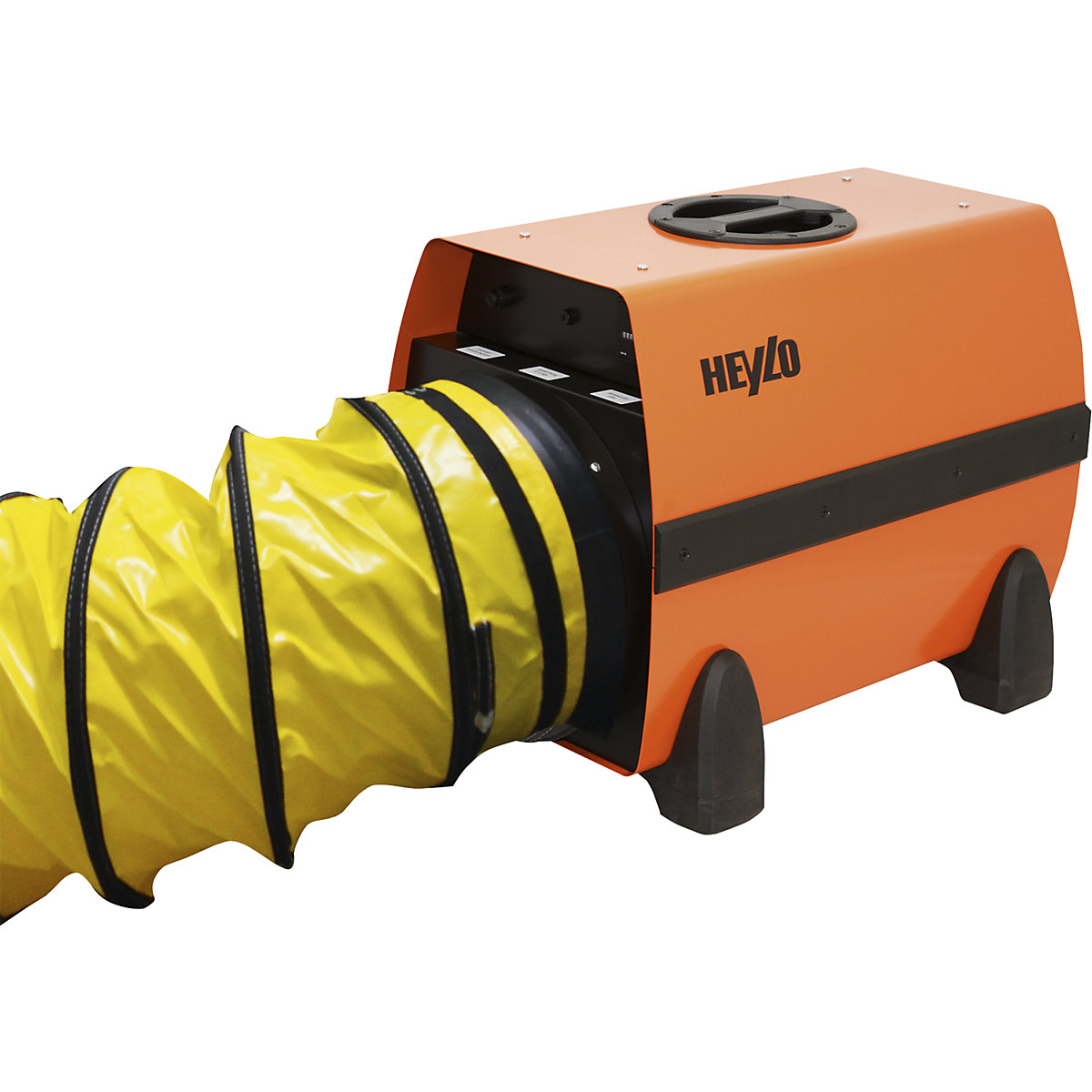

The powerful electric heater with an output of up to 18 kW and with hose connection has been specifically developed for demanding areas of use, and is ideal for larger rooms and areas that require fast and reliable heating. With a heat output of up to 18 kW and a 3 level regulator, the heat output can be optimally adapted to different requirements. The special heating insert made of high alloy steel ensures a long service life and high efficiency operation, even with intensive use.

For additional versatility, the electric heater can also be used in 60 Hz mode and comes with a separate ventilation function. An integrated safety thermostat switches the device off automatically if the temperature in the hose exceeds 100 °C, and a fault indicator provides reliable information about any potential activation. The practical operating hours counter helps to keep track of running times – ideal for maintenance planning and efficient use on construction sites or in industrial environments.

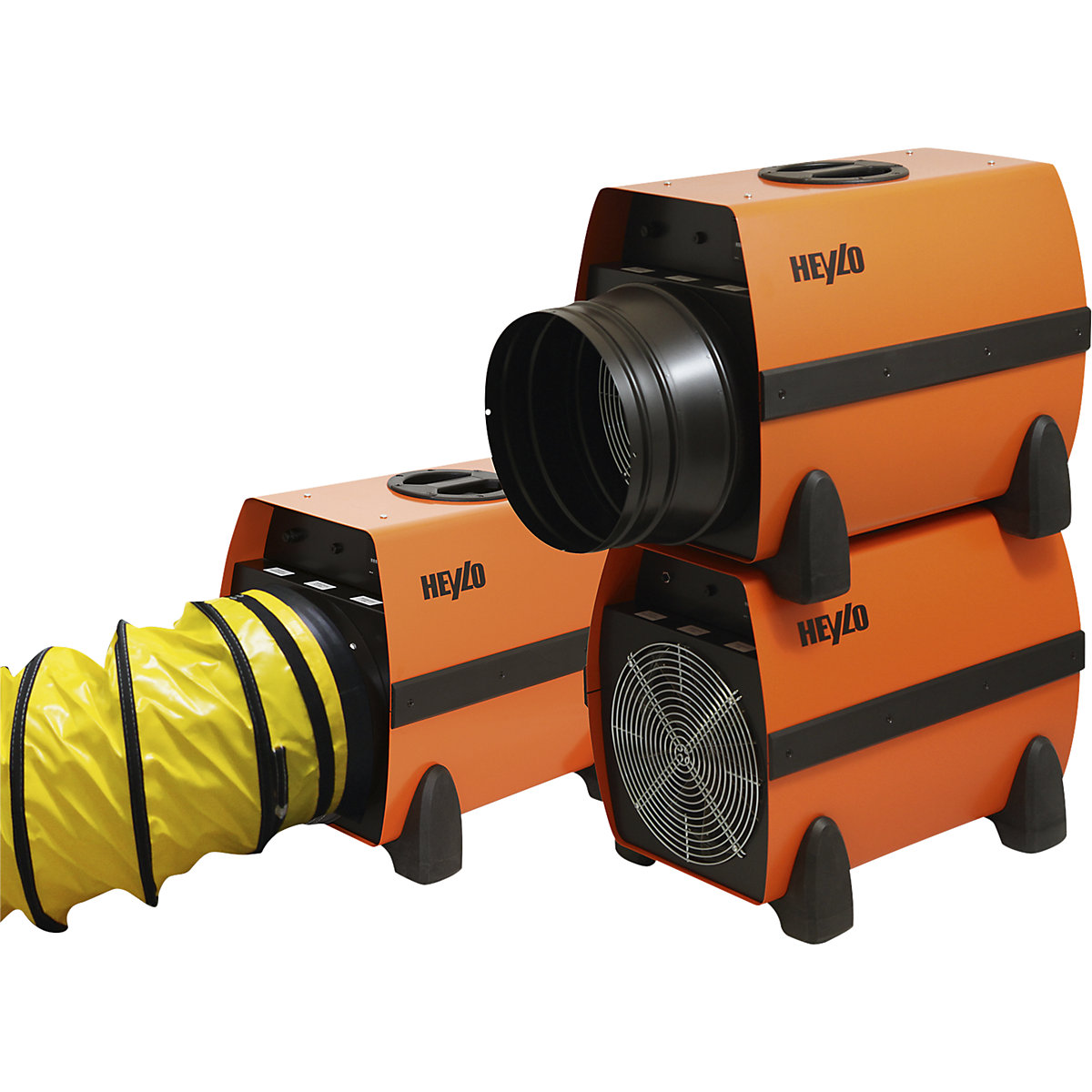

The design of the electric heater is not only functional, but also space saving: the devices can be stacked for efficient storage. An external thermostat is also available as an option for easy adaptation to different areas of use, and the appearance of the device can be adapted flexibly, as it is also available in white.

Technical data at a glance:

Heat output: up to 18 kW, adjustable in 3 levels
Material: high alloy steel
Operation: 60 Hz possible
Safety functions: thermostat controlled switch off at temperatures above 100 °C in the hose
Additional features: fault indicator, operating hours counter, separate ventilation function, stackable
Optional: external thermostat, available in colour white
This electric heater offers a safe and powerful solution for demanding heating jobs in industry and retail.
Technical data
Width414 mm
Length730 mm
Height482 mm
Max. air volume1410 m³/h
Nominal thermal capacity6 / 12 / 18 kW kW
Mains voltage400 V/50 – 60 Hz/3 phase
Protection typeIP21
Product typeheaters
Suppliedassembled
Weight20.5 kg
