Ref.: 841433 49

Heavy-duty cable bridge Morion LxW 500 x 500 mm

Heavy-duty cable bridge Morion

height 90 mm, Ø 60 mm

Height [mm]
New
£99.00
Price / item (Excl. VAT)

Delivery time: 2 Week delivery
Product description
  • Extremely durable for use in heavy-duty transport (up to 40 t)
  • Secure protection for pipes, hoses and cables even in the rain
  • Modular system with H-connectors – individually adaptable
  • Robust hard rubber compound for a long service life
  • Areas of Application: construction sites, events, industrial applications
Optimize your infrastructure with the cable bridge XL, the ultimate solution for the protection of pipes, hoses, and cables in heavy-duty applications. Designed for the highest demands, this robust cable bridge made of durable hard rubber compound ensures a safe passage for heavy-duty vehicles and reliably prevents damage.

Thanks to the non-slip surface and the clearly visible white arrow markings, the Cable Bridge XL ensures maximum traffic safety and clear lane guidance. The modular design enables easy expansion and adaptation using H-connectors – ideal for flexible continuous constructions that are perfectly tailored to your individual on-site requirements.
The cable bridge is specifically designed for use in the heavy-duty sector for trucks up to 40 t. Due to the height of up to 110 mm, it is not recommended for cars with low ground clearance. Crossing speed: 5 km/h.

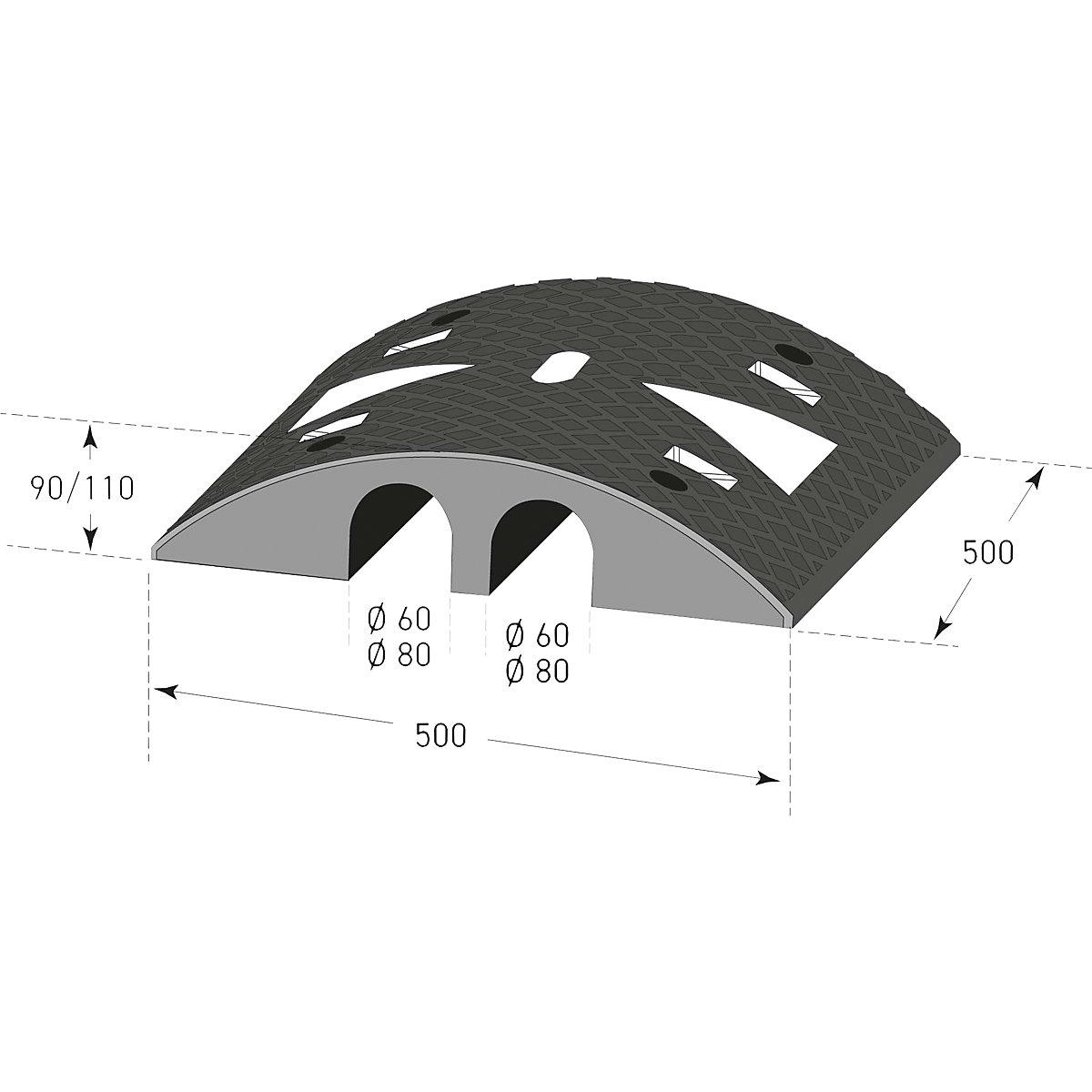

Technical data
Length500 mm
Width500 mm
Colourblack white
Materialrubber mixture
Finishnon-slip cover
Number of cable ducts2 pcs.
For speed limit5 km/h
Product typecable ducts
Height90 mm
Cable duct diameter60 mm
Weight16 kg
