Ref.: 829217 49

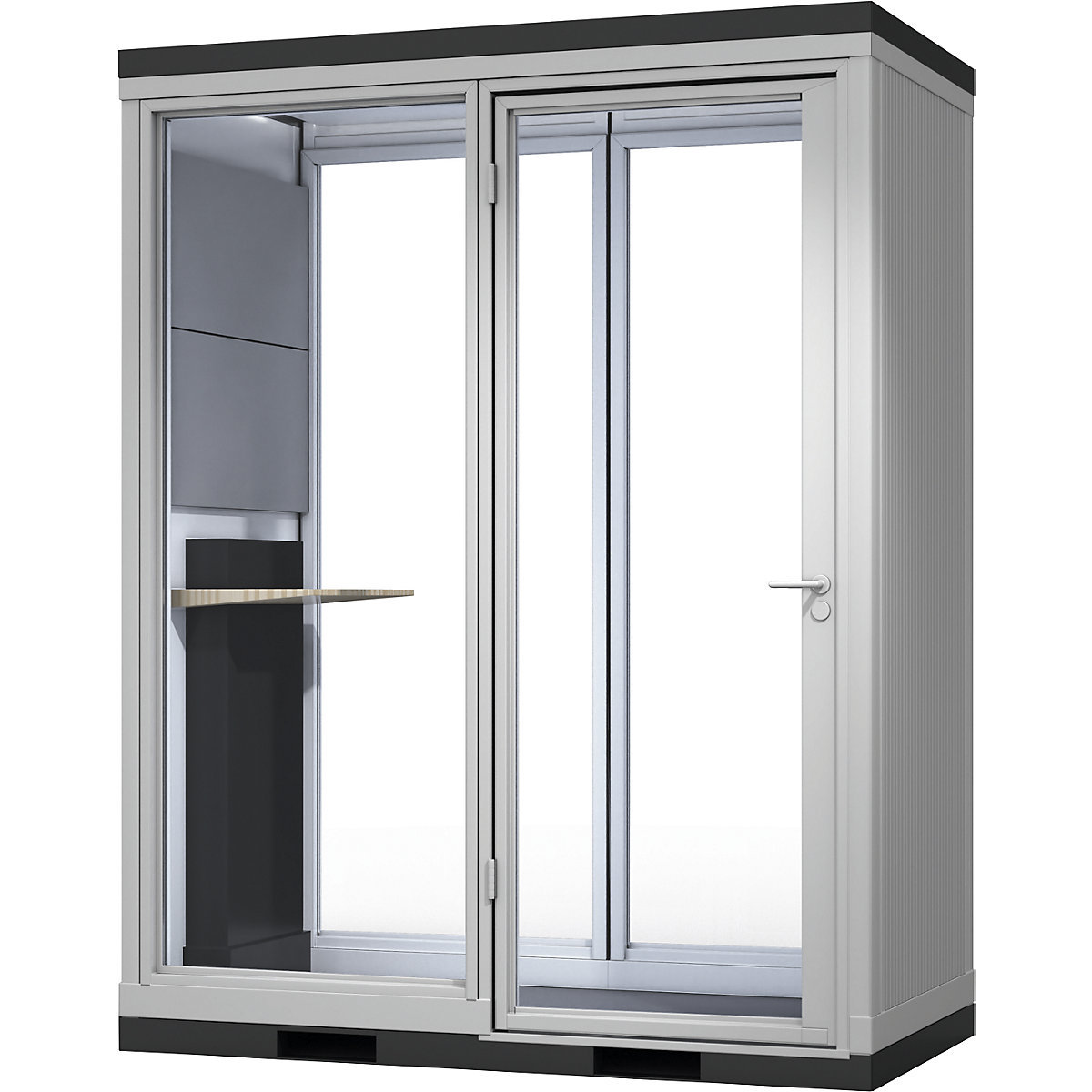

CoWoCube® 2 meeting booth LxWxH 2194 x 1148 x 2832 mm

CoWoCube® 2 meeting booth
CoWoCube® 2 meeting booth, LxWxH 2194 x 1148 x 2832 mm, single hinged door, fully glazed-0
CoWoCube® 2 meeting booth (Product illustration 2)-1

single hinged door, fully glazed

Ref.: 829217 49
Product description
  • For undisturbed phone calls, video calls or meetings on the go in the middle of the production facility
  • Soundproofed, robust, fully assembled and ready for use
  • Versatile and easy to move with a forklift truck
Floor made of welded steel framework painted in RAL 7016 charcoal, with integrated forklift pockets, 50 mm mineral wool insulation inserted in floor panels. Wood based panel 22 mm with surface covering made of needle felt, charcoal.
2 sided full glass wall with a door with 8 mm soundproof laminated VSG glass from floor to ceiling. 2 sided solid wall consisting of sandwich elements with 60 mm rock wool insulation, cover panels on the inside made of zinc plated sheet steel coated in RAL colour 9010 pure white, smooth texture, cover panels on the outside in RAL colour 9006 white aluminium, finely lined texture, with RAL 9006 profile edging.
Roof made of sandwich panel with 80 mm rock wool insulation, tongue and groove system, cover panels on the inside made of zinc plated sheet steel coated in RAL colour 9010 pure white, smooth texture, cover panels on the outside in RAL colour 9006 white aluminium, finely lined texture, roof panel in RAL 7016 charcoal, modular design, roof surface can be walked on with a man load of 100 kg.

Equipped with enhanced sound insulation package:
– Soundproof VSG glazing 8 mm
– Schall-Ex bottom door seal
– Special sound insulation seals for wall and ceiling elements
– Rock wool insulation with high specific inherent weight (110 kg/m³) for wall and ceiling elements
– Full surface sound absorber in the ceiling area

Electrical installation in accordance with VDE0100, mains voltage 230 V / 50 Hz. Sub-distribution unit in panelling box for 4 division units with RCD switch, 1 safety socket, with all round, indirect LED lighting in the ceiling area, can be activated by motion detector.
Ventilation using maintenance free natural room ventilation by means of guided and sound absorbing labyrinth construction in the roof.
Technical data
Place of useindoor use
Length2194 mm
Width1148 mm
Height2832 mm
Design of multi-purpose buildings / office buildings4-sided, for free standing installation
Materialsteel mineral wool glass aluminium plastic
Internal length2070 mm
Internal width1024 mm
Railing height128 mm
Clear height2566 mm
Design of ceilingsandwich panel roof with tongue and groove system
Max. wall height2608 mm
Panel thickness62 mm
Section typeglass wall
Section glazingVSG glass, 8 mm
Door typesingle hinged door, fully glazed
Door materialsteel glass
Door height2457 mm
Door clearance width937 mm
Door thickness10 mm
Grid dimensions1026 mm
Colourcharcoal RAL 7016 white aluminium RAL 9006 pure white RAL 9010
Product typetelephone booths
Suppliedassembled
Weight700 kg
Sustainability
Recyclable
Recyclable products are products that can be recycled at the end of their service life, providing they are separated into all their individual components in designated recycling facilities. This means that the individual components are made of materials that can be exploited using the recycling process and be reprocessed into new products. Recyclable products help reduce the environmental impact of waste and to conserve resources.
Enkelfähig
<B>Enkelfähig product</B><br/><br/>Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?<br/>The 2 categories in which this product performs particularly well are listed below.<br/><br/>For more information about the product evaluation and the Enkelfähig Initiative, please visit our <a href="/w/company_enkelfaehigscore/">Enkelfähig information page</a>.
Enkelfähig product

Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.

For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.

Circular economy
A circular economy is an economic system in which waste is avoided and resources are used efficiently by recirculating materials, products and waste in closed cycles and reusing them as raw materials or sources of energy for new products.
This product makes a greater contribution to achieving a circular economy. The greater contribution compared to other products is the result of several factors, including the use of hardwearing materials, the ability to be recycled, and the use of recycled materials in the product design. Sustainable packaging is also factored into any assessment within a circular economy.

Innovation and technological progress
This product scores points within its product group due to the use of an innovative product design or innovative materials that advance product sustainability. Compared to other products, the product utilises, for example, material solutions that are more sustainable, the use of an increased share of recycled materials, or an optimised product design that has a positive impact on the recyclability, service life, durability and therefore the general sustainability of the product solution.
‌
‌
‌
‌
‌
