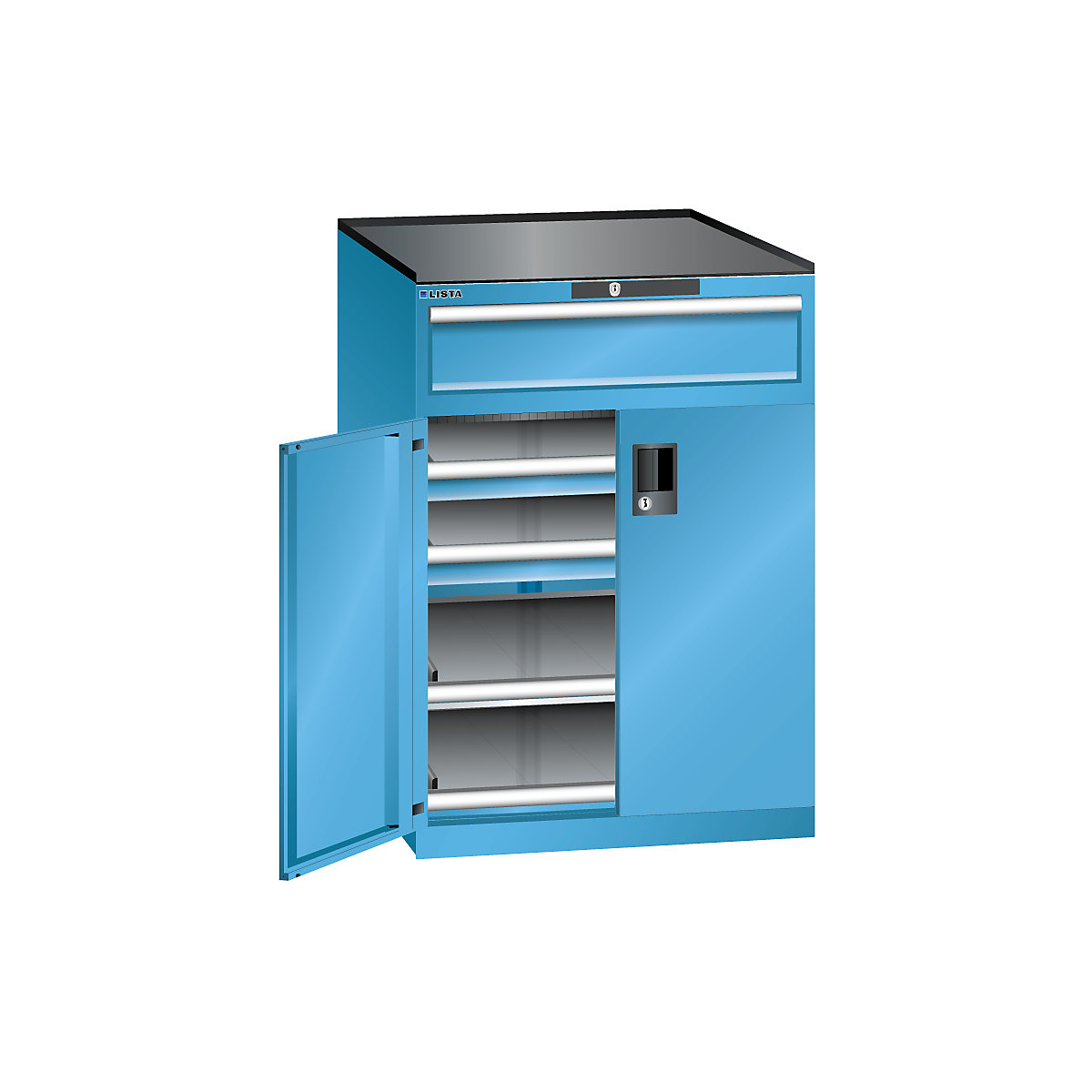

LISTA – Drawer cupboard with hinged doors height 1020 mm, 2 shelves, 3 drawers, max. load 200 kg

LISTA
LISTA – Drawer cupboard with hinged doors, height 1020 mm, 2 shelves, 3 drawers, max. load 200 kg, grey metallic / light grey
Price / items (Excl. VAT)
£1,760.00

Product description
Drawer cupboard paintwork:
Impact resistant and hardwearing surface due to environmentally friendly powder coating.

Material:
Very hardwearing due to precise and sturdy construction using high quality, welded sheet steel with max. load up to 4 tonnes. Tight closing drawer construction provides protection from dust and liquids.

Bases:
Full surface corrosion protection due to electro-deposition immersion painting, grey metallic, NCS S 4502-B.

Housing height: 1000 mm
Clearance height at top: 150 mm
Clearance height at bottom: 700 mm
Set of hinged doors for partial height: 700 mm

Housing cover:
Raised edge on 3 sides made of sheet steel, black, NCS S 9000-N, incl. ribbed mat, black.
Height of raise edge: 20 mm. Other features: interior fittings height adjustable in increments of 25 mm.

Drawer WxD 612 x 612 mm, arrangement of front heights / effective heights at top: 150 / 132.5 mm, arrangement of front heights / effective heights at bottom: 75 / 57.5 mm, 75 / 57.5 mm.
Interior paintwork: full surface corrosion protection due to electro-deposition immersion painting, dove grey, NCS S 4502-B.
Other features: individual drawer lock with lift-out protection, perfect usability due to 100% utilisation of space and free choice of partition material.

Pull-out shelves WxD 612 x 612 mm, installation height 75 mm. Max. load 200 kg. Pull-out type: full extension.
Material: high quality sheet steel. Other features: with sendzimir galvanised shutter inserts (sheet steel profile), safe storage of high-stacked goods.
Technical data
Height1020 mm
Width717 mm
Depth753 mm
Max. drawer load200 kg
Number of drawers3 pcs.
Drawer height1 x 150, 2 x 75 mm
Drawer extension100%
Fittingsindividual pull-out stop
Materialwelded sheet steel
Drawer guidedifferential guide rails without cross beams
Lock typeKEY lock (individual keys) with central locking and replaceable cylinder, incl. 2 keys with key number
Internal drawer dimensions612 x 612 mm
Featurecan be labelled
Overall max. load4000 kg
Number of doors2 pcs.
Door typehinged door
Opening angle of doors235 °
Number of pull-out shelves2 pcs.
Weight129.44 kg
Product typeworkshop drawer cupboards
Suppliedassembled
