Ref.: 839526 49

SiS Li-Ion Basic Store EI 90 battery safety storage cabinet – LaCont without fire suppression system

SiS Li-Ion Basic Store EI 90 battery safety storage cabinet – LaCont

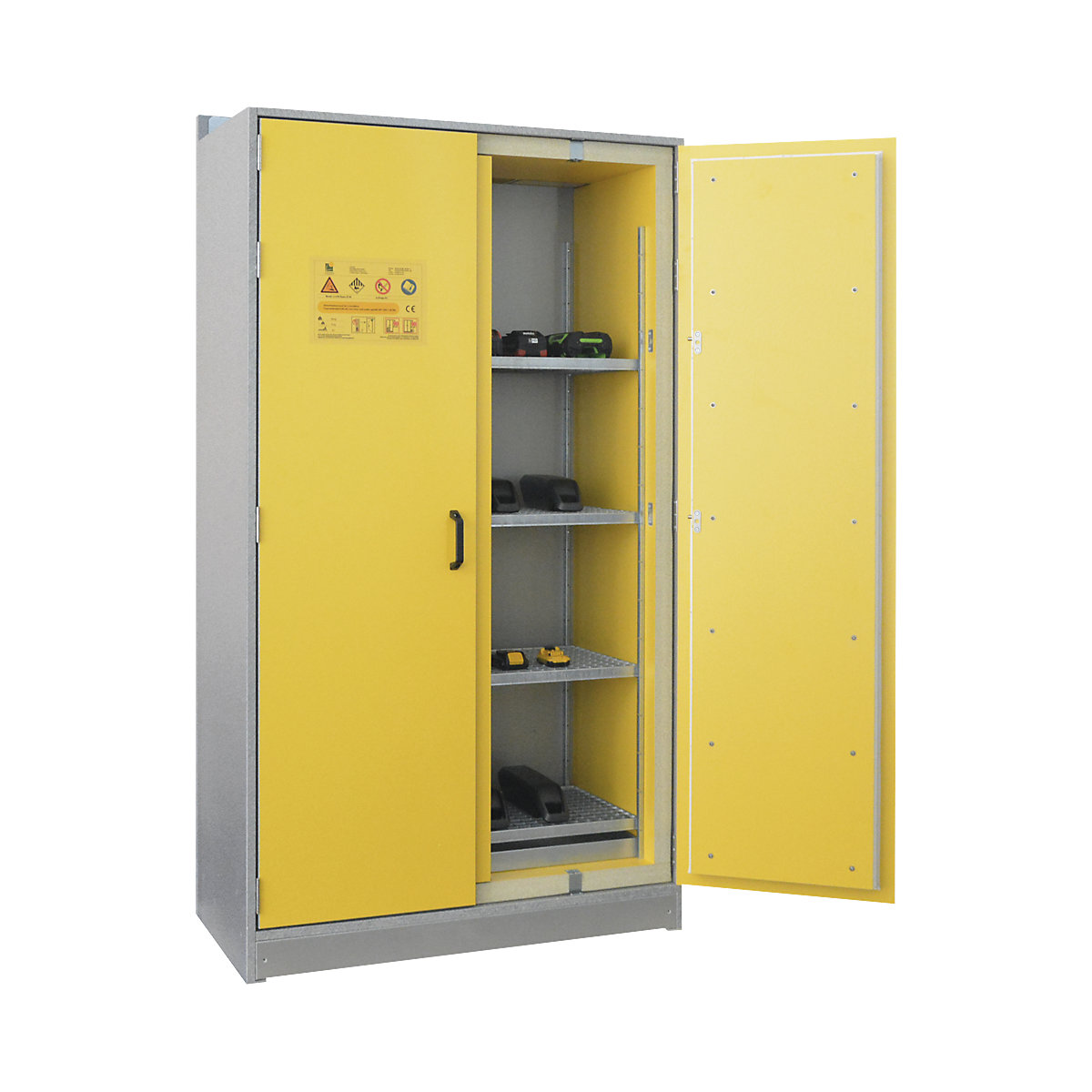

SiS Li-Ion Basic Store EI 90 battery safety storage cabinet – LaCont, without fire suppression system, HxW 2048 x 1148 mm-0

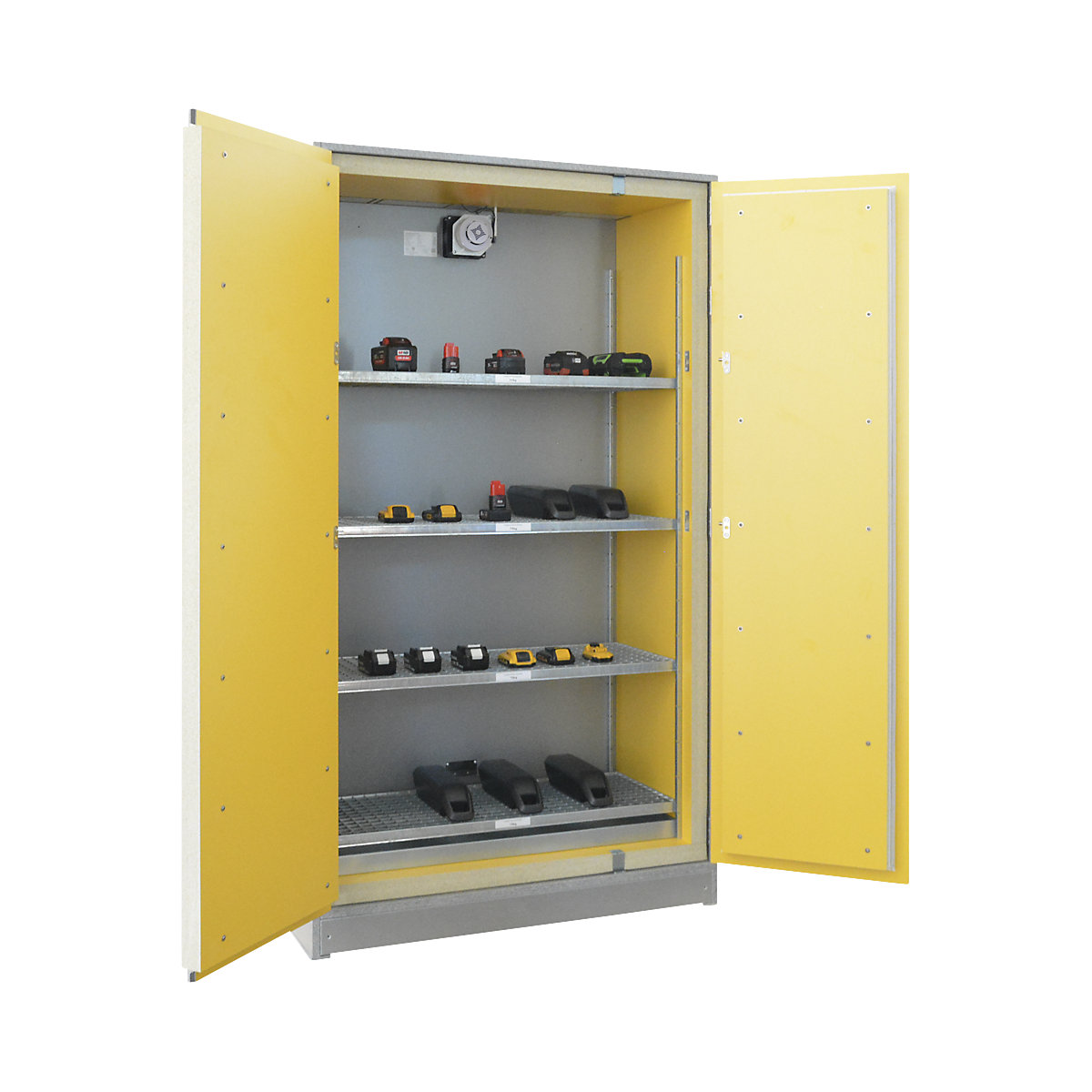

SiS Li-Ion Basic Store EI 90 battery safety storage cabinet – LaCont (Product illustration 2)-1
SiS Li-Ion Basic Store EI 90 battery safety storage cabinet – LaCont (Product illustration 3)-2

HxW 2048 x 1148 mm

Ref.: 839526 49
Product description
  • For the safe and passive storage of several lithium ion batteries
  • Fire resistance of 90 minutes from the inside and outside (EI 90), type tested in accordance with EN 1363-1:2012-10
  • Maximum battery capacity per cabinet 8 kWh
  • Integrated ventilation system with smoke detector and fan
  • All round fire protection seals that foam up automatically in the event of a fire
  • Smooth running hinged doors, opening angle 180°, not self-closing
  • Fire resistant cable inlets at the top and bottom

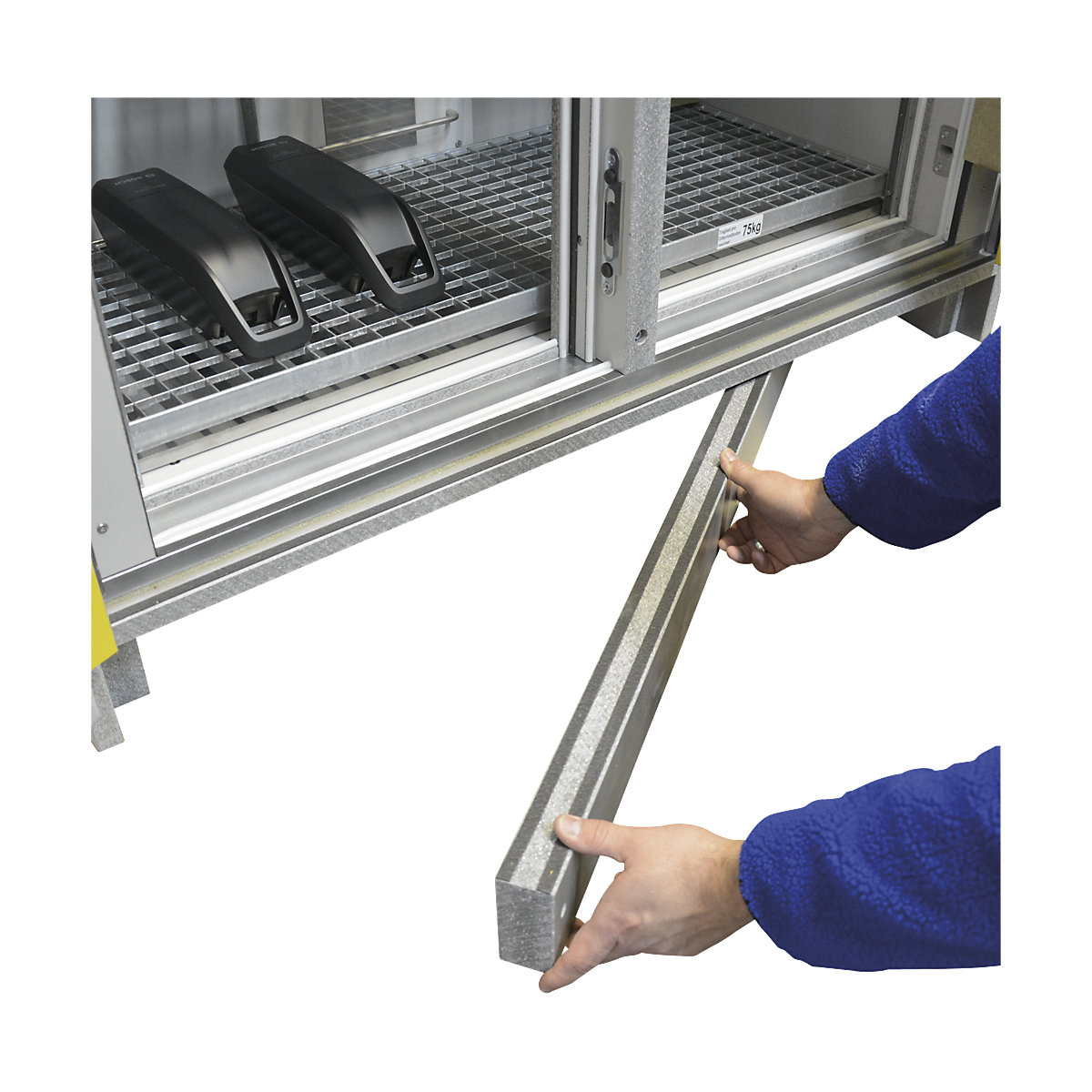

  • Plinth that provides access from below, height 100 mm with removable plinth panel
The LaCont LI-ION Basic Charge EI 90 battery storage cabinet is the ideal entry level model for the passive storage of lithium ion batteries, with a main focus on fire protection.

The robust overall construction, tested by the Materials Testing Institute (MPA) in Dresden, exhibits a fire resistance rating of 90 minutes from the inside and outside (EI90) in accordance with EN 1363-1. The LaCont LI-ION Basic provides protection from fires inside the cabinet by means of all round fire protection seals that foam up automatically in the event of a fire, minimising the escape of smoke and toxic fumes. The aim is to gain time to evacuate people in the vicinity and to allow the fire brigade to initiate extinguishing measures.

Other standard features include an integrated ventilation system with smoke detector and fan (to switch off the power supply), 4 height adjustable mesh grate storage shelves with a max. load of 75 kg each (with evenly distributed load), a plinth that provides access from below with a panel for ease of movement, and fire resistant cable inlets for customer installation of fire detectors or zero potential contacts.

Made of non-flammable material (class A2 – s1, d0 in accordance with EN 13501-1) incl. coating (body aluminium in colour / doors RAL 1023 – traffic yellow), zinc plated sheet steel base tray, 17 l collection capacity.
NOTE: the safety storage cabinets must be serviced once a year. LaCont recommends contacting your liability insurance company, the fire brigade or an expert before putting a cabinet into service. A risk assessment and a comprehensive fire protection concept are mandatory!
Technical data
Height2048 mm
Width1148 mm
Depth591 mm
Internal height1804 mm
Internal width1004 mm
Internal depth440 mm
Fire resistance90 minutes
Mains voltage230 V
Internal fittingswithout fire suppression system
Materialgypsum fibreboards sheet steel
Number of shelves4 pcs.
Body colourbrushed aluminium
Door colourtraffic yellow RAL 1023
Lock typedual bit security lock
Door typehinged door
For medialithium-ion batteries/rechargeable batteries
Product typebattery storage safety cabinets
Suppliedassembled
Weight600 kg
Instructions
