Ref.: 841334 49
Lift platform truck LxW 1400 x 820 mm
max. load 1000 kg
Max. load [kg]
Ref.: 841334 49
Lift platform truck LxW 1400 x 820 mm
max. load 1000 kg
max. load 1000 kg
Max. load [kg]
Ref.: 841334 49
Product not available
Currently not availableWe will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?Product description
- Platform size suitable for Euro pallets
- Ergonomic working height for work that is easy on the back
- Pump pedal for lifting perc foot
- Handle lowering

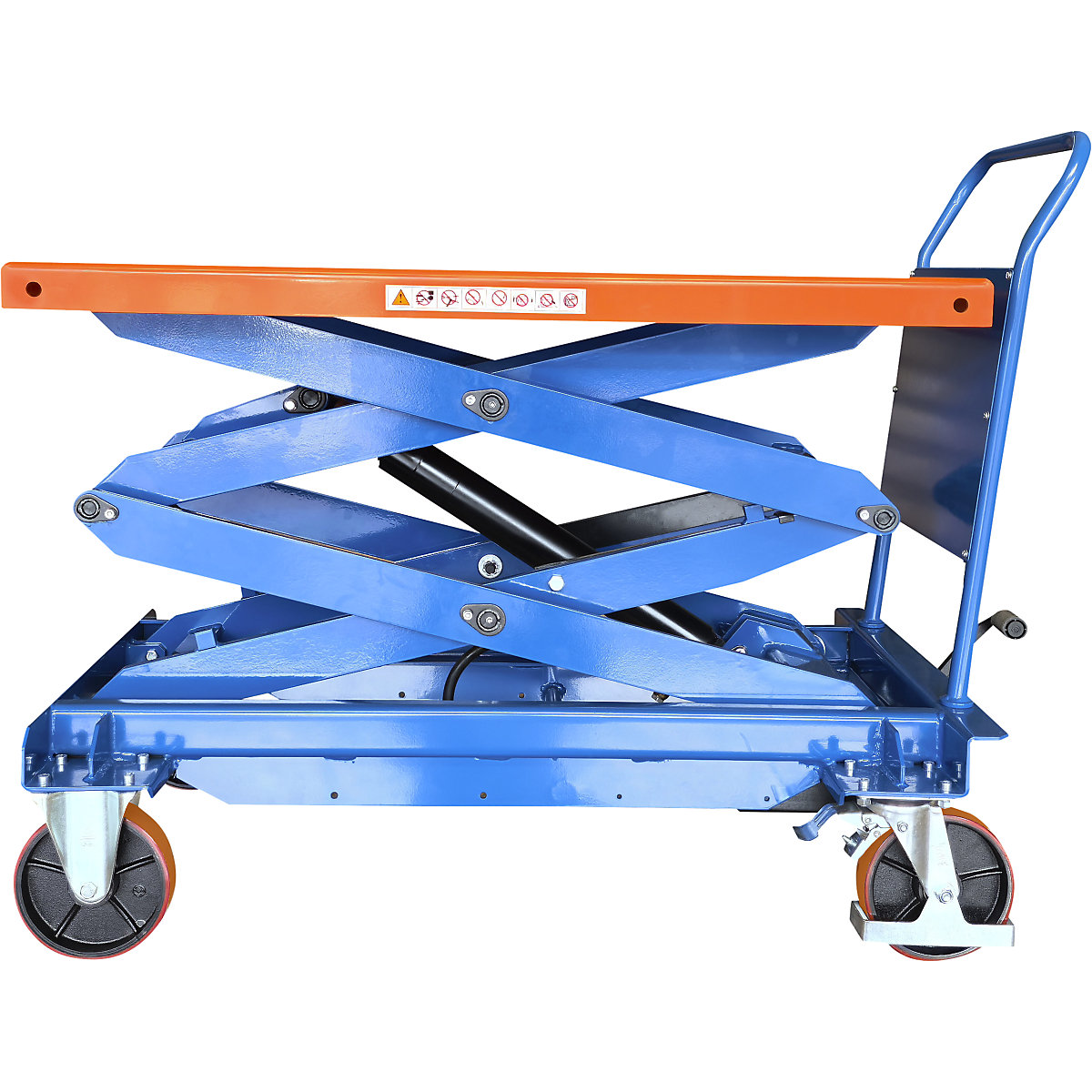

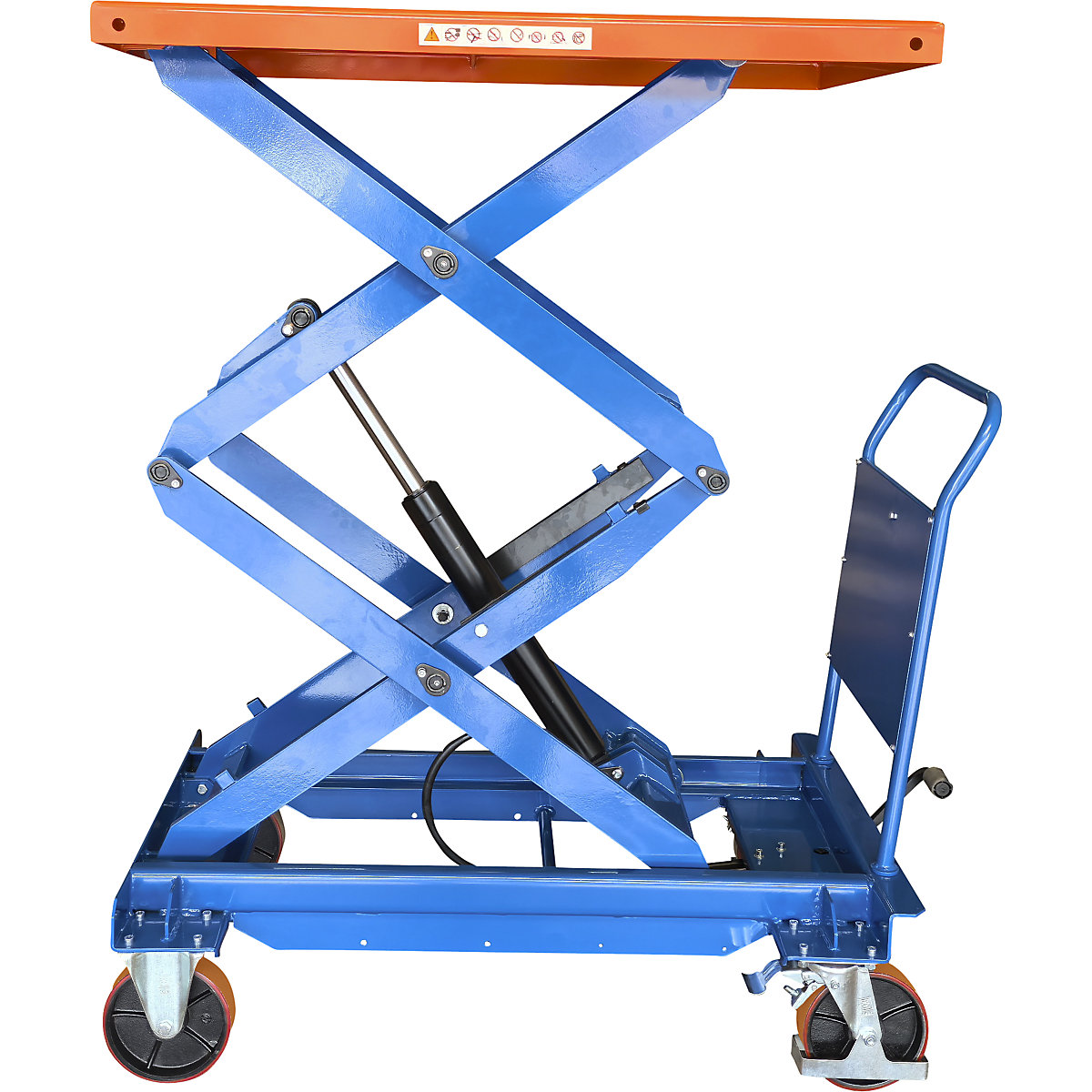

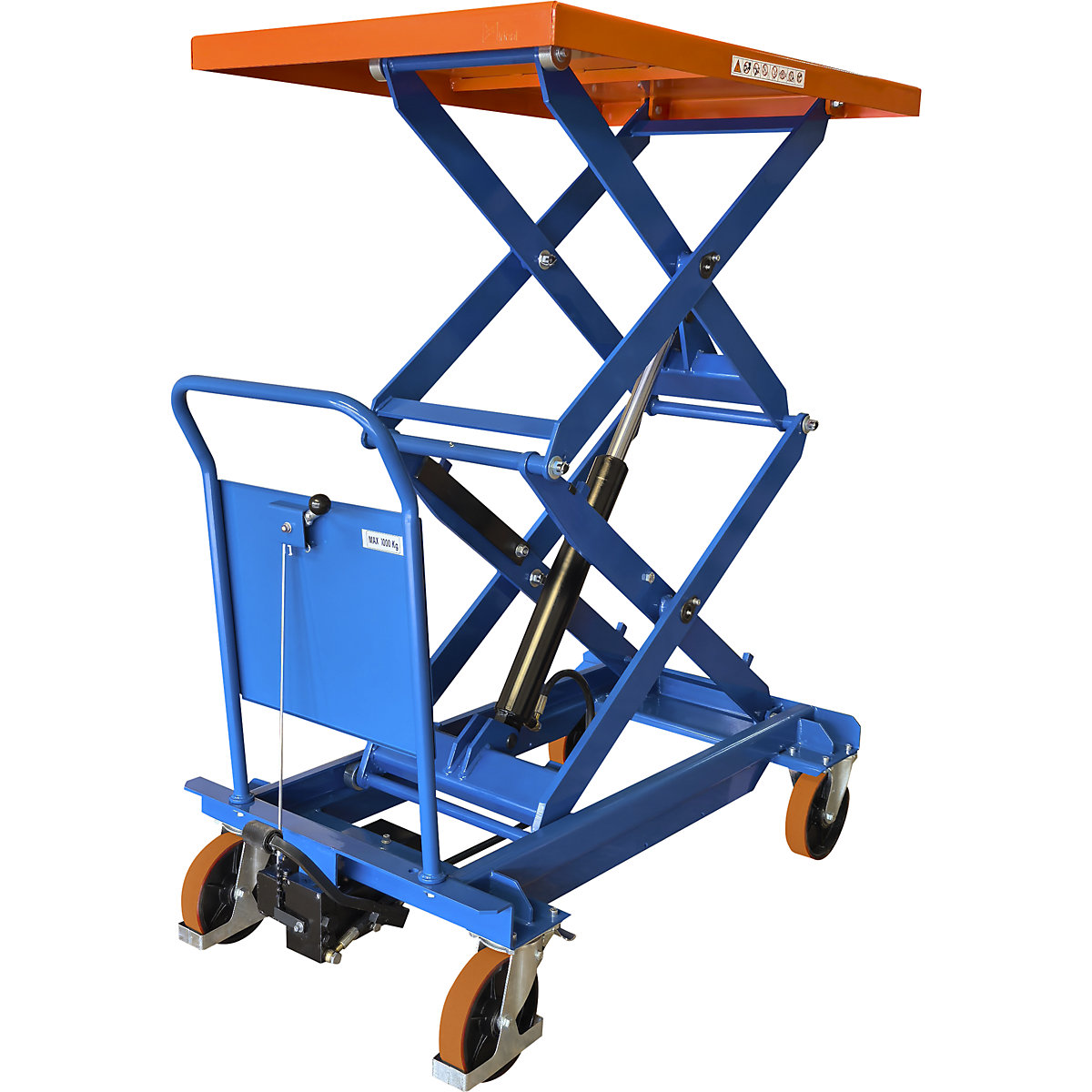

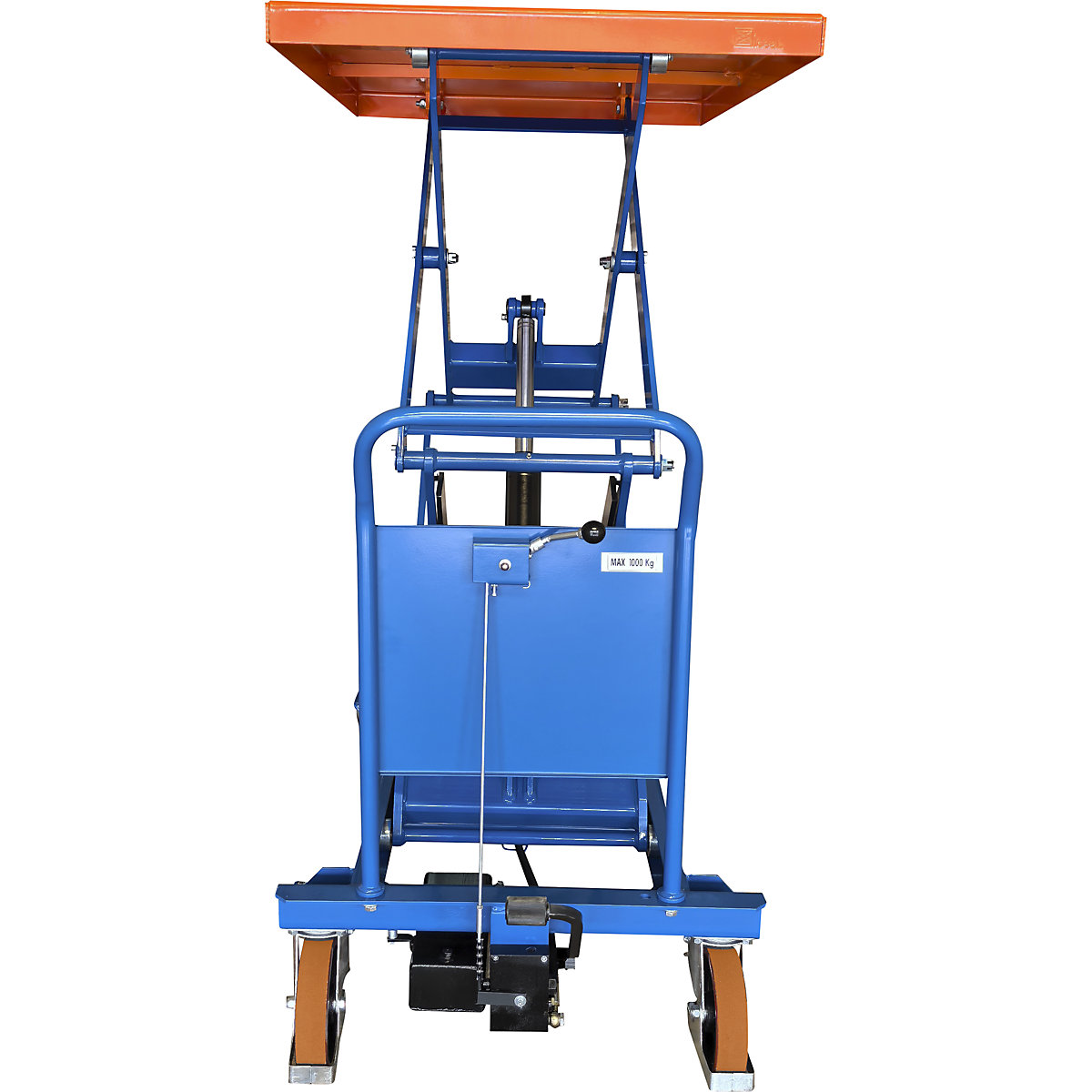

The lifting platform truck with a platform size of 1200 x 800 mm is perfectly designed for lifting goods on Euro pallets. Thanks to its double-scissor lifting mechanism, the platform can be lifted particularly high. Operation is conveniently performed via a pump pedal for lifting perc foot and a hand lever lowering for precise lowering. This way, goods and components are always brought to ergonomic working height – for back-friendly and safe handling.
The scissor lift truck is available in two variants:
– max. load 500 kg and lifting range 470 – 2000 mm
– max. load 1000 kg and lifting range 520 – 2000 mm
Two swivel castors with double stop and foot protection ensure high safety, while the two fixed castors enable stable and flexible mobility. Ideal for use in warehousing, manufacturing, and shipping logistics, the lifting platform truck supports the efficient and back-friendly movement of materials and products.
The scissor lift truck is available in two variants:
– max. load 500 kg and lifting range 470 – 2000 mm
– max. load 1000 kg and lifting range 520 – 2000 mm
Two swivel castors with double stop and foot protection ensure high safety, while the two fixed castors enable stable and flexible mobility. Ideal for use in warehousing, manufacturing, and shipping logistics, the lifting platform truck supports the efficient and back-friendly movement of materials and products.
Technical data
| Feature | manual mobile |
|---|---|
| Platform length | 1200 mm |
| Platform width | 800 mm |
| Length | 1400 mm |
| Width | 820 mm |
| Platform material | steel |
| Platform colour | orange |
| Frame colour | blue |
| Frame material | steel |
| Product type | lifting platform trolleys |
| Fittings | push handle castors with foot protection |
| Supplied | flat pack |
| Max. load | 1000 kg |
| Lifting range | 520 – 2000 mm |
| Weight | 242 kg |
