Ref.: 182032 49

Cable bridge, height 75 mm angled piece 45°, LxW 600 x 500 / 200 mm

Cable bridge, height 75 mm
Cable bridge, height 75 mm, angled piece 45°, LxW 600 x 500 / 200 mm, right-0
Cable bridge, height 75 mm (Product illustration 2)-1
Cable bridge, height 75 mm (Product illustration 3)-2
Cable bridge, height 75 mm (Product illustration 4)-3
Cable bridge, height 75 mm (Product illustration 5)-4

right

Model
£81.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Product description
  • Safety due to anti-slip surface
  • Signal effect due to yellow plastic cover
  • Can withstand an axle load of up to 12 tonnes
  • Can be extended as required – with tongue and groove system
  • With three cable ducts
The cable bridge, large, provides reliable protection for cables, hoses and pipes for professional use. It features a well thought out modular system with standard elements, angled pieces and end pieces, which makes it flexible to extend. It is also compatible with a wheelchair ramp system.

The cable bridge is designed for occasional heavy goods traffic and can withstand an axle load of up to 12 tonnes. The recommended crossing speed is 5 km/h. The robust construction is made of a special recycled hard rubber compound that guarantees durability and resilience.

High visibility is ensured by the yellow cover made of high quality plastic. The ribbed surface is anti-slip and provides additional safety. The crossing height is 75 mm, making the cable bridge ideal for use on roads and construction sites. In addition, integrated plug bores allow it to be fixed in place permanently.

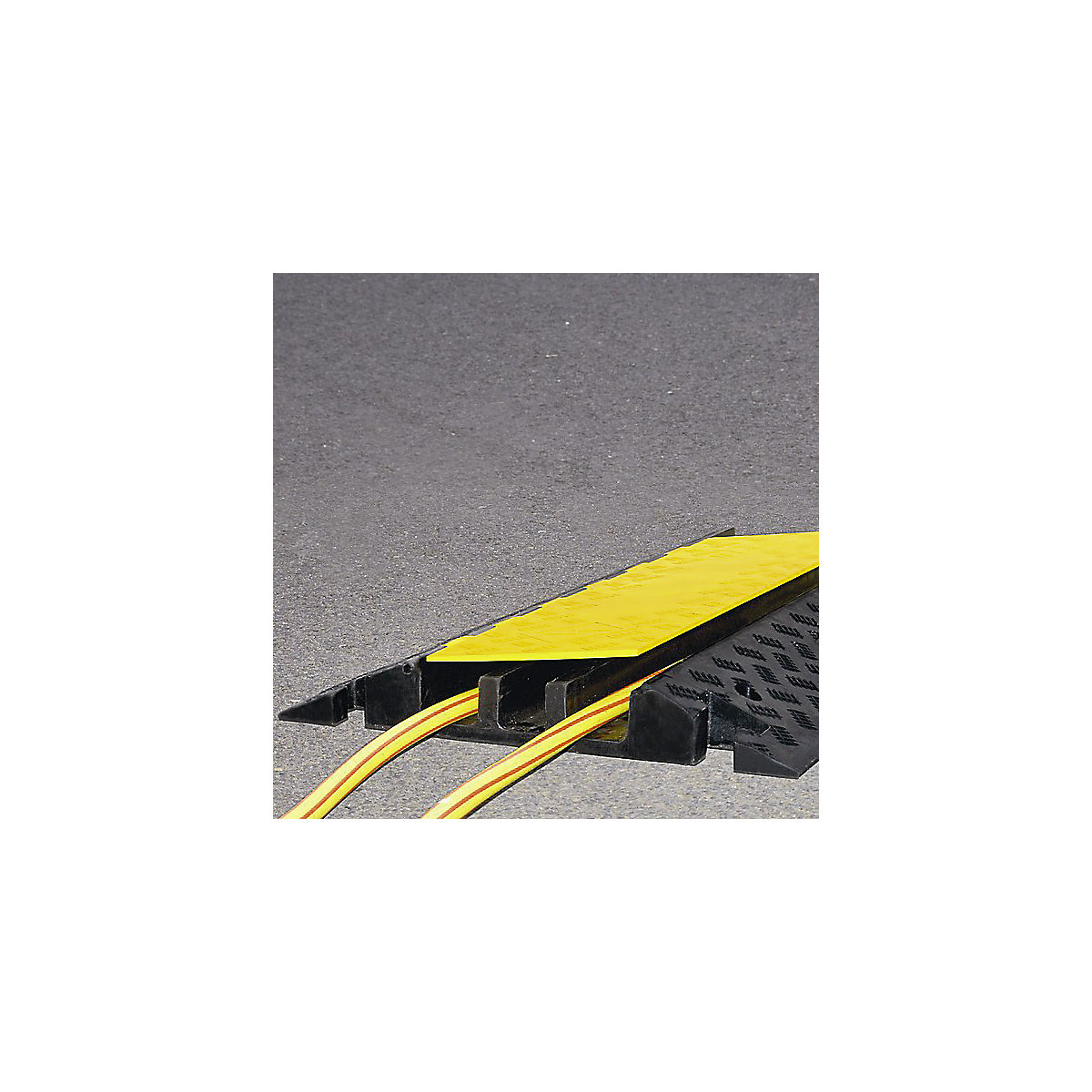

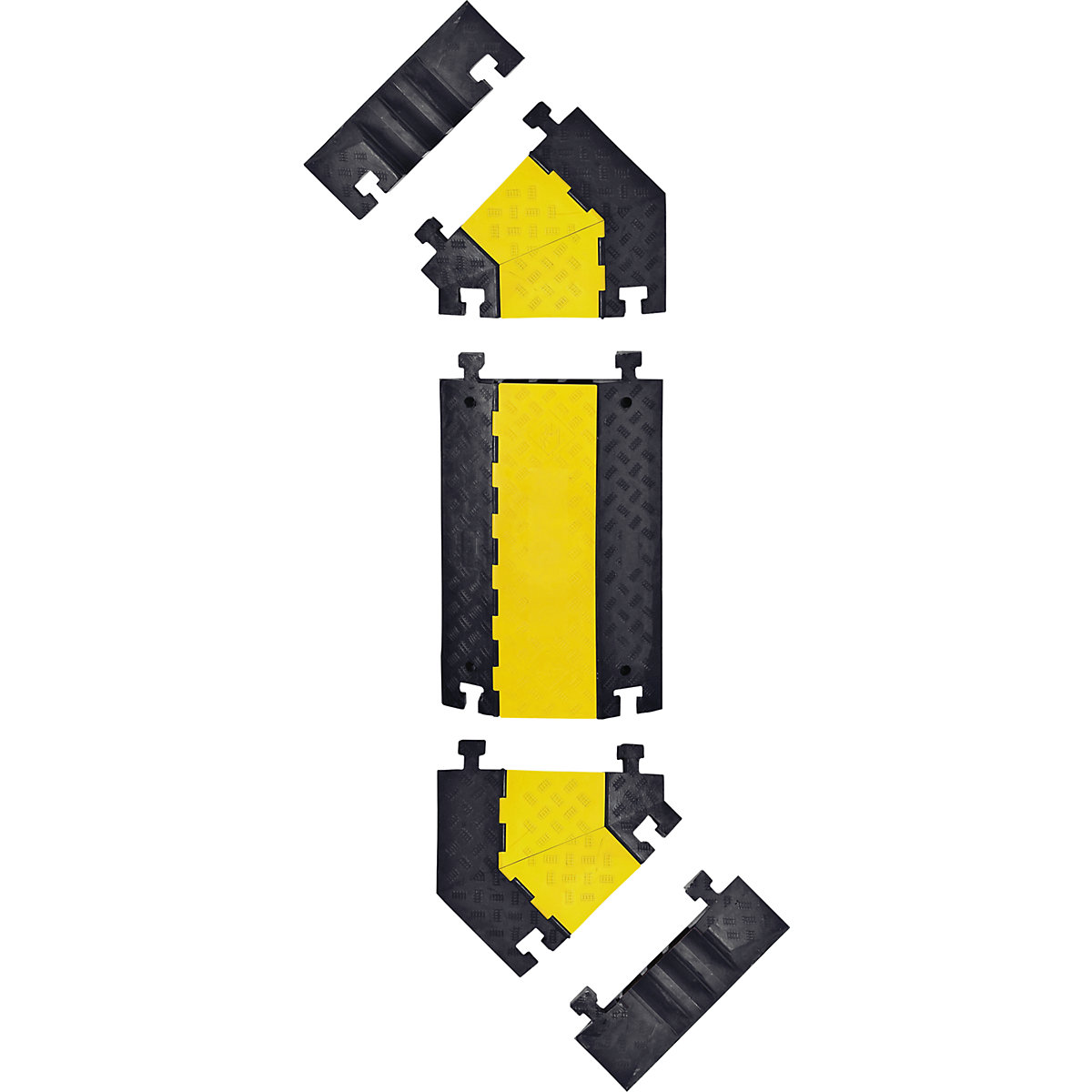

The tongue and groove system allows the individual elements to be extended as required, making endless assembly possible. The cable bridge has three cable ducts with the following dimensions: two ducts each measuring 68 x 50 mm and one duct measuring 55 x 50 mm. A protective cover and a practical carrying handle make easy work of transport and handling.

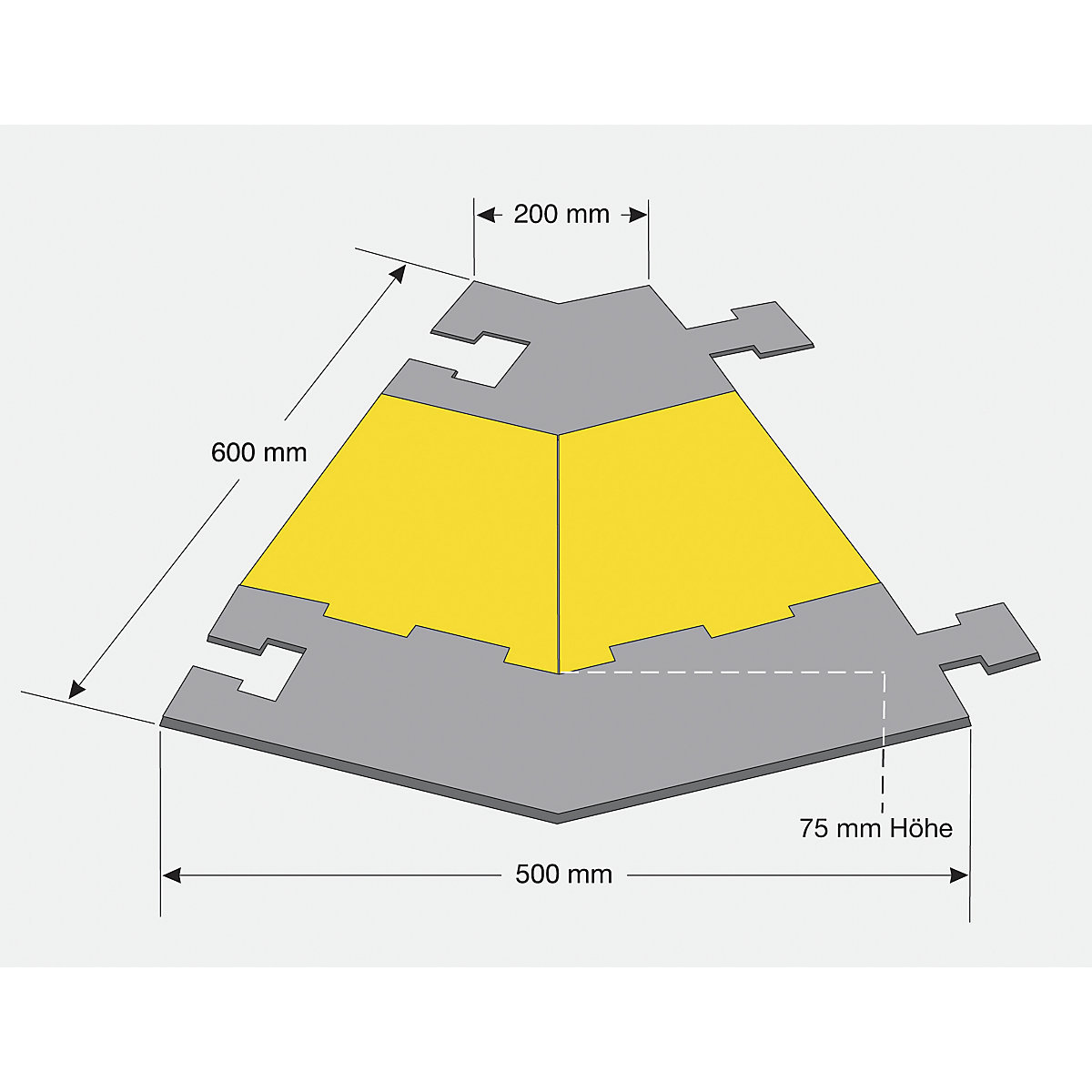

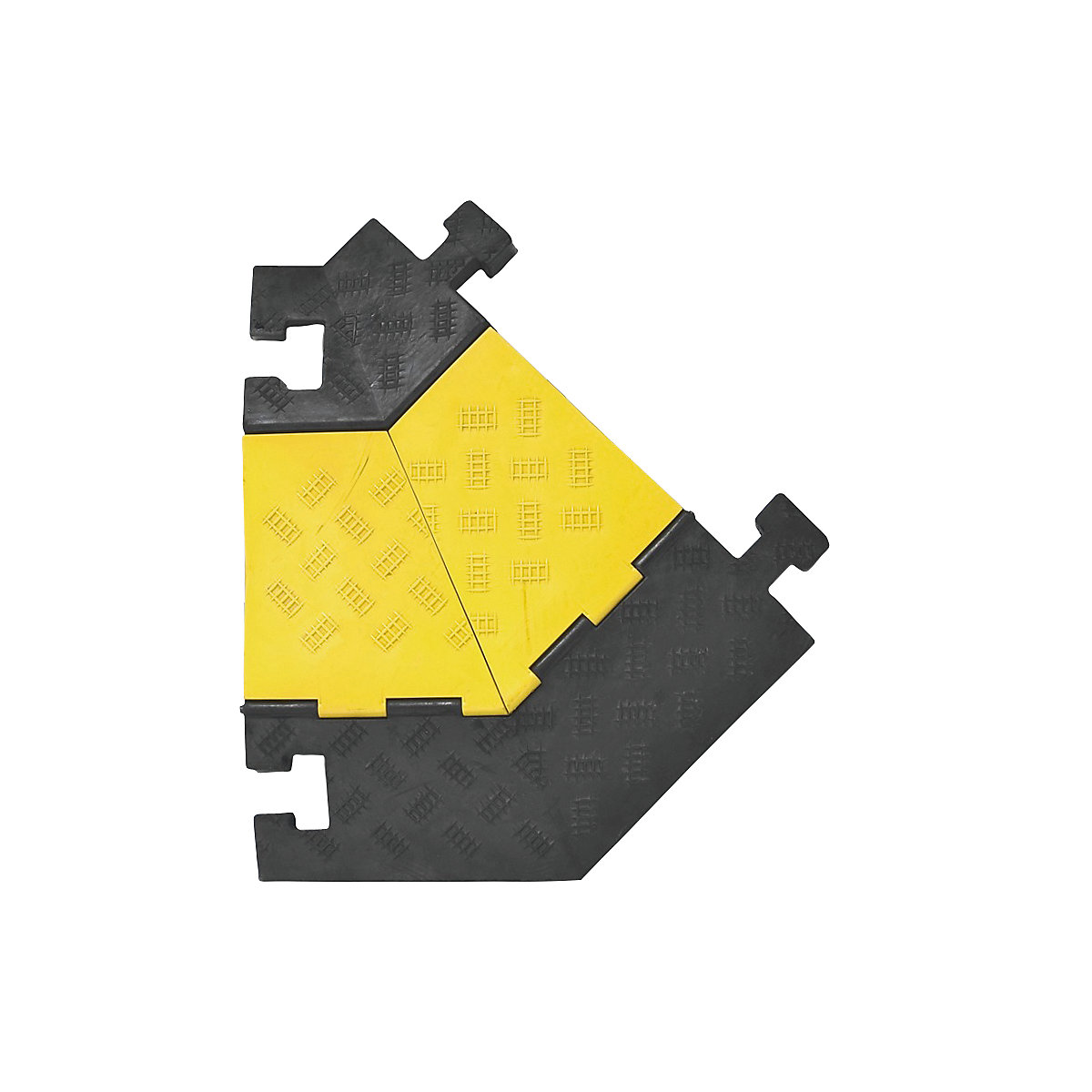

45° angled element for corners and curves.
Technical data
Length500 mm
Width600 mm
Height75 mm
Colourblack yellow
Materialhard rubber
Finishribbed
Functioncan be driven on
For speed limit5 km/h
Product typecable ducts
Suppliedassembled
Weight10.5 kg
Modelright side
