Hazardous goods storage cupboard, type 30 1 door
- Limited approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 30) and TRGS 510 (Annex 3)
- Type approved as fireproof for >30 minutes, GS tested
- Doors close automatically in the event of fire
- Supplied complete with perforated metal cover for the base sump
- Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
Ref.: 547014 49

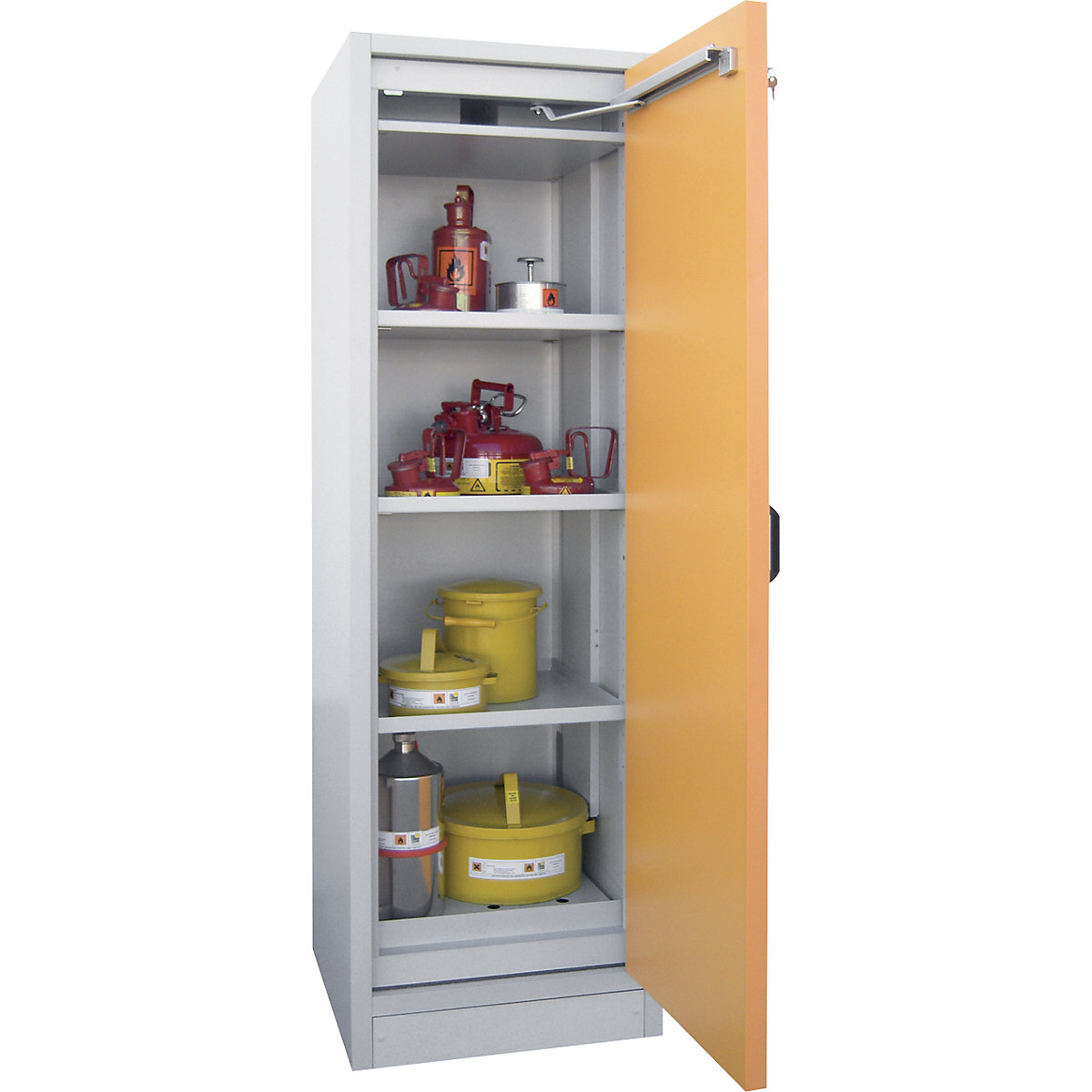

Hazardous goods storage cupboard, type 30, 1 door, HxWxD 1935 x 595 x 595 mm
Price / items (net)
£1,850.00
Product description
Cupboard body and doors made of B1 material in light grey RAL 7035, doors in daffodil yellow RAL 1007.
Doors can be locked using a cylinder lock.
Ventilation connected using DN 80 pipe sockets.
Adjustable feet for levelling on uneven surfaces. Earth connection compliant with BGR 132 (Avoidance of ignition sources). Identification in accordance with EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.
Interior fittings:
1 x base sump, tested in acc. with StawaR / manufacturer's declaration of conformity
1 x perforated metal cover as 1st storage level
3 x shelves, height adjustable in increments of 32 mm
Type 30 cupboards only have limited approval for the storage of flammable media in Germany (TRGS 510), Switzerland, the Netherlands, Belgium, and Luxembourg.
They are not approved for use in Austria
Please observe the regulations binding for your country.
All specified max. loads apply with uniform load distribution.
Delivered to the point of use at extra cost – please ask.
DIN right sided door hinge (left sided hinge available upon request).
Doors can be locked using a cylinder lock.
Ventilation connected using DN 80 pipe sockets.
Adjustable feet for levelling on uneven surfaces. Earth connection compliant with BGR 132 (Avoidance of ignition sources). Identification in accordance with EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.
Interior fittings:
1 x base sump, tested in acc. with StawaR / manufacturer's declaration of conformity
1 x perforated metal cover as 1st storage level
3 x shelves, height adjustable in increments of 32 mm
Type 30 cupboards only have limited approval for the storage of flammable media in Germany (TRGS 510), Switzerland, the Netherlands, Belgium, and Luxembourg.
They are not approved for use in Austria
Please observe the regulations binding for your country.
All specified max. loads apply with uniform load distribution.
Delivered to the point of use at extra cost – please ask.
DIN right sided door hinge (left sided hinge available upon request).
- Limited approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 30) and TRGS 510 (Annex 3)
- Type approved as fireproof for >30 minutes, GS tested
- Doors close automatically in the event of fire
- Supplied complete with perforated metal cover for the base sump
- Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
Type 30 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 30 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For toxic liquids
For water hazardous liquids
For flammable liquids
Technical data
| Fire resistance | 30 minutes |
|---|---|
| External width | 595 mm |
| External height | 1935 mm |
| External depth | 595 mm |
| Internal width | 475 mm |
| Internal height | 1600 mm |
| Internal depth | 515 mm |
| Material | moulded chipboard, flame retardant (class B1) |
| Weight | 147 kg |
| Body colour | light grey RAL 7035 |
| Door colour | daffodil yellow RAL 1007 |
| Door type | hinged door |
| Door version | 1 door |
| Lock type | cylinder lock |
| Number of doors | 1 pcs. |
| Number of shelves | 3 pcs. |
| Shelf material | sheet steel |
| Max. shelf load | 75 kg |
| Shelf height adjustment increments | 32 mm |
| Number of sump trays | 1 pcs. |
| Base sump tray capacity | 22 l |
| Supplied | assembled |
