Hazardous goods storage cupboard, type 90 1 door
- Approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 90) and TRGS 510, Annex 3
- Type approved as fireproof for >90 minutes, GS tested
- Insulated in accordance with DIN 4102
- Doors close automatically in the event of fire
- Supplied complete with perforated metal cover for the base sump
- Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
For toxic liquids
Ref.: 547020 49

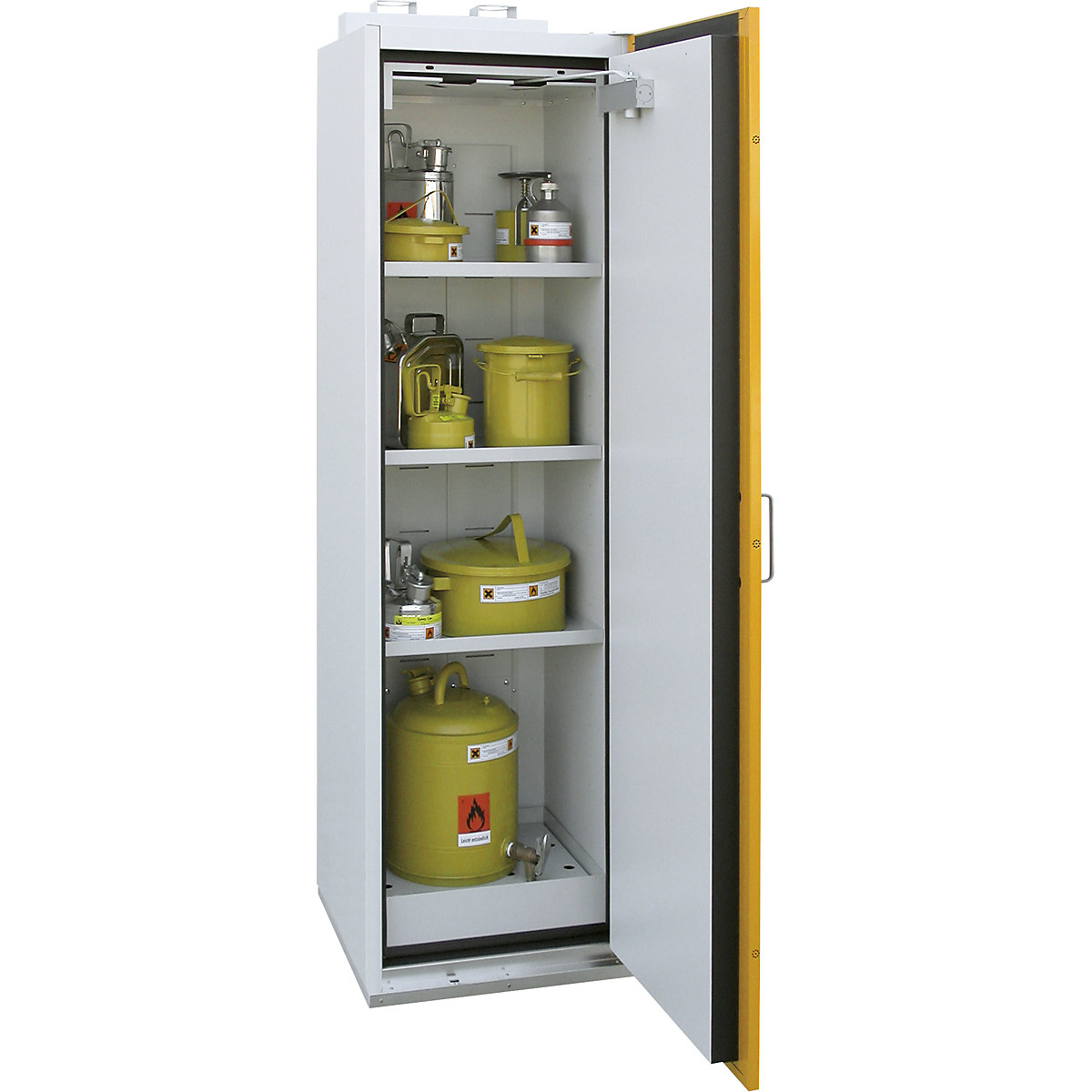

Hazardous goods storage cupboard, type 90, 1 door, HxWxD 1935 x 595 x 598 mm
Price / items (net)
£2,495.00
Product description
Sheet steel body, powder coated in light grey RAL 7035, hinged doors in daffodil yellow RAL 1007.
Inner body made of HPL coated panels – RAL 7035.
Base cover rail made of stainless steel – stainless steel diamond.
Ventilation connected using DN 80 pipe sockets.
Adjustable feet for levelling on uneven surfaces.
Earth connection compliant with TRBS 2153 (Avoidance of ignition sources).
Identification in accordance with EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.
Interior fittings:
1 x base sump in acc. with StawaR / manufacturer's declaration of conformity
1 x perforated metal cover as 1st storage level
3 x shelves height adjustable in increments of 64 mm
Delivered to the point of use at extra cost – please ask.
All specified max. loads apply with uniform load distribution.
Door lockable using cylinder lock with replaceable cylinder. DIN right sided door hinge (left sided hinge upon request).
Inner body made of HPL coated panels – RAL 7035.
Base cover rail made of stainless steel – stainless steel diamond.
Ventilation connected using DN 80 pipe sockets.
Adjustable feet for levelling on uneven surfaces.
Earth connection compliant with TRBS 2153 (Avoidance of ignition sources).
Identification in accordance with EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.
Interior fittings:
1 x base sump in acc. with StawaR / manufacturer's declaration of conformity
1 x perforated metal cover as 1st storage level
3 x shelves height adjustable in increments of 64 mm
Delivered to the point of use at extra cost – please ask.
All specified max. loads apply with uniform load distribution.
Door lockable using cylinder lock with replaceable cylinder. DIN right sided door hinge (left sided hinge upon request).
- Approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 90) and TRGS 510, Annex 3
- Type approved as fireproof for >90 minutes, GS tested
- Insulated in accordance with DIN 4102
- Doors close automatically in the event of fire
- Supplied complete with perforated metal cover for the base sump
- Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Tested safety
This is a test mark. GS stands for tested safety.
This is a test mark. GS stands for tested safety.
For toxic liquids
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For water hazardous liquids
For flammable liquids
Technical data
| Fire resistance | 90 minutes |
|---|---|
| External width | 595 mm |
| External height | 1935 mm |
| External depth | 598 mm |
| Internal width | 492 mm |
| Internal height | 1700 mm |
| Internal depth | 430 mm |
| Material | sheet steel |
| Weight | 306 kg |
| Body colour | light grey RAL 7035 |
| Door colour | daffodil yellow RAL 1007 |
| Door type | hinged door |
| Door version | 1 door |
| Lock type | cylinder lock |
| Number of doors | 1 pcs. |
| Number of shelves | 3 pcs. |
| Shelf material | sheet steel |
| Max. shelf load | 75 kg |
| Shelf height adjustment increments | 64 mm |
| Number of sump trays | 1 pcs. |
| Base sump tray capacity | 22 l |
| Supplied | assembled |
