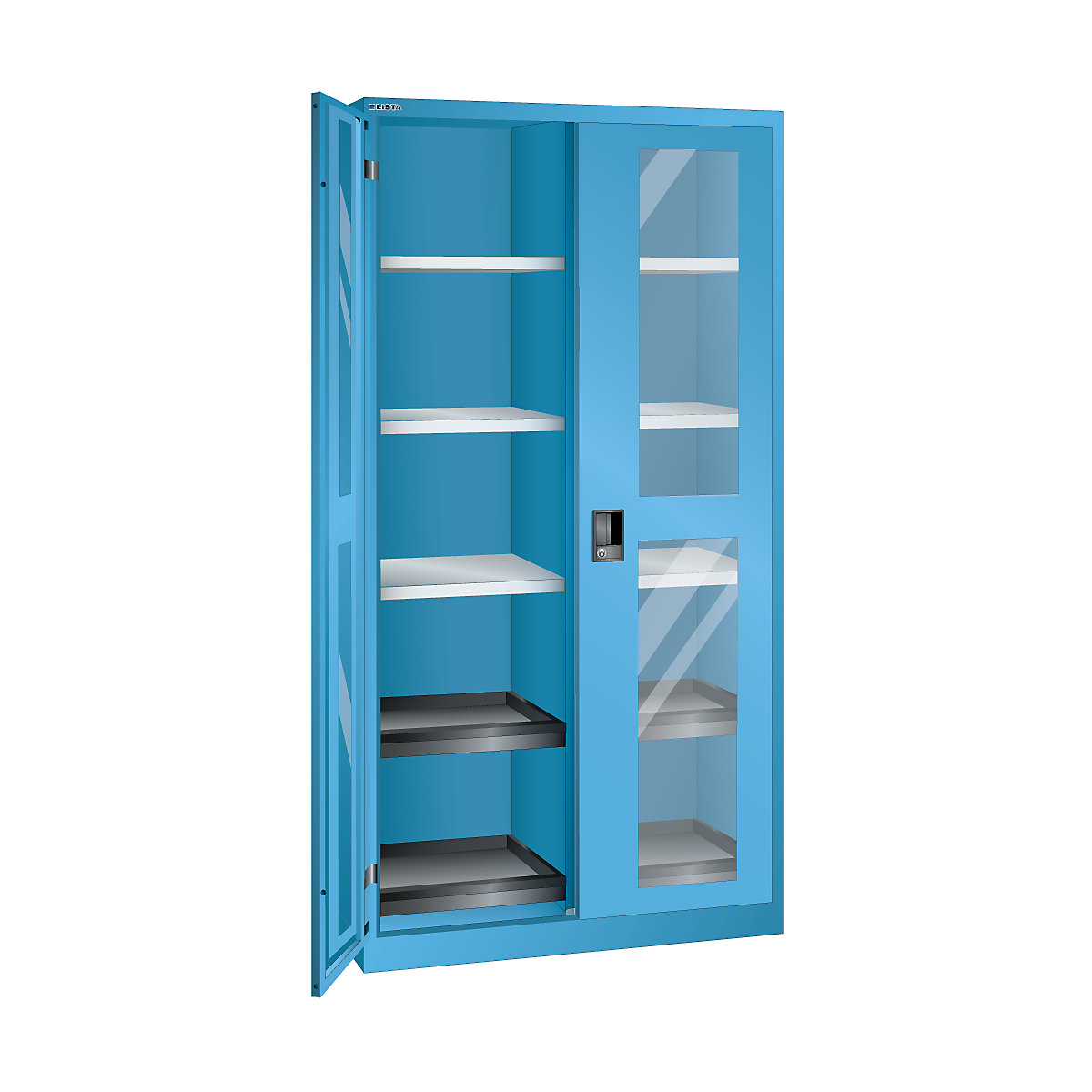

LISTA – Vision panel cupboard, HxWxD 1950 x 1000 x 580 mm with 10 shelves

  • Modular furnishings for creating individual combinations
  • One system – many possibilities
  • Uniform system dimensions – everything is designed to fit together
  • Forklift accessible plinth as an accessory for quick and easy positioning
LISTA
LISTA – Vision panel cupboard, HxWxD 1950 x 1000 x 580 mm, with 10 shelves, light grey
Price / items (Excl. VAT)
£1,440.00

Product description
Door design: vision panel doors, flush, bevelled from one piece.
Door bearings: hinge bearings for installation of adjustable shelves, drawers and pull-out shelves.
Material: high quality welded sheet steel construction with max. housing loads of up to 500 kg.
Paintwork: environmentally friendly powder coating for impact resistant and hardwearing housing surface.

Interior fittings height adjustable in increments of 25 mm.

Pull-out shelves
WxD 357 x 459 mm, front height/effective height 53/43 mm, max. load per pull-out shelf 50 kg, colour charcoal RAL 7016.
Paintwork: full surface corrosion protection due to hardwearing powder coating. Material: high quality sheet steel.

Adjustable shelves
WxD 480 x 506 mm, thickness 30 mm, long sides 4 x 90° bevelled edges.
Can be fitted with adjustable shelves, drawers and pull-out shelves at a later stage.
  • Modular furnishings for creating individual combinations
  • One system – many possibilities
  • Uniform system dimensions – everything is designed to fit together
  • Forklift accessible plinth as an accessory for quick and easy positioning
Technical data
Height1950 mm
Width1000 mm
Depth580 mm
Housing materialwelded sheet steel
Finishzinc plated
Lock typesnap lock KEY Lock (individual keys) with replaceable cylinder, incl. 2 keys with key number
Internal fittingscentre partition, 6 shelves, 4 pull-out shelves
Max. cupboard load500 kg
Designwelded
Number of shelves6 pcs.
Shelf materialsheet steel, galvanised
Shelf height adjustment increments25 mm
Max. shelf load60 kg
Shelf colourzinc plated
Opening angle of doors115 °
Number of pull-out shelves4 pcs.
Weight74.16 kg
Shelf width480 mm
Shelf depth506 mm
Number of partitions1 pcs.
Product typeworkshop double door cupboards
Suppliedassembled
