Ref.: 156728 49

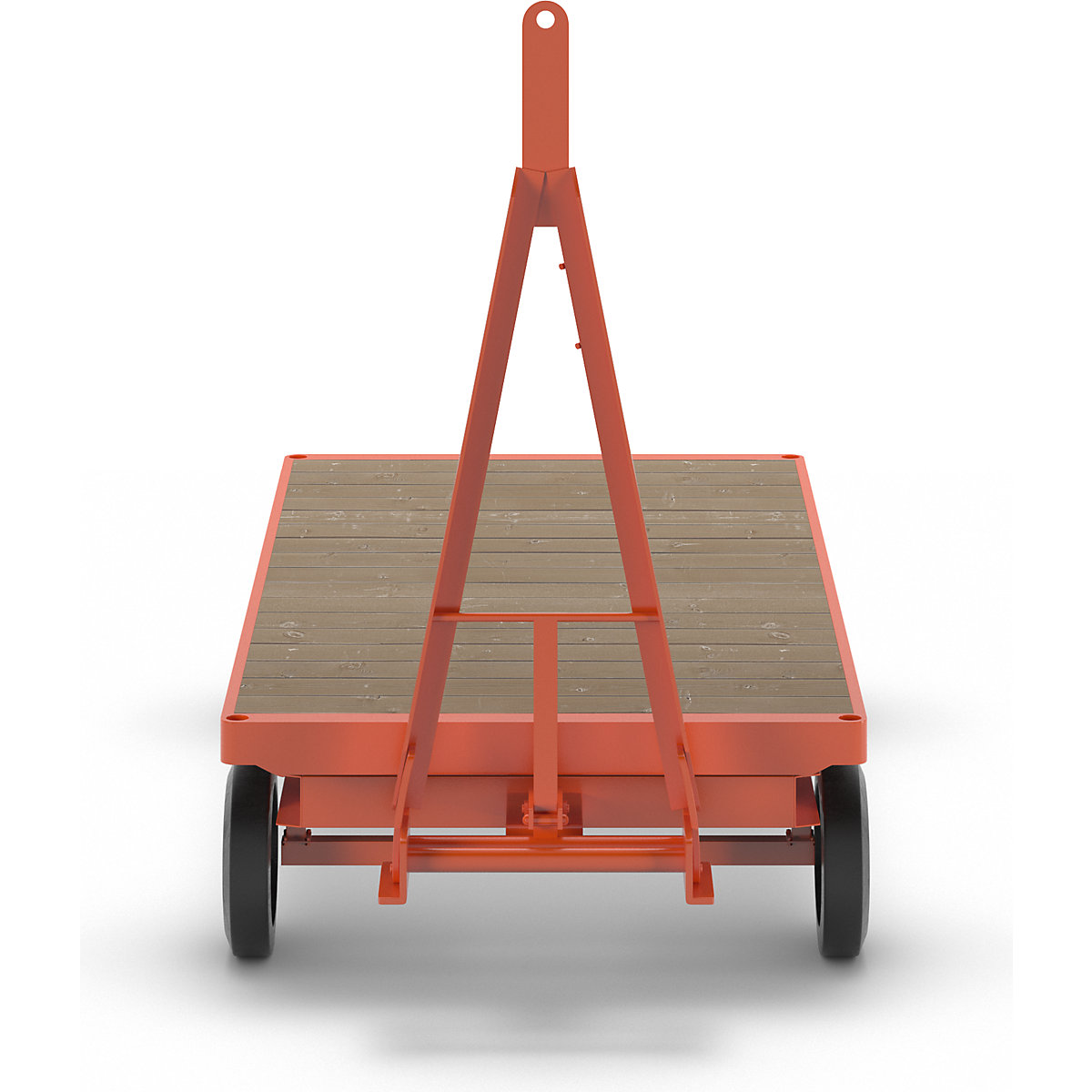

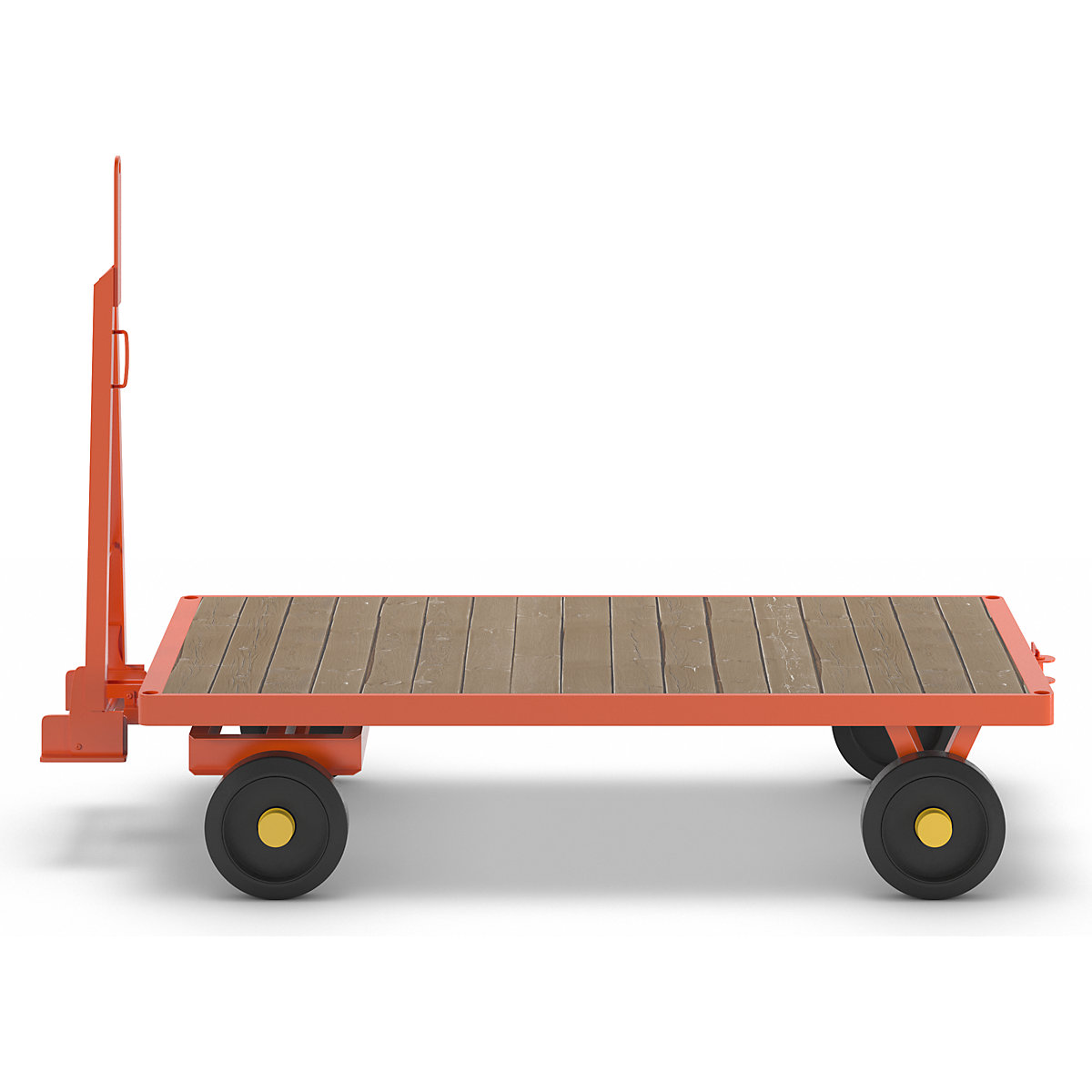

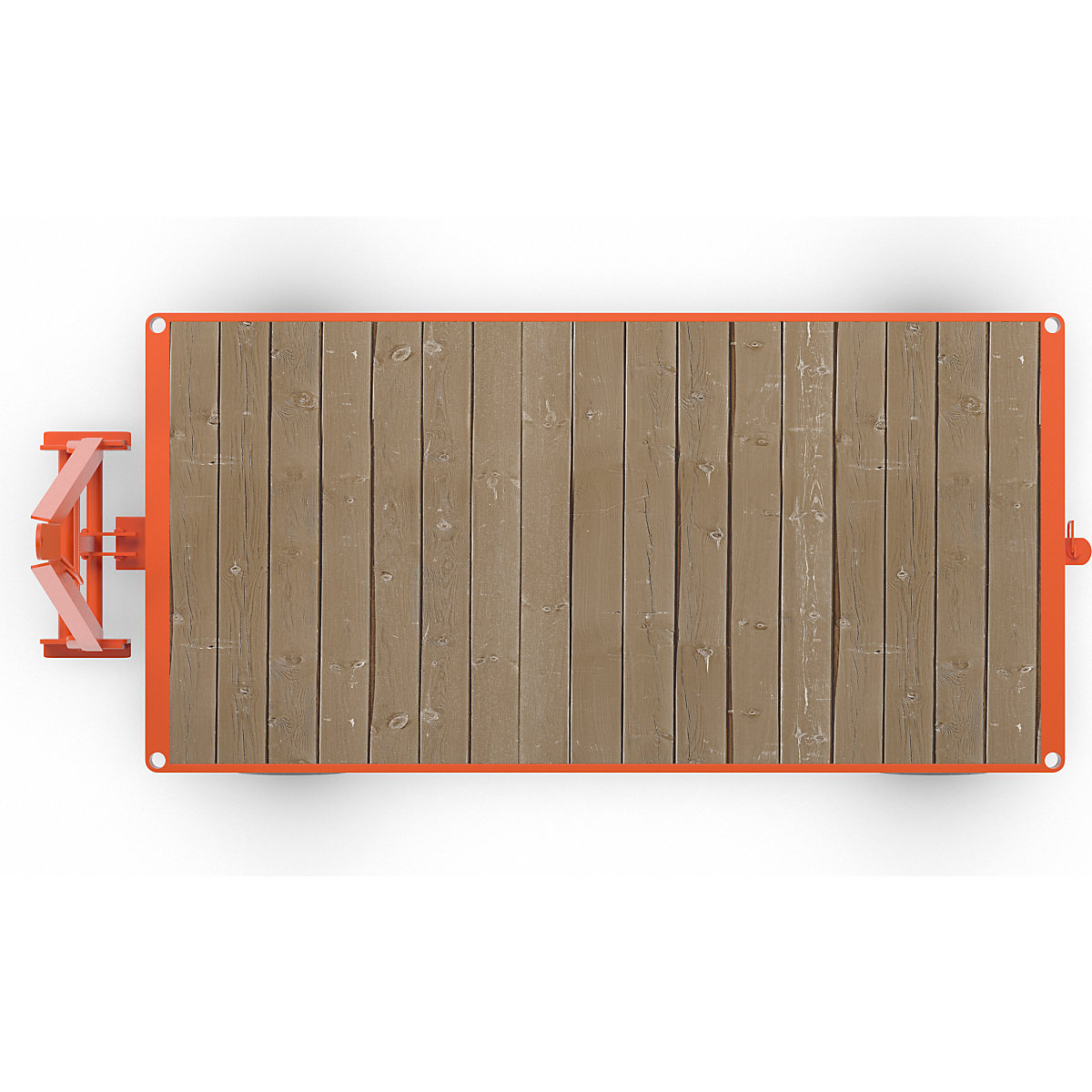

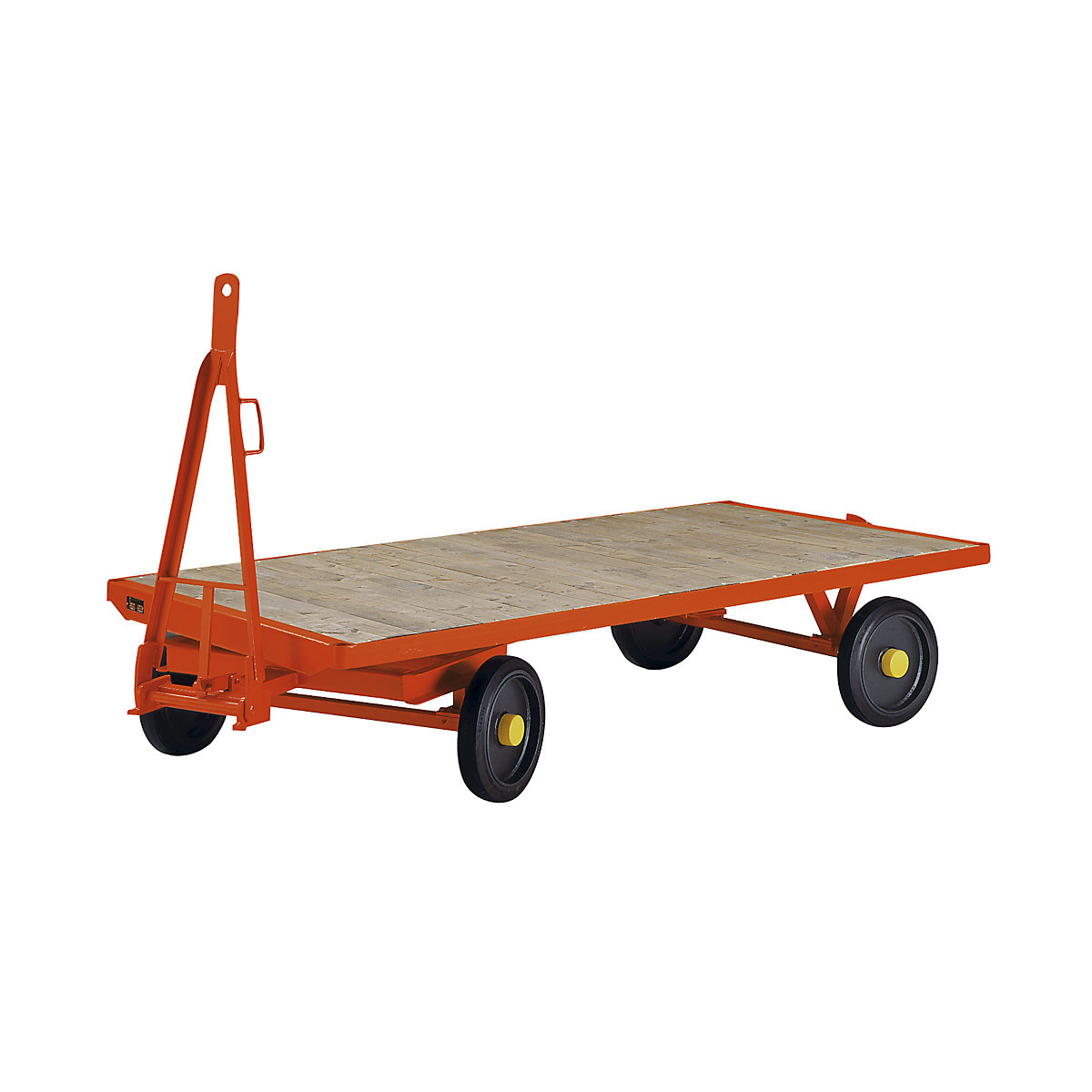

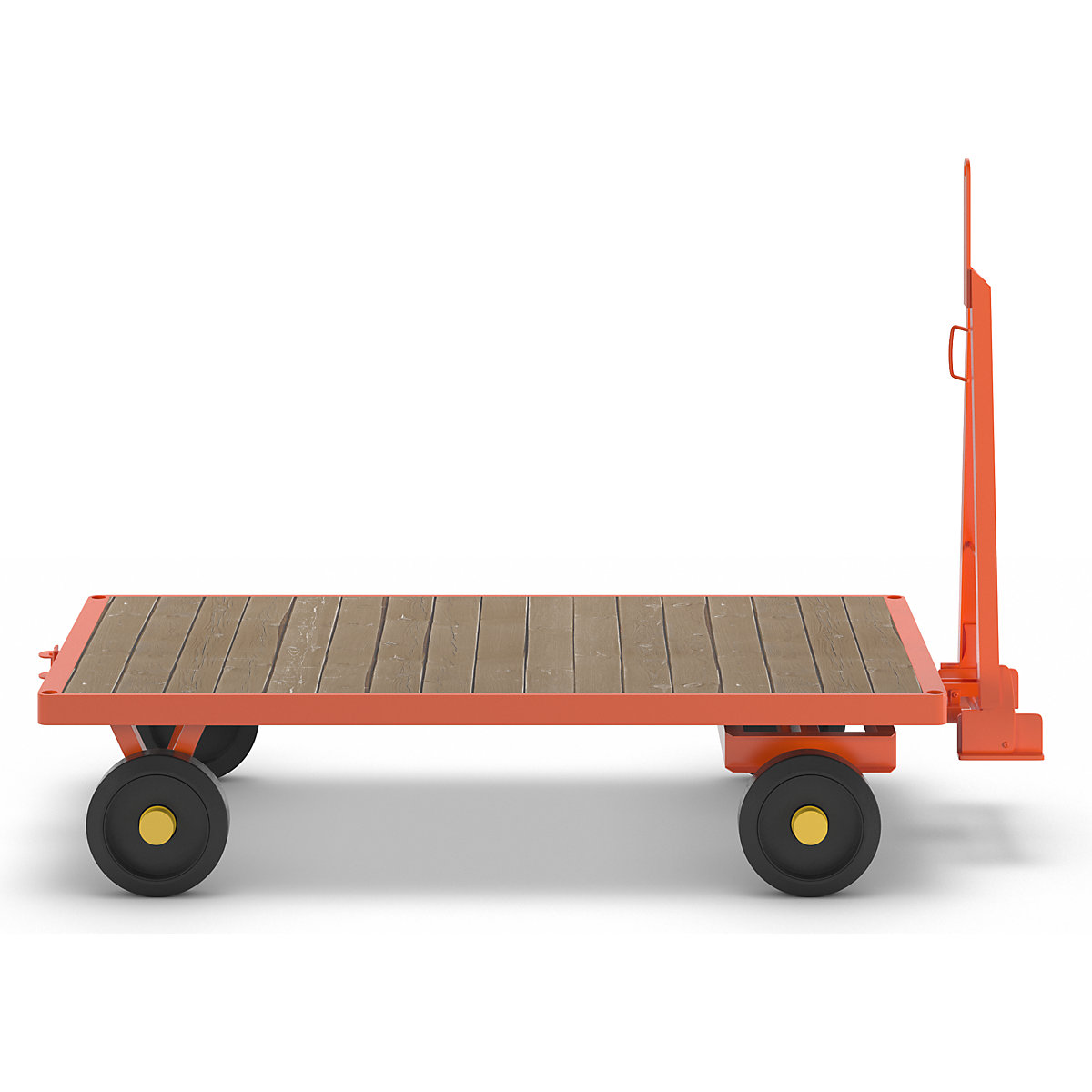

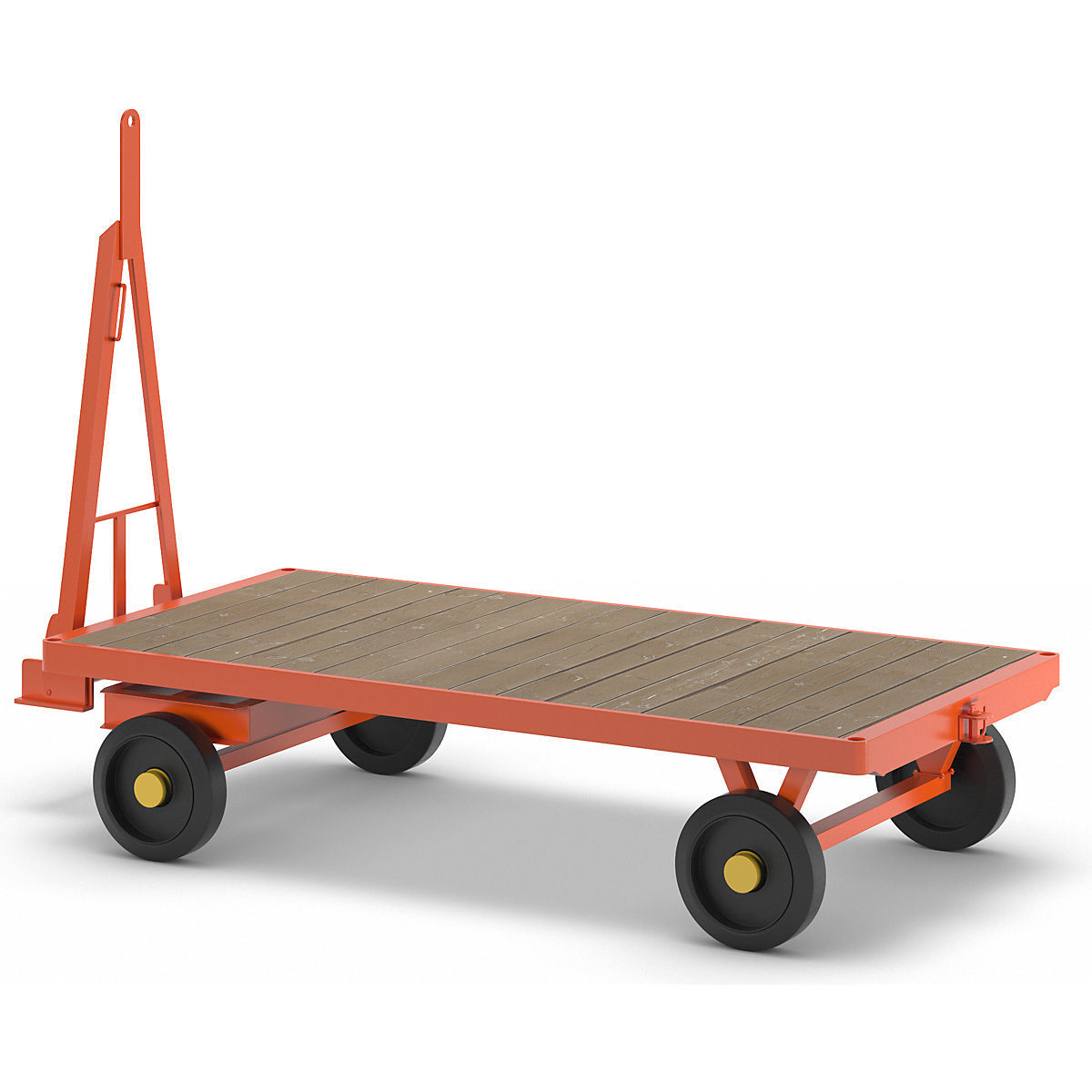

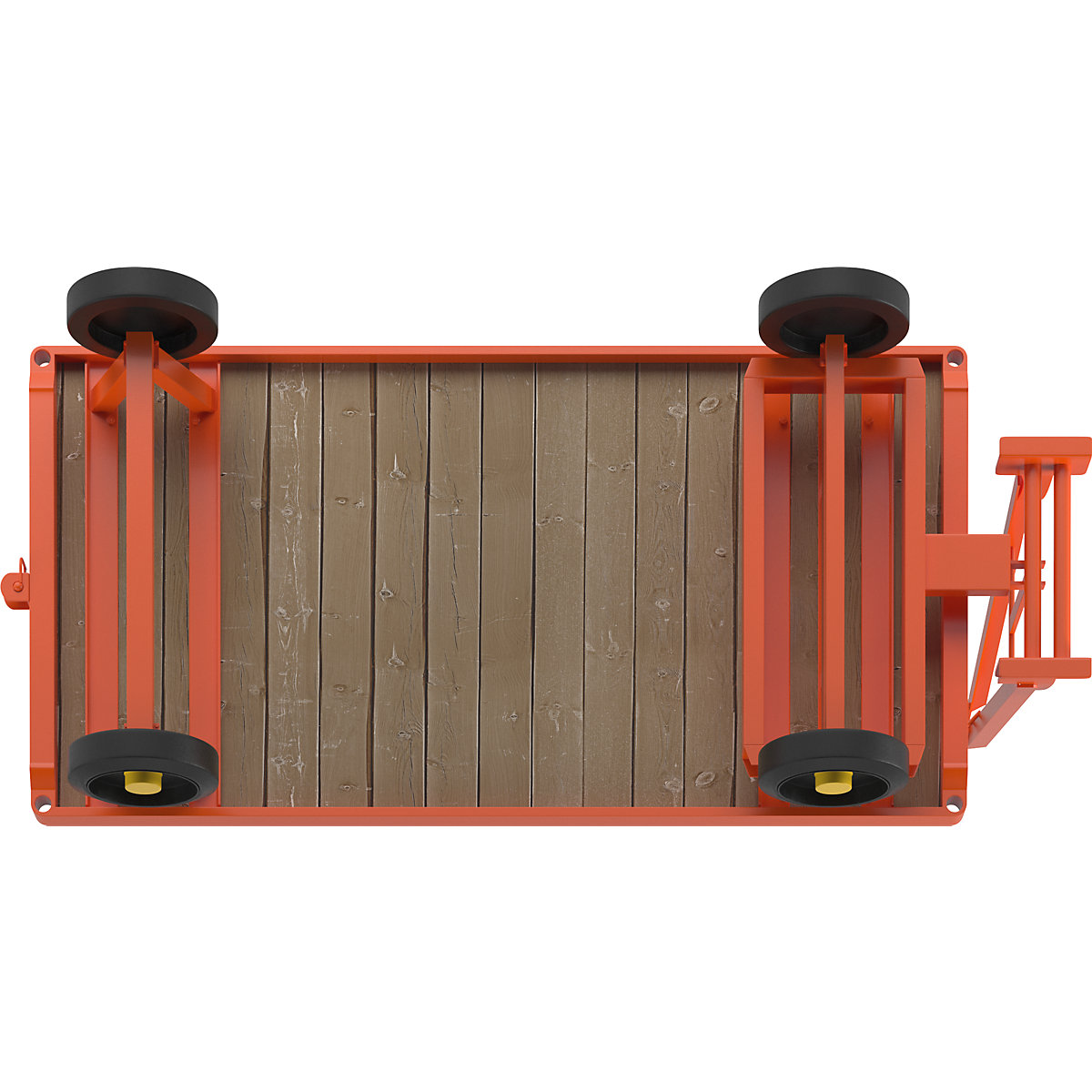

Trailer 2-wheel turntable steering, max. load 3 t
platform 2.0 x 1.0 m, solid rubber tyres
Platform length [mm]
Platform width [mm]
Loading height [mm]
Ref.: 156728 49
Trailer 2-wheel turntable steering, max. load 3 t
platform 2.0 x 1.0 m, solid rubber tyres
platform 2.0 x 1.0 m, solid rubber tyres
Platform length [mm]
Platform width [mm]
Loading height [mm]
£3,150.00
Price / item (Excl. VAT)
Delivery time: Over 4 weeks
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Do you have any questions about this product?£3,150.00
Price / item (Excl. VAT)
Product description
- 2-wheel double turntable steering
- Impregnated wooden platform for weather resistant and non-destructive load support
- Manoeuvrable
- Robust welded steel construction
- Low maintenance
- Low maintenance
- Durable
- In line with workplace safety regulations for transport vehicles
Chassis
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.

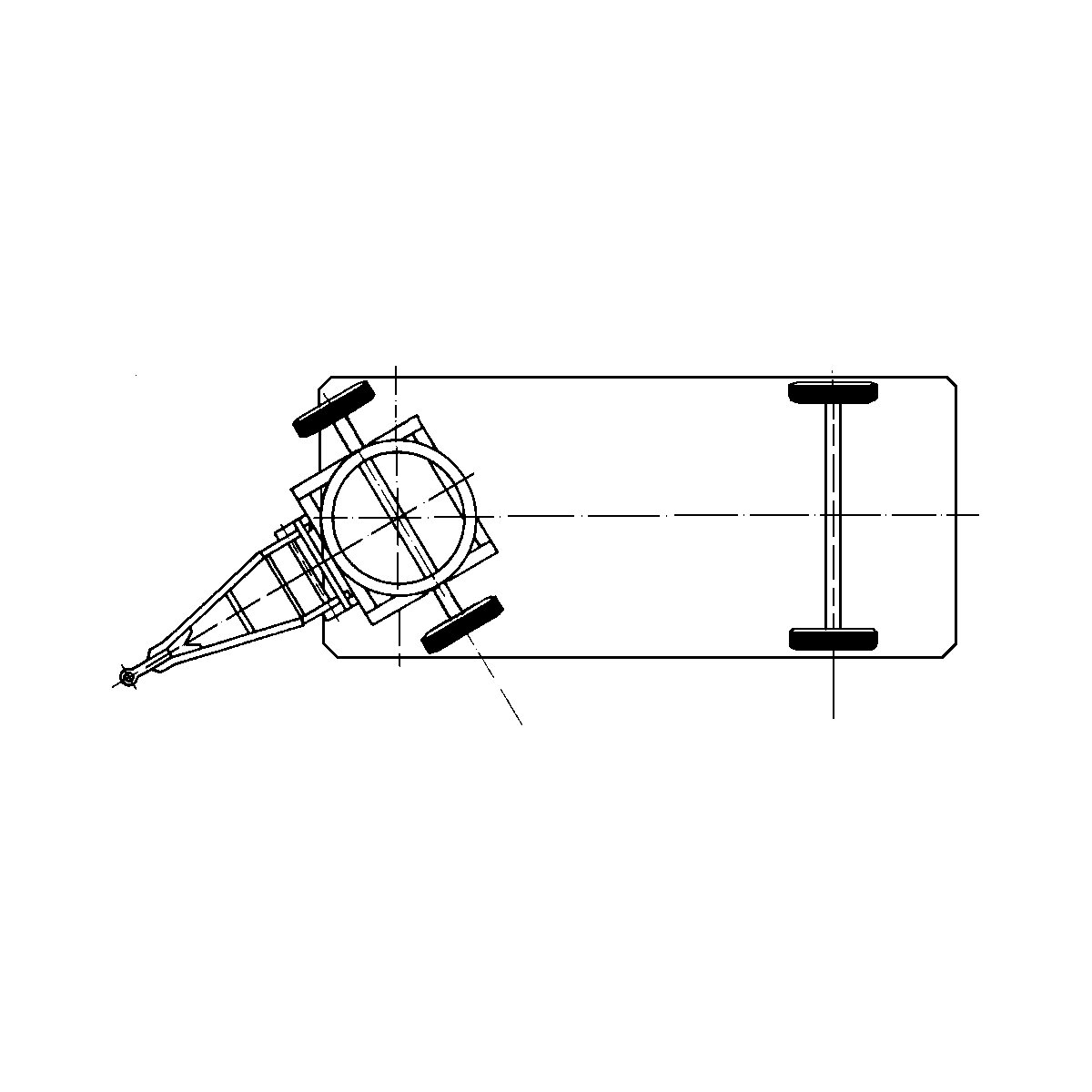

Turntable steering with ball bearing live ring. Triangular drawbar height adjustable with fall arrest.
Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyes. Pine laminate, hard-wearing varnish. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.
Turntable steering with ball bearing live ring. Triangular drawbar height adjustable with fall arrest.
On request
Parking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
Parking brake, rubber axle and lead spring, CSE tyres, side walls, weather protection structure, lighting, sheet metal covering, stanchions, compressed air brake, mesh panel, mesh construction and folding aluminium side panels, folding loading ramps, electric brake, special paint finish, support feet, long material trailer, long material trailer with adjustable rear vehicle, special trailer with overrun brake, drawbar height adjustment mechanism, cropped drawbar, fixed bogie, dual action wheel chock with chain and bracket, cranked drawbar with drawbar height adjustment mechanism, low loader, low loader with hand crank parking brake, low loader with weather protection structure and other accessories
The technical specifications for these trailers makes it necessary to manufacture them to order.
For this reason, please be aware that there is no right of return for these items.
For this reason, please be aware that there is no right of return for these items.
Technical data
| Max. load at 6 km/h | 3 t |
|---|---|
| Steering | two-wheel turntable |
| Platform material | wood coating, treated with preservative |
| Type of tyre | single tyre |
| Finish | painted |
| Colour | pure orange RAL 2004 |
| Towing eyelet diameter | 35 mm |
| Product type | industrial trailers |
| Supplied | assembled |
| Platform length | 2000 mm |
| Platform width | 1000 mm |
| Loading height | 535 mm |
| Wheel type | solid rubber |
| Wheel width | 75 mm |
| Wheel diameter | 400 mm |
| Weight | 285 kg |
