Wheels and castors
Are you just buying a couple of castors? Nothing could be easier. The best-case scenario: go online, enter castors in the search field, find the ones you need and order them. Your delivery arrives, you screw the castors on, and the job is done.
That might work out. If not, then the worst case has arrived: the casters can't withstand the weight and break, the rolling resistance is too high and nothing can be moved. Or the classic situation occurs: the castor can't event be fitted, because it features the wrong type of mounting.
This is why we check whether the castor fits
We don't want you to order the wrong size or wrong material. This is why we have put togethersome helpful information for you. The questions that customers ask about our wheels and castors formed the basis for this guide. If you need to know something about a specific topic, then simply choose the corresponding section.
Wheels and castors
A wheel is a wheel.
And what does this involve? A wheel is made out of a running surface/tyre, rim and wheel bearing. It's that simple.
From the wheel to the castor
How? By installing the wheel in a housing. Depending on the type of housing, the result is a swivel castor or a fixed castor.
The swivel castors can be rotated 360° by using a ball bearing mounted swivel bearing, ensuring good manoeuvrability. The fixed castors, in contrast, cannot rotate and are fixed in place, and ensure good directional stability.
In most cases, 2 swivel castors and 2 fixed castors are affixed.
Wheel structure

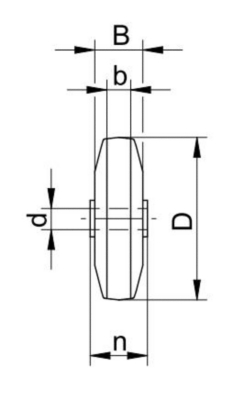

Wheel
D = wheel Ø
d = axle Ø
n = hub length
B = wheel width
b = tread width

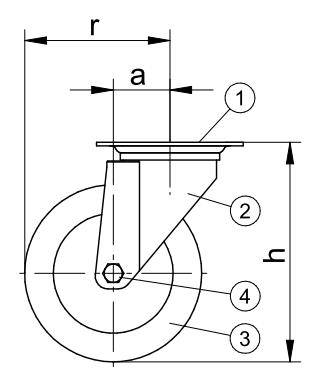

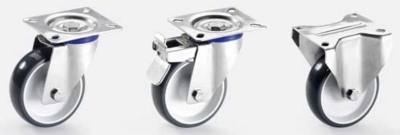

Swivel castor
1 = Mounting plate
2 = Steering fork
3 = Wheel
4 = Axle material
a = Offset
r = Swivel radius
h = Overall height

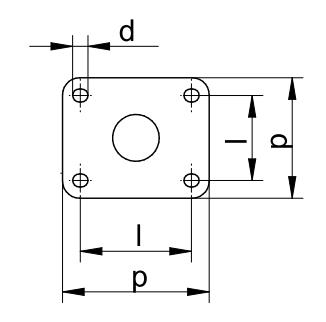

Mounting plate
p = Plate size
l = Hole spacing
d = Hole Ø
Types of wheel stops
Stay and stop.
Our swivel castors come with double stops. But what does this actually mean, and which types of wheel stops are there?
Double stop means that the motion of the wheel and the direction in which the swivel bearing/fork head turns can be blocked. The double stop is easily activated by a step of your foot. The advantage: it offers much better stability compared to wheel stops. A wheel stop only stops the motion of the wheel and a directional stop only stops the swivel bearing from turning.
A distinction is made between two types of wheel stops:

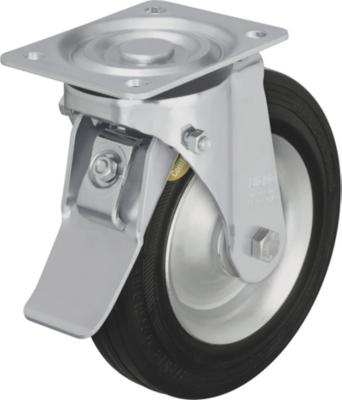

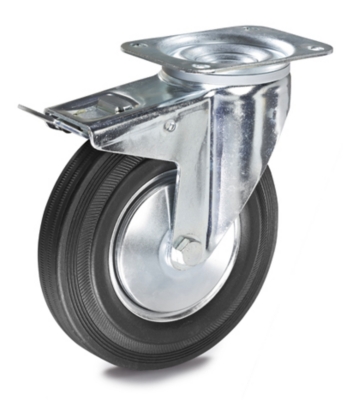

Forerun stops
- The locking lever is under the device in the direction of travel
- Prevention of injuries through protruding lever
- The locking lever can only be activated by moving the device sideways
Backlash stops
- The locking lever is installed against the direction of travel
- The locking lever can therefore be activated instantly using your foot
Mounting
Screw or plug?

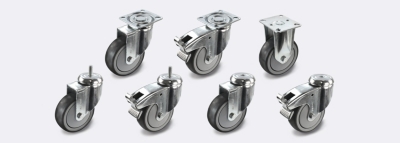

There are six different ways of mounting our castors. Not every one is suitable for every type of wheel or castor, and each features important points to observe.

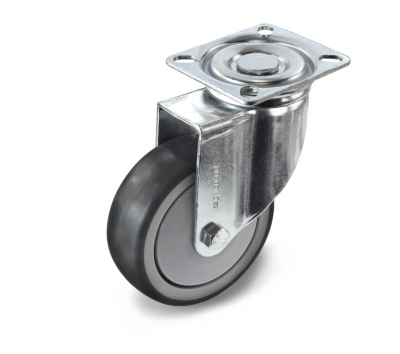

Plate-mounted
This is the most frequently used type of mounting. The castor is screwed onto the equipment using a plate attached to the housing. Please note the plate dimensions, the screw hole Ø and the spacing between screw holes.

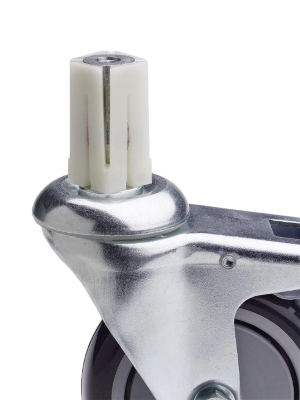

Expander
The expander is inserted into a hole in the equipment, or into the end of an installed tube. The screw placed through the bolt hole in the castor splays when the expander is tightened, and can be securely fastened in place.
Important: the expander must fit in the inside tube Ø for the wheel to be securely seated.

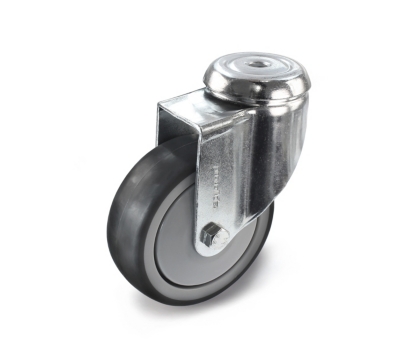

Bolt hole fitting
Please note: bolt hole fitting is only available for swivel castors.
A bolt is inserted through the hole in the back. Please note the plate Ø and the bolt hole Ø.

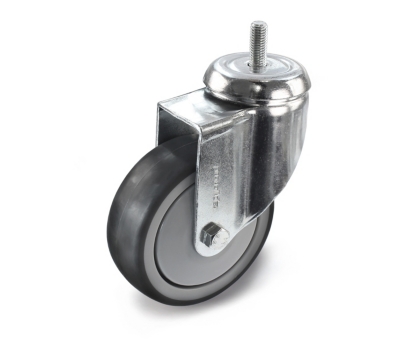

Mounting using threaded pin
Please note: threaded pin mounting is only available for swivel castors.
The screw provided is inserted through the bolt hole in the castor housing. Standard threaded pin sizes in this case are M8, M10 and M12. Please note the threaded pin Ø and the length of the threaded pins. They must be suitable for the device.

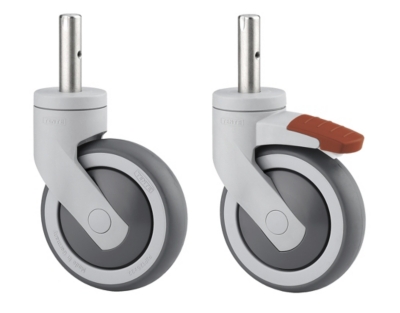

Mounting using pins
Please note: pin mounting is only available for swivel castors.
The castor is mounted using pins with a cross hole which is located in the holder integrated in the equipment. The castor is attached to it by fixing a pin or screw through the cross holes in the holder and pin.
Mounting using a socket pin with ring clamp
This is a typical type of mounting for office chairs. It can be easily fitted without tools.
Please note: the diameter and the length of the socket pin must fit the holder on the equipment or office chair exactly. It's best to make a note of the dimensions of an old castor you have removed.
Wheel bearing
Castors and what they do.
Do you move trolleys, furniture or devices frequently or rarely? Do you move them quickly or slowly? You should answer these questions before deciding on the wheel bearing used with your castors. Find out here which wheel bearing is best suited to your needs.
Plain bearing
Simple, largely maintenance free bearing. Shock and impact resistant. Suitable for use in damp environments. For low-speed devices (max. 4 km/h) and for short distances.
Roller bearing
Sturdy, hardwearing, largely maintenance free bearings. Low bearing friction. Shock and impact resistant. Permanent lubrication. The most frequently used bearings for low-speed devices (max. 4 km/h). Smoother rolling compared to plain bearings.
Precision ball bearing
For speeds of up to 4 km/h and heavier loads. Low rolling resistance when in use, low roll resistance.
Your choice
The almost perfect castor.
You need wheels or castors, and don't know which ones will suit your requirements exactly? Then we can offer you a few reference points to make the choice easier. One thing first: ideal wheels or castors suitable for universal use and for any purpose don't exist. There are too many interrelated criteria.
The choice of wheel and castor primarily depends on:
- The load bearing capacity required
- The floor conditions
- The frequency of use
- Environmental factors (temperature, including temperature fluctuations, chemicals, moisture, hygiene requirements)
- Specific dimensions such as wheel diameter, overall height and hub length/installation length for wheels, or plate sizes and screw hole spacing for castors
Load bearing capacity
How much does a wheel/castor have to carry?
The load capacity of a castor can be calculated using a simple formula:
load capacity = inherent weight + max. load / 3
It is divided by 3 because on uneven flooring, even an item of equipment with 4 castors will only have 3 castors in contact with the floor, and these 3 then carry the full weight.
The load capacities specified in our product range for wheels and castors apply for speeds of up to 4 km/h and an ambient temperature of 10 °C to 30 °C.
Floor conditions
Is the floor rough or smooth? Is the floor covered in tiles, concrete, carpet, or is it heavy duty industrial flooring or a highly sensitive wooden floor?
In general, the following applies: soft castors for hard floors and hard castors for soft floors. This creates the best prerequisites for transporting objects quietly and smoothly.
Choose non-marking castors if you wish to avoid leaving rubber tread marks. If there are ground sills, extra load capacity must be factored in.
Choose wheels with plain bearings and stainless steel housing for areas in which foodstuffs are processed, canteens and wet surfaces.
Frequency of use
Is the equipment moved only on occasion, or all the time?
Choose the corresponding wheel bearing here (top).
Environmental factors
Every site of use involves specific requirements.
Moisture, cold, heat, temperature fluctuations, electrical conductivity and chemicals affect the durability, rolling properties and the smoothness of motion.
Are there specific conditions like this in your area of use? Then please ask us before making an order. We will help you choose the most suitable wheels!
Comfort
In addition to the properties listed, you can also choose the required level of comfort and smoothness:
- Quiet run (balanced movement)
- Roll resistance and rolling resistance
- Manoeuvrability (user friendliness)
- Shore hardness
You will find explanations for a number of terms here:
Roll resistance
The force required to start the wheel moving from a standstill. Tip: if possible, choose a larger wheel.
Rolling resistance
The force required to keep the wheel moving uniformly. Tip: if possible, choose a larger wheel.
Temperature resistance
The temperature range in which the wheel will be used. Please note that there are special castors suitable for use in cold storage facilities.
Chemical resistance
The wheel's resistance in the event of contact with diverse chemicals. Please send us a data sheet and an enquiry!
Resistance to abrasion
The resistance of the wheel running surface to mechanical wear.
Non-marking wheels/castors
Non-marking means, for example, no rubber tread marks on linoleum, tiles or wood. All PU wheels, solid rubber with tyres and all correspondingly specified items in our product range are non-marking.
Shore hardness
The hardness of the surface of wheels and rollers has an affect on the smooth running and comfort. This hardness is given with a shore value. This scale goes from 0 (extremely soft) to 100 (extremely hard).
In accordance with standards DIN 53505 and DIN ISO 7619-1, the hardness of wheels and rollers is determined using different methods. Correspondingly soft materials are named Shore A hardness, hard materials after Shore hardness D.
Material
The big check list.
Depending on the site and the purpose of use, the material which the wheels and castors are made of plays an important role. The following table shows you how well each of the materials available from us satisfies the most important requirements for your wheels (from + to +++++).
Standard solid rubber
Non-marking, low roll resistance. For uneven and poor floor conditions, high wear resistance, temperature resistant from –30 °C to +60 °C. Grey wheels are non-marking.
Max. load ++
Roll resistance ++
Non-marking ++++
No wear ++
High/low temperatures +++
Resistant to chemicals ++
Solid rubber – Semi-elastic
Good wear resistance, better roll resistance than standard, non-marking. Temperature resistant from –30 °C to +80 °C.
Max. load +++
Roll resistance ++
Non-marking ++++
No wear +++
High/low temperatures +++
Resistant to chemicals ++
Solid rubber – Fully elastic
High elasticity. High load capacity, very low roll resistance. Very smooth running. High wear resistance. Temperature resistant from –30 °C to +60 °C.
Max. load ++++
Roll resistance +++
Non-marking ++++
No wear ++++
High/low temperatures +++
Resistant to chemicals ++
Thermoplastic rubber
Protects floors, non-marking, runs quietly, temperature resistant from –10 °C to +70 °C.
Max. load ++
Roll resistance +++
Non-marking +++
No wear ++
High/low temperatures ++
Resistant to chemicals ++
Polyurethane
High load capacity, runs quietly. Hardwearing, cut resistant, resistant to oil and grease, and to many acids and alkaline solutions.Temperature resistance from –15 °C to +80 °C.
Max. load ++++
Roll resistance +++
Non-marking ++
No wear ++++
High/low temperatures ++
Resistant to chemicals +++
Nylon
Smooth running, resistant against breakage, highly resistant to many acids and alkaline solutions. Maintenance free. Hardwearing.Temperature resistant from –20 °C to +80 °C.
Max. load +++
Roll resistance ++++
Non-marking ++
No wear +++++
High/low temperatures +++
Resistant to chemicals ++++
Cast iron
High load capacity. Hardwearing. Shock and impact resistant, oil resistant, maintenance free. Temperature resistant from –15 °C to +350 °C with the corresponding bearings and when special grease is used in the plain bearing.
Max. load +++++
Roll resistance ++++
Non-marking +
No wear +++++
High/low temperatures +++++
Resistant to chemicals ++++
Pneumatic tyres
Low roll resistance on poor floor conditions. Very good shock absorbency, non-marking. Check the air pressure 1x per week.
Max. load +
Roll resistance ++++
Non-marking +++++
No wear ++
High/low temperatures ++
Resistant to chemicals ++
Punctureproof PU tyres
Low roll resistance on poor floor conditions. Good shock absorbency, non-marking.
An alternative to pneumatic tyres.
Max. load +
Roll resistance ++++
Non-marking +++++
No wear ++
High/low temperatures ++
Resistant to chemicals ++
