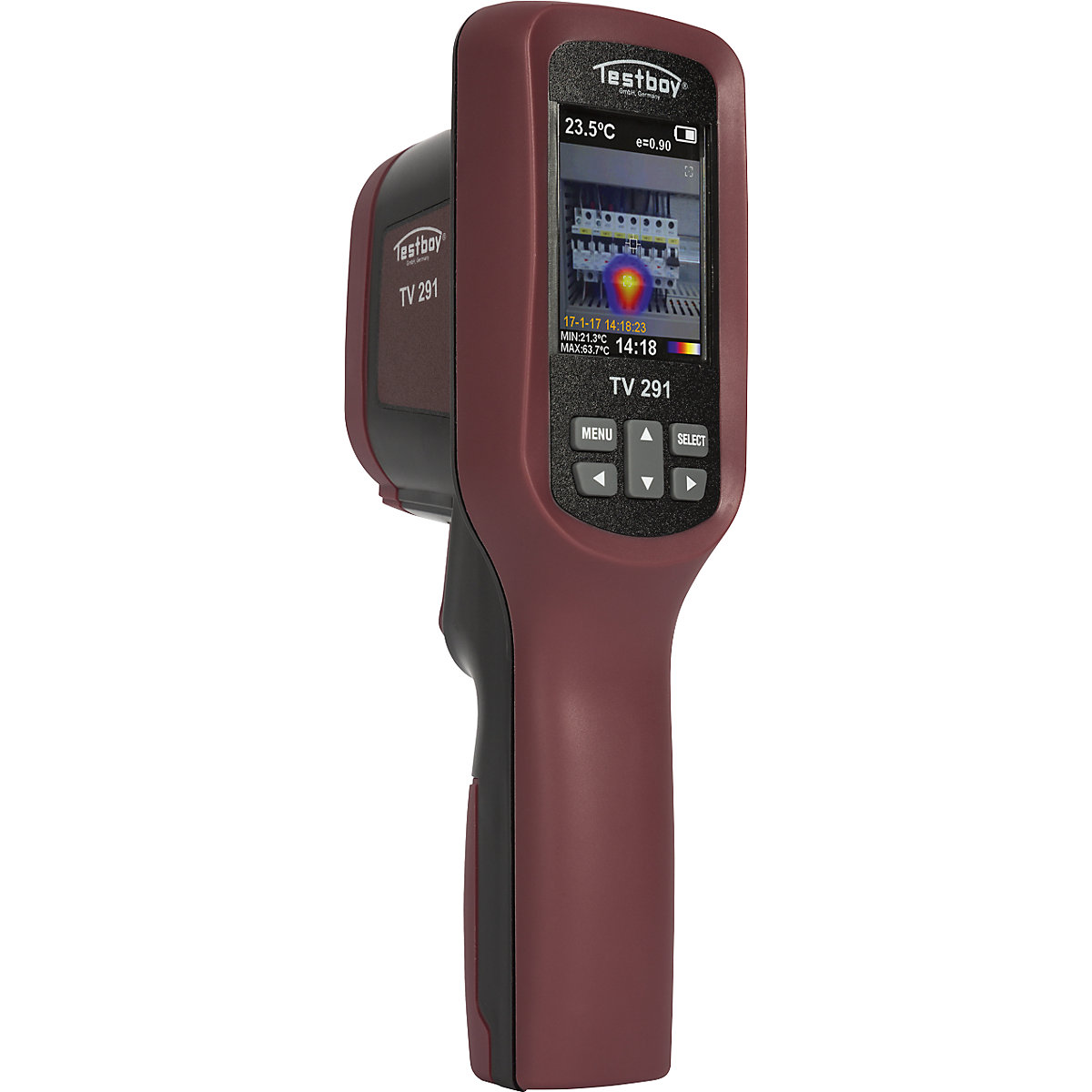

Infrared thermal imaging camera

HxWxD 223 x 88 x 88 mm

  • Digital camera for image overlay
  • Integrated colour display
  • Easy to operate
  • Robust and reliable
The thermal imaging camera is suitable for universal use, and closes the gap between an IR thermometer and IR thermal imaging camera. It provides the advantages of thermal imaging technology when uncovering temperature problems that cannot be identified using a typical IR thermometer.
Resolution: 60 x 60 pixels. Accuracy: ±2 °C or ±2% (the higher value applies). Operating temperature: –5 – 40 °C / 23 – 104 °F. Storage temperature: –20 – 55 °C / –4 – 131 °F.
Air humidity : ≤90% non-condensing. Temperature resolution (NETD): 0.15 °C / 0.27 °F. LC display : 2.5'' colour LCD. CCD camera: 300,000 pixels. Temperature range: –20 – 300 °C / –4 – 572 °F. Emission correction: variable from 0.1 to 1.0 (in increments of 0.01).
Image settings: superimposition of the visual image with the infrared image in 25% increments. Other settings: date, time, temperature unit.
Storage medium: microSD card. External power supply: 4 x 1.5 V AA.
Item no.: 498893 49
Infrared thermal imaging camera, HxWxD 223 x 88 x 88 mm, 60 x 60 dpi
Price / item (Ex. VAT)
£819.00
Order quantity:
items
Delivery time:
5-7 Working days
{"articleNo":"498893","name":"Infrared thermal imaging camera HxWxD 223 x 88 x 88 mm","baseProduct":"M3145662","productUrl":"/p/M3145662/","imageUrl":"/Manual_tools/Measuring_devices/Infrared_thermal_imaging_camera_pdpsmall--000065560910_PRD_f_all.jpg"}
This product can be found in 1 variants.
  • View:
60 x 60 dpi
Item no.:  498893 49
Infrared thermal imaging camera, HxWxD 223 x 88 x 88 mm, 60 x 60 dpi
5-7 Working days
Order quantity: items
Price / item
Ex. VAT £819.00
{"articleNo":"498893","name":"Infrared thermal imaging camera HxWxD 223 x 88 x 88 mm","baseProduct":"M3145662","productUrl":"/p/M3145662/","imageUrl":"/Manual_tools/Measuring_devices/Infrared_thermal_imaging_camera_pdpsmall--000065560910_PRD_f_all.jpg"}
{"features":[]}

Technical data

Measuring device type IR thermal imaging camera
Accuracy +/- 2 °C
Measuring device measuring range –20 °C to 300 °C
Height 223 mm
Width 88 mm
Depth 88 mm
Power supply 4 x 1.5 V AA
Scope of delivery including protective case and batteries
Colour red
black
Supplied assembled
Weight 0.36 kg
