EUROKRAFTbasic – High-lift pallet truck manual hydraulics, standard

  • Lift, move and deploy loads
  • Work at an ideal height
  • QuickLift
EUROKRAFTbasic
3 year guarantee
3 year guarantee
QUICKLIFT
Lifts faster – saves effort and time!
QUICKLIFT. Lifts faster – saves effort and time!
In raised position
In raised position
Ref.: 480552 49

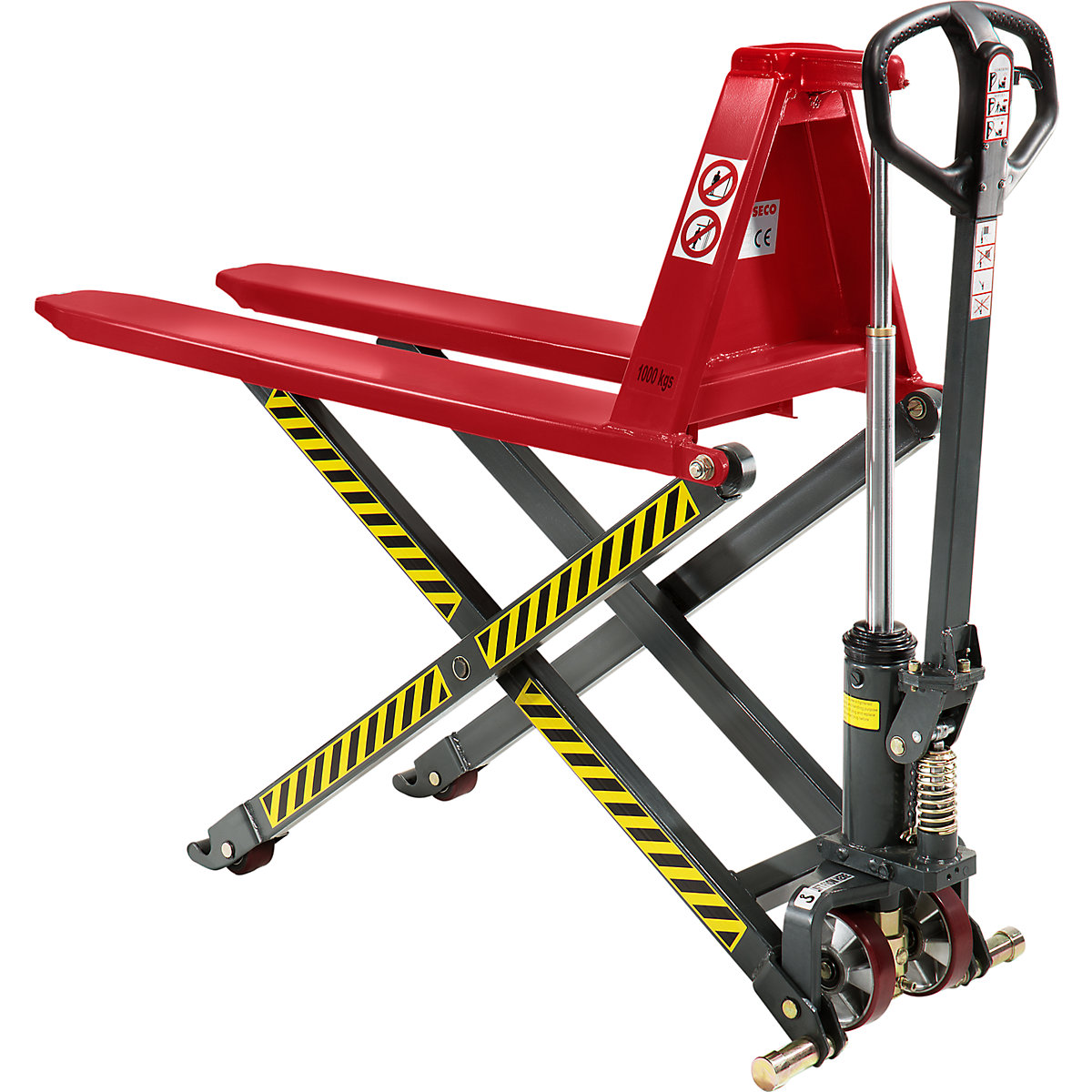

EUROKRAFTbasic – High-lift pallet truck, manual hydraulics, standard, max. load 1000 kg
Price / items (Excl. VAT)
£589.00

Product description
All models with QuickLift to save time and energy. QuickLift fast lifting is active for loads up to 100 kg. Light loads are lifted quickly. Heavier loads are raised more slowly, but with minimal effort. Automatic control of the lowering speed. The device is protected by an overload pressure valve. Additional supports for safety when forks are lifted. Polyurethane wheels.
All models can also be used as a standard pallet truck.

With manual hydraulic lift. Powder coated in signal red RAL 3001.
  • Lift, move and deploy loads
  • Work at an ideal height
  • QuickLift
3 year guarantee
3 year guarantee
QUICKLIFT
Lifts faster – saves effort and time!
QUICKLIFT. Lifts faster – saves effort and time!
Technical data
Max. load1000 kg
Lifting range85 – 800 mm
Lift drivemanual hydraulics
Fork length1140 mm
Fork width162 mm
Distance across forks520 mm
Length1475 mm
Width520 mm
Height1260 mm
Steering radius180 °
Mobile up to lifting height400 mm
Lift per pump stroke with QuickLift25 mm
Lift per pump stroke10 mm
Steering wheel materialpolyurethane
Steering wheel diameter150 mm
Steering wheel width40 mm
Fork roller materialpolyurethane
Fork roller versionsingle
Fork roller diameter75 mm
Fork roller width50 mm
Product typescissor lift platform truck
Coloursignal red RAL 3001
Finishpowder coated
Featuremanual
mobile
FittingsQuickLift
Suppliedassembled
Weight92 kg
