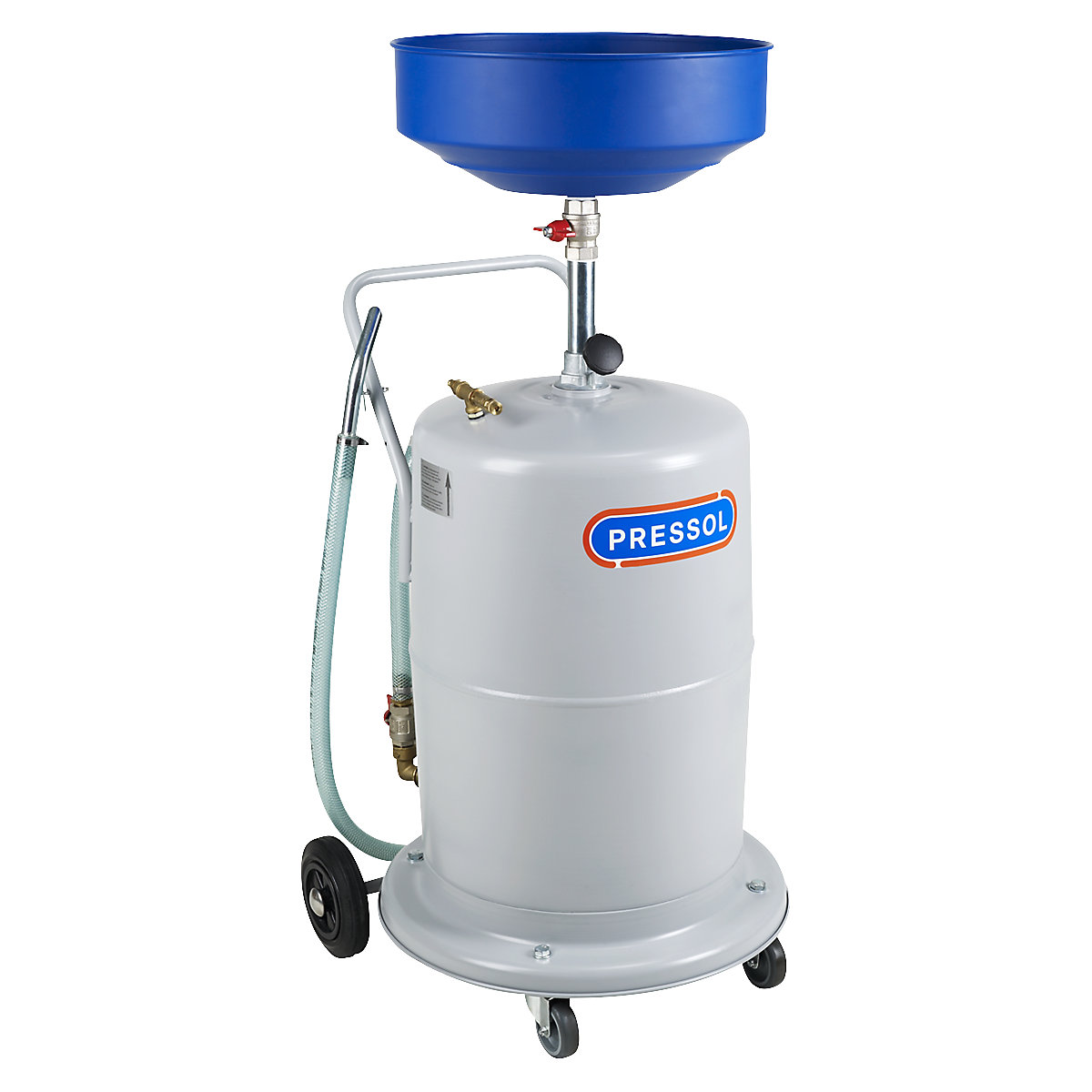

PRESSOL – Mobile used oil collection unit capacity 75 l, drained using compressed air

  • Height adjustable oil collection funnel with removable sieve and additional coarse screen
  • Metal skirt to prevent damage
  • Robust push handle
  • Container is drained using compressed air
PRESSOL
Ref.: 561392 49
PRESSOL – Mobile used oil collection unit, capacity 75 l, drained using compressed air, sheet steel
Bulk discount of up to 5.01%
QuantityPrice/PackYou save
1
£599.00
-
5
£569.00
5.01 %
Quantity discount from 5
Price / items (Plus VAT)
£599.00

Product description
Mobile used oil collection unit, capacity 75 litres.

Container made from 1.5 mm sheet steel. Metal apron to prevent damage.
2 fixed wheels, 2 steering wheels, robust push handle for ideal handling.
Height adjustable oil collection funnel with removable sieve and additional coarse screen.
Ball cock in the filling pipe.
Transparent discharge hose, 2 m, with steel outlet manifold.
Safety pressure relief valve set to 0.5 bar (cannot be changed), with flow control valve. Plug nipple.
Transparent discharge hose, 2 m, with steel outlet manifold.
Painted with oil resistant hydro-structure paint:
Container in window grey, silk matt, RAL 7040 / collection funnel blue, Pantone 294 (similar to RAL 5005).

Media:
Suitable for used oils of known origin with a flash point above 55 °C or non flammable liquids.
May not be used for flammable liquids!

Please note:
The units are compliant with test group 1 (max. pressurisation e.g. when draining filled containers +0.5 bar) in accordance with the Pressure Equipment Directive.
If the used oil collection units are drained into an oil collection tank using a hose, overflow protection must be fitted in accordance with the German Water Management Act (WHG).
Regional regulations and state guidelines must be observed.
  • Height adjustable oil collection funnel with removable sieve and additional coarse screen
  • Metal skirt to prevent damage
  • Robust push handle
  • Container is drained using compressed air
Technical data
Sump capacity75 l
Length630 mm
Width580 mm
Height1000 mm
Materialsteel
brass
rubber
polyurethane
Finishpainted
Colourgrey
blue
Weight31.2 kg
Featuremobile
Wheel fittings2 swivel castors, 2 fixed castors
Wheel diameter160 / 75 mm
Suppliedpartially assembled
PRESSOL
