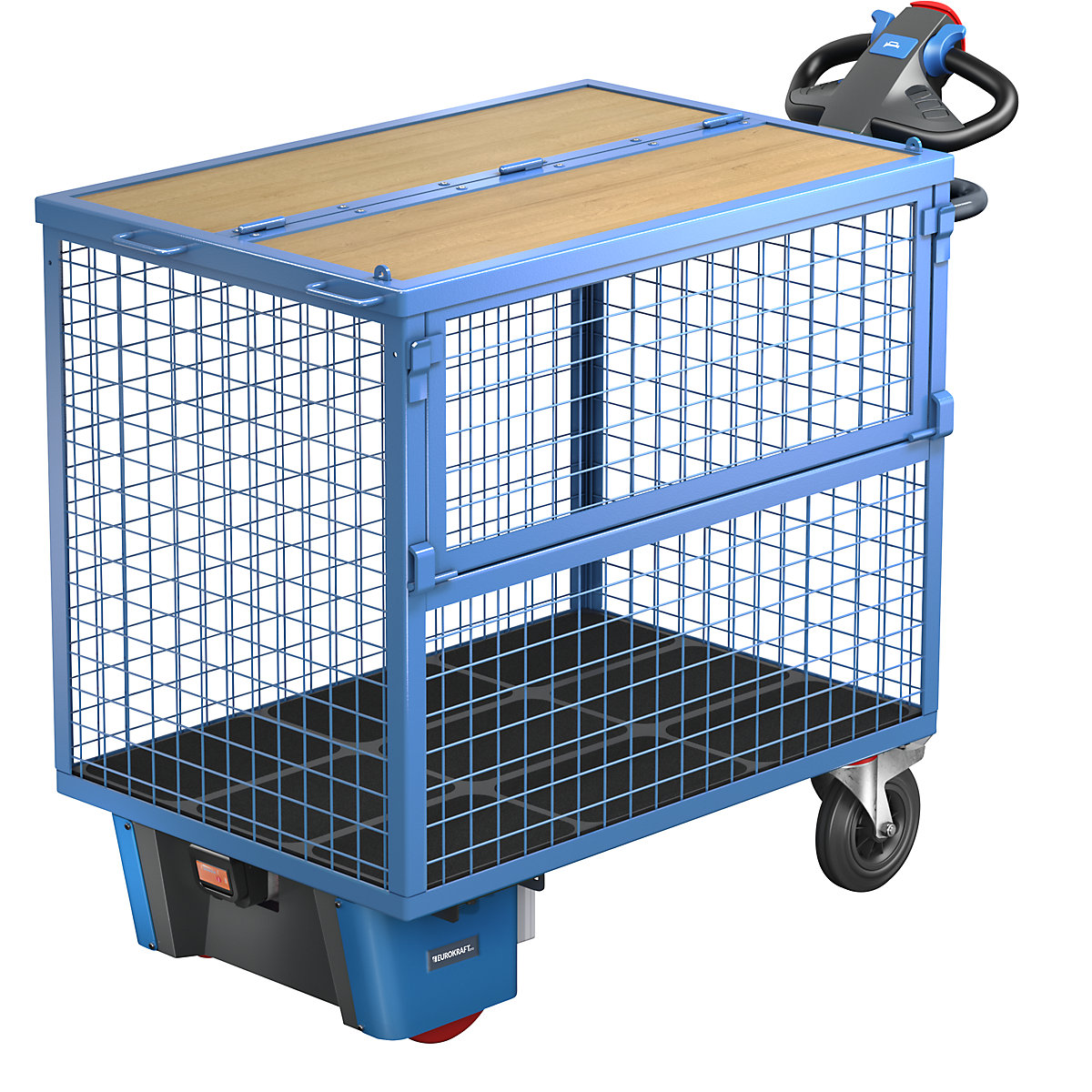

EUROKRAFTpro – Box truck with electric drive panels made of steel mesh, with lid

  • Highly versatile use due to modular design
  • The replaceable, rechargeable battery system allows unlimited operating time
  • Intuitive operation, perfect steering control
  • Drawbar head with precise speed control, creep speed button, belly switch and horn
  • Integrated foot protection on the e-module
EUROKRAFTpro
10 year guarantee
10 year guarantee
EUROKRAFTpro – Box truck with electric drive, panels made of steel mesh, with lid, LxWxH 1430 x 730 x 1200 mm
Price / items (Excl. VAT)
from
£2,829.00

Product description
The electric module is easy to retrofit to equip platform trolleys with an electric drive. Complete with powerful lithium ion rechargeable battery. Battery charger optionally available. Wireless – the control panel controls the drive via Bluetooth.

Easy assembly: highly versatile modular design
Drive battery: spare lithium-ion battery
Charging status: indicated visually and acoustically by a battery level indicator
Full mobility: up to 8 h of operation with one battery charge
Spare battery system: simply replace the drained battery with a fully charged one to ensure continuous operation
Pairing: via Bluetooth, wireless, fleet operation possible
Charging time: 6 h until fully charged

Easy navigation
Fatigue-free operation: due to ergonomically shaped, multifunctional drawbar head
Easy steering: due to sturdy tubular handles
Infinitely adjustable speed control: using two thumb keys (maximum speed is 4 km/h)
Creep speed: can be activated as required, for high precision forward and reverse motion
Warning function: horn on drawbar head
Safety belly switch: prevents anything being caught when reversing
Integrated foot protection: prevents being caught under the drive unit
For everyone: no certificate of competence (driver’s licence) required
Protection against theft: access control by means of lock
Base plate
Made of recycled plastic. Non-slip and hardwearing surface. Weather resistant. Oil resistant and largely acid-proof. Recyclable.
German registered design.
All specified max. loads apply with uniform load distribution.
  • Highly versatile use due to modular design
  • The replaceable, rechargeable battery system allows unlimited operating time
  • Intuitive operation, perfect steering control
  • Drawbar head with precise speed control, creep speed button, belly switch and horn
  • Integrated foot protection on the e-module
10 year guarantee
10 year guarantee
Technical data
Max. load500 kg
Height1200 mm
Internal height785 mm
Filling height800 mm
Modelangled steel construction
half drop gate on one long side
Panel materialsteel mesh
Base platerecycled plastic
Finishpowder coated
Colourlight blue RAL 5012
Fittingswith lid
Wheel typesolid rubber / polyurethane
Wheel fittings2 swivel castors with brakes, 2 drive wheels
Wheel diameter200 / 230 mm
Wheel bearingroller bearing
Battery capacity12 Ah
Charging time6 hrs
Power0,25 kW
Voltage24 V
Max. speed5 km/h
Suppliedpartially assembled
