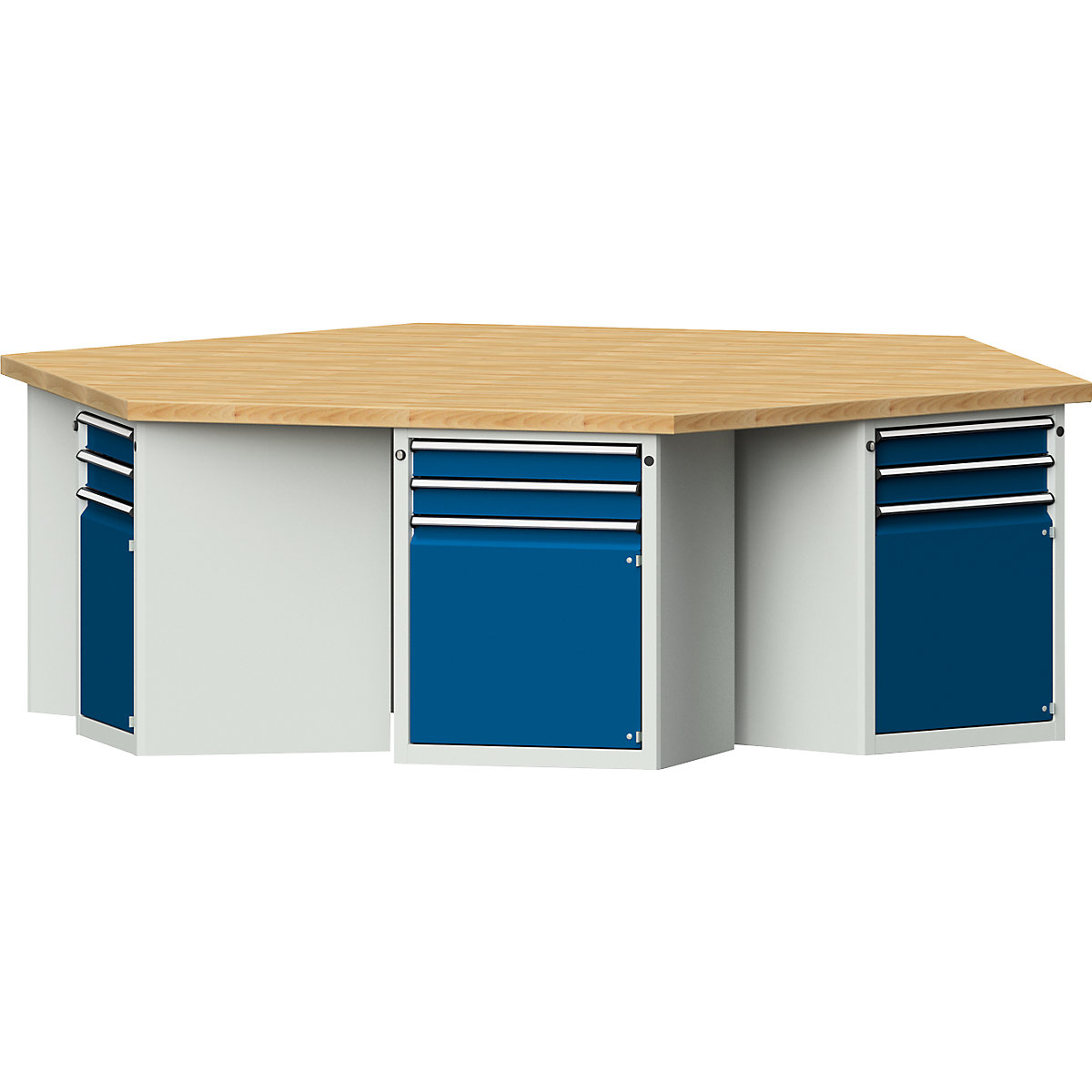

ANKE – Hexagonal group workbench 6 cabinets, 2 drawers each, 1 door
- Optimal for group tasks/training workshop
- 6 workstations with a compact surface space of around 6.3 m²
- Robust and durable
Ref.: 554727 49
ANKE – Hexagonal group workbench, 6 cabinets, 2 drawers each, 1 door, solid beech worktop
Price / items (Plus VAT)
£6,790.00
Product description
The hexagonal group workbench is particularly well suited for training workstations.
A compact surface space of 2.70 x 2.34 m allows groups of 6 trainees to work at the same time. The solid beech board used for the worktop features a unique glued wood construction. Precise dovetailing over the full length creates extremely stable laminated boards, and therefore a durable worktop, which can withstand very heavy loads.
Drawer cupboards as a sturdy, powder coated sheet steel construction with central locking and 2 keys (DOM replaceable cylinder).
The workbench is supplied partly assembled. The base cabinets are assembled complete with drawers, and are supplied together with a 2-part worktop. The positions of the base cabinets are marked on the bottom of the board segments at the factory. This makes speedy assembly possible once it has been delivered.
The workbench system consists of a 2-part worktop, 50 mm thick, and 6 base cabinets, fitted with drawers / doors.
The 6 base cabinets are each fitted with two drawers with a front height of 90 mm and 1 door 540 mm. Max. load per drawer 100 kg (with uniformly distributed load). Full extension with individual pull-out stops. The door features sturdy, all round reinforcement, and can be opened 180°.
A compact surface space of 2.70 x 2.34 m allows groups of 6 trainees to work at the same time. The solid beech board used for the worktop features a unique glued wood construction. Precise dovetailing over the full length creates extremely stable laminated boards, and therefore a durable worktop, which can withstand very heavy loads.
Drawer cupboards as a sturdy, powder coated sheet steel construction with central locking and 2 keys (DOM replaceable cylinder).
The workbench is supplied partly assembled. The base cabinets are assembled complete with drawers, and are supplied together with a 2-part worktop. The positions of the base cabinets are marked on the bottom of the board segments at the factory. This makes speedy assembly possible once it has been delivered.
The workbench system consists of a 2-part worktop, 50 mm thick, and 6 base cabinets, fitted with drawers / doors.
The 6 base cabinets are each fitted with two drawers with a front height of 90 mm and 1 door 540 mm. Max. load per drawer 100 kg (with uniformly distributed load). Full extension with individual pull-out stops. The door features sturdy, all round reinforcement, and can be opened 180°.
- Optimal for group tasks/training workshop
- 6 workstations with a compact surface space of around 6.3 m²
- Robust and durable
Technical data
| Width | 2340 mm |
|---|---|
| Depth | 2700 mm |
| Type of worktop | solid beech |
| Panel thickness | 50 mm |
| Number of drawers | 12 pcs. |
| Drawer height | 90 mm |
| Height | 850 mm |
| Working height | 850 mm |
| Body colour | light grey RAL 7035 |
| Front colour | gentian blue RAL 5010 |
| Drawer guide | differential guide rail |
| Max. drawer load | 100 kg |
| Drawer extension | 100% extendable |
| Drawer width | 500 mm |
| Drawer depth | 540 mm |
| Number of doors | 1 pcs. |
| Door height | 540 mm |
| Static distributed load | 1000 kg/m² |
| Lock type | central locking (replaceable cylinder) |
| Sub-structure fittings | 6 containers below table top with 2 drawers and 1 door each |
| Supplied | pre-assembled, final assembly by customer |
