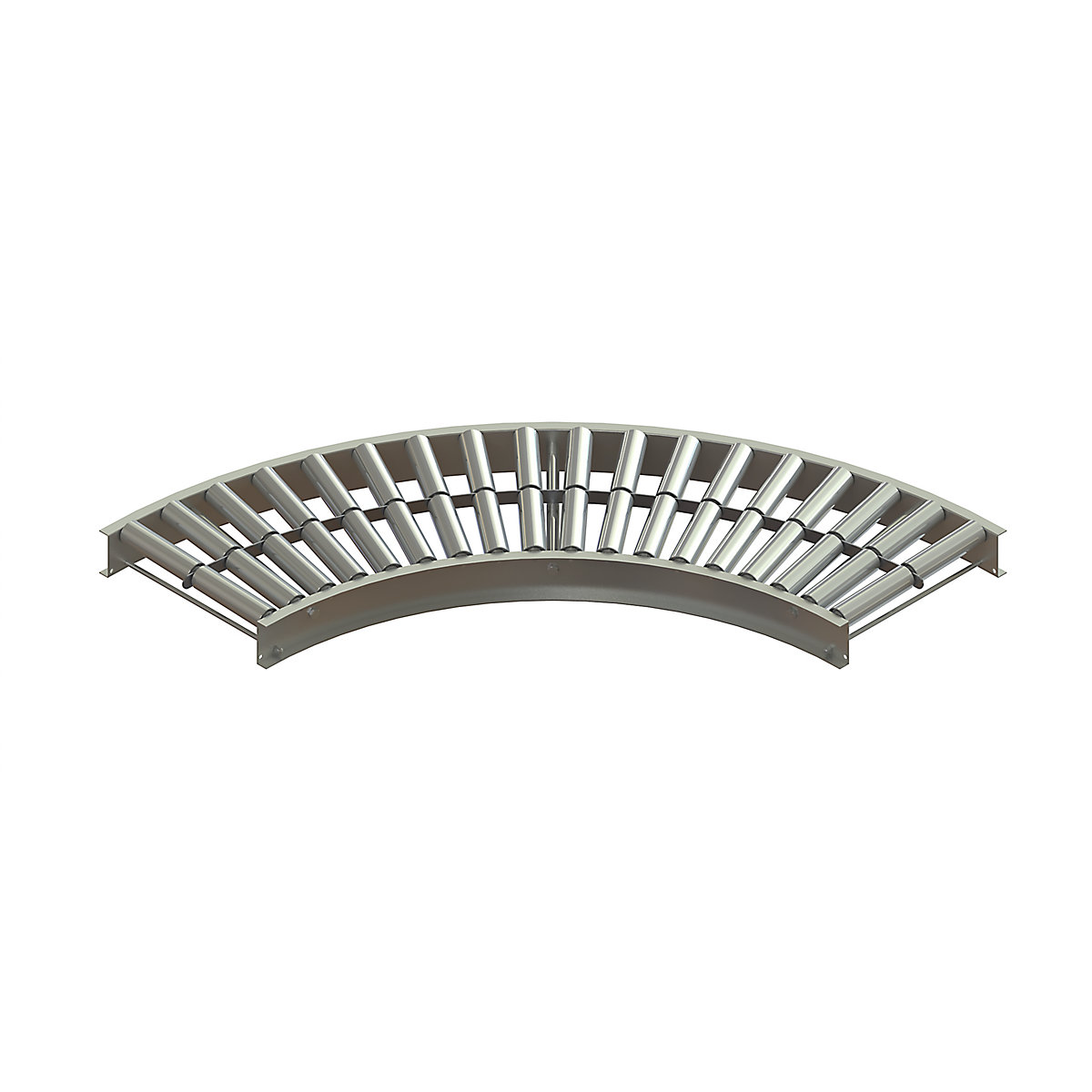

Gura – 90° curve for roller conveyor track width 400 mm

  • Transport flow without drive due to slight pitch of approx. 2 – 5 %
  • High quality workmanship
  • Ideal supplement in a conveyor system
Gura
Planning service
Planning service
Gura – 90° curve for roller conveyor, track width 400 mm, axle spacing 100 mm
Price / items (Excl. VAT)
from
£469.00

Product description
U-profile frame made of zinc plated steel 25 x 100 x 25 x 2 mm, with robust cross pieces. Ball bearing mounted, zinc plated steel rollers, Ø 50 mm, with sprung axle, Ø 12 mm. Curves with split rollers.
Static maximum load 400 kg per metre of track with supports spaced 1 m apart.
Designing your conveyor
Assemble required conveyor length from individual sections. Determine required number of straight and curved sections.
Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported.
With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.

Alternative versions, 45° curves and passages available on request.
Two-legged supports and side guide rails can be found under combinations and accessories.
We can supply any type of conveyor belt on request. Please request an individual offer.
  • Transport flow without drive due to slight pitch of approx. 2 – 5 %
  • High quality workmanship
  • Ideal supplement in a conveyor system
Planning service
Planning service
Technical data
Track width400 mm
Overall height110 mm
Curve90 °
Radius of curve800 mm
Roller diameter50 mm
Overall width450 mm
Skate wheel materialsteel, zinc plated
Design of framesteel, zinc plated
Max. load with 1 m frame support spacing400 kg
Width of goods conveyed550 mm
Suppliedassembled
