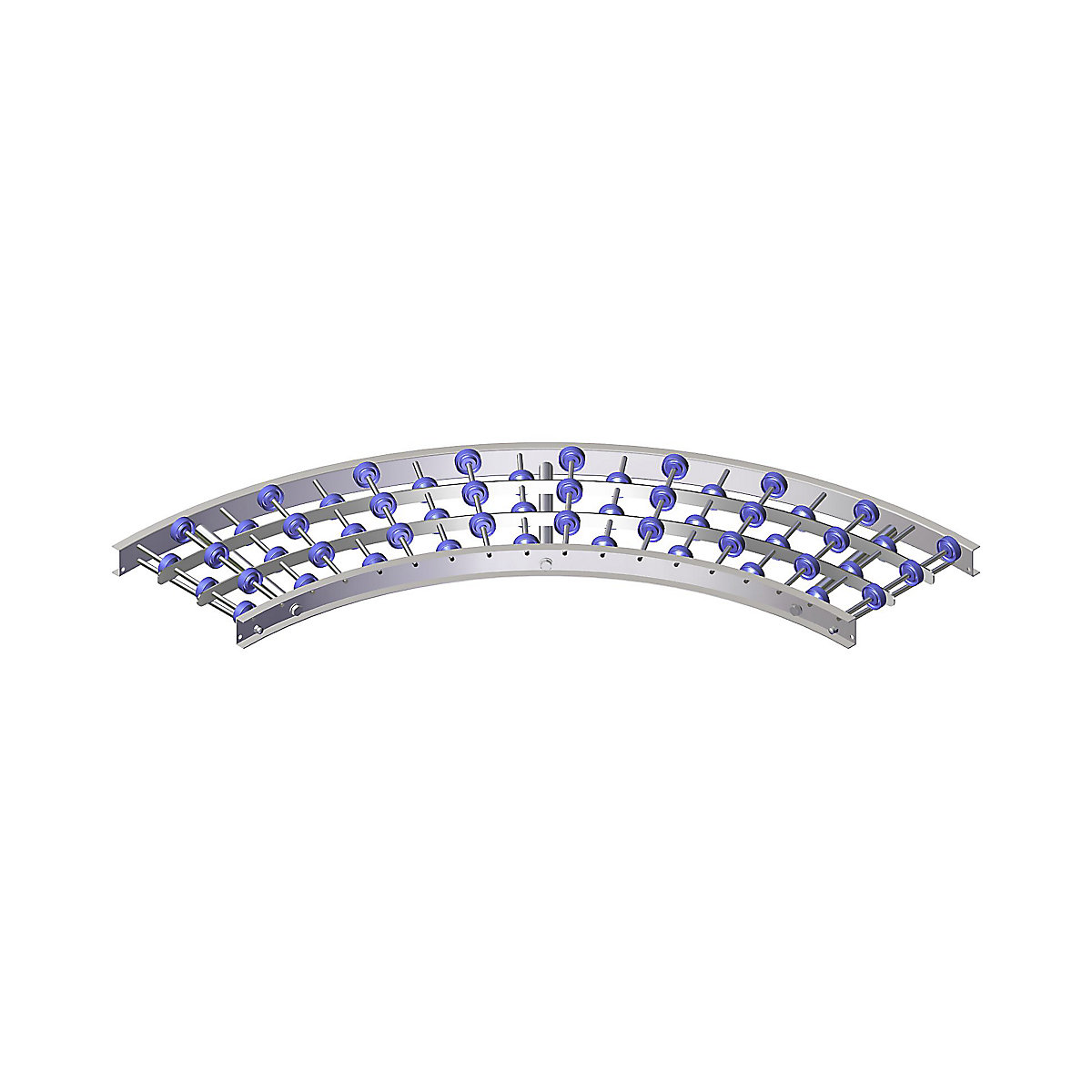

Gura – 90° curve steel frame, plastic skate wheels, track width 300 mm

  • Modular system facilitates rapid material flow
  • High quality workmanship
  • Ideal supplement in a conveyor system
Gura
Planning service
Planning service
Gura – 90° curve, steel frame, plastic skate wheels, track width 300 mm, axle spacing 100 mm
Price / items (Excl. VAT)
from
£269.00

Product description
Sturdy lateral zinc plated steel profiles, 20 x 60 x 20 mm. Ball bearing steel or plastic skate wheels, Ø 48 mm. Staggered layout of skate wheels from axle to axle with same quantity of skate wheels per axle.
Base surface of the goods to be transported has to be flat, firm and smooth.

Static maximum load 200 kg per metre of track with supports spaced 1 m apart.

Designing your conveyor
Build up the required conveyor length from individual sections. Determine required number of straight and curved sections. Determine track width by largest dimension of goods to be transported. Determine spacing between axles by smallest dimension of goods to be transported.
With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.

Suitable for stationary use in closed, dry rooms. Low noise operation.
Two-legged supports and side guide rails can be found under combinations and accessories.
Special designs, 45° curves and passages available on request.
  • Modular system facilitates rapid material flow
  • High quality workmanship
  • Ideal supplement in a conveyor system
Planning service
Planning service
Technical data
Track width300 mm
Overall height69 mm
Curve90 °
Radius of curve800 mm
Roller diameter48 mm
Overall width340 mm
Skate wheel materialplastic
Design of framesteel, zinc plated
Max. load with 1 m frame support spacing200 kg
Skate wheel arrangement3 : 3
Width of goods conveyed150 – 400 mm
Suppliedassembled
