Ref.: 691443 WP

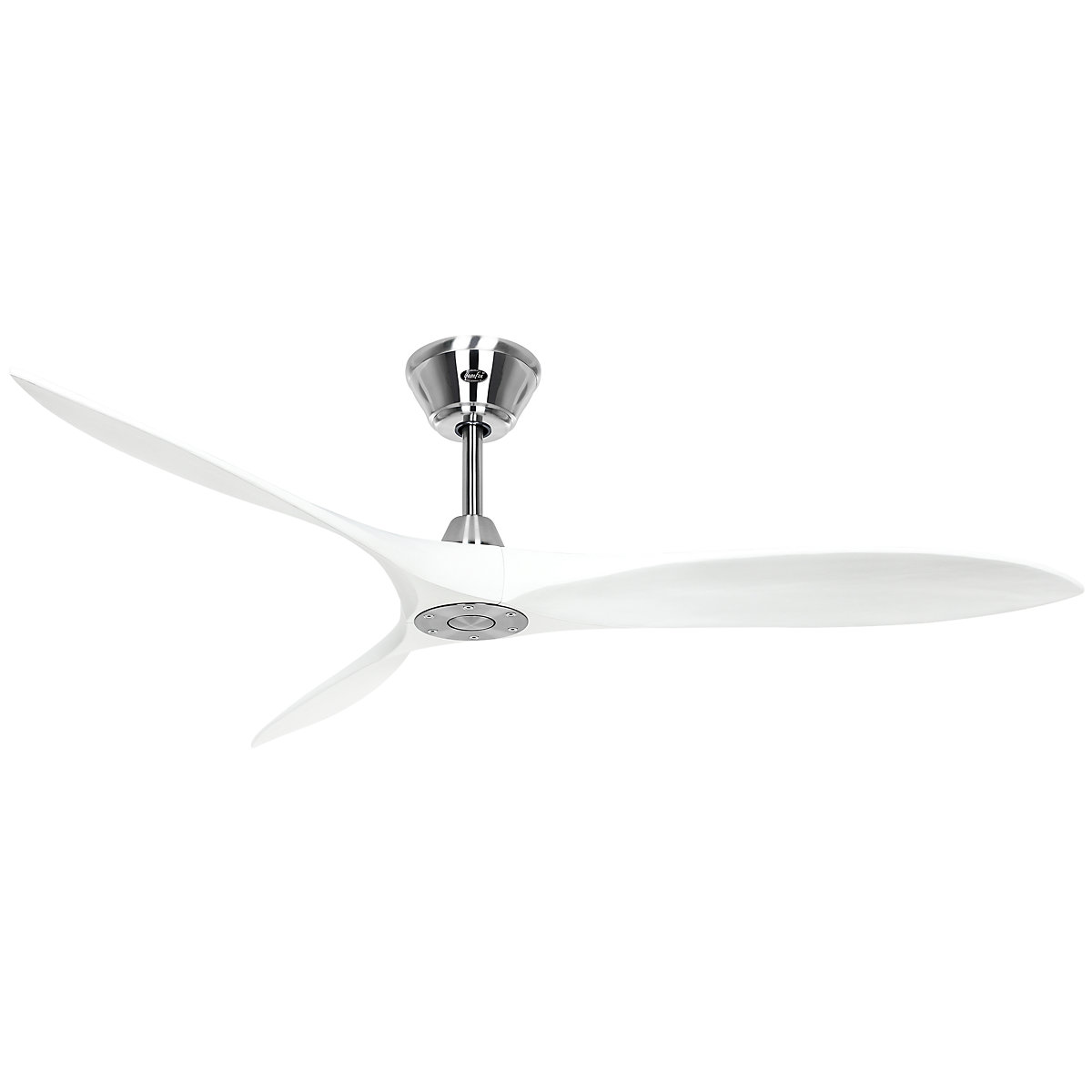

ECO AIRSCREW ceiling fan rotor blade Ø 1520 mm

ECO AIRSCREW ceiling fan

matt white / chrome

£769.00
£649.00
Price / item (Excl. VAT)

Delivery time: 2 Week delivery
Product description

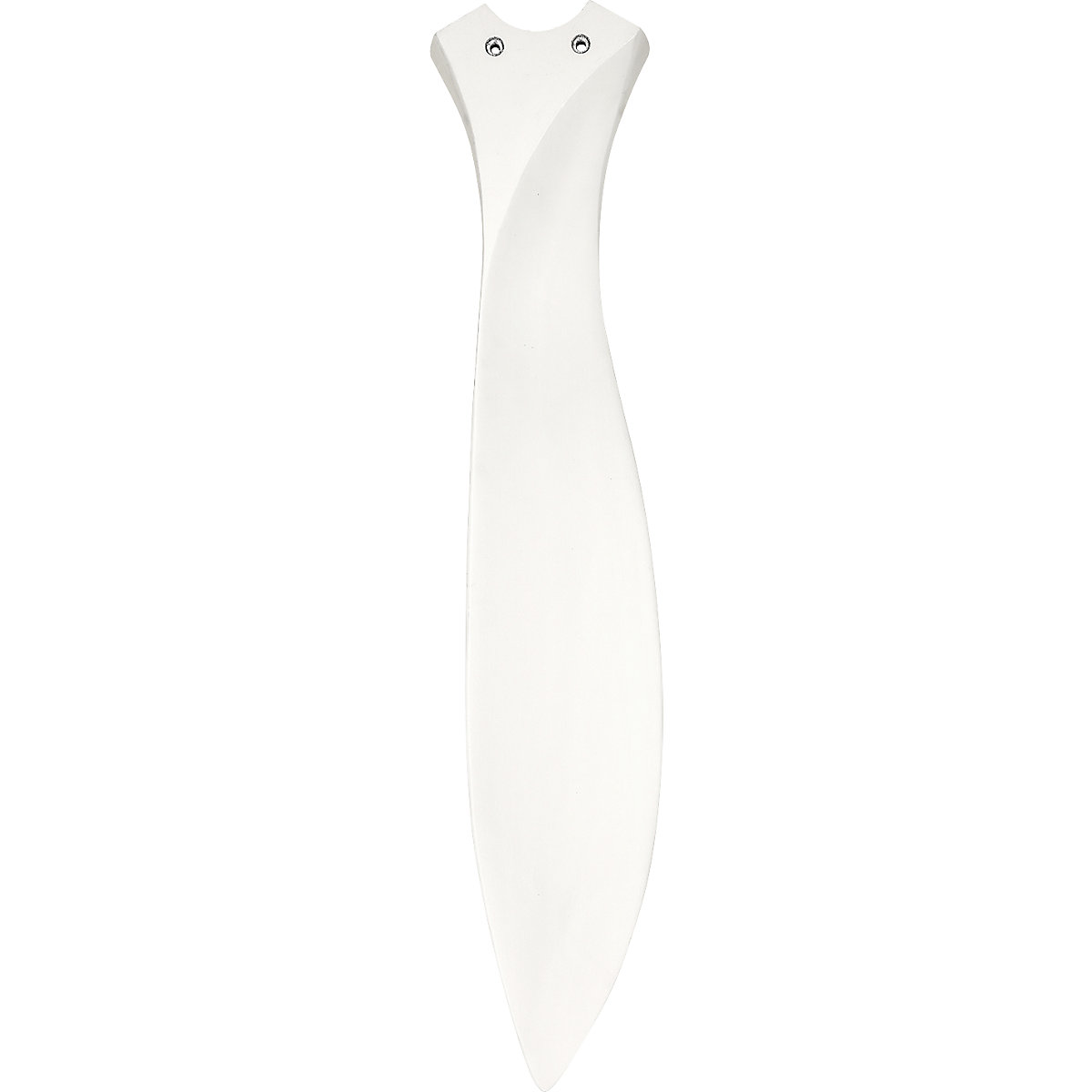

  • 3 handmade solid wood blades in classic propeller shape
  • For rooms from 28 to 40 m², high output of 11712 m³/h

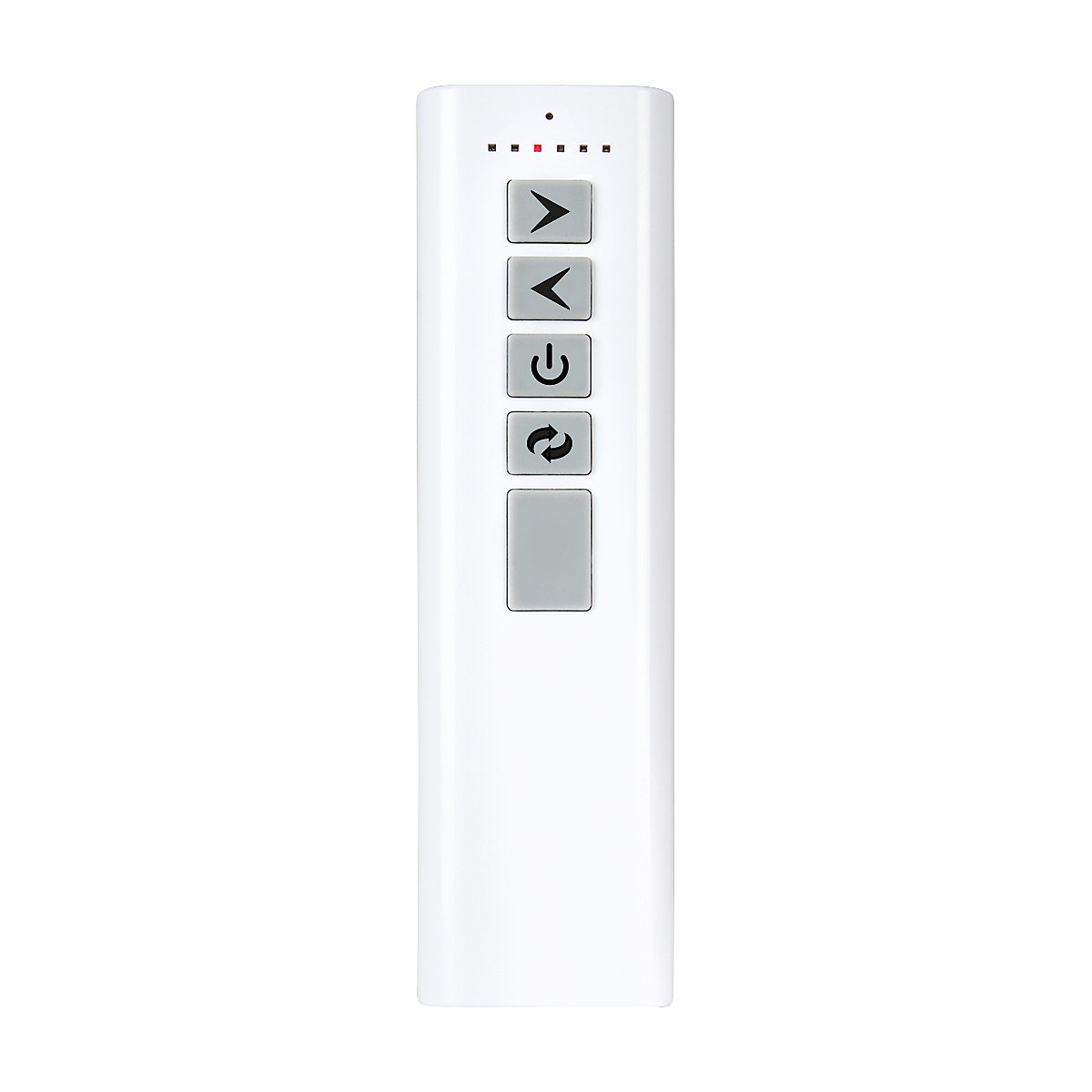

  • 6 speed settings, forwards/reverse rotation (summer and winter mode) selected using remote control
  • Very energy efficient, service ratio 7.0 (m³/min.)/W in accordance with EU Directive 206/2012
  • Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
  • Can be installed at angles up to 12°
  • 25-year manufacturer warranty on the motor

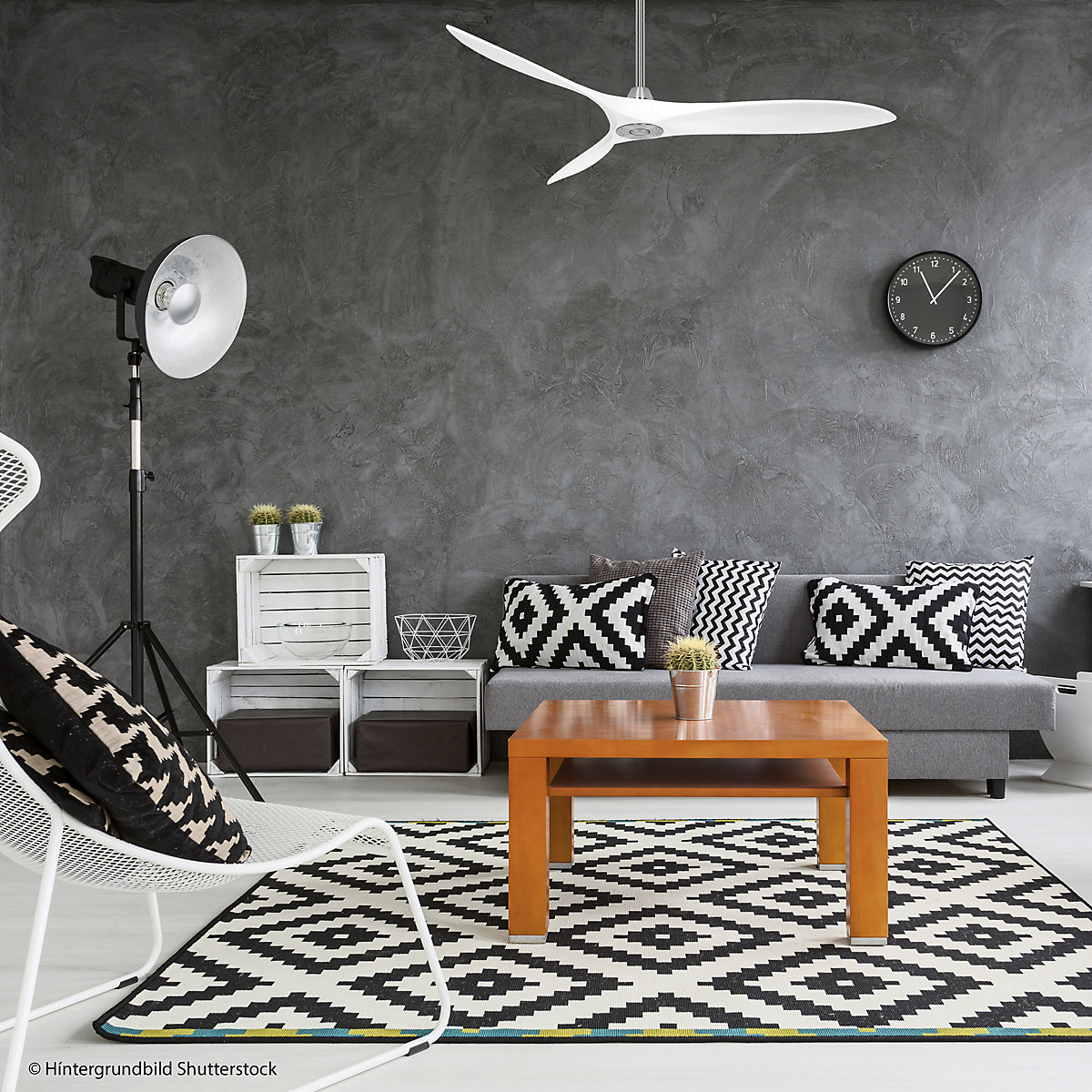

  • An eyecatcher for any room, whether in the office or at home
State-of-the-art, energy saving DC/EC motor. For rooms with a normal height, the distance between the ceiling and blades is 360 mm. Includes remote control with sleep timer, slow motion setting. Supplied with wall bracket and 200 mm ceiling rod. Integration of a lamp not possible.

Performance data:
Speed setting 1 = 50 rpm / power consumption setting 1 = 4.4 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 2 = 61 rpm / power consumption setting 2 = 5.9 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 3 = 81 rpm / power consumption setting 3 = 11 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 4 = 98 rpm / power consumption setting 4 = 18.7 watts / sound power level LW = < 32.4 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 5 = 117 rpm / power consumption setting 5 = 27.3 watts / sound power level LW = < 34.1 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 6 = 125 rpm / power consumption setting 6 = 28 watts / sound power level LW = < 34.4 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³

Air speed 1.5 m above floor = 2.24 m/s. The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high. This will help you estimate draughts that will occur at head height when sitting under the ceiling fan. This specification refers to the highest speed. Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling.

²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach. The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power LW and 15 dB(A) for the sound pressure LP –3 m.
³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power LW and sound pressure LP –3 m.
Technical data
Rotor blade diameter1520 mm
Number of speed settings6
Max. speed125 rpm
Max. air volume11712 m³/h
Power0.028 kW
Sound pressure LPA (–3 m)15 dB(A)
Sound power LWA34.4 dB(A)
Fittingsremote control wall switch
Protection typeIP00

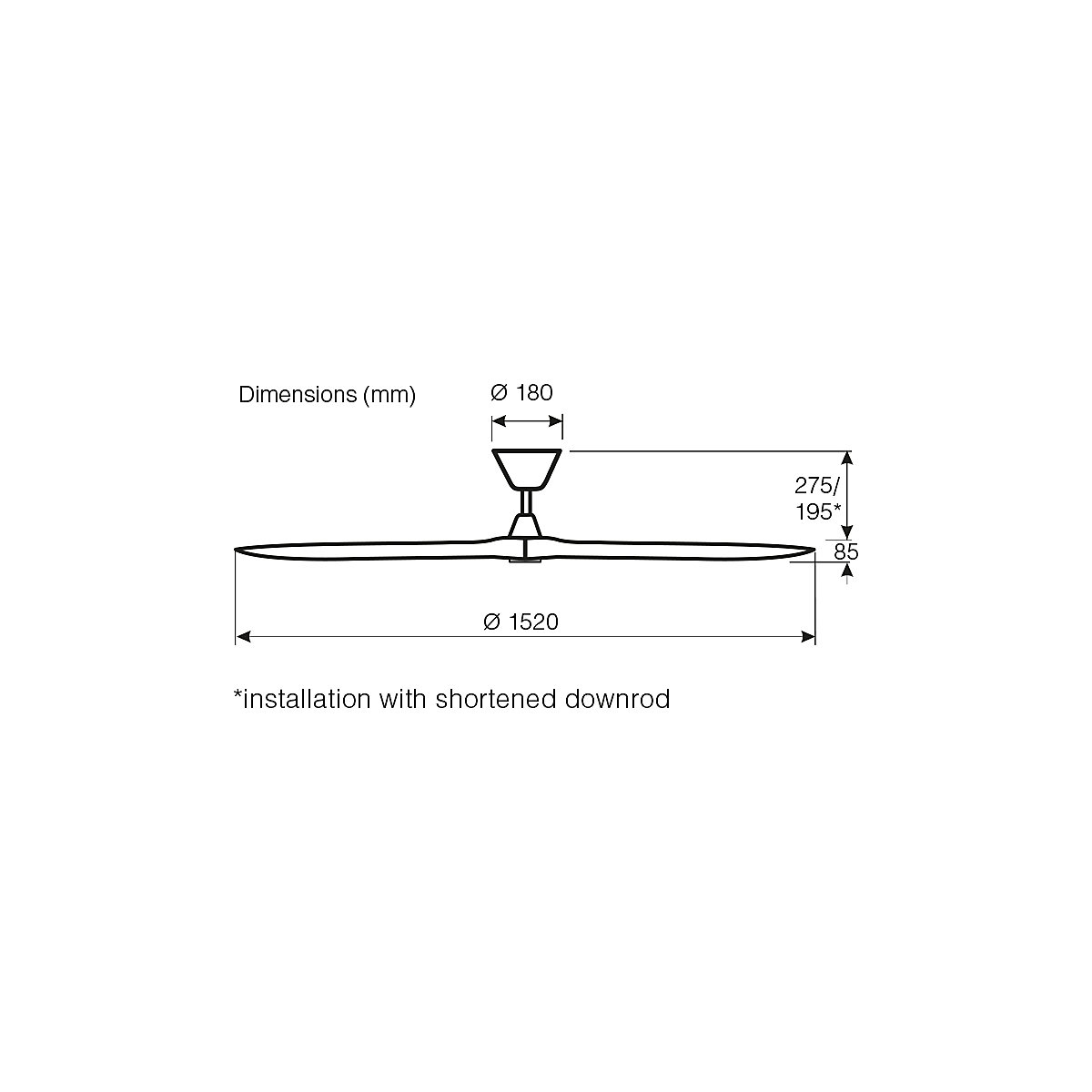

Height360 mm
Width1520 mm
Depth1520 mm
Mains voltage220 – 240 V / ~50 Hz
Ceiling-blade spacing275 mm
Number of blades3 pcs.
Number of blades included with delivery3 pcs.
Product typeceiling fans
Suppliedflat pack
Weight7 kg
Housing colourbrushed chrome
Blade colourmatt white
