Ref.: 691491 WP
ECO GENUINO ceiling fan rotor blade Ø 1800 mm
natural finish / brass
Housing colour
Blade colour
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 691491 WP
ECO GENUINO ceiling fan rotor blade Ø 1800 mm
natural finish / brass
natural finish / brass
£799.00
£679.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- For rooms from 35 to 45 m², very high output of 14382 m³/h
- 3 hand-made solid wood blades – an eyecatcher for any room, whether in the office or at home
- Very energy efficient, service ratio 8.0 (m³/min)/W in accordance with EU Directive 206/2012
- 6 forwards/reverse rotation speed settings (summer and winter mode) selected using remote control
- Lowest setting guarantee to not cause draughts, also ideal for recirculating heat in winter
- Can be installed at angles up to 12°
- 25-year manufacturer warranty on the motor
State-of-the-art, energy saving DC/EC motor. Includes remote control with sleep timer, slow motion setting. Supplied with wall bracket and 200 mm ceiling rod.
For rooms of normal height, the distance between ceiling and blades is 365 mm.
Performance data:
Speed setting 1 = 50 rpm / power consumption setting 1 = 4.1 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 2 = 57 rpm / power consumption setting 2 = 4.8 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 3 = 77 rpm / power consumption setting 3 = 7.5 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 4 = 95 rpm / power consumption setting 4 = 12.7 watts / sound power level LW = < 33.7 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 5 = 114 rpm / power consumption setting 5 = 19.8 watts / sound power level LW = < 39.4 dB(A) ² ³ / sound pressure level LP –3 m = < 18.9 dB(A)² ³
Speed setting 6 = 132 rpm / power consumption setting 6 = 30.0 watts / sound power level LW = < 42.5 dB(A) ² ³ / sound pressure level LP –3 m = < 22.0 dB(A)² ³
Air speed 1.5 m above floor = 1.96 m/s. The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high. This will help you estimate draughts that will occur at head height when sitting under the ceiling fan. This specification refers to the highest speed. Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling.
²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach. The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power LW and 15 dB(A) for the sound pressure LP –3 m.
³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power LW and sound pressure LP –3 m.
Performance data:
Speed setting 1 = 50 rpm / power consumption setting 1 = 4.1 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 2 = 57 rpm / power consumption setting 2 = 4.8 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 3 = 77 rpm / power consumption setting 3 = 7.5 watts / sound power level LW = < 32 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 4 = 95 rpm / power consumption setting 4 = 12.7 watts / sound power level LW = < 33.7 dB(A) ² ³ / sound pressure level LP –3 m = < 15 dB(A)² ³
Speed setting 5 = 114 rpm / power consumption setting 5 = 19.8 watts / sound power level LW = < 39.4 dB(A) ² ³ / sound pressure level LP –3 m = < 18.9 dB(A)² ³
Speed setting 6 = 132 rpm / power consumption setting 6 = 30.0 watts / sound power level LW = < 42.5 dB(A) ² ³ / sound pressure level LP –3 m = < 22.0 dB(A)² ³
Air speed 1.5 m above floor = 1.96 m/s. The maximum air speed is specified at the highest setting at a height of 1.5 m above the floor in a room 3 m high. This will help you estimate draughts that will occur at head height when sitting under the ceiling fan. This specification refers to the highest speed. Precise speed levels with as many settings as possible allows pleasant, draught-free operation even in winter by recirculating the warm air that is under the ceiling.
²Noise measurements were carried out at the VDE Testing and Certification Institute in Offenbach. The lower threshold for the measurement by the laboratory is 32 dB(A) for sound power LW and 15 dB(A) for the sound pressure LP –3 m.
³Because many ceiling fans on the market feature one or the other value in the specifications, we are providing the measured noise values as both sound power LW and sound pressure LP –3 m.
Technical data
Rotor blade diameter | 1800 mm |
---|---|
Number of speed settings | 6 |
Max. speed | 132 rpm |
Max. air volume | 14382 m³/h |
Power | 0.03 kW |
Sound pressure LPA (–3 m) | 22 dB(A) |
Sound power LWA | 42.5 dB(A) |
Fittings | remote control wall switch |
Protection type | IP00 |

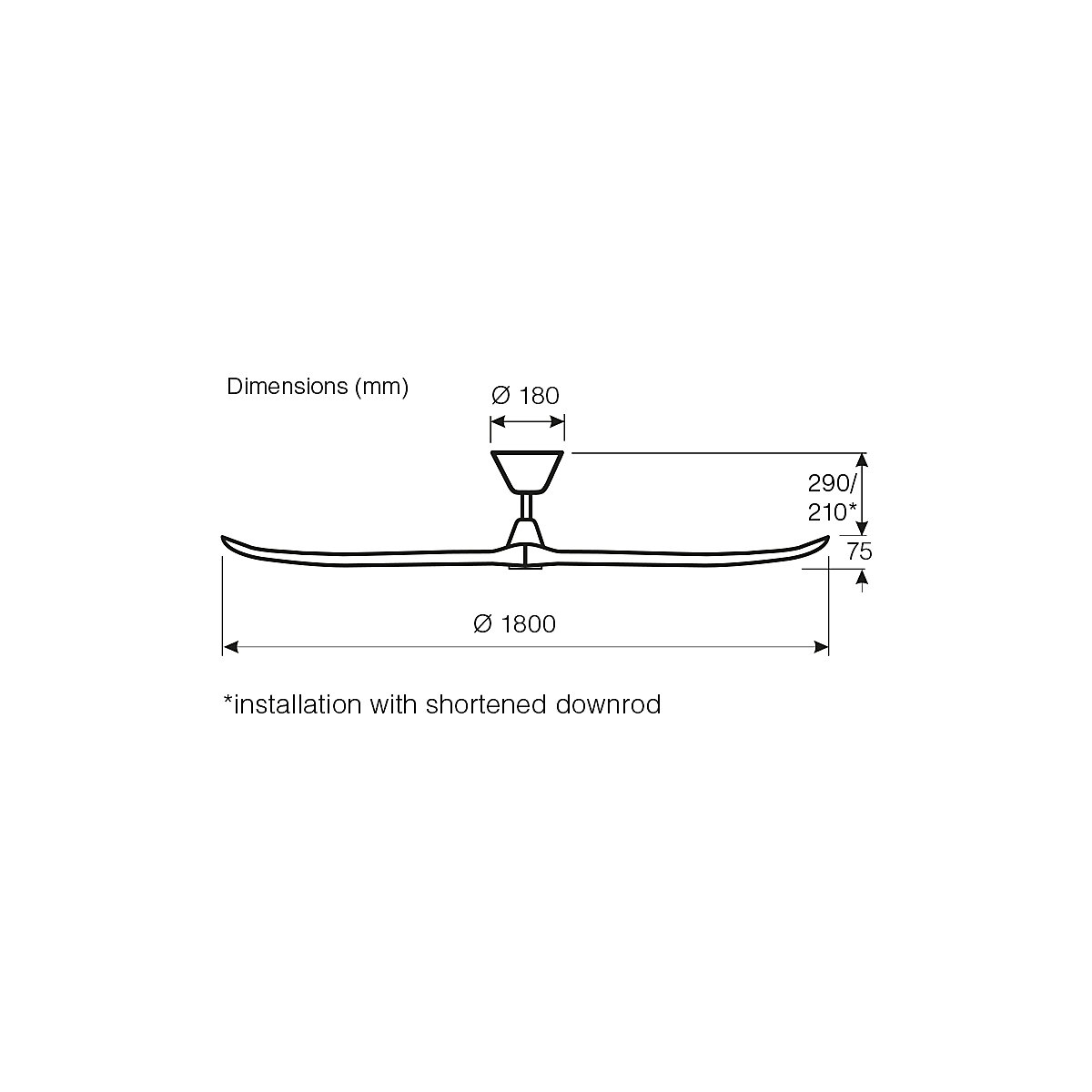

Height | 365 mm |
Width | 1800 mm |
Depth | 1800 mm |
Mains voltage | 220 – 240 V / ~50 Hz |
Ceiling-blade spacing | 365 mm |
Number of blades | 3 pcs. |
Number of blades included with delivery | 3 pcs. |
Product type | ceiling fans |
Supplied | flat pack |
Weight | 7.6 kg |
Housing colour | brushed brass |
Blade colour | natural |
Sustainability
Enkelfähig
Non-Enkelfähig product
This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.
For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.
For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
