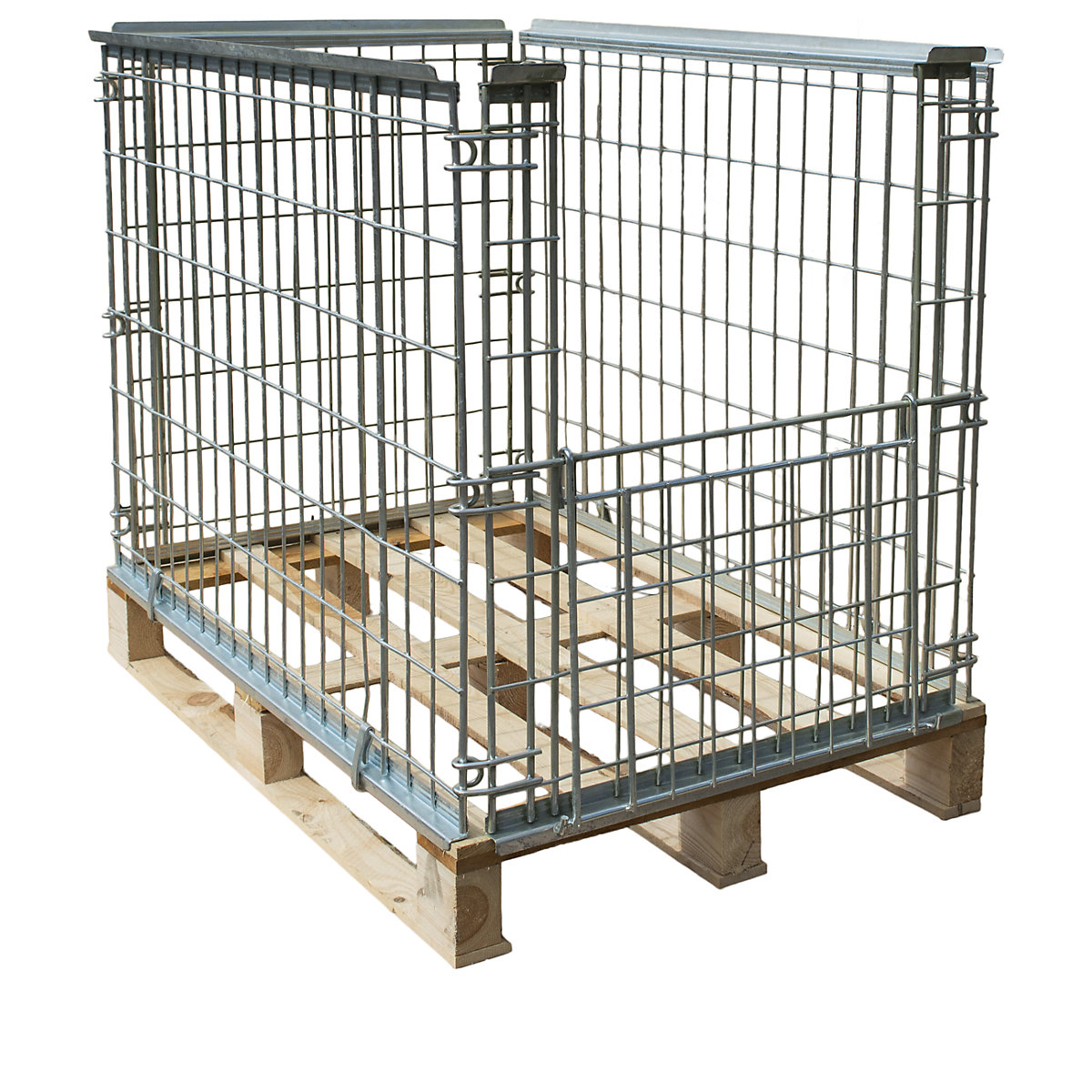

Mesh stacking frame for EURO pallet with drop gate on 1 front wall

  • For 1200 x 800 mm EURO pallets
  • Up to 4 units can be stacked
  • Fitted with hinges for diagonal folding
Mesh stacking frame for EURO pallet, with drop gate on 1 front wall, effective height 850 mm
Price / items (Excl. VAT)
from
£193.00

Product description
Made of spot welded steel wire mesh, mesh size 120 x 60 mm. 2 brackets for securing the frame onto the pallet.
Zinc chromated.
  • For 1200 x 800 mm EURO pallets
  • Up to 4 units can be stacked
  • Fitted with hinges for diagonal folding
Technical data
Materialsteel mesh
For pallet size1200 x 800 mm
Design of supporting framewith drop gate on 1 front wall
Max. load800 kg
Finishgalvanised and chrome-plated
Colourchrome
Mesh size120 x 65 mm
Mesh wire thickness4.8 mm
Strut wire thickness9.8 mm
Product typepallet frames
Suppliedassembled
