Jessberger – Compressed air container pump set for flammable media 80 l/min, 600 W

  • For IBC/CTC tank containers
  • High level of safety when flammable media are used in hazardous areas
  • Low weight – easy handling
Jessberger
For flammable liquids
For flammable liquids
Ref.: 648706 49

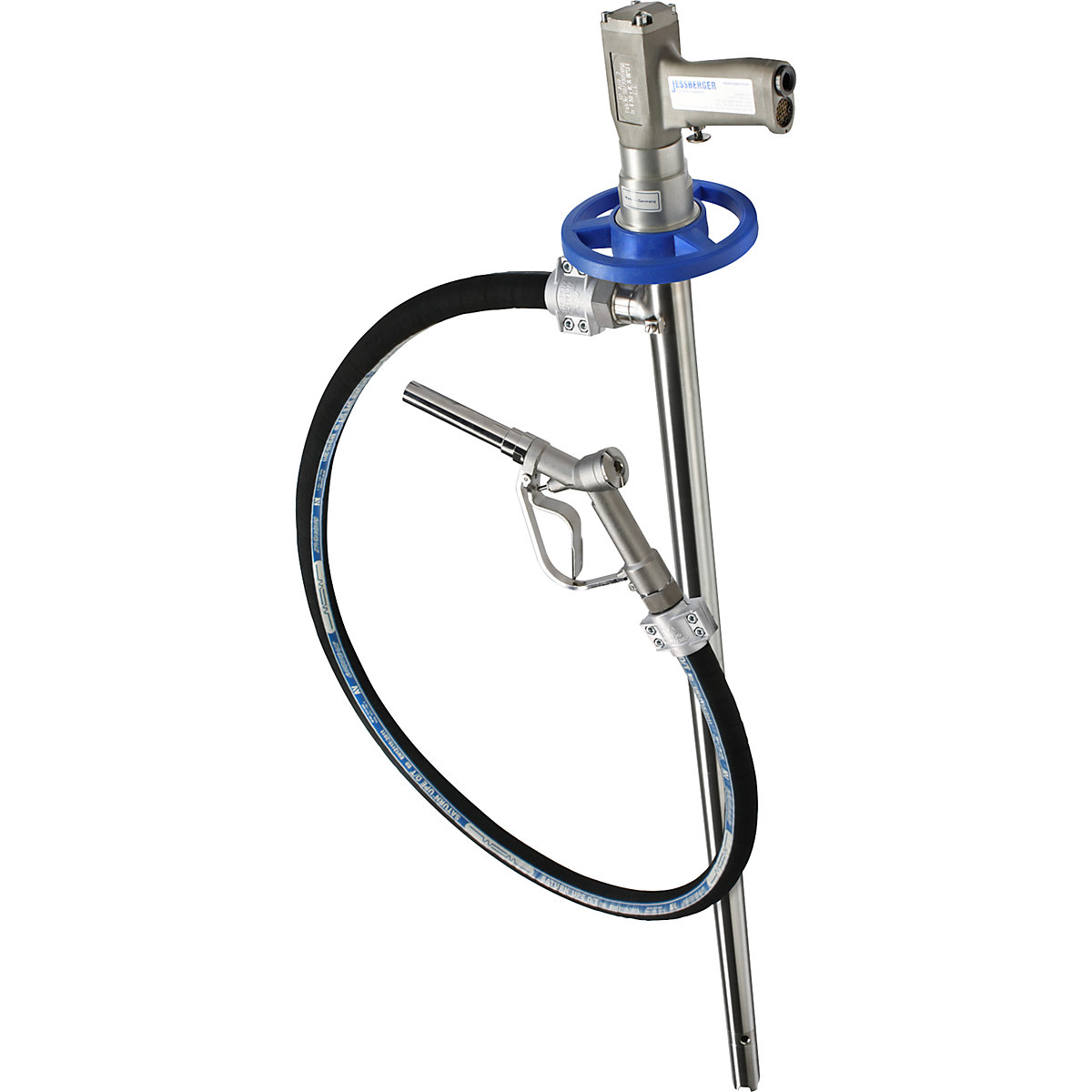

Jessberger – Compressed air container pump set, for flammable media 80 l/min, 600 W, explosion protected
Price / items (Excl. VAT)
£1,829.00

Product description

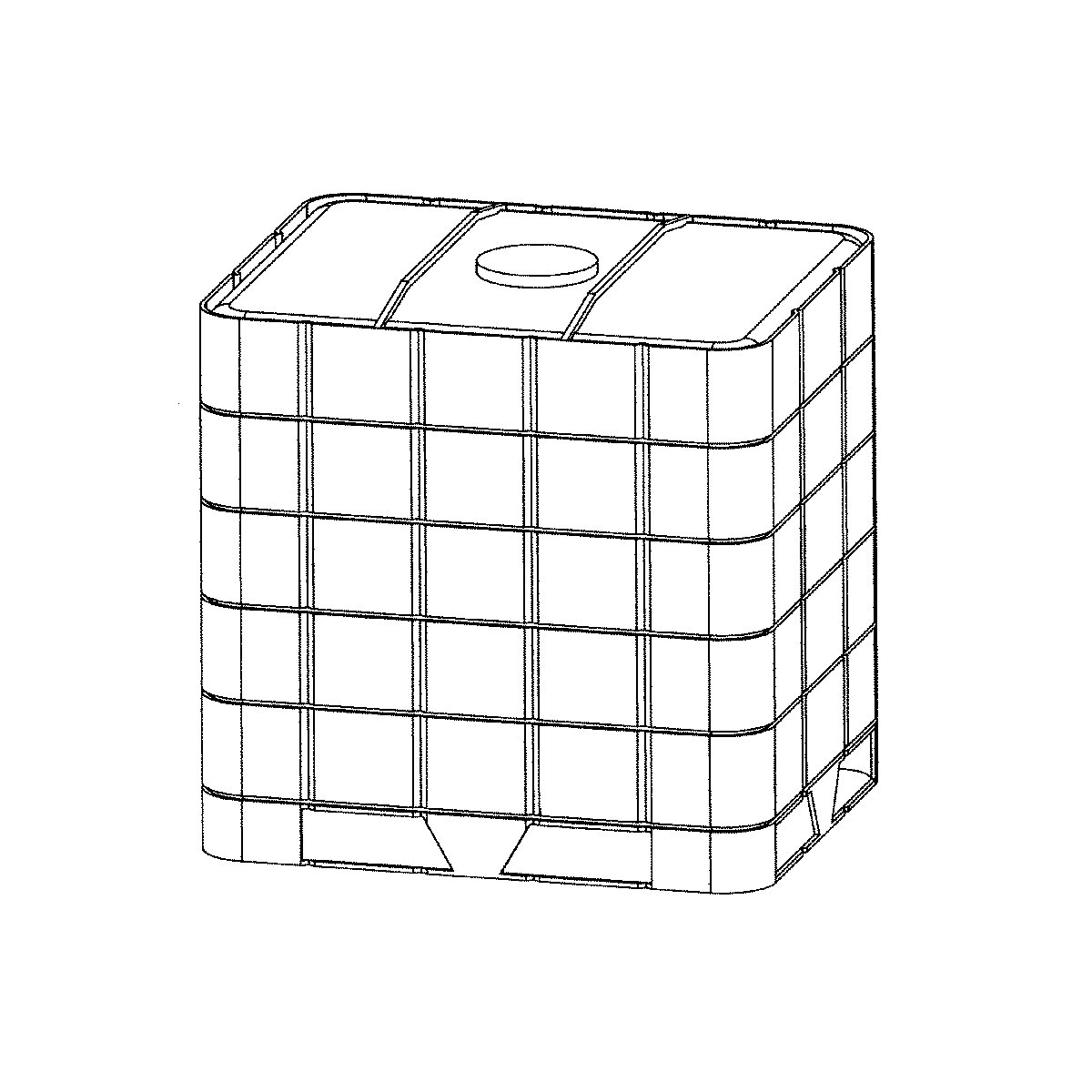

Compressed air pump set for IBC/CTC tank containers.
For flammable media in explosion hazard zone 0 or for use in explosion hazard zones 1 or 2.

– No-seal version without mechanical seal
– Pump unit made of stainless steel 1.4571
– 2 m conductive multi-purpose hose 1'' (NW 25) made of crosslinked polyethylene
– 2 stainless steel hose connections with 1 1/4'' and 1'' internal threads
– 1 nickel plated brass nozzle with PTFE seals
– 1 potential equalisation cable set for earthing the drum pump

For flammable media:
Alcohol, petrol, brake cleaner, butyl acetate, antifreeze concentrate, isopropanol, kerosene, concentrated formic acid, acetic acid or propionic acid, solvents such as acetone, butanol, ethanol, methanol, toluene etc.

Aluminium compressed air motor, 600 W at max. 6 bar operating pressure, Ex 2GD c IIC T6 (80 °C) X, with silencer, on/off switch as push button can be locked.
Special seals available upon request.
  • For IBC/CTC tank containers
  • High level of safety when flammable media are used in hazardous areas
  • Low weight – easy handling
For flammable liquids
For flammable liquids
Technical data
Connection type1 1/4 inch
Pump rate80 l/min
Operating pressure min./max.max. 6 bar
Power600 kW
For mediafor flammable media
solvents (explosion protected)
flammable hydrocarbons, such as ethanol, petrol, butanol, isopropanol, kerosene, methanol, petroleum
highly flammable/flammable/high purity liquids explosion hazard zone 0
Design of pumpno-seal version without mechanical seal
Material of pumpstainless steel
Pump unit materialstainless steel / PTFE / FKM
Drive shaft materialstainless steel
Immersion depth1200 mm
Immersion tube diameter41 mm
Pumping height10 m wc
Suction hose / discharge hose length to cut to size2000 mm
Immersion tube length1200 mm
Nominal hose diameter25
Max. viscosity at +20 °C600 mPas
Suppliedpre-assembled, final assembly by customer
