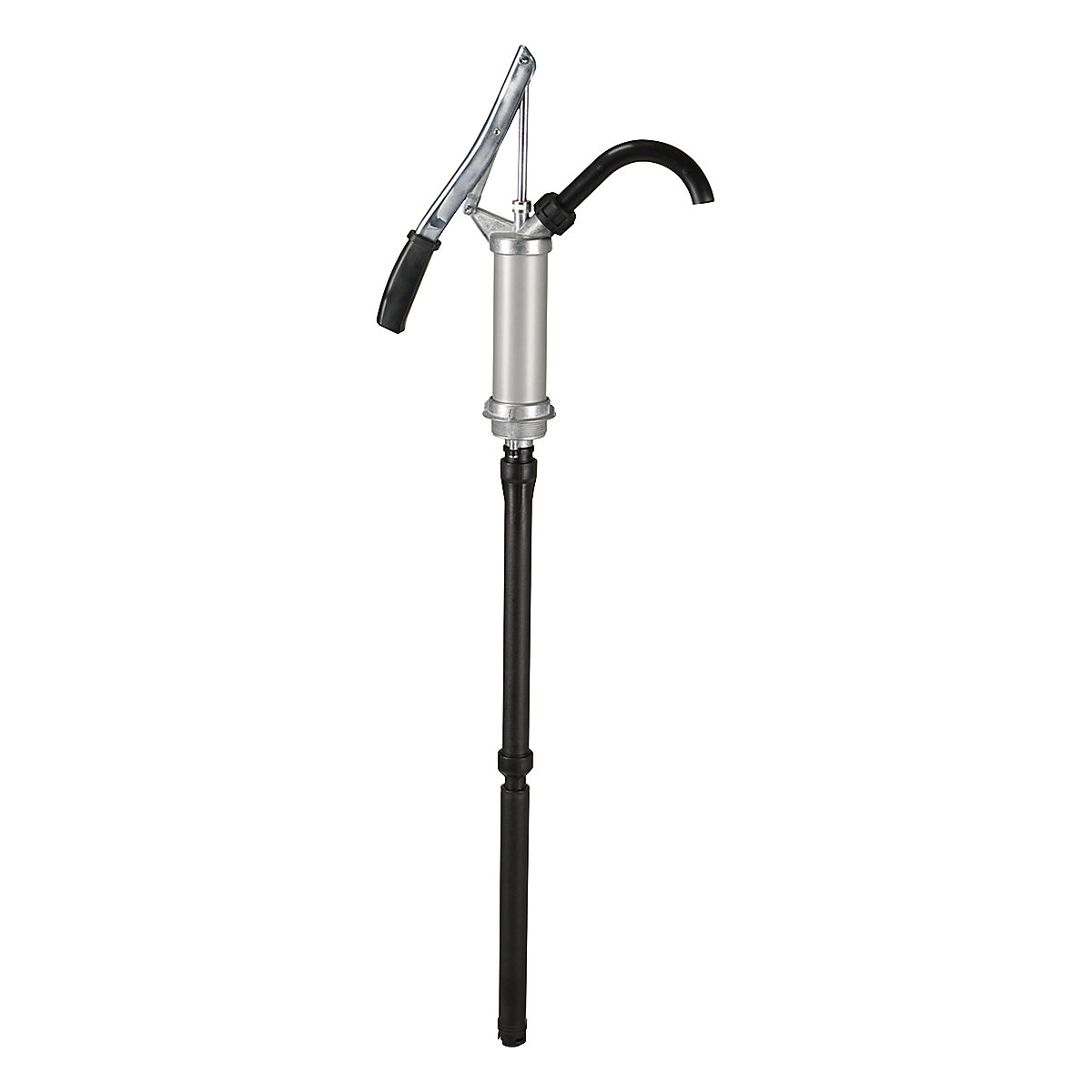

PRESSOL – Lever operated cylinder-type manual pump pump rate 18 l/min, with drainage elbow

  • Two-part suction pipe, can be cut to length
  • For motor oil, gear oil, heating oil, diesel, machine oil, cutting oil, petroleum, anti-freeze
  • With plastic drainage elbow
PRESSOL
Ref.: 561404 49
PRESSOL – Lever operated cylinder-type manual pump, pump rate 18 l/min, with drainage elbow, for oil, diesel
Bulk discount of up to 7.37%
QuantityPrice/PackYou save
1
£47.50
-
3
£45.50
4.21 %
5
£44.00
7.37 %
Quantity discount from 3
Price / items (Plus VAT)
£47.50

Product description

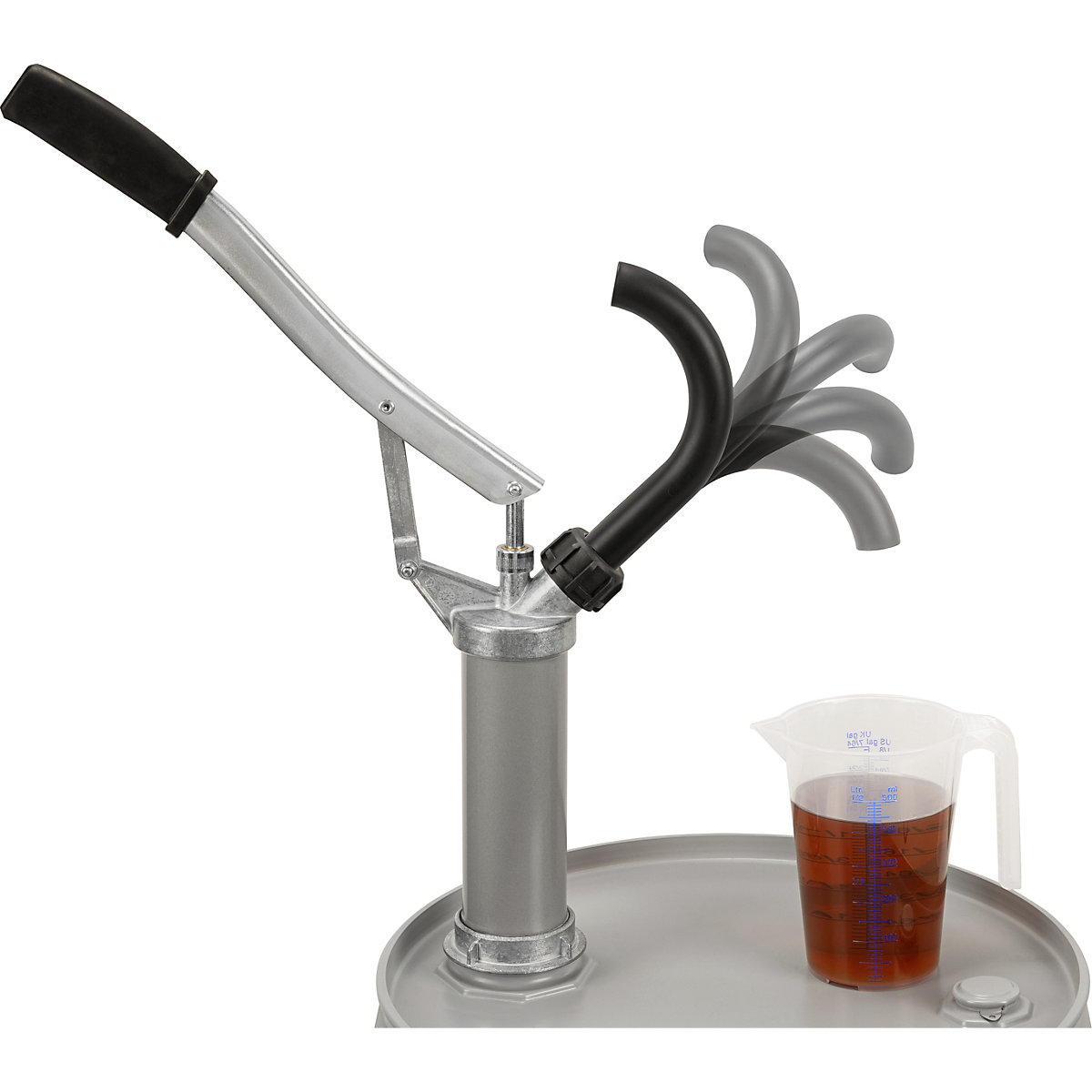

Hand piston pumps with plastic drainage elbow.

For 60/200/220 l containers.
Pump rate: 18 l/min or 0.3 l/stroke.
With drainage elbow (plastic outlet manifold, attached with coupling ring).
Suction pipe length: 355 – 955 mm (can be individually cut to length).
Drum screw connection: G 2''.

For motor oils from SAE 5 W to SAE 50, gear oil from SAE 75 W to SAE 90, heating oil, diesel, machine oil, cutting oil, petroleum, undiluted anti-freeze.

Materials for the parts in contact with media:
Pump head: impact resistant die-cast zinc
Pump body: aluminium
Suction pipe: HDPE (high density polyethylene)
Outlet manifold: PP
Seals: PVC, NBR, FKM

Please note: if media compatibility is unclear, please enquire about the suitability of pumps beforehand.
  • Two-part suction pipe, can be cut to length
  • For motor oil, gear oil, heating oil, diesel, machine oil, cutting oil, petroleum, anti-freeze
  • With plastic drainage elbow
Technical data
Design of pumphand pump with immersion tube
For mediaoil and diesel
new and used oil, heating oil and diesel
low viscosity mineral oil products, such as diesel, heating fuel, hydraulic, machine and motor oil, etc.
Material of pumpaluminium
Pump rate18 l/min
Immersion tube length355 – 955 mm
ThreadG 2 inch
Max. viscosity at +20 °C750 mPas
Weight1.59 kg
Suppliedpartially assembled
