Ref.: 119175 49

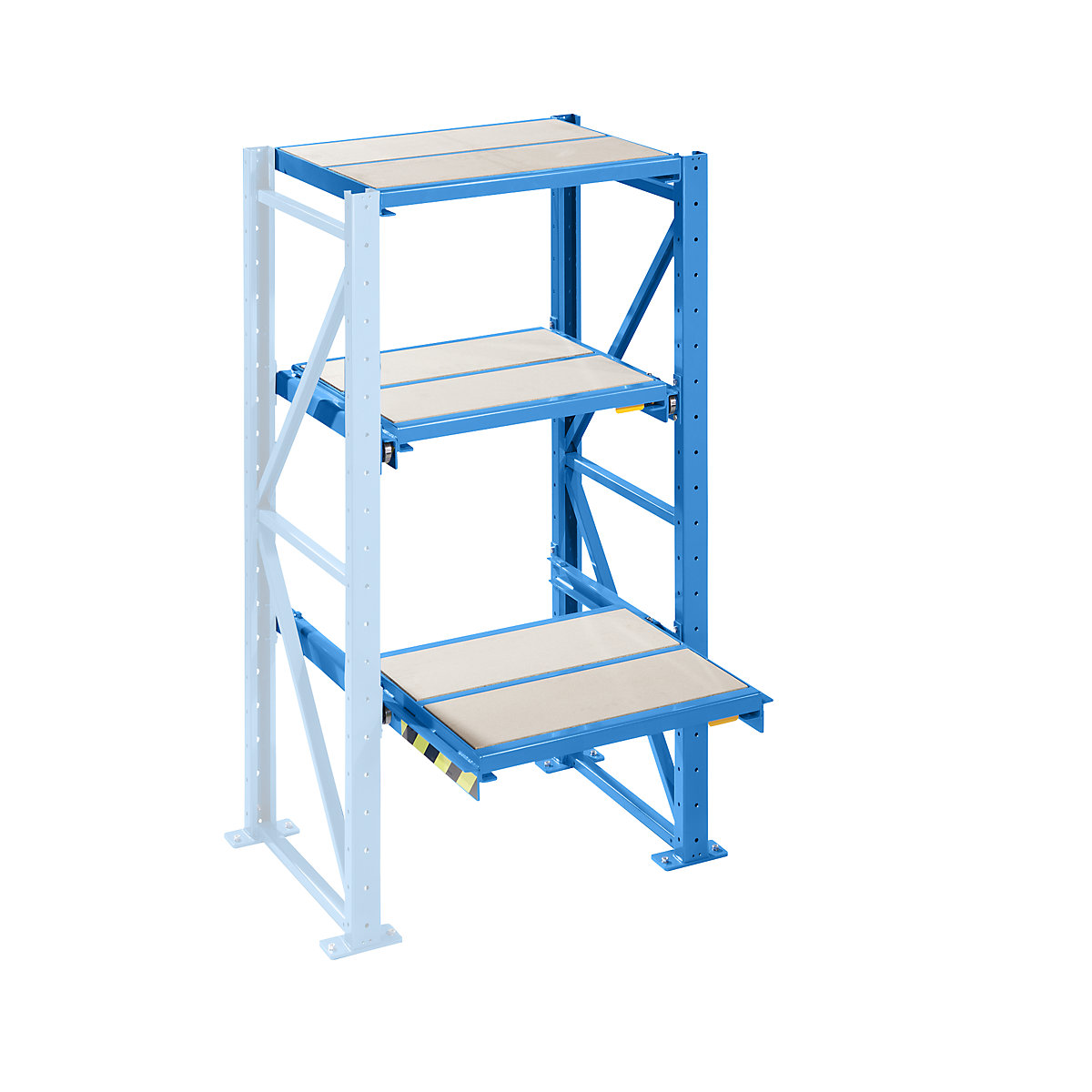

Heavy duty pull-out shelving unit – LISTA shelf width 890 mm, depth 1260 mm, extension shelf unit
light blue
Colour of uprights
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 119175 49
Heavy duty pull-out shelving unit – LISTA shelf width 890 mm, depth 1260 mm, extension shelf unit
light blue
light blue
£3,129.00
Price / item (Excl. VAT)
Delivery time: 4 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Heavy duty drawers – Max. load 800 kg
- Available as a complete shelf unit
- Ideal for storing heavy goods, such as injection moulds, punching tools, motors, etc.
- Maximum stability provided by welded steel construction
- Pallet storage crossways or lengthways
- Loading possible using crane and forklift truck
- Pallet storage: on either a fixed frame or on the floor
- Easy to move heavy duty drawers that can be locked in place when pushed in and when pulled out
- Heavy duty drawers: placement of moulded chipboard or sheet metal panels allows the goods to be stored flush and be pulled out
Extension shelf unit consisting of
– 1 upright, incl. floor anchoring (4 x bolt anchor M12 / 140) and levelling plate set (1 x 1 mm, 2 mm and 4 mm thick)
– 2 extension frames for partial extension (65 %) incl. 2-part chipboard inlay, 40 mm thick
– 1 fixed frame as a top shelf incl. 2-part chipboard inlay, 40 mm thick
Max. load top shelves 100 kg.
Max. fixed frame and extension frame shelf load 800 kg.
– 1 upright, incl. floor anchoring (4 x bolt anchor M12 / 140) and levelling plate set (1 x 1 mm, 2 mm and 4 mm thick)
– 2 extension frames for partial extension (65 %) incl. 2-part chipboard inlay, 40 mm thick
– 1 fixed frame as a top shelf incl. 2-part chipboard inlay, 40 mm thick
Max. load top shelves 100 kg.
Max. fixed frame and extension frame shelf load 800 kg.
Side panels, rear panels, covers, sliding doors, roller shutters, floor anchoring for different floor conditions are also available on request.
Safety information
1. A diagonal cross brace must be installed in each standard shelf unit and in every 3rd extension shelf unit.
2. Anchoring regulations: heavy duty pull-out shelving must always be anchored to the floor.
3. When the complete shelf units are installed, the floor anchoring provided is suitable for a floor with a concrete strength class of at least B25, for a maximum screed depth of 35 mm and a concrete thickness of at least 200 mm.
The specified max. load applies with uniform load distribution. Only one extension frame may be extended per shelf bay.
Determining the overall shelf unit width
Number of shelf widths + number of upright widths 80 mm + 2 x outside footplate widths 60 mm.
1. A diagonal cross brace must be installed in each standard shelf unit and in every 3rd extension shelf unit.
2. Anchoring regulations: heavy duty pull-out shelving must always be anchored to the floor.
3. When the complete shelf units are installed, the floor anchoring provided is suitable for a floor with a concrete strength class of at least B25, for a maximum screed depth of 35 mm and a concrete thickness of at least 200 mm.
The specified max. load applies with uniform load distribution. Only one extension frame may be extended per shelf bay.
Determining the overall shelf unit width
Number of shelf widths + number of upright widths 80 mm + 2 x outside footplate widths 60 mm.
Supplied flat pack.
Extension frames, fixed frames and top shelves in the same colour as the support frame.
10 year guarantee
Safety tested
This is a test symbol. GS stands for certified safety.
This is a test symbol. GS stands for certified safety.
Technical data
Shelf unit type | extension unit |
---|---|
Max. shelf load | 800 kg |
Max. bay load | 9000 kg |
Shelf unit height | 2000 mm |
Overall width | 1090 mm |
Overall depth | 1260 mm |
Material | steel |
Adjustment grid | 100 mm |
Pull-out shelf width | 890 mm |
Scope of delivery | 1 upright, incl. floor anchoring and levelling plate set, 2 extension frames for single drawer incl. chipboard inlay, 1 fixed frame as a top shelf incl. chipboard inlay |
Product type | heavy duty bolt-together shelving units |
Supplied | flat pack |
Weight | 200 kg |
Colour of uprights | light blue RAL 5012 |
Pictorial instructions |
Sustainability
Enkelfähig
Enkelfähig product
Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.
For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Enkelfähig refers to multi-generational thinking, and reflects the extent to which a product or service contributes to the emergence of a sustainable, social and fair future in which our grandchildren will still be able to live. Enkelfähig asks the same question of every product: will this product help create a better tomorrow for future generations?
The 2 categories in which this product performs particularly well are listed below.
For more information about the product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Circular economy
A circular economy is an economic system in which waste is avoided and resources are used efficiently by recirculating materials, products and waste in closed cycles and reusing them as raw materials or sources of energy for new products.
This product makes a greater contribution to achieving a circular economy. The greater contribution compared to other products is the result of several factors, including the use of hardwearing materials, the ability to be recycled, and the use of recycled materials in the product design. Sustainable packaging is also factored into any assessment within a circular economy.
Innovation and technological progress
This product scores points within its product group due to the use of an innovative product design or innovative materials that advance product sustainability. Compared to other products, the product utilises, for example, material solutions that are more sustainable, the use of an increased share of recycled materials, or an optimised product design that has a positive impact on the recyclability, service life, durability and therefore the general sustainability of the product solution.
