Ref.: 119168 49

Heavy duty pull-out shelving unit – LISTA shelf width 890 mm, depth 860 mm, extension shelf unit

Heavy duty pull-out shelving unit – LISTA

light blue

£2,429.00
Price / item (Excl. VAT)

Delivery time: 4 Week delivery
Product description
  • Heavy duty drawers – max. load 1000 kg
  • Available as a complete shelf unit

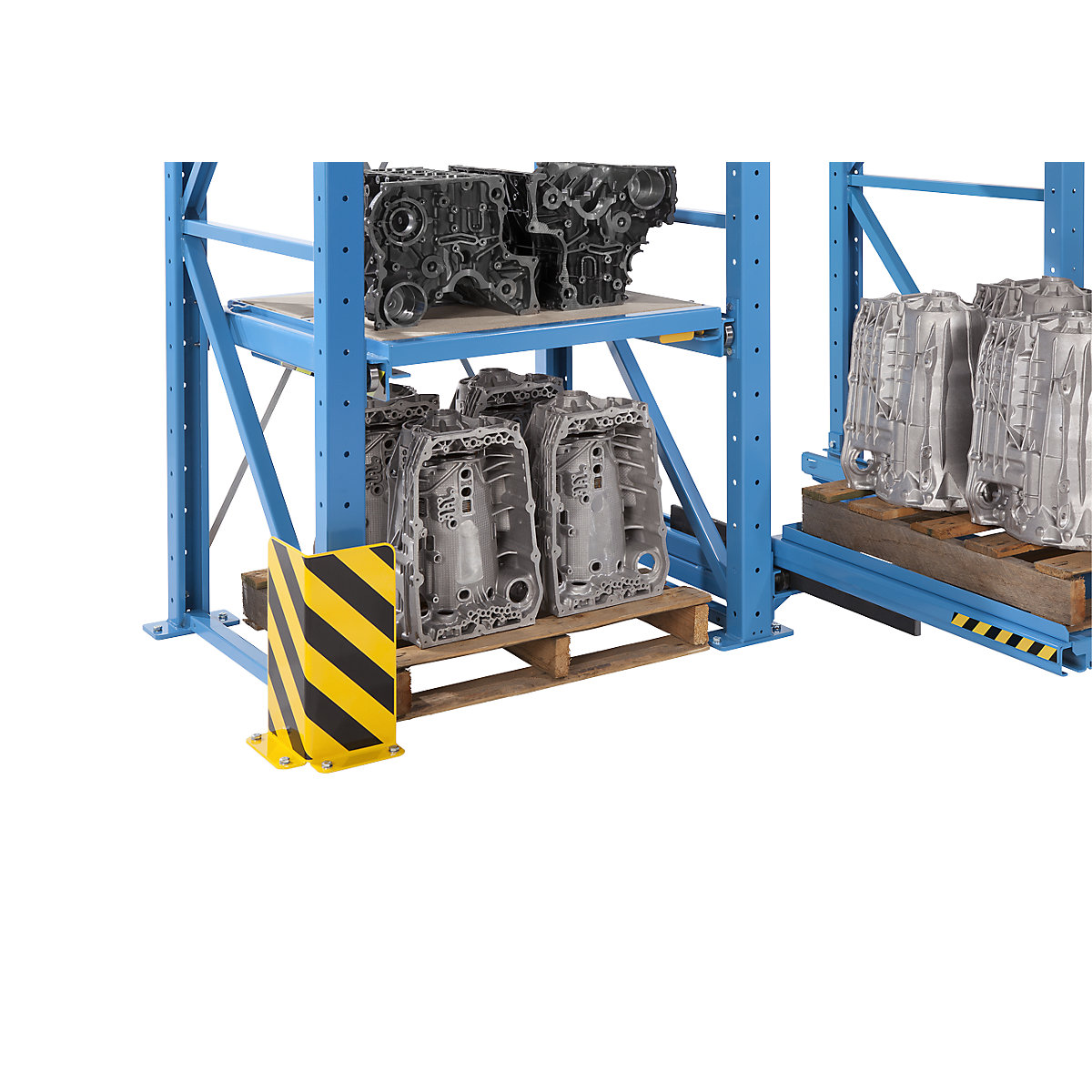

  • Ideal for storing heavy goods, such as injection moulds, punching tools, motors, etc.
  • Maximum stability provided by welded steel construction
  • Pallet storage crossways or lengthways
  • Loading possible using crane and forklift truck
  • Pallet storage: on either a fixed frame or on the floor

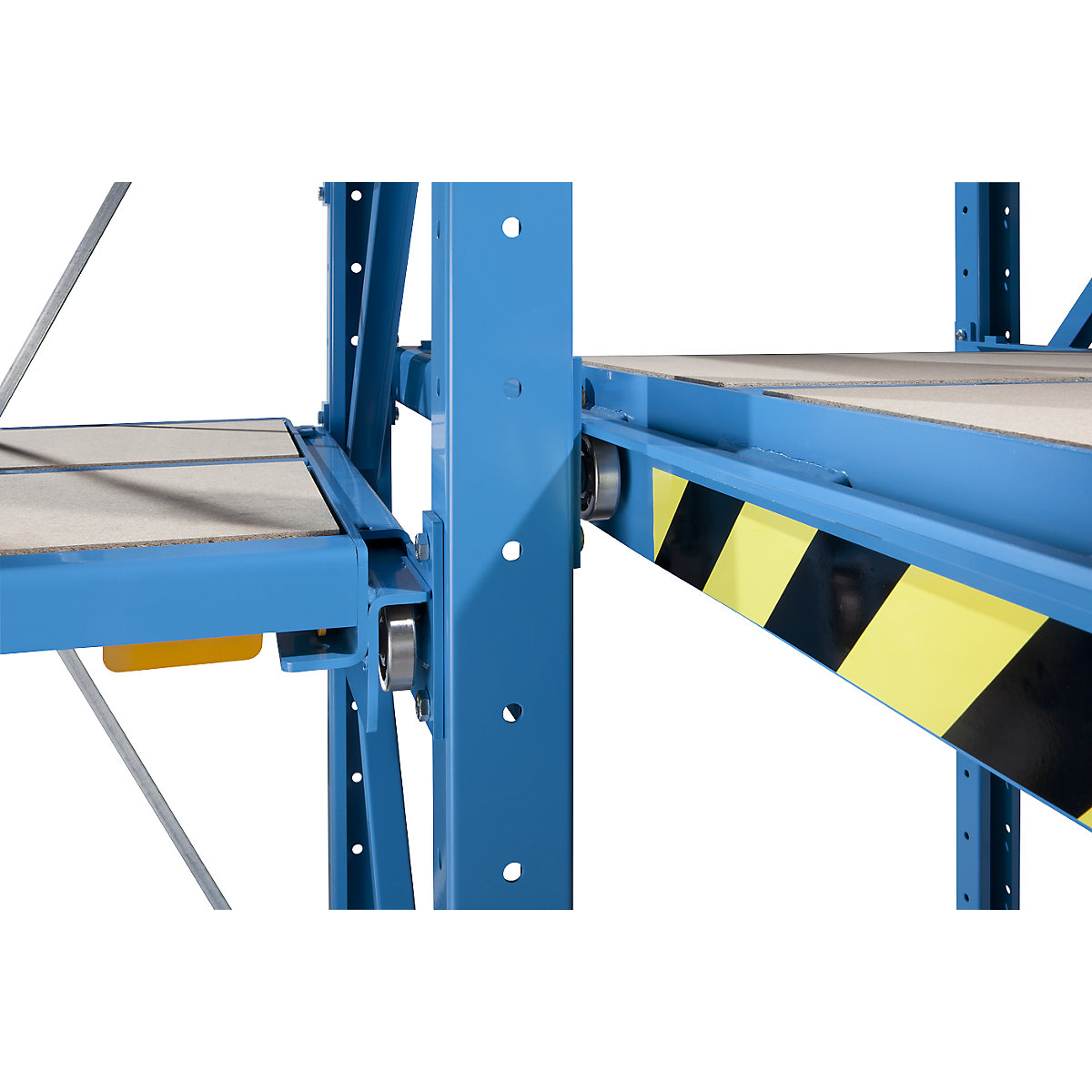

  • Easy to move heavy duty drawers that can be locked in place when pushed in and when pulled out
  • Heavy duty drawers: placement of moulded chipboard or sheet metal panels allows the goods to be stored flush and be pulled out

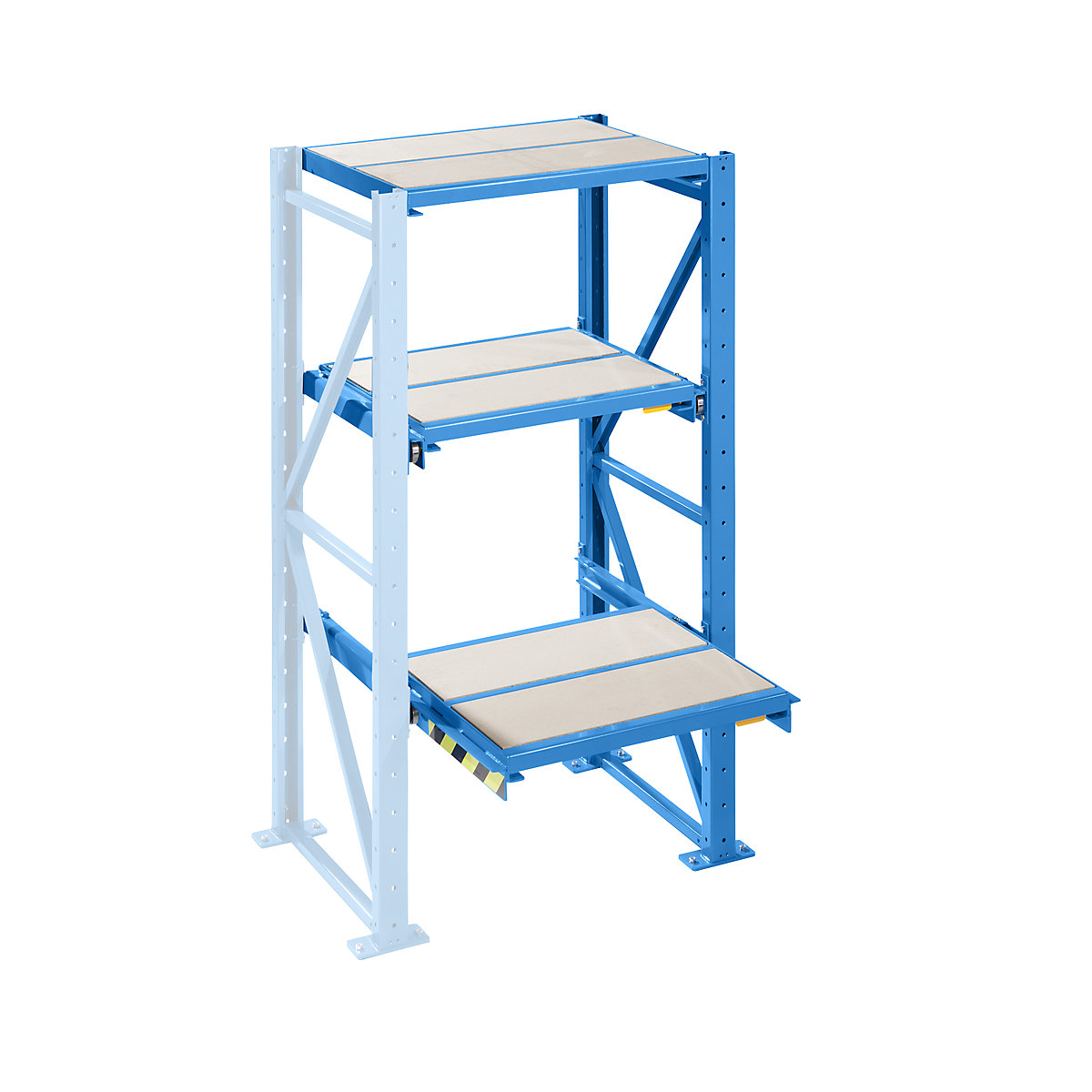

Extension shelf unit consisting of
– 1 upright, incl. floor anchoring (4 x bolt anchor M12 / 140) and levelling plate set (1 x 1 mm, 2 mm and 4 mm thick)
– 2 extension frames for partial extension (65 %) incl. 2-part chipboard inlay, 40 mm thick
– 1 fixed frame as a top shelf incl. 2-part chipboard inlay, 40 mm thick

Max. load top shelves 200 kg.
Max. fixed frame and extension frame shelf load 1000 kg.
Side panels, rear panels, covers, sliding doors, roller shutters, floor anchoring for different floor conditions are also available on request.
Safety information
1. A diagonal cross brace must be installed in each standard shelf unit and in every 3rd extension shelf unit.
2. Anchoring regulations: heavy duty pull-out shelving must always be anchored to the floor.
3. When the complete shelf units are installed, the floor anchoring provided is suitable for a floor with a concrete strength class of at least B25, for a maximum screed depth of 35 mm and a concrete thickness of at least 200 mm.

The specified max. load applies with uniform load distribution. Only one extension frame may be extended per shelf bay.

Determining the overall shelf unit width
Number of shelf widths + number of upright widths 80 mm + 2 x outside footplate widths 60 mm.
Supplied flat pack.
Extension frames, fixed frames and top shelves in the same colour as the support frame.
10 year guarantee
10 year guarantee
Safety tested
This is a test symbol. GS stands for certified safety.
Safety tested. This is a test symbol. GS stands for certified safety.
Technical data
Shelf unit typeextension unit
Max. shelf load1000 kg
Max. bay load9000 kg
Shelf unit height2000 mm
Overall width1090 mm
Overall depth860 mm
Materialsteel
Adjustment grid100 mm
Pull-out shelf width890 mm
Scope of delivery1 upright, incl. floor anchoring and levelling plate set, 2 extension frames for single drawer incl. chipboard inlay, 1 fixed frame as a top shelf incl. chipboard inlay
Product typeheavy duty bolt-together shelving units
Suppliedflat pack
Weight165 kg
Colour of uprightslight blue RAL 5012
Pictorial instructions
