Ref.: 945654 49

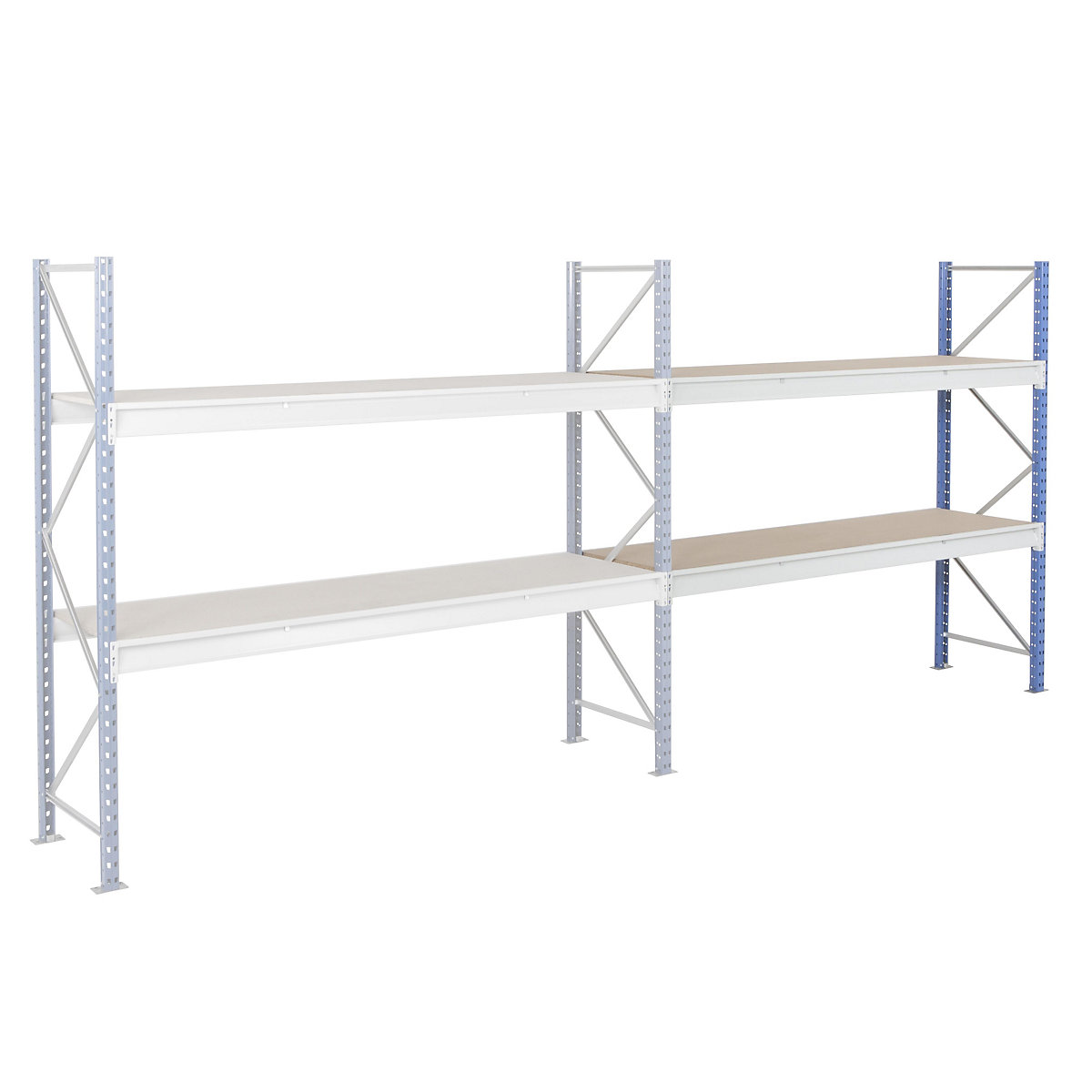

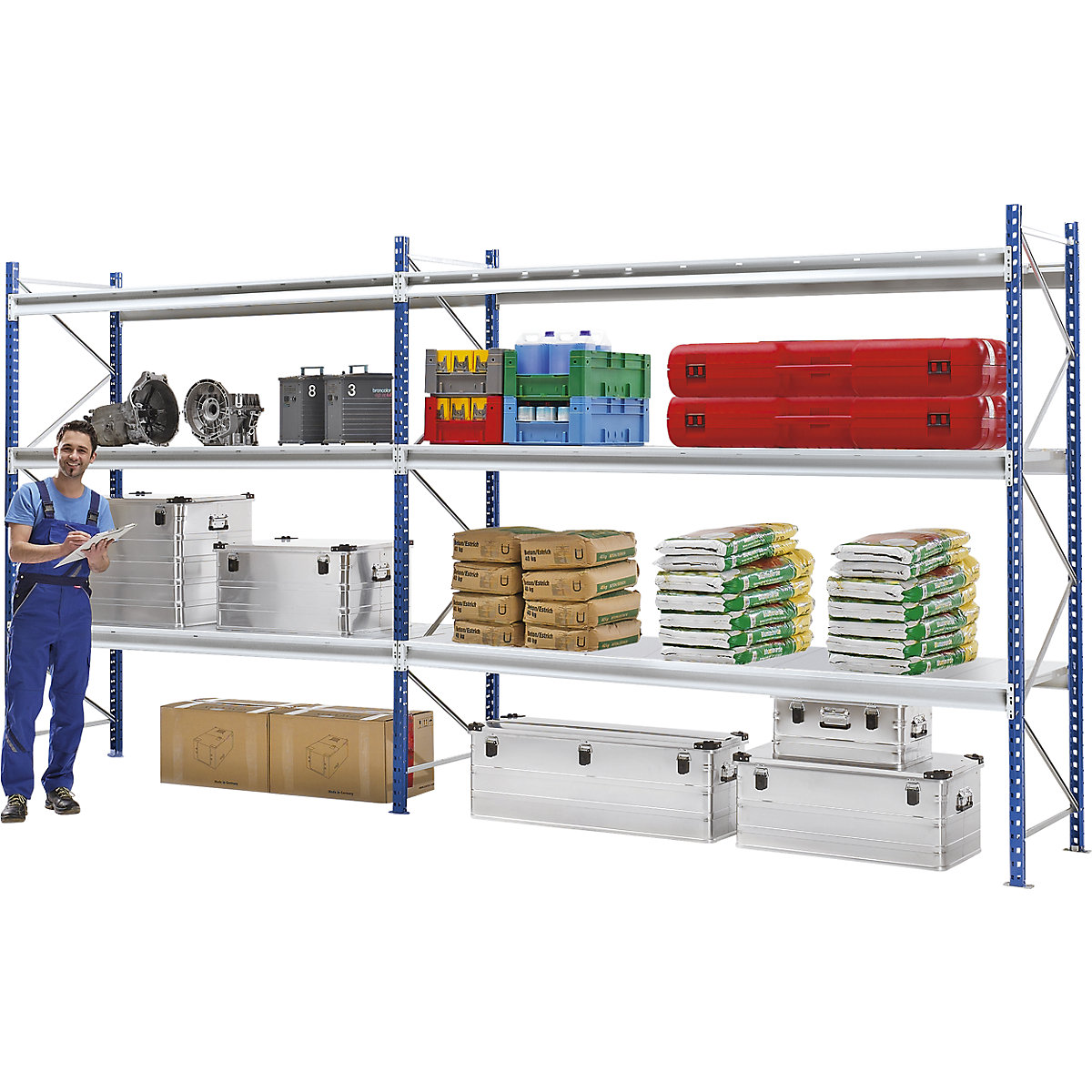

Heavy duty wide span shelving with moulded chipboard shelf panels frame colour blue
(1)
HxWxD 1996 x 2330 x 600 mm, extension shelf unit
Shelf unit type
Max. shelf load [kg]
Shelf unit height [mm]
Overall width [mm]
Overall depth [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 945654 49
Heavy duty wide span shelving with moulded chipboard shelf panels frame colour blue
(1)
HxWxD 1996 x 2330 x 600 mm, extension shelf unit
HxWxD 1996 x 2330 x 600 mm, extension shelf unit
£479.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- For the manual storage of bulky and heavy goods
- Boltless installation and adjustment of support beams
- Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III

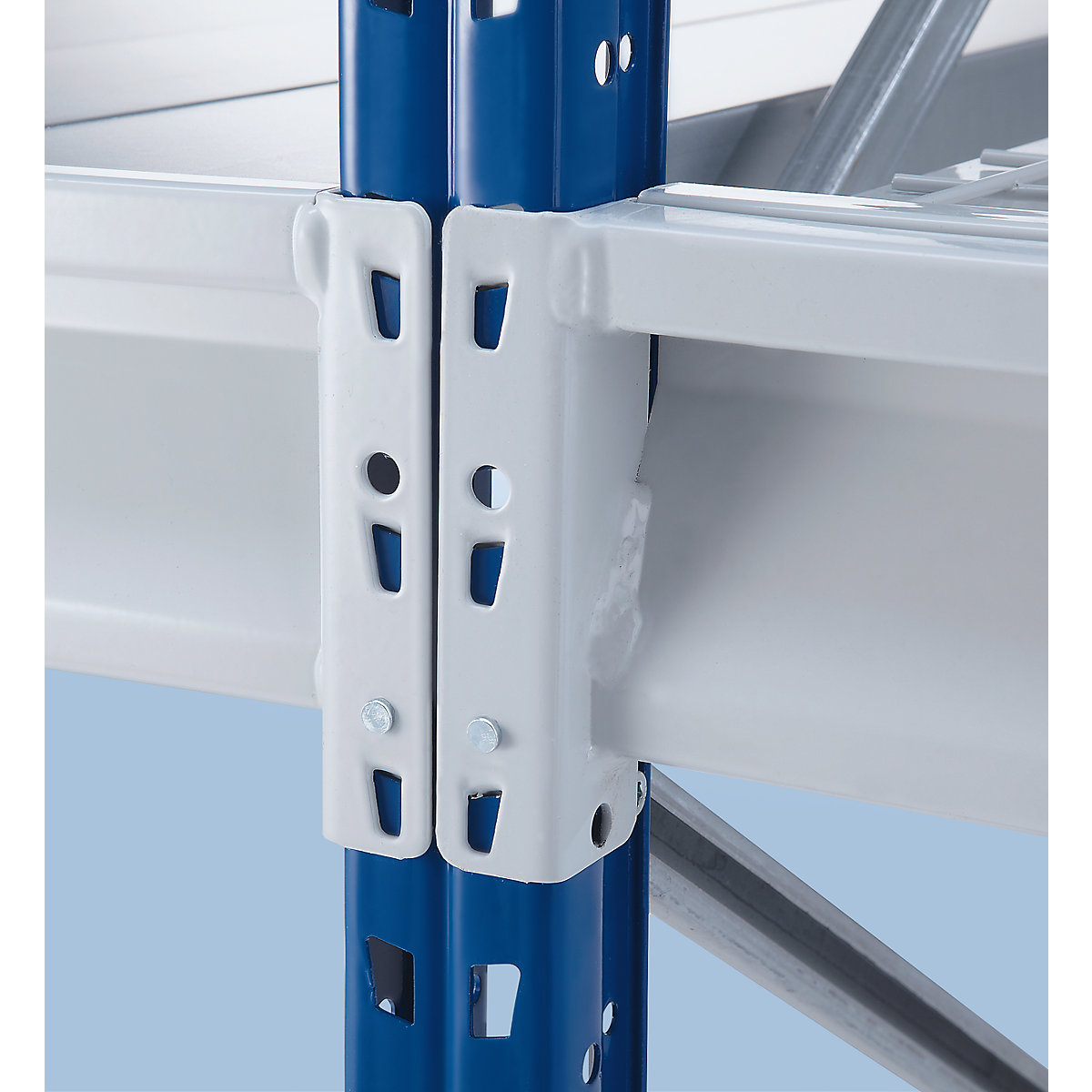

Upright frame
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.

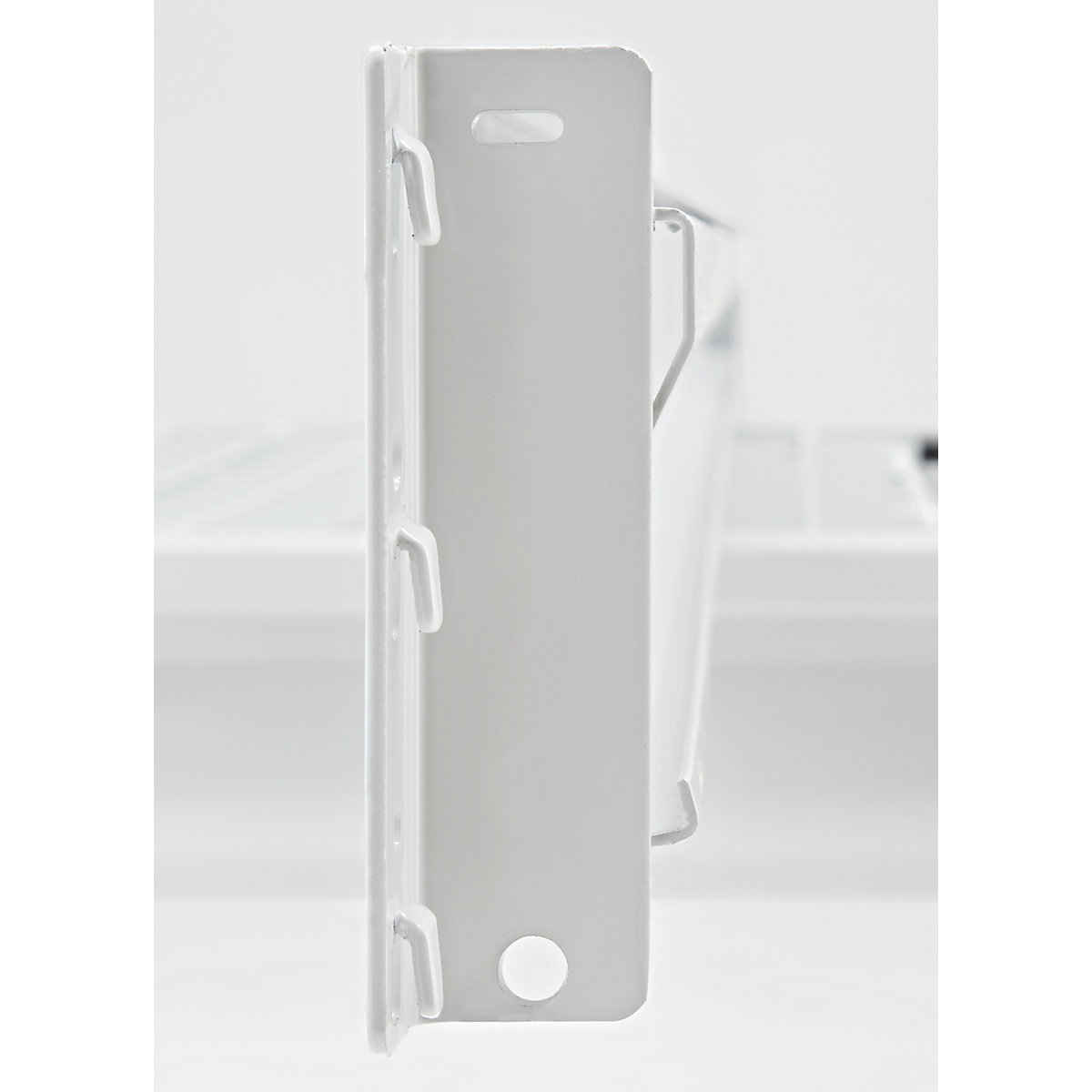

Shelves

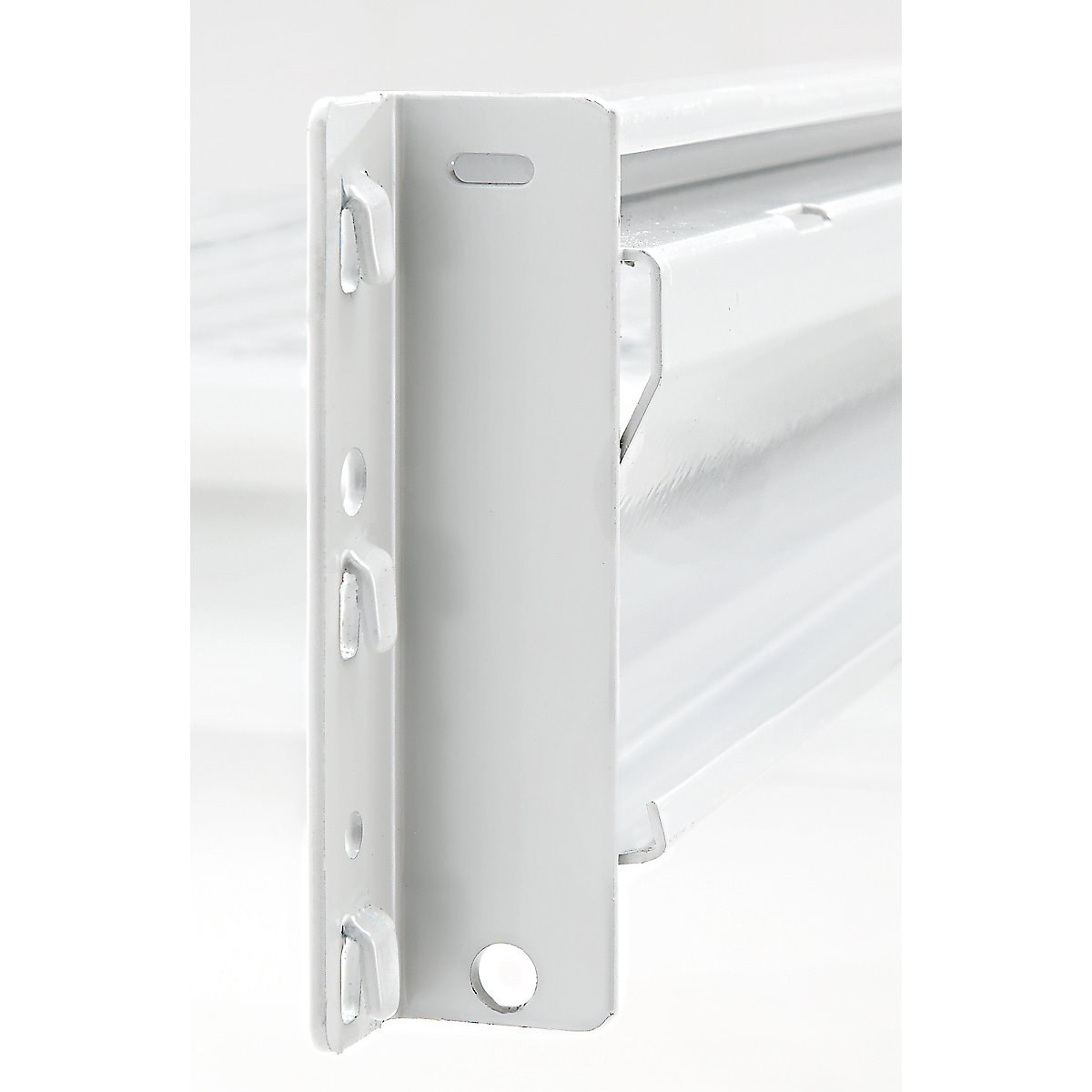

Support beams with Z profile, plastic coated light grey RAL 7035.
3 suspension hooks with securing pins for mounting the support beams.

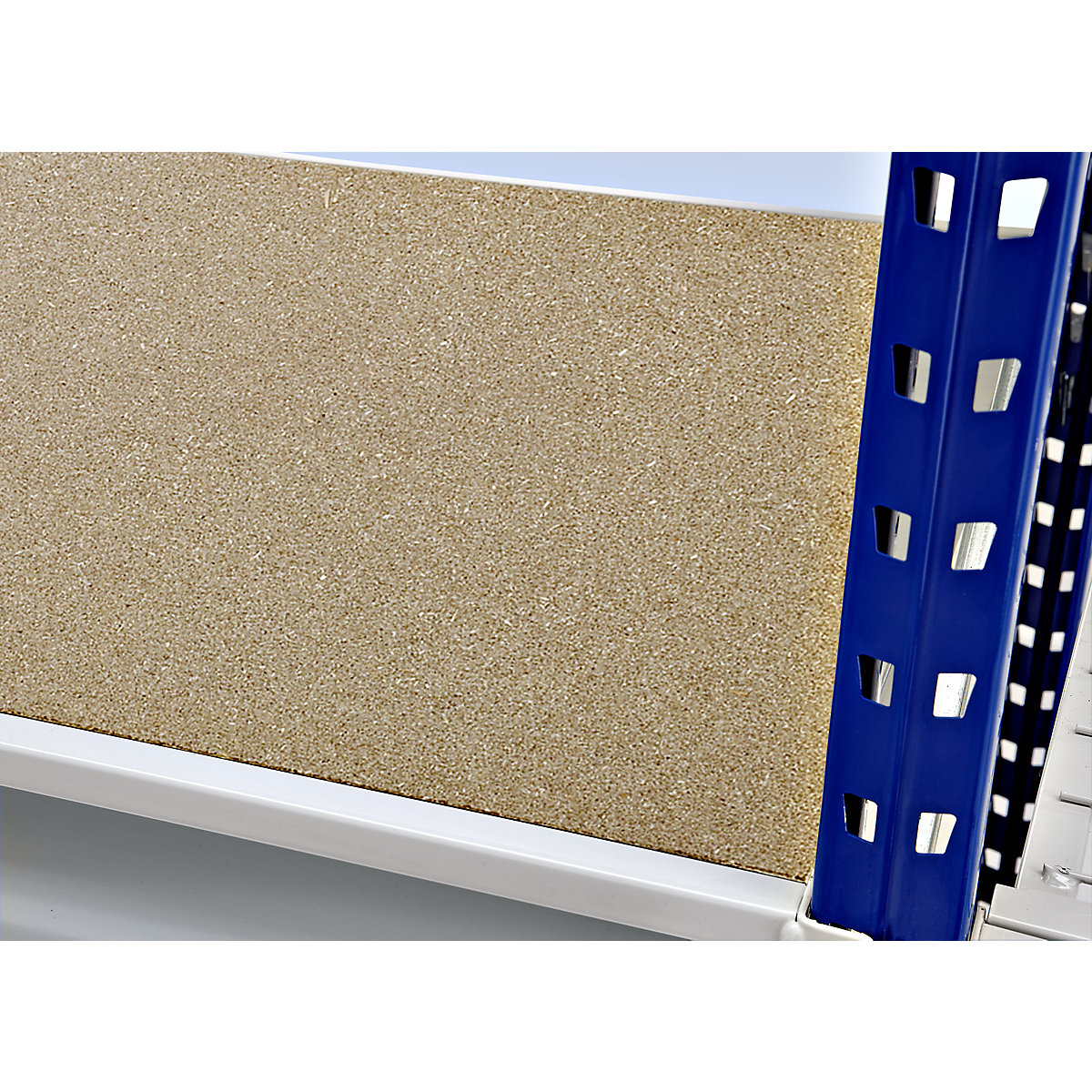

Chipboard panels, 19 mm thick.
2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm.
Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts.
Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included.
50 mm shelf adjustment grid.
Shelves
Support beams with Z profile, plastic coated light grey RAL 7035.
3 suspension hooks with securing pins for mounting the support beams.
Chipboard panels, 19 mm thick.
External dimensions
Standard shelf unit width
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.
Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
Standard shelf unit width
– without footplates: shelf width + 100 mm.
– with footplates: shelf width + 160 mm.
Extension shelf unit width
– without footplates: shelf width + 50 mm.
– with footplates: shelf width + 80 mm.
Shelf unit depth incl. foot plates
Shelf depth + 10 mm.
Supplied flat pack – easy self-assembly.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
Technical data
Max. bay load | 4500 kg |
---|---|
Material of uprights | steel, plastic coated |
Colour of uprights | gentian blue RAL 5010 |
Width of upright profile | 25 mm |
Depth of upright profile | 15 mm |
Cross beam material | steel, zinc plated |
Cross beam colour | light grey RAL 7035 |
Shelf material | chipboard |
Design of shelf levels | cross-pieces with shelves |
Adjustment grid | 50 mm |
Shelf thickness | 19 mm |
Product type | heavy duty bolt-together shelving units |
Supplied | flat pack |
Shelf unit type | extension unit |
Max. shelf load | 1125 kg |
Shelf unit height | 1996 mm |
Overall width | 2330 mm |
Overall depth | 610 mm |
Number of shelf levels | 2 pcs. |
Shelf clearance width | 2245 mm |
Shelf width | 2250 mm |
Shelf depth | 600 mm |
Weight | 66.91 kg |
Pictorial instructions |
