Ref.: 945505 49

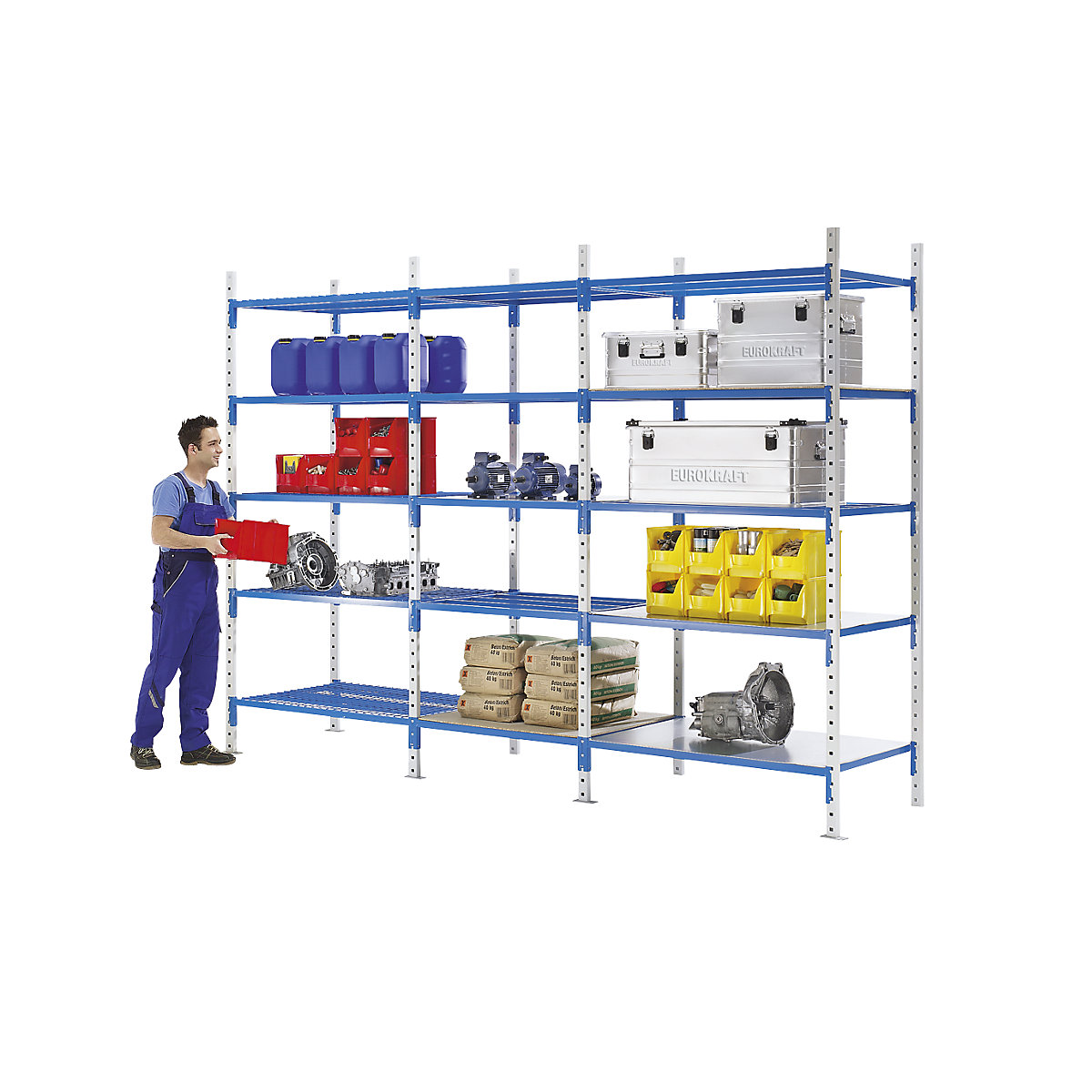

Boltless mesh shelf unit shelf unit height 1996 mm, shelf width 960 mm
extension shelf unit, shelf width 595 mm
Shelf unit type
Shelf depth [mm]
This label from kaiserkraft evaluates products based on a wide range of sustainability criteria
Ref.: 945505 49
Boltless mesh shelf unit shelf unit height 1996 mm, shelf width 960 mm
extension shelf unit, shelf width 595 mm
extension shelf unit, shelf width 595 mm
£649.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description
- Particularly user friendly and versatile due to mesh shelves which provide a better overview of stored products and for rooms with sprinkler systems
- Double sided use possible, as cross braces are not required
- Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III
Upright frames
Rectangular tubular steel 50 x 30 x 1.5 mm. Light grey RAL 7035, plastic coated. Incl. zinc plated metal foot plates (110 x 50 x 3 mm) for anchoring to floor. Floor anchoring holes Ø 13 mm.
Bolts and plugs not included.
62.5 mm shelf height adjustment grid.

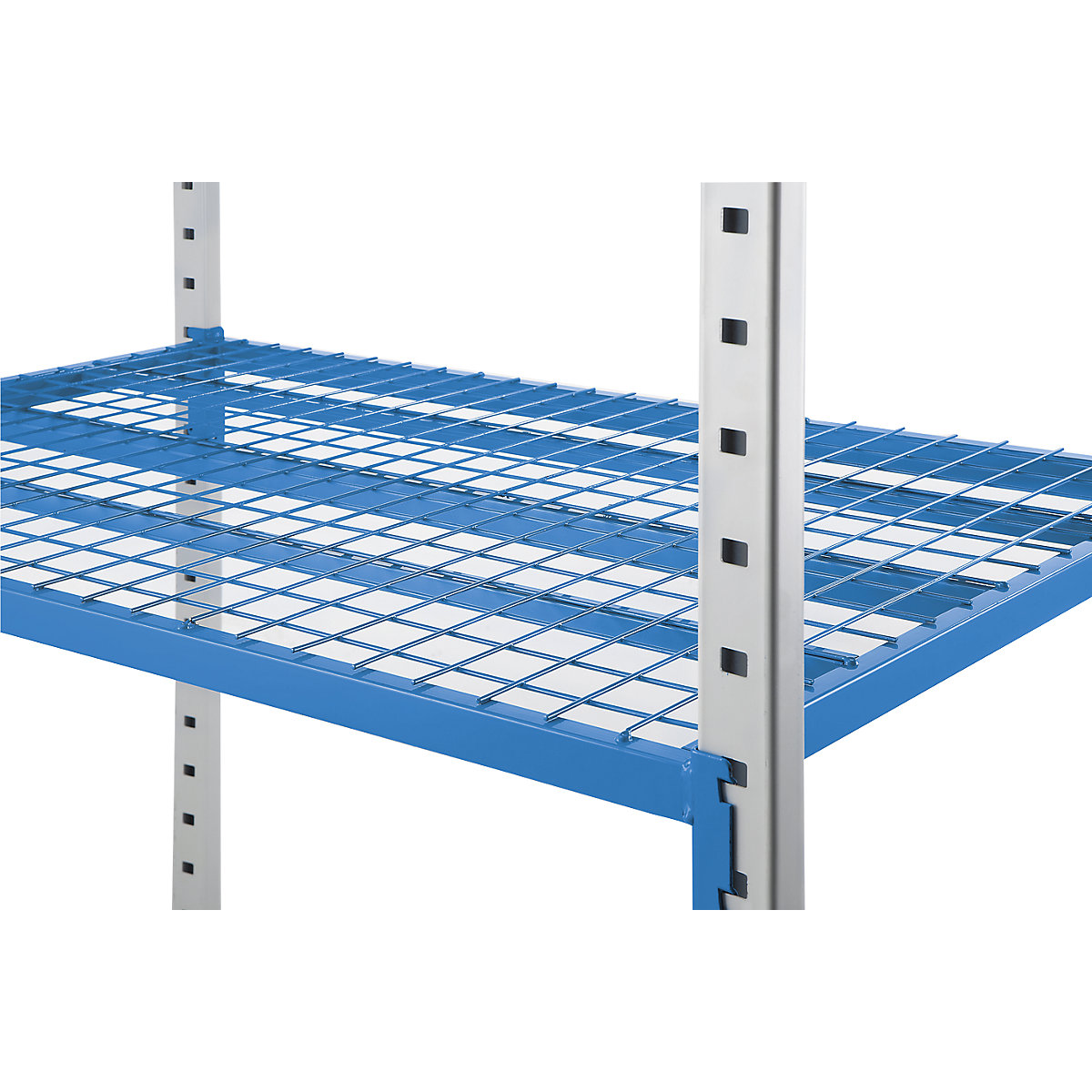

Mesh shelves
Mesh size 50 x 50 mm, wire thickness 3 mm.
Blue RAL 5015, plastic coated.
Rectangular tubular steel 50 x 30 x 1.5 mm. Light grey RAL 7035, plastic coated. Incl. zinc plated metal foot plates (110 x 50 x 3 mm) for anchoring to floor. Floor anchoring holes Ø 13 mm.
Bolts and plugs not included.
62.5 mm shelf height adjustment grid.
Mesh shelves
Mesh size 50 x 50 mm, wire thickness 3 mm.
Blue RAL 5015, plastic coated.
External dimensions
Shelf unit width
Standard shelf unit: 1060 mm + 1310 mm.
Extension shelf unit: 1010 mm + 1260 mm.
Shelf unit width incl. foot plates
Standard shelf unit: 1120 mm + 1370 mm.
Extension shelf unit: 1010 mm + 1260 mm.
Shelf unit depth
Shelf depth + 10 mm.
Shelf unit depth incl. foot plates
Shelf unit depth + 20 mm.
Upright profile width: 50 mm
Upright profile depth: 30 mm
Shelf unit width
Standard shelf unit: 1060 mm + 1310 mm.
Extension shelf unit: 1010 mm + 1260 mm.
Shelf unit width incl. foot plates
Standard shelf unit: 1120 mm + 1370 mm.
Extension shelf unit: 1010 mm + 1260 mm.
Shelf unit depth
Shelf depth + 10 mm.
Shelf unit depth incl. foot plates
Shelf unit depth + 20 mm.
Upright profile width: 50 mm
Upright profile depth: 30 mm
The specified max. load values are applicable with uniform load distribution. Additional shelves may be used if the specified max. bay load is observed.
Technical data
Number of shelves | 4 pcs. |
---|---|
Max. shelf load | 500 kg |
Shelf unit height | 1996 mm |
Max. bay load | 2500 kg |
Colour of uprights | light grey RAL 7035 |
Shelf width | 960 mm |
Material | steel |
Finish | plastic coated |
Shelf height adjustment increments | 62.5 mm |
Shelf colour | sky blue RAL 5015 |
Shelf material | mesh grid plastic coated |
Width of upright profile | 50 mm |
Depth of upright profile | 30 mm |
Shelf unit design | double sided |
Shelf unit fittings | without rear panel |
Product type | boltless shelving units |
Supplied | flat pack |
Shelf unit type | extension unit |
Shelf depth | 595 mm |
Overall width | 1010 mm |
Overall depth | 615 mm |
Weight | 28.5 kg |
Pictorial instructions |
Sustainability
Enkelfähig
Non-Enkelfähig product
This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.
For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
This product is currently not yet Enkelfähig. This does not mean that the product does not exhibit any sustainable features, and instead only means that it does not yet meet enough of the sustainability aspects included in the diverse criteria covered by our sustainability evaluation to achieve a rating of more than 3 points. This is why it does not feature the Enkelfähig endorsement.
For more information about product evaluation and the Enkelfähig Initiative, please visit our Enkelfähig information page.
Product guide
Together we are strong: Helpful information about this product.
