Ref.: 945802 49
Boltless shelving unit – eurokraft pro double row
(1)
shelf WxD 1000 x (2 x 400) mm, zinc plated, height 2000 mm, extension shelf unit
Shelf unit type
Number of shelves [pcs.]
Shelf depth [mm]
Shelf unit height [mm]
Overall width [mm]
Colour of uprights
Ref.: 945802 49
Boltless shelving unit – eurokraft pro double row
(1)
shelf WxD 1000 x (2 x 400) mm, zinc plated, height 2000 mm, extension shelf unit
shelf WxD 1000 x (2 x 400) mm, zinc plated, height 2000 mm, extension shelf unit
£519.00
Price / item (Excl. VAT)
Delivery time: 2 Week delivery
Good reasons to purchase products from us
- Guarantee of up to 15 years
- 30 day right of return
- Free delivery
- Fast delivery
We will be happy to help you
01442 238000
Monday-Friday 8am-5pm
Product description

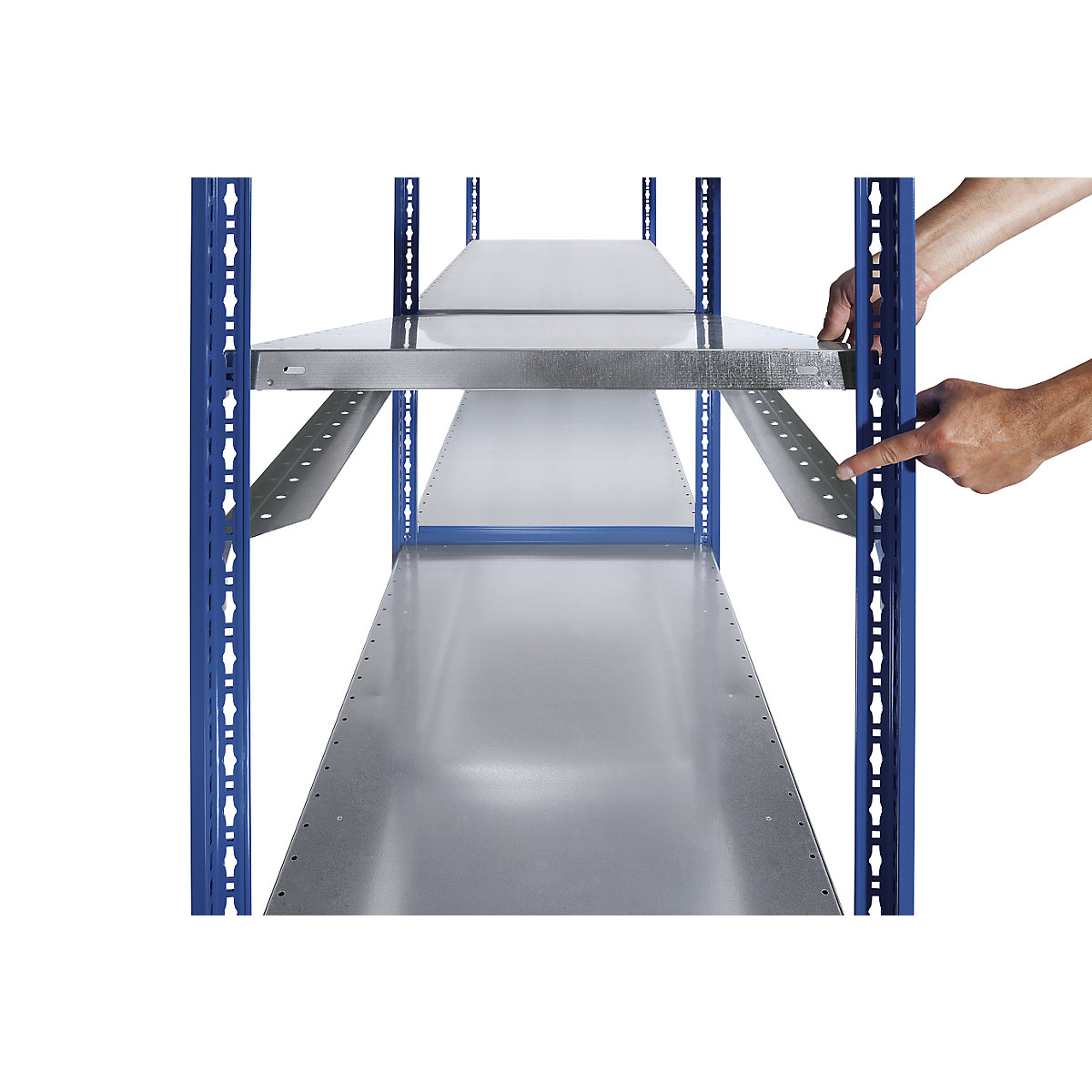

- Quick to assemble and upgrade, no tools or screws required
- Robust steel shelving unit for heavy loads
- Can be fitted in two rows for shorter routes
- Standard and extension elements can be combined
- Various widths, heights and shelf depths available
- With RAL-RG 614 label
- Wide range of accessories: zinc plated rear and side panels, shelf dividers, plinth cover plates and wall fasteners
Boltless shelving unit exhibiting maximum stability and made of steel with the RAL-RG 614 quality label. The double row metal shelving units with zinc plated shelves can be reinforced using the longitudinal locking bars included with it: this allows the shelving unit to be loaded from both sides, which means shorter routes when removing items and order picking. The plug-in connectors make assembly quick as a flash, with no screws or tools required. Combine standard and extension elements to suit your space requirements, vary the number of shelves and the colour of the uprights, and configure the shelf depth, width and height of your personal shelving unit.
Additional product details:
T-profile upright frame
Including clamp bases made of steel for securing to the floor, bolts and plugs not included.

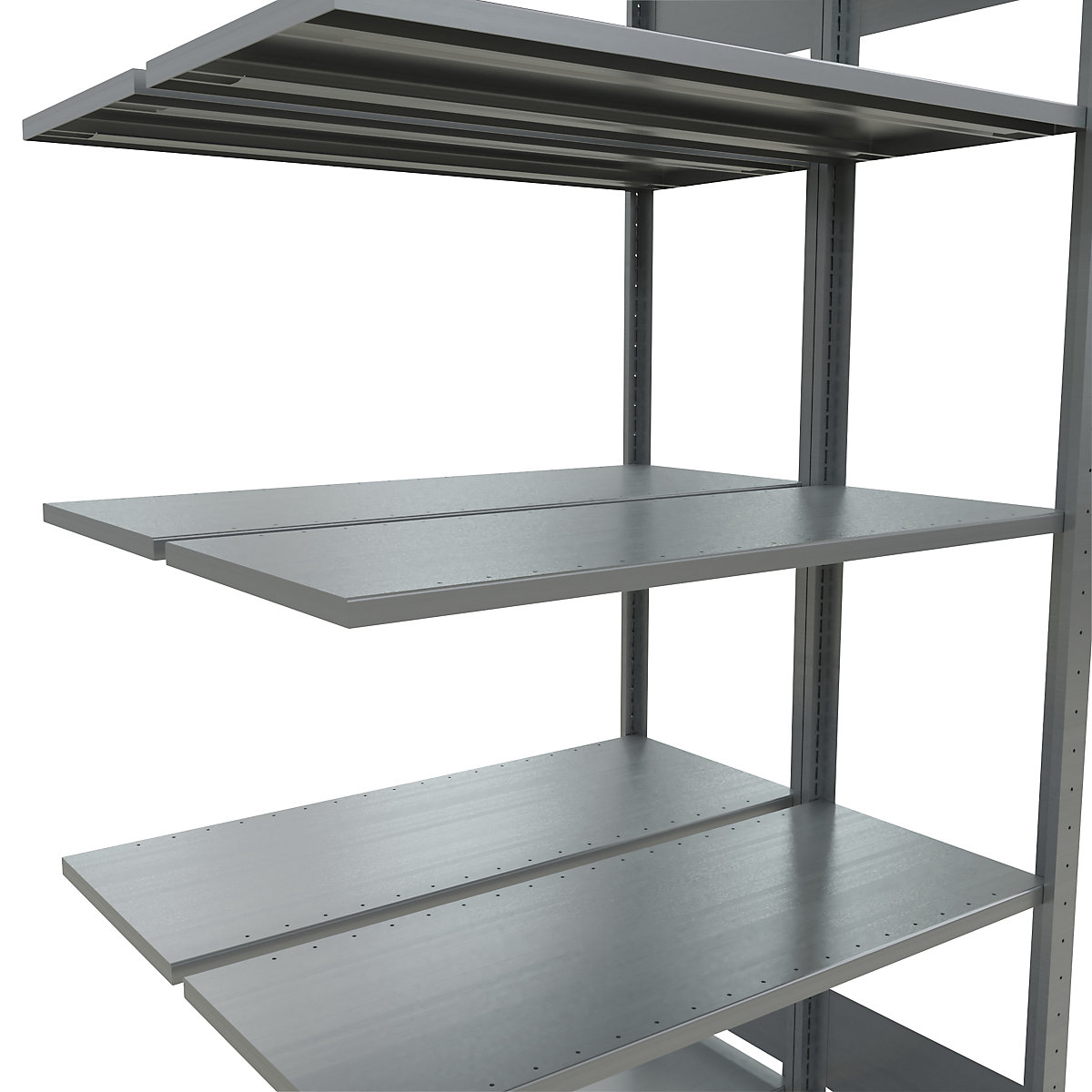

Zinc plated shelves
Maximum stability due to box profile. Shelves at front and rear with 50 mm spacing and perforations for securing shelf dividers (accessory). Shelf edge height: 40 mm. Shelf height adjustment grid 25 mm.
Additional product details:
T-profile upright frame
Including clamp bases made of steel for securing to the floor, bolts and plugs not included.
Zinc plated shelves
Maximum stability due to box profile. Shelves at front and rear with 50 mm spacing and perforations for securing shelf dividers (accessory). Shelf edge height: 40 mm. Shelf height adjustment grid 25 mm.
External dimensions:
Width
Standard shelf unit + 60 mm
Extension shelf unit + 6 mm
Depth
Shelf depth + 36 mm.
Max. bay load
2000 mm max. 1300 kg
2500 mm max. 1700 kg
If the height of the shelf unit equals more than 5 times its depth, it must be secured against tipping with suitable floor or wall fasteners.
Width
Standard shelf unit + 60 mm
Extension shelf unit + 6 mm
Depth
Shelf depth + 36 mm.
Max. bay load
2000 mm max. 1300 kg
2500 mm max. 1700 kg
If the height of the shelf unit equals more than 5 times its depth, it must be secured against tipping with suitable floor or wall fasteners.
The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
10 year guarantee
RAL quality seal: quality and inspection requirements for warehouse and workshop equipment (RAL-RG 614) defines recognised quality requirements
Technical data
Max. shelf load | 250 kg |
---|---|
Max. bay load | 1800 kg |
Design | plug in |
Shelf height adjustment increments | 25 mm |
Shelf material | sheet steel, galvanised |
Shelf unit design | double sided |
Shelf height | 40 mm |
Product type | boltless shelving units |
Supplied | flat pack |
Shelf unit type | extension unit |
Number of shelves | 2 x 5 pcs. |
Shelf depth | 400 mm |
Shelf unit height | 2000 mm |
Overall width | 1006 mm |
Colour of uprights | zinc plated |
Shelf width | 1000 mm |
Overall depth | 872 mm |
Material | steel, zinc plated |
Scope of delivery | including 2 pairs of longitudinal locking bars |
Weight | 56.24 kg |
Pictorial instructions |
