Edmolift – Automatic pallet leveller with turntable turntable Ø 1110 mm

  • Turntable with ball bearings
  • Height adjustment using air cushion and compressed air
  • All round foot clearance for best access
  • Non-electric
  • Maintains the height with changing loads
  • Protects the back when loading and unloading
  • Easily adjustable with compressed air
Edmolift
Ref.: 118558 49
Edmolift – Automatic pallet leveller with turntable, turntable Ø 1110 mm, max. load 150 – 2000 kg
Price / items (Excl. VAT)
£3,800.00

Product description

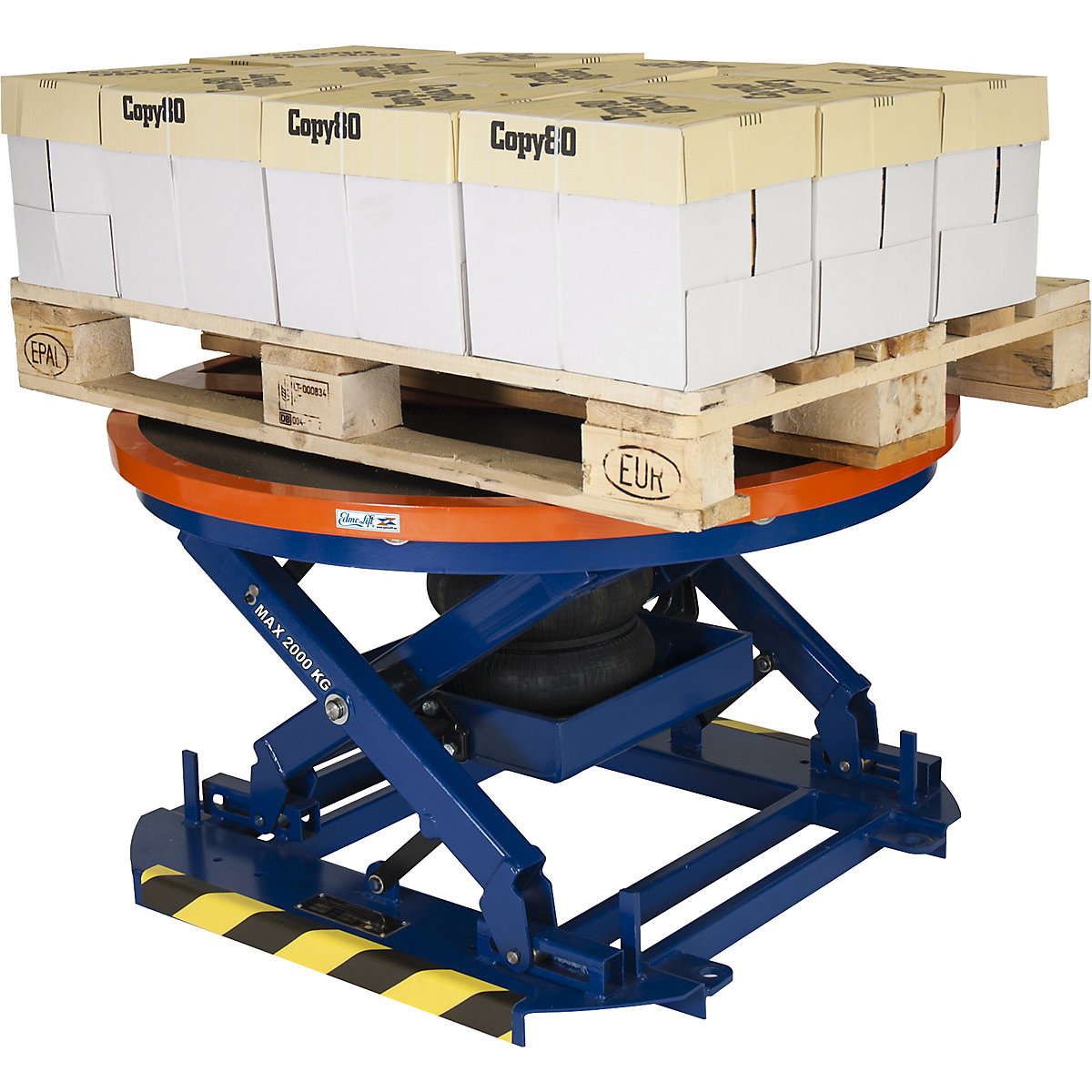

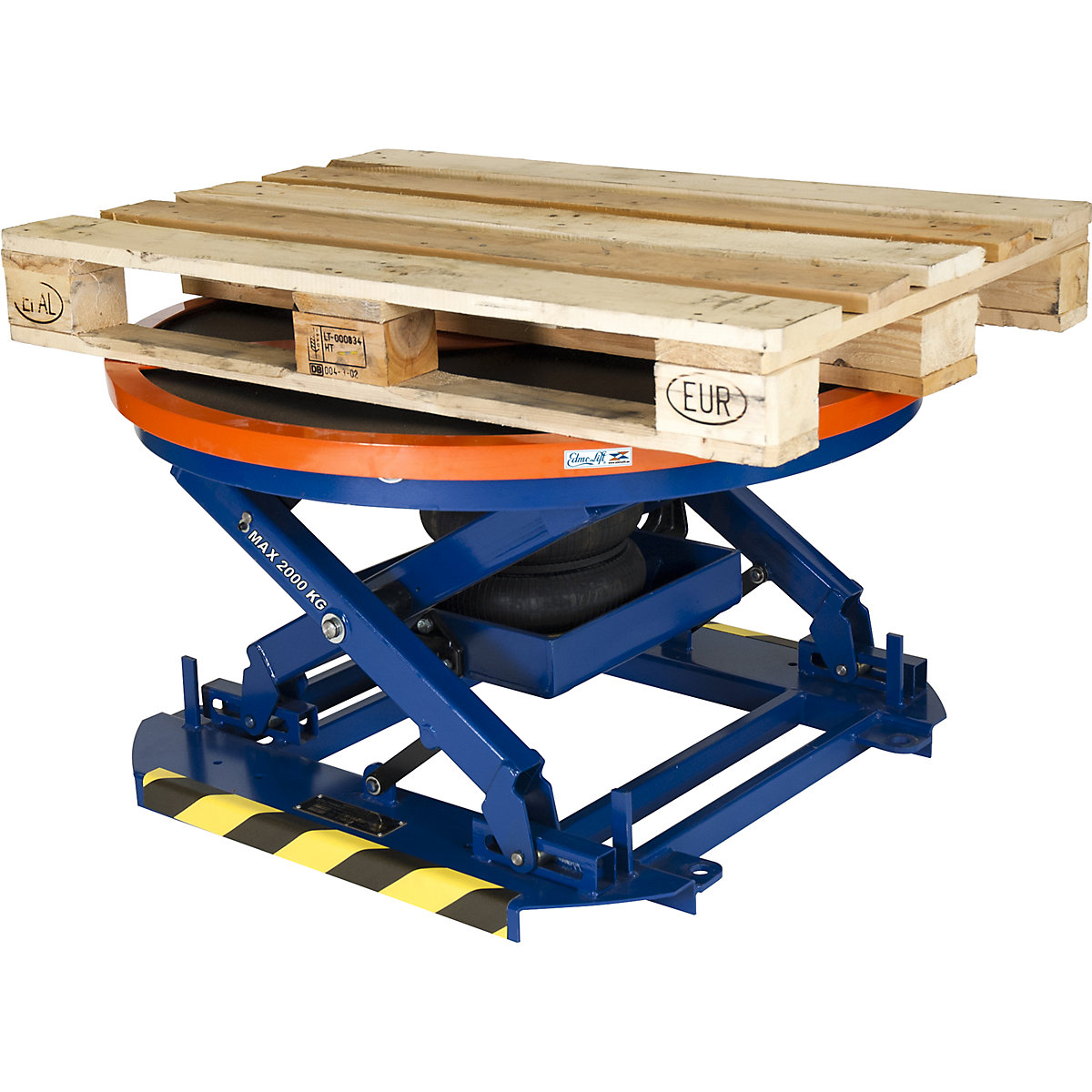

The automatic levelling device enables safe, faster and easier loading and unloading of pallets. The air pressure is used to adapt the PL 2002 to different loads. Once adapted to suit the load, the pallet leveller keeps the surface of the load at the same, ideal working height. This means the worker does not have to bend, stretch and twist constantly, this being the most common causes of back problems.

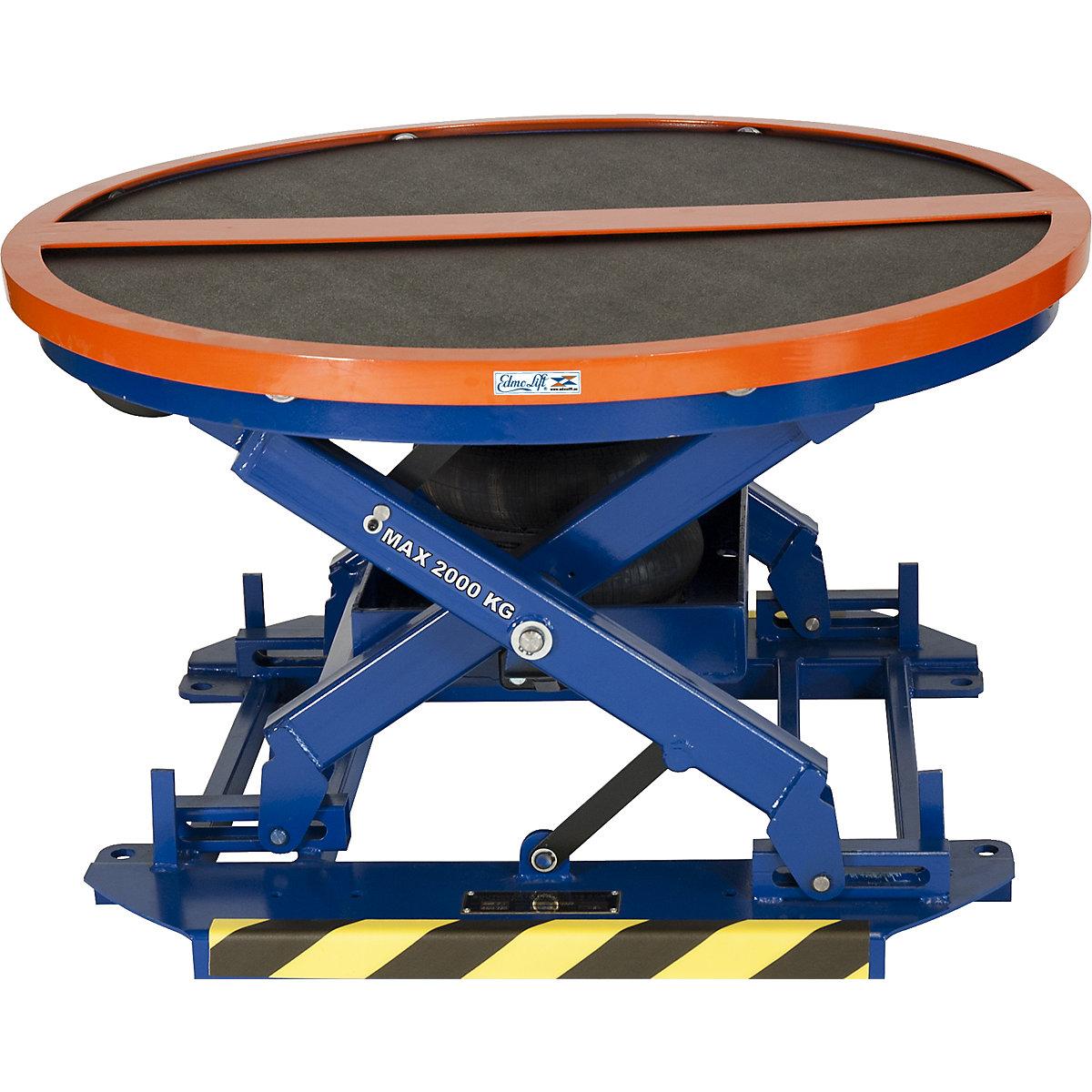

The PL 2002 offers employees 360° access to the load. All components are housed within the diameter of the turntable with ball. Nothing protrudes, projects or blocks the way – ensuring there are no areas to which access is limited.
The rotary lift table is ideally suited for applications for loads (up to 2000 kg) that change frequently and dramatically.

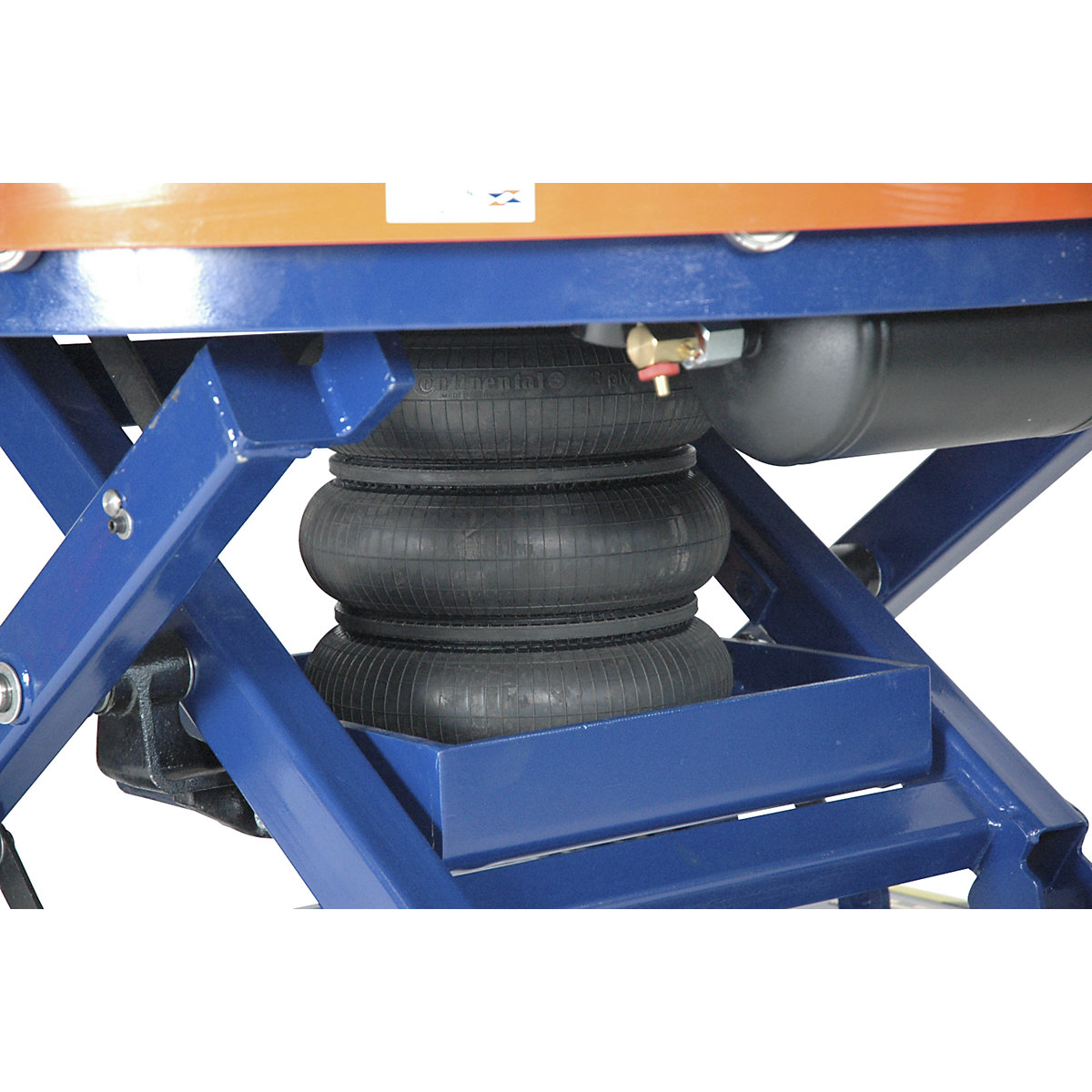

No power connection required. Simply pump up the air cushion with compressed air or a portable compressor and use the device anywhere!
Integrated guide rails make using a stacker for repositioning easy.
Takes a lot of strain off the back – fewer sick days.
  • Turntable with ball bearings
  • Height adjustment using air cushion and compressed air
  • All round foot clearance for best access
  • Non-electric
  • Maintains the height with changing loads
  • Protects the back when loading and unloading
  • Easily adjustable with compressed air
Technical data
Max. load150 – 2000 kg
Lifting range241 – 705 mm
Platform designround/turntable
Lift drivepneumatic
Platform coloursignal orange RAL 2010
Platform materialsteel/plastic
Platform finishsteel / plastic
Scissor mechanism colourultramarine blue RAL 5002
Scissor materialsteel
Finishpowder coated
Frame colourultramarine blue RAL 5002
Fittingswith turntable
Product typepallet lifters
Lift464 mm
Platform width1110 mm
Platform length1110 mm
Featurestationary
electro-hydraulic
Suppliedassembled
Weight165 kg
